User Manual for Turbosound NuQ118B-AN 3000W 18" Band-Pass Subwoofer with KLARK TEKNIK DSP Technology and ULTRANET Networking Click to enlarge the picture
Contents of the user manual for the Turbosound NuQ118B-AN 3000W 18" Band-Pass Subwoofer
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound NuQ118B-AN 3000W 18" Band-Pass Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

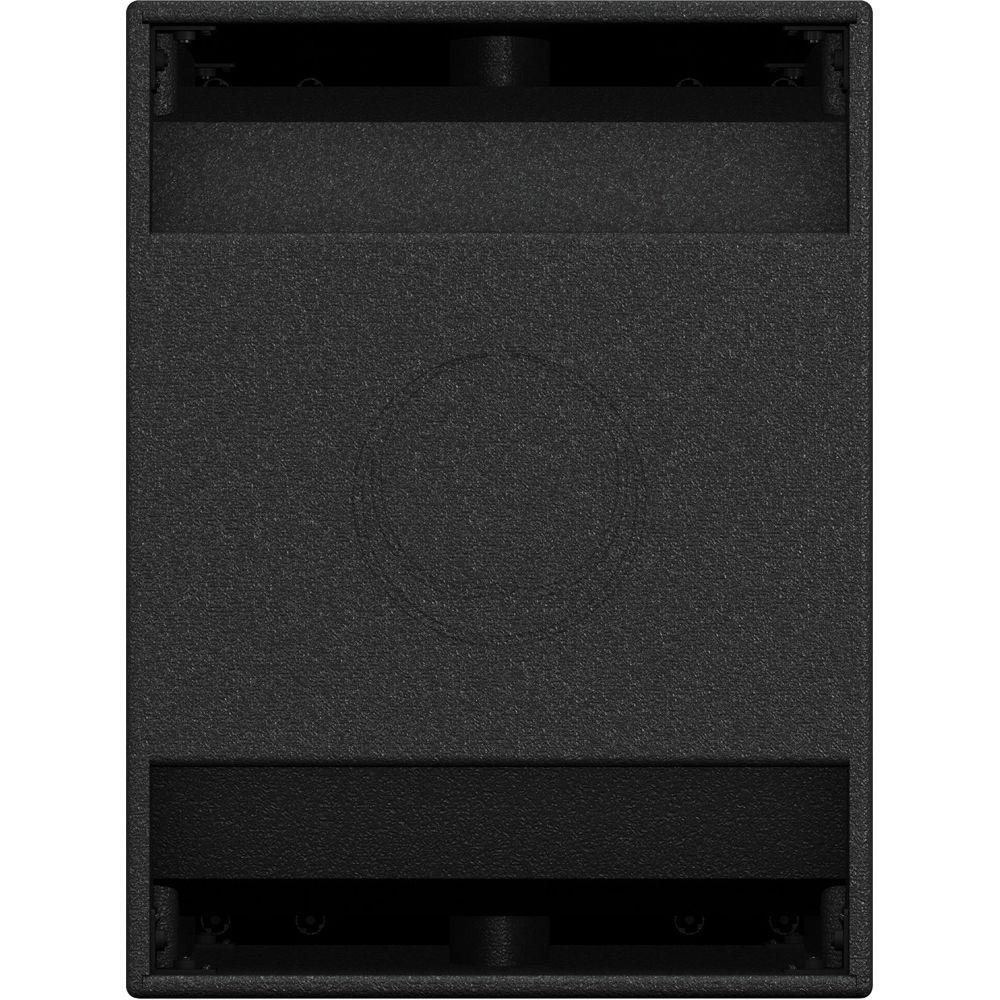

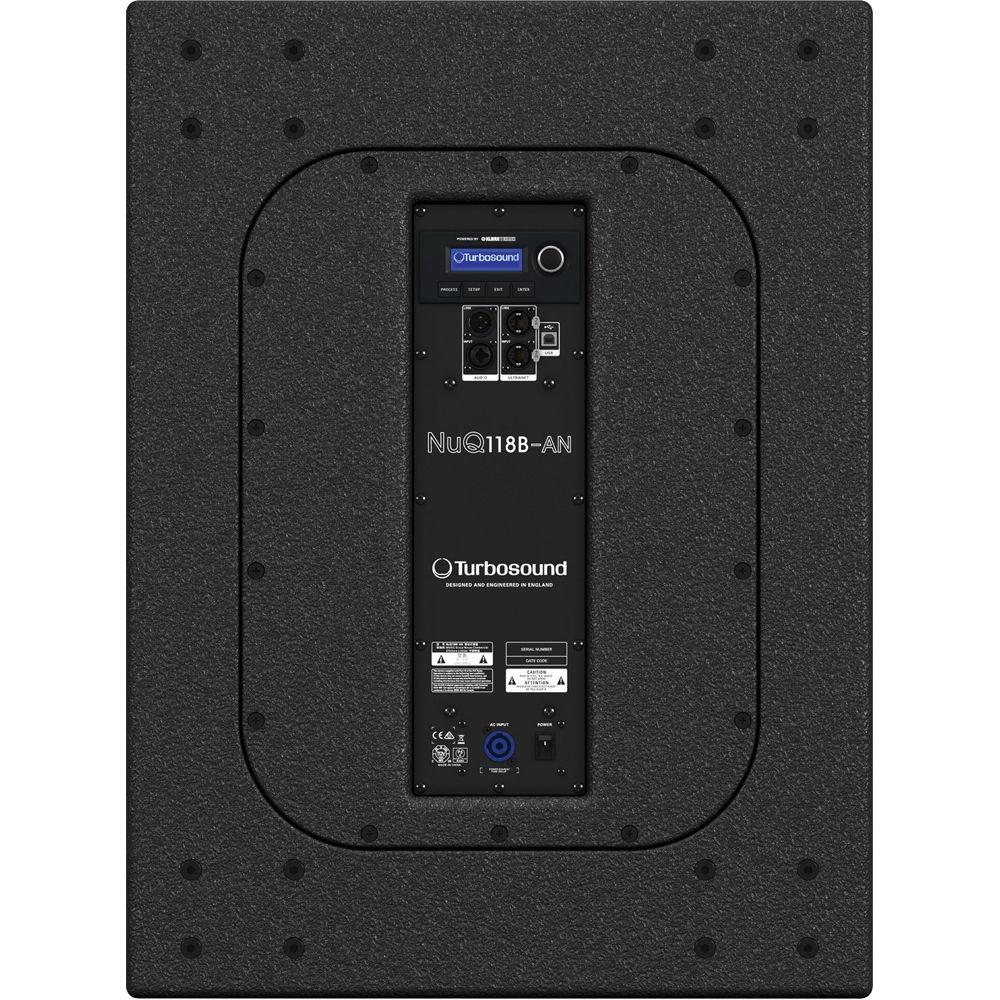

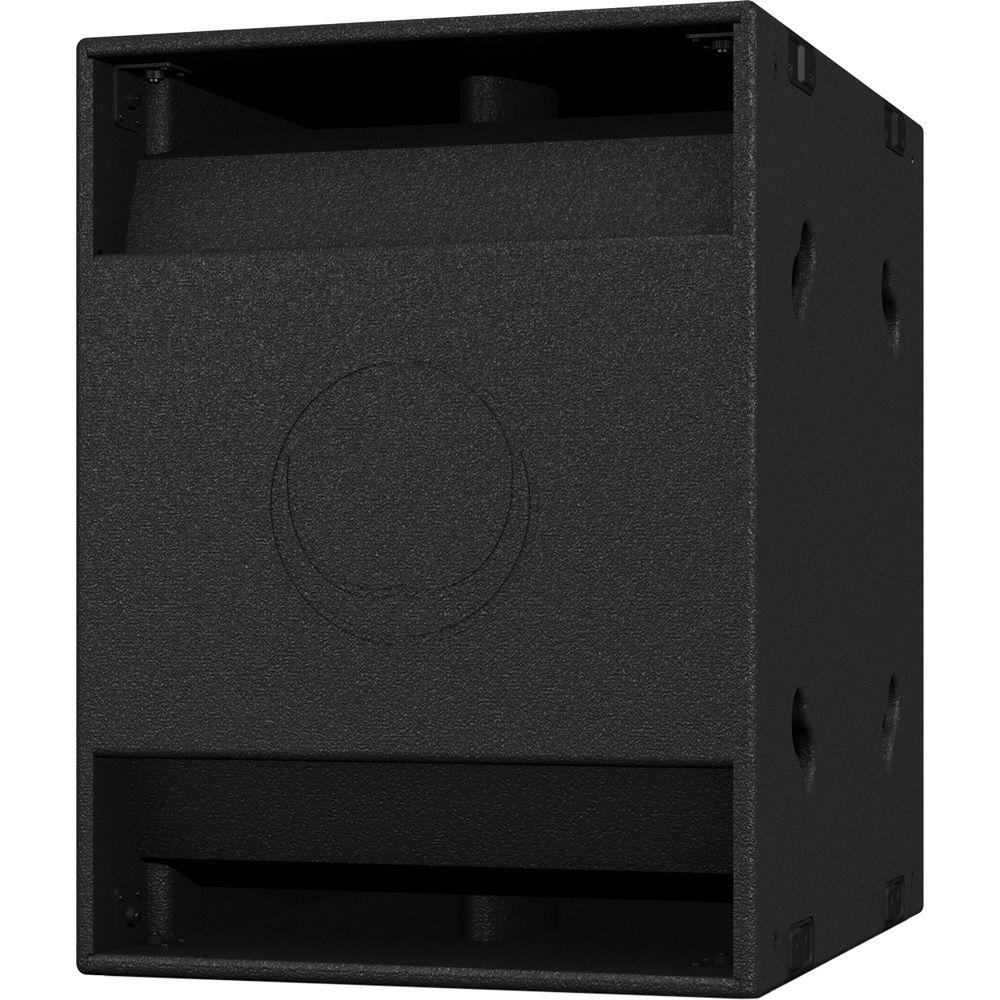

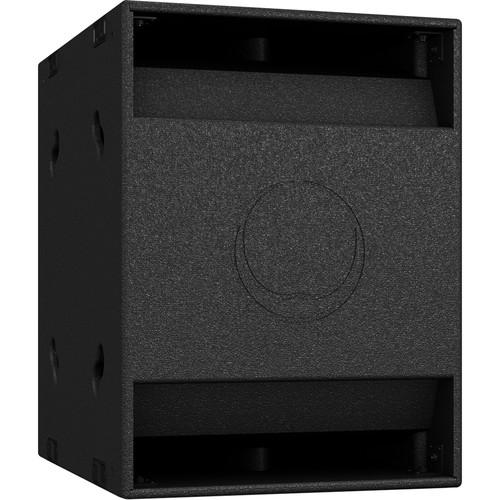

Product description The black NuQ118B-AN 3000W 18" Band-Pass Subwoofer with KLARK TEKNIK DSP Technology and ULTRANET Networking from Turbosound is a dual-ported band-pass enclosure optimally tuned for extended low-frequency response. Engineered to work in conjunction with Turbosound loudspeaker-management systems, the subwoofer offers high-output FOH performance and is ideally suited for a wide range of music and live sound-reinforcement applications.The subwoofer features a powerful, double-suspension 18" low-frequency driver that utilizes a specialized inside/outside wound voice coil for higher magnetic density, better heat dissipation, high-power handling capacity, and improved efficiency. For its size and operating bandwidth, the unit delivers high output that is virtually distortion free, even in the most demanding applications.Output power for the unit is provided by means of an efficient and lightweight KLARK TEKNIK 3,000W Class-D power amplifier. A sophisticated, but easy-to-use KLARK TEKNIK Digital Signal Processor (DSP) provides dynamic EQ for impressive low-frequency response at low volume levels and transparent limiting for clarity at high-output levels – and for long-term reliability.On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, crossover alignment and signal-routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active subwoofers or for use with active full-range satellite speakers. An onboard USB port provides access for remote control of the subwoofer via Windows computer, as well as DSP firmware updates.ULTRANET connectivity is provided by two locking etherCON connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.Finished in a highly durable semi-matte black paint, the cabinet is constructed from 3/4" (18 mm) birch plywood and includes: multiple M10 threaded rigging points; a 35mm pole socket for satellite-speaker mounting; integrated carry handles for convenient transport – and high-impact interlocking corners for ground-stacking stability. Mains-power input is provided via a Neutrik powerCON connector. - 18" band-pass subwoofer for portable PA applications
- 3000W power featuring KLARK TEKNIK Class-D technology
- KLARK TEKNIK Digital Signal Processing for total system control
- ULTRANET digital audio networking connects to mixers and other sources
- Double-suspension 18" low-frequency driver with inside/outside wound coil

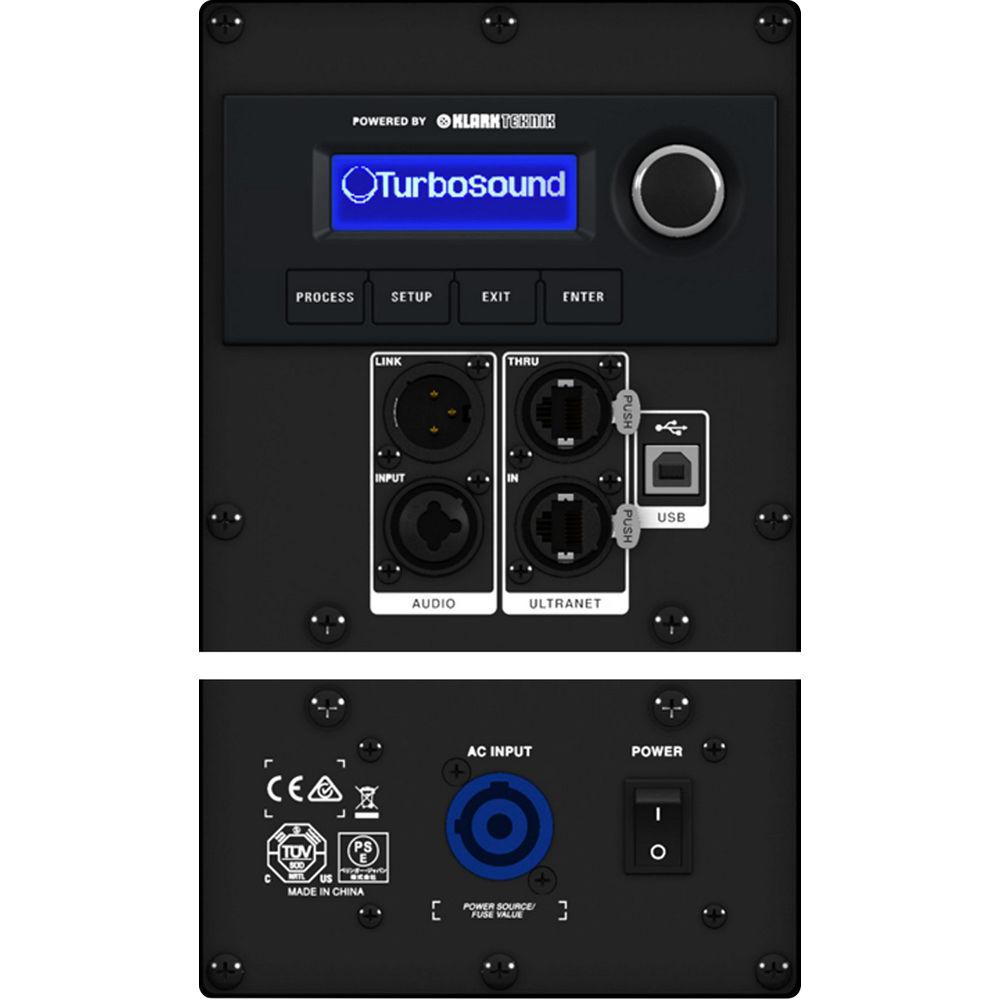

- Fully featured user interface with LCD display for ease of navigation
- Windows remote-control software downloadable on manufacturer website
- Low-distortion dual-port design for maximum sound-pressure level
- 3/4" (18mm) birch-plywood enclosure with hard-wearing semi-matte black paint finish
- Integral M10 rigging points for ease of installation
- 35mm pole mount to support satellite speaker
- Mains input on Neutrik powerCON connector
- Designed and engineered in England
UPC: 748252146243 In the Box Turbosound NuQ118B-AN 3000W 18" Band-Pass Subwoofer with KLARK TEKNIK DSP Technology and ULTRANET Networking (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound NuQ118B-AN 3000W 18" Band-Pass Subwoofer with KLARK TEKNIK DSP Technology and ULTRANET Networking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound NUQ118B Specs | | | Frequency Response | 40 Hz - 150 Hz ±3 dB
33 Hz - 150 kHz -10 dB | | Nominal Dispersion | Half Space | | Maximum SPL | 136 dB peak | | Crossover Type | Active | | Transducer | 1 x 18" (460 mm) LF driver | | Limiter | Peak and RMS | | | | Maximum Output Power | 3000 W | | Type | Class-D | | Protection | Short circuit, thermal | | | | Input | 1 x Combo Jack/XLR 1 x XLR | | Sensitivity | +4 dBu or +14 dBu software switchable | | Input Impedance | 40 kOhms balanced | | Maximum Input Level | +22 dB | | Ethernet | 2 x RJ45, Ultranet input/link | | Mains Supply | Neutrik powerCON 20 A | | | | DSP | Rotary push-encoder and level control
Buttons for Process, Setup, Exit, Enter | | | | EQ Controls | Positioning, sound mode, FBQ | | Display | LCD 128 x 32, blue, backlit | | Delay | 0 - 300 ms | | Equalization | High- and low-shelving EQ
2 x parametric EQ | | Limiter | Zero-attack input limiter | | Presets | 20 total presets, 19 user-definable | | Crossover | High-pass L-R 24 dB/oct | | Protection | Lock-out function for all settings | | A/D Conversion | 24-bit,44.1/48 kHz sample rate | | Converter Type | 24-bit, delta-sigma | | | | Signal | 16 channels | | Latency | < 0.9 ms | | Frequency Response | 20 Hz to 20 kHz (+0 / -3 dB) | | Dynamic Range | Typical 92 dB | | Cables | Shielded CAT5 | | Cable Length | Max 246' (75 m) recommended | | Power Consumption | 180 W at 1/8 max power | | Voltage | 120 V, 60 Hz (T 15 A H 250 V) | | | | Construction | 3/4" (18 mm) Birch plywood | | Finish | Semi-matte black paint | | Grille | Powder-coated perforated steel | | Hardware | M10 x 16 points | | Dimensions (H x W x D) | 30.4 x 22.8 x 27.6" (773 x 579 x 700 mm) | | Weight | 127.5 lb (57.9 kg) | | | | Package Weight | 151.0 lb | | Box Dimensions (LxWxH) | 32.0 x 32.0 x 27.5" |
