Turbosound NuQ122-AN 2500W 2-Way 12" Full-Range

Search your instruction manual in PDF to download

User Manual for Turbosound NuQ122-AN 2500W 2-Way 12" Full-Range Powered Loudspeaker with KLARK TEKNIK DSP Technology and ULTRANET Networking

Click to enlarge the picture
Turbosound NuQ122-AN 2500W 2-Way 12" Full-Range Powered Loudspeaker with KLARK TEKNIK DSP Technology and ULTRANET Networking Contents of the user manual for the Turbosound NuQ122-AN 2500W 2-Way 12" Full-Range
  • Product category: PA Speakers Turbosound
  • Brand: Turbosound
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Turbosound PA Speakers

Turbosound NuQ122-AN 2500W 2-Way 12" Full-Range Powered Loudspeaker with KLARK TEKNIK DSP Technology and ULTRANET Networking Turbosound NuQ122-AN 2500W 2-Way 12" Full-Range Powered Loudspeaker with KLARK TEKNIK DSP Technology and ULTRANET Networking Turbosound NuQ122-AN 2500W 2-Way 12" Full-Range Powered Loudspeaker with KLARK TEKNIK DSP Technology and ULTRANET Networking Turbosound NuQ122-AN 2500W 2-Way 12" Full-Range Powered Loudspeaker with KLARK TEKNIK DSP Technology and ULTRANET Networking
User manual for the Turbosound NuQ122-AN 2500W 2-Way 12" Full-Range contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Turbosound product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!



Product description

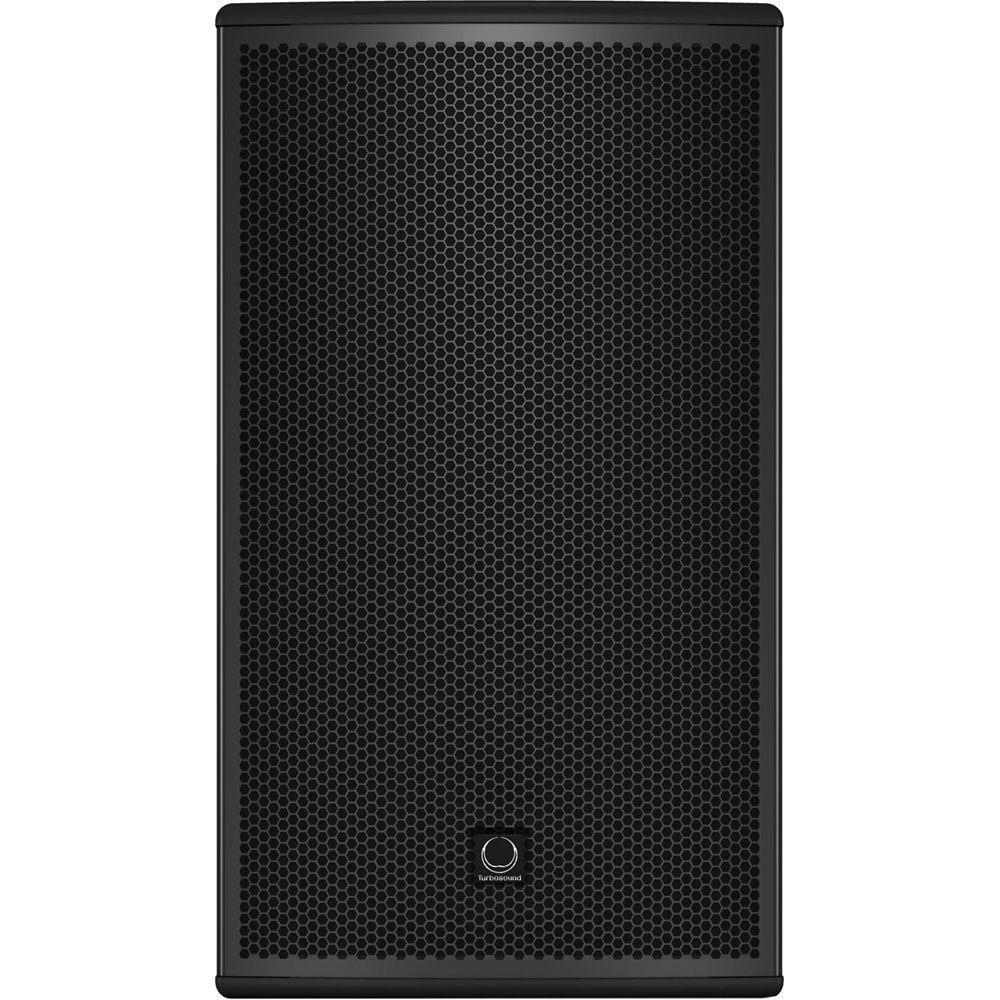

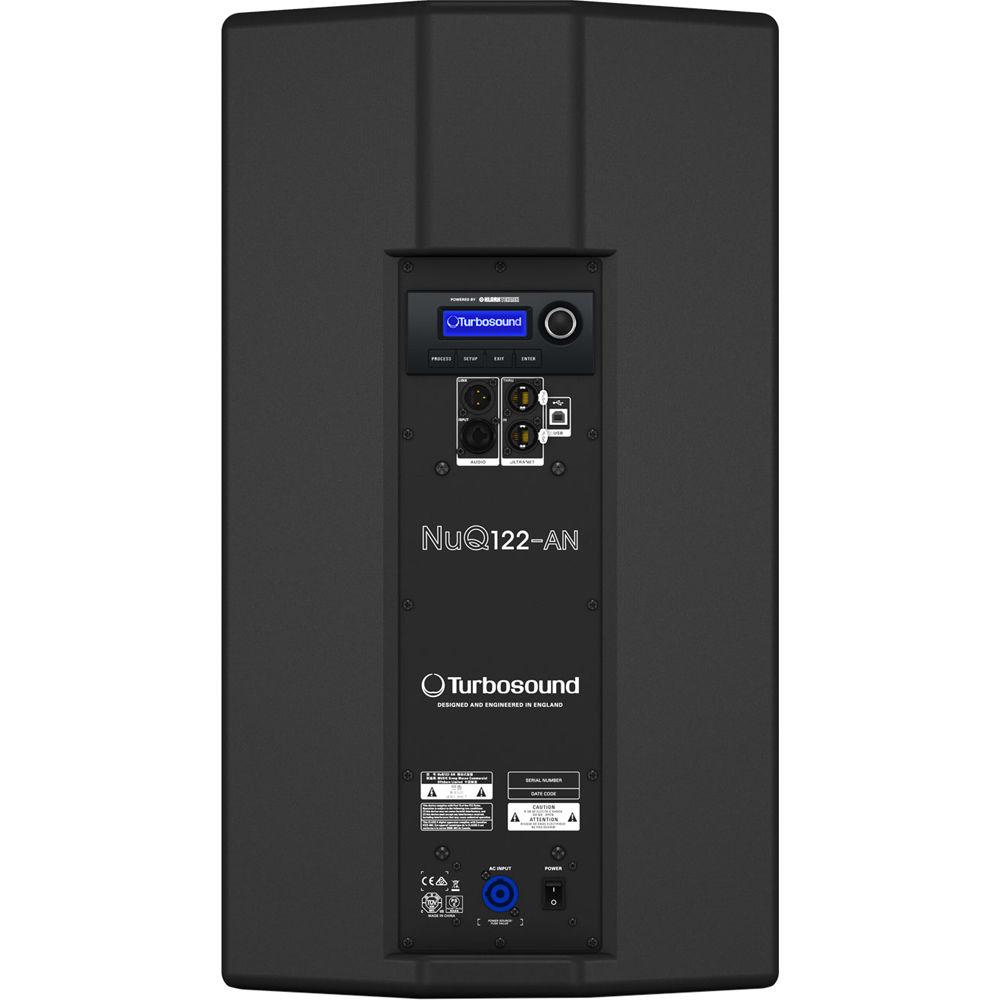

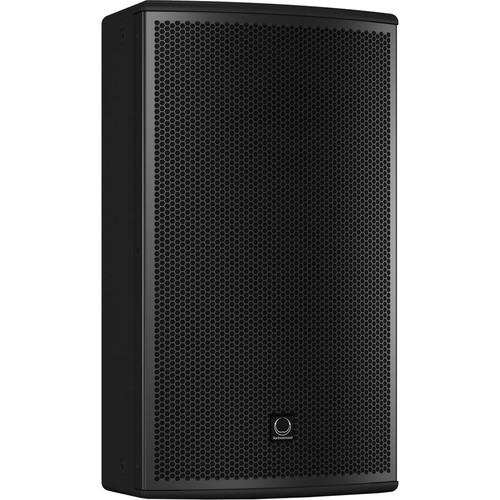

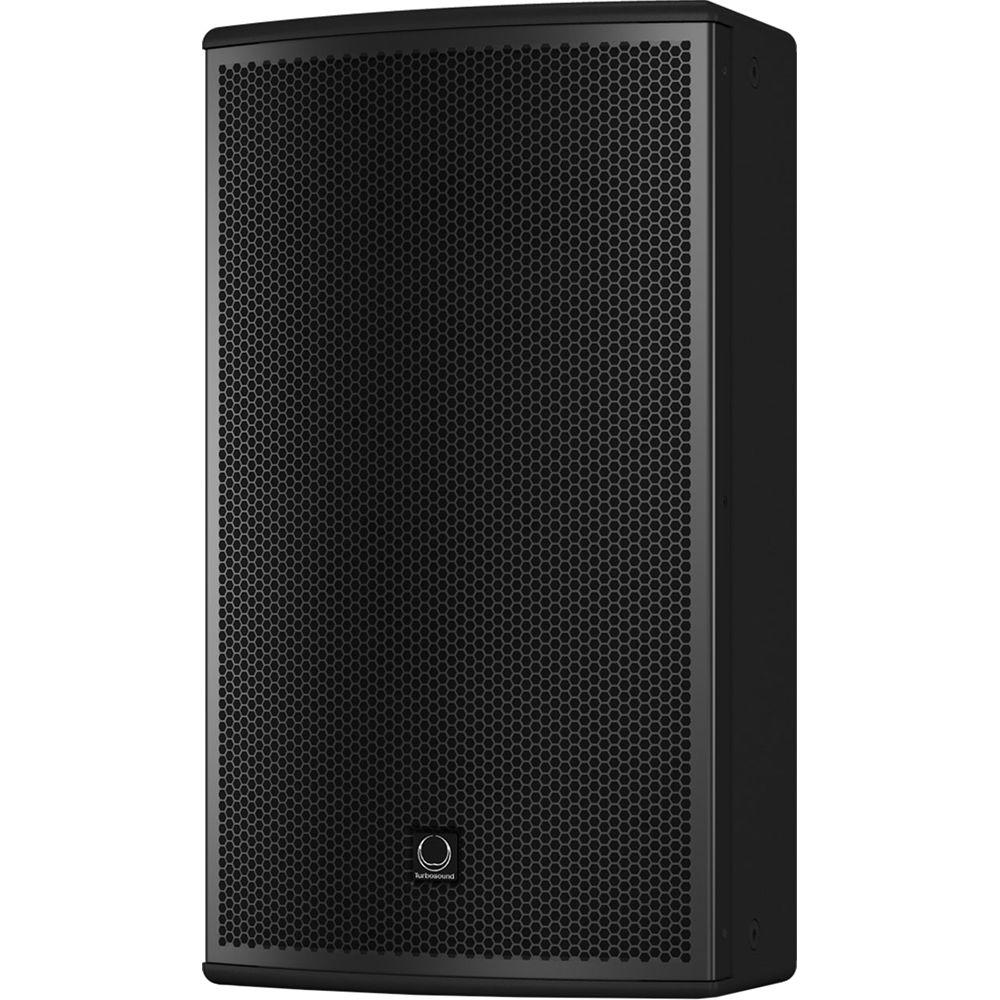

The black NuQ122-AN 2500W 2-Way 12" Full-Range Powered Loudspeaker from Turbosound is ideally suited for a wide range of portable and fixed installation speech and music sound-reinforcement applications. Designed to work individually without a controller, the NuQ122-AN Loudspeaker provides optimal performance for FOH, sidefill, and delay-line loudspeakers, and is an ideal choice for wedge-monitoring applications. It also offers the flexibility to accommodate venue-specific requirements for install applications.The NuQ122-AN Loudspeaker features a 12" low-frequency driver with a low-mass voice coil for improved transient response and an aluminum dome with 1" neodymium high-frequency compression driver, which is mounted on a rotatable 70° horizontal by 70° vertical-dispersion converging-elliptical waveguide. Output power for the NuQ122-AN Loudspeaker is provided by means of an efficient and lightweight KLARK TEKNIK 2500W Class-D power amplifier. An easy-to-use KLARK TEKNIK Digital Signal Processor (DSP) provides dynamic EQ for impressive full-range response at low volume levels and transparent limiting for clarity at high-output levels as well as for long-term reliability.On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to position compensation, user EQ control, subwoofer integration, and signal-routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the NuQ122-AN Loudspeaker via PC computer, as well as DSP firmware updates.ULTRANET connectivity is provided by two locking etherCON connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single Cat5 cable between compatible digital devices including mixers, input/output stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.Finished in a highly durable semi-matte black paint, the trapezoidal cabinet is constructed from 15mm birch plywood, and includes a rugged powder-coated perforated steel-mesh grille. Multiple threaded rigging points are provided for suspension in any orientation. The NuQ122-AN Loudspeaker also features a 35mm socket for standard pole mounting plus integrated handles for convenient transport. Mains power input is provided via a Neutrik powerCON connector.
  • 2-way full-range powered loudspeaker for portable PA applications
  • 2500W power featuring KLARK TEKNIK Class-D technology for total system control
  • ULTRANET digital-audio networking connects to mixers and other sources
  • 12" low-frequency driver with low-mass voice coil for improved transient response
  • Aluminum dome with 1" neodymium motor-compression driver
  • Low-distortion waveguide provides 70° H x 70° V dispersion
  • Fully featured user interface with LCD display for ease of navigation
  • PC remote control software downloadable
  • 15mm birch plywood enclosure with hard-wearing semi-matte black paint finish
  • Rugged powder-coated perforated steel-mesh grille
  • Integral 35mm pole mount and handles
  • Multiple internal rigging points allow bracket mount and suspension in any orientation
  • Mains input on Neutrik powerCON connector
UPC: 748252145949 In the Box Turbosound NuQ122-AN 2500W 2-Way 12" Full-Range Powered Loudspeaker with KLARK TEKNIK DSP Technology and ULTRANET Networking (Black)
  • Installation Hardware
  • Limited 10-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Turbosound NuQ122-AN 2500W 2-Way 12" Full-Range Powered Loudspeaker with KLARK TEKNIK DSP Technology and ULTRANET Networking in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Turbosound NUQ122 Specs

    Frequency Response 55 Hz to 18 kHz (±3 dB)
    50 Hz to 20 kHz (-10 dB)
    Nominal Dispersion 70° H x 70° V @ -6 dB points
    Maximum SPL 131 dB peak
    Crossover Type Active
    Transducer 1 x 12" ( 315.5) LF driver
    1 x 1" (25.4 mm)
    HF compression driver
    Limiter Independent HF, LF, peak and rms
    Maximum Output Power 2500 W
    Type Class-D
    Protection Short circuit, thermal

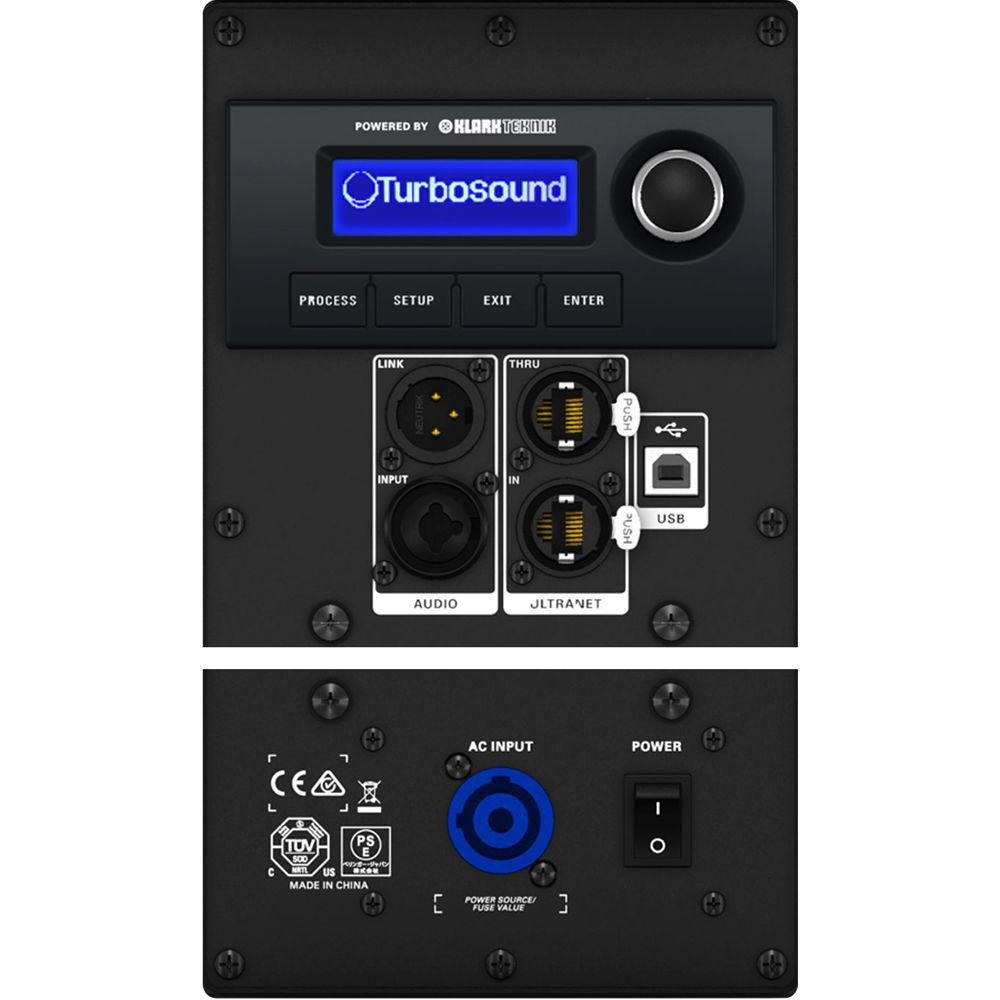

    Input/Output 1 x Combo Jack / XLR 1 x XLR
