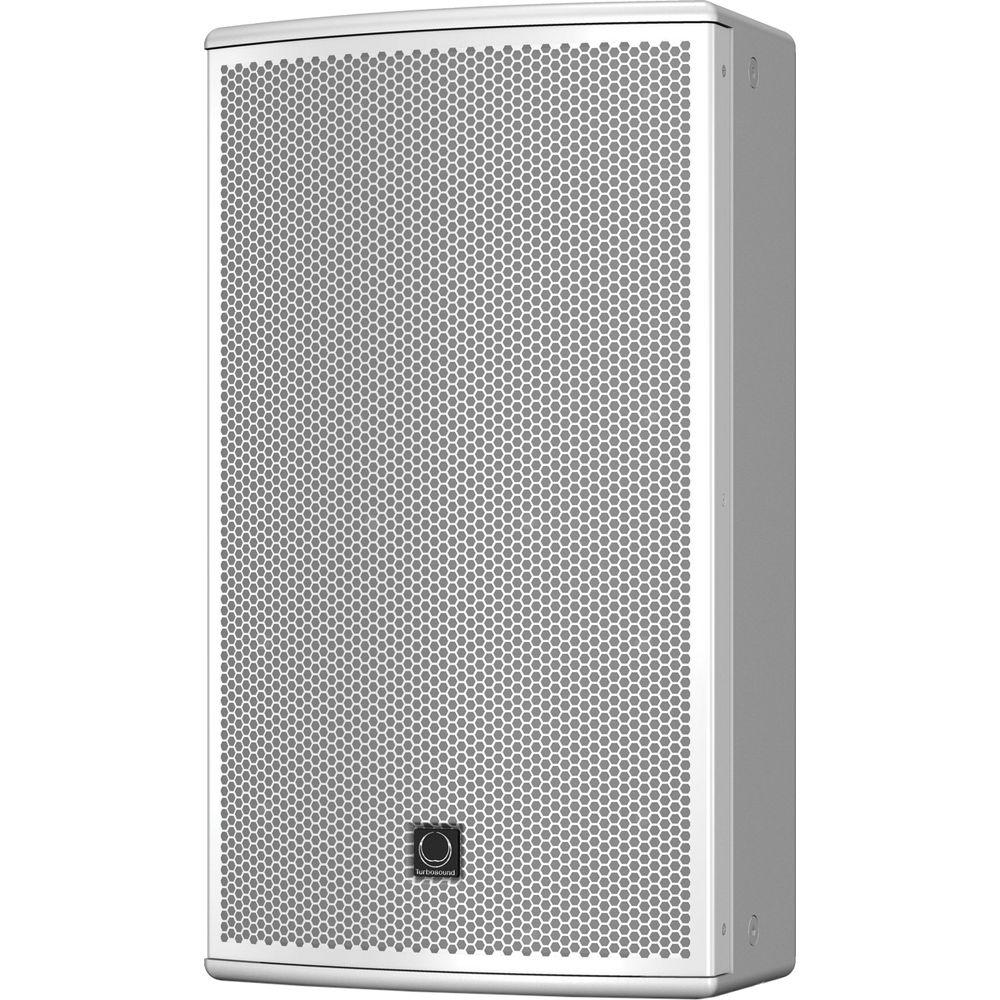

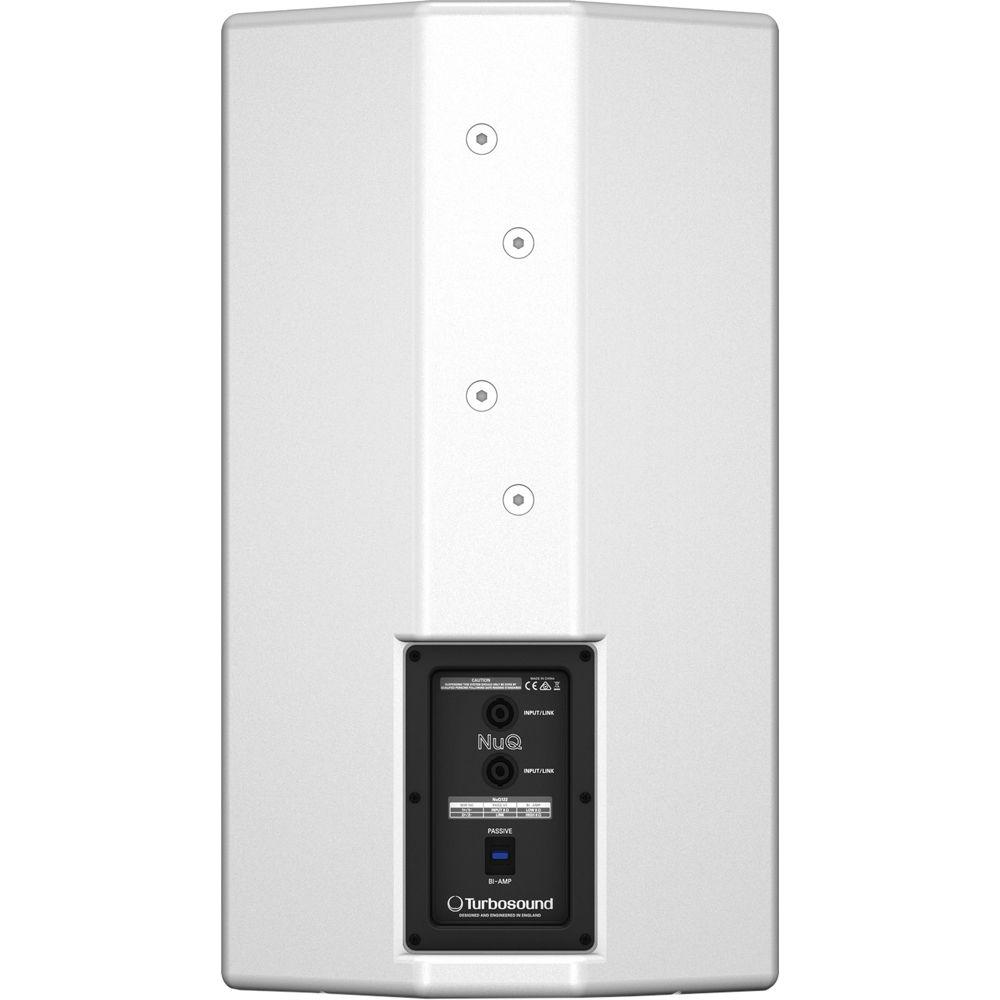

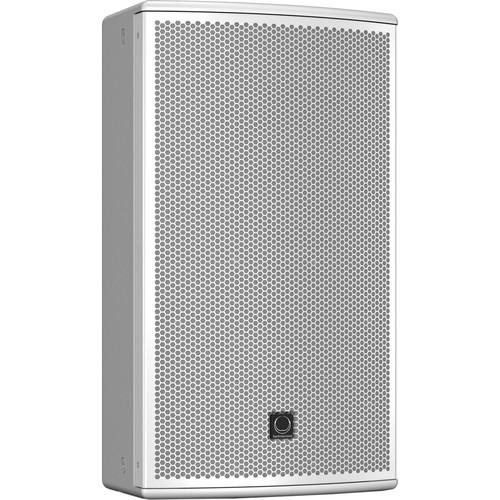

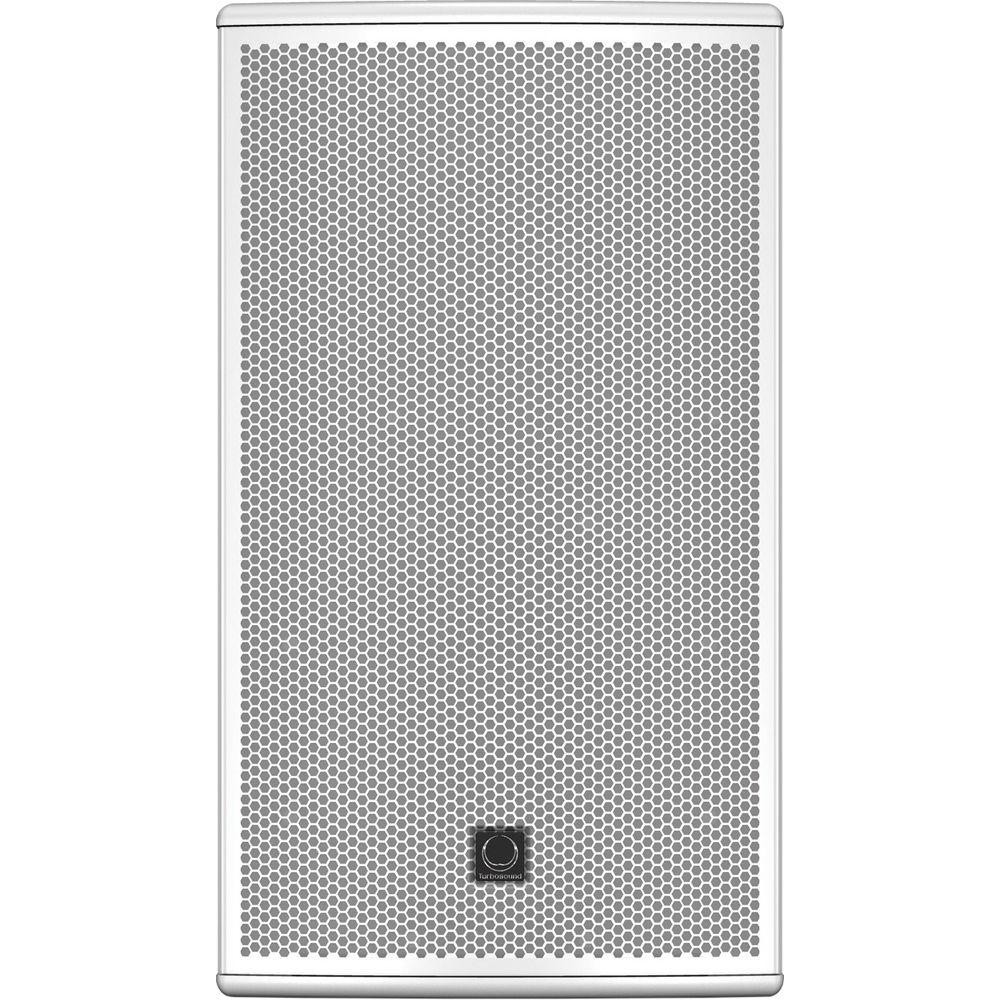

Product description The white NuQ122-WH 2-Way 12" Full-Range Loudspeaker for Portable PA Applications from Turbosound is a switchable passive/bi-amp 1600W loudspeaker system ideally suited for a wide range of speech-and-music sound-reinforcement applications. The NuQ122-WH Loudspeaker is engineered to provide optimal performance for FOH, side-fill, and delay-line loudspeakers, and is an exceptional choice for wedge-monitoring applications.The NuQ122-WH Loudspeaker features a 12" low-frequency driver with a low-mass voice coil for improved transient response, and an aluminum dome with 1" neodymium high-frequency compression driver mounted on a rotatable 100 x 60° (horizontal x vertical) dispersion-converging elliptical waveguide. All drivers are matched with an internal passive-crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear-panel switch. The rear-panel connector plate carries Neutrik speakON NL4 connectors for input and link connections to additional enclosures (sold separately).Finished in a highly durable semi-matte white paint, the cabinet is constructed from 12mm birch plywood and is constructed with a rugged powder-coated perforated-steel mesh grille backed with reticulated foam. Multiple threaded rigging points are provided for suspension in any orientation, or for mounting with standard wall brackets. The NuQ122-WH Loudspeaker also features a 35mm socket for standard pole mounting, as well as integrated handles for convenient transport. - 2-way full-range loudspeaker for portable PA applications
- 400W continuous, 1600W peak power
- Suitable for FOH, side-fill, and monitor applications
- 12" low-frequency driver with low-mass voice coil for improved transient response
- Aluminum dome with 1" neodymium motor compression driver
- Low-distortion waveguide provides 70 x 70° (H x V) dispersion
- 5/8" (15 mm) birch-plywood enclosure with hard-wearing semi-matte black paint finish
- Rugged powder-coated perforated-steel mesh grille
- Integral 35mm pole mount and handles
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- Neutrik speakON NL4 connectors for reliable long-life operation
In the Box Turbosound NuQ122-WH 2-Way 12" Full-Range Loudspeaker for Portable PA Applications (White) Installation Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound NuQ122-WH 2-Way 12" Full-Range Loudspeaker for Portable PA Applications in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound NUQ122 Specs | | | Frequency Response | 55 Hz to 18 kHz ±3 dB
50 Hz to 20 kHz -10 dB | | Nominal Dispersion | 70 x 70° (H x V) @ -6 dB points | | Directivity Factor | 9.4 | | Directivity Index | 9.7 | | Power Handling | Passive 400 W continuous, 1,600 W peak
Bi-amp LF: 400 W continuous, 1,600 W peak
HF: 40 W continuous, 160 W peak | | Sensitivity | 96 dB (1 W @ 1 m) | | Maximum SPL | Passive 122 dB continuous, 128 dB peak
Bi-Amp LF: 122 dB continuous, 128 dB peak
HF: 122 dB continuous, 128 dB peak | | Impedance | Passive: 8 ohms
Bi-Amp LF: 8 ohms
HF: 6 ohms | | Crossover Type | Passive / bi-amp, switchable | | Components | 1 x 12" (316 mm) LF driver

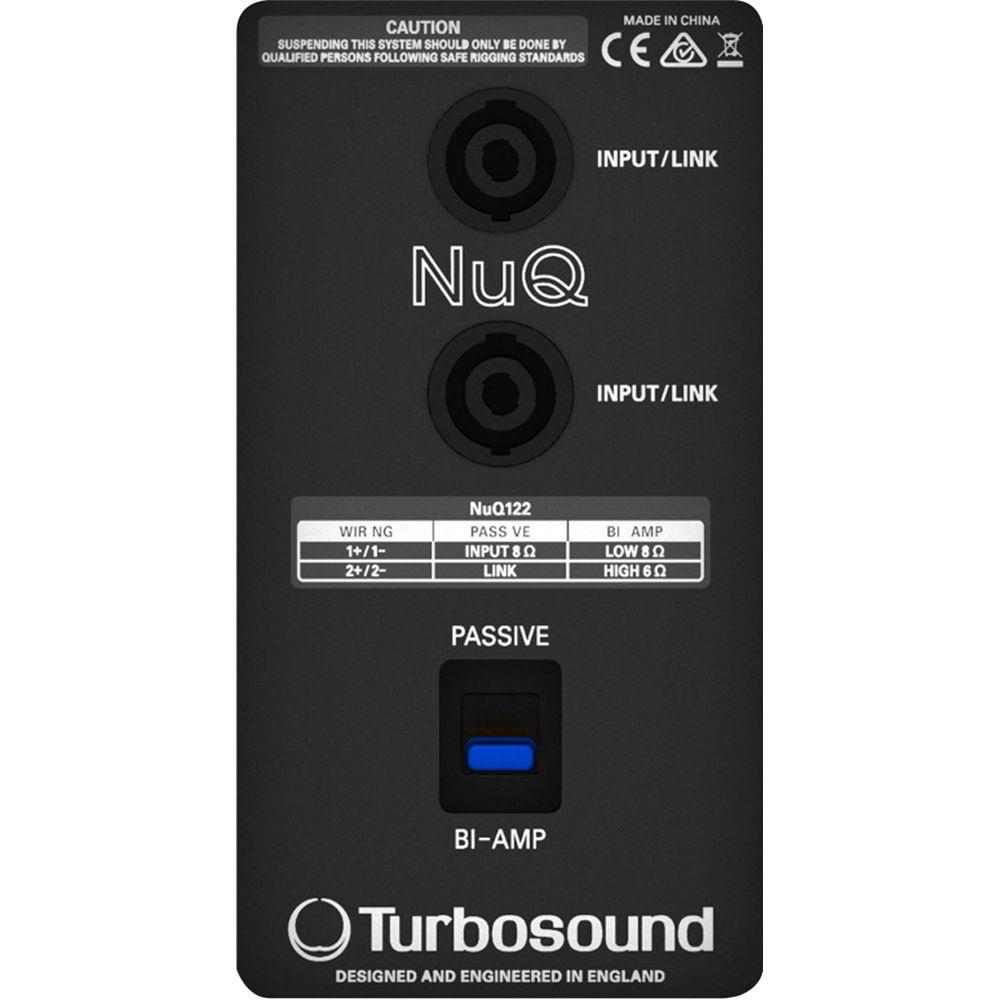

1 x 1" (25 mm) HF compression driver | | | | Connectors | 2 x Neutrik speakON NL4 | | Wiring | Passive Pins 1+ / 1- input, pins 2+ / 2- link
Bi-Amp Pins 1+ / 1- LF, pins 2+ / 2- HF | | Construction | 5/8" (1.5 cm) birch plywood | | Grille | Powder-coated perforated steel | | Dimensions (H x W x D) | 25.8 x 14.7 x 13.4" (65.5 x 37.4 x 34.0 cm) | | Weight | 43.1 lb (19.6 kg) |
