User Manual for Turbosound NuQ152 2-Way 15" Full-Range Loudspeaker for Portable PA Applications Click to enlarge the picture
Contents of the user manual for the Turbosound NuQ152 2-Way 15" Full-Range Loudspeaker
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound NuQ152 2-Way 15" Full-Range Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

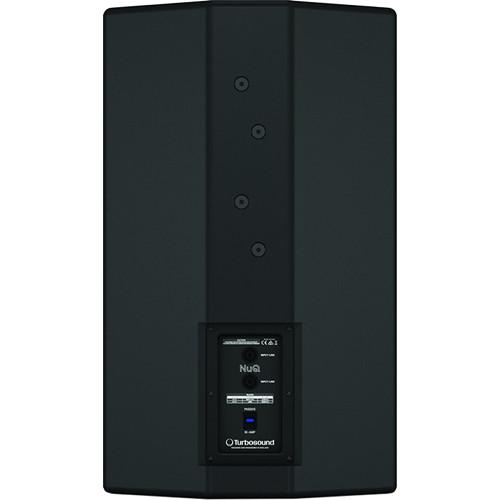

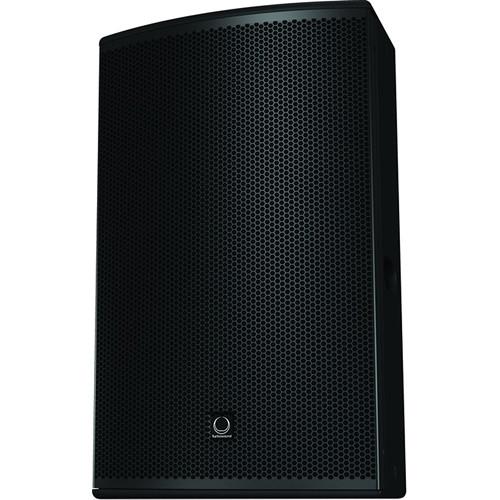

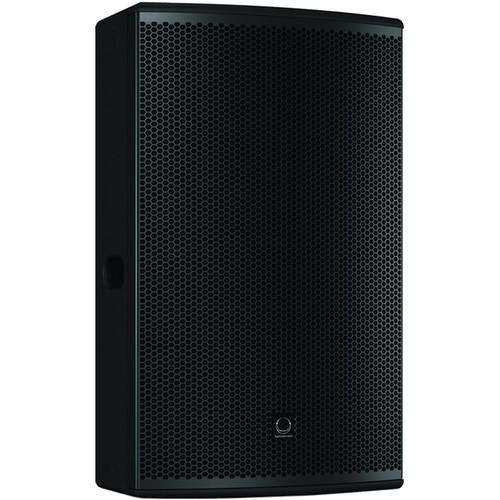

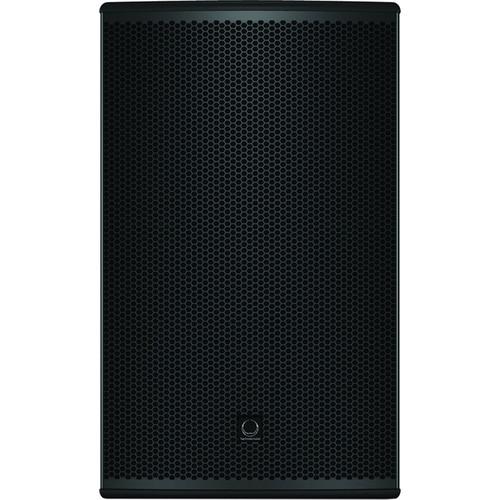

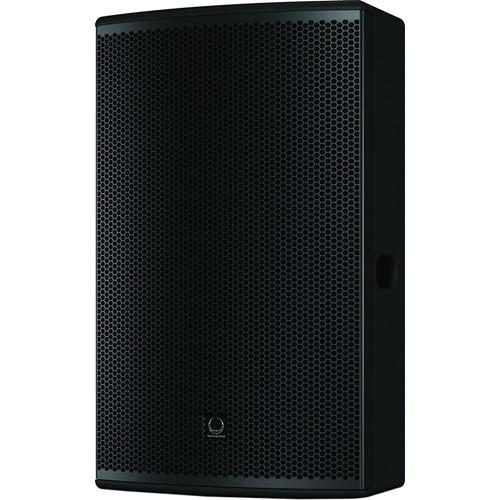

Product description The black NuQ152 2-Way 15" Full-Range Loudspeaker for Portable PA Applications from Turbosound features a 12" low-frequency driver with a low-mass voice coil for improved transient response, and an aluminum dome with 1" neodymium high-frequency compression driver mounted on a rotatable 100 x 60° (horizontal x vertical) dispersion-converging elliptical waveguide. All drivers are matched with an internal-passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear-panel switch. The rear-panel connector plate carries Neutrik speakON NL4 connectors for input and link connections to additional enclosures (sold separately).Finished in a highly durable semi-matte black paint, the cabinet is constructed from 15mm birch plywood and is constructed with a rugged powder-coated perforated-steel mesh grille backed with reticulated foam. Multiple threaded rigging points are provided for suspension in any orientation, or for mounting with standard wall brackets. The NuQ152 Loudspeaker also features a 35mm socket for standard pole mounting, as well as integrated handles for convenient transport. - 2-way full-range loudspeaker for portable PA applications
- 500W continuous, 2000W peak power
- Suitable for FOH, side-fill, and monitor applications
- Carbon-fiber loaded 15" low-frequency driver with inside/outside coil
- Aluminum dome with 1" neodymium motor compression driver
- Low-distortion waveguide provides 70 x 70° (H x V) dispersion
- 5/8" (15 mm) birch-plywood enclosure with hard-wearing semi-matte black paint finish
- Rugged powder-coated perforated-steel mesh grille
- Integral 35mm pole mount and handles
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- Neutrik speakON NL4 connectors for reliable long-life operation
In the Box Turbosound NuQ152 2-Way 15" Full-Range Loudspeaker for Portable PA Applications (Black) Installation Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound NuQ152 2-Way 15" Full-Range Loudspeaker for Portable PA Applications in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound NUQ152 Specs | | | Frequency Response | 50 Hz to 18 kHz ±3 dB
45 Hz to 20 kHz -10 dB | | Nominal Dispersion | 70 x 70° (H xV) @ -6 dB points | | Directivity Factor | 9.4 | | Directivity Index | 9.7 | | Power Handling | Passive 500 W continuous, 2000 W peak
Bi-amp LF: 500 W continuous, 2000 W peak
HF: 40 W continuous, 160 W peak | | Sensitivity | 96 dB (1 W @ 1 m) | | Maximum SPL | Passive 124 dB continuous, 130 dB peak
Bi-Amp LF: 124 dB continuous, 130 dB peak
HF: 122 dB continuous, 128 dB peak | | Impedance | Passive 8 ohms
Bi-Amp LF: 8 ohms
HF: 8 ohms | | Crossover Type | Passive / bi-amp, switchable | | Components | 1 x 15" (394 mm) LF driver
1 x 1" (25 mm) HF compression driver | | | | Connectors | 2 x Neutrik speakON NL4 | | Wiring | Passive Pins 1+ / 1- input, pins 2+ / 2- link
Bi-Amp Pins 1+ / 1- LF, pins 2+ / 2- HF | | Construction | 5/8" (1.5 cm) birch plywood | | Grille | Powder-coated perforated steel | | Dimensions (H x W x D) | 28 x 16.9 x 15.2" (71.2 x 43.0 x 38.5 cm) | | Weight | 53.7 lb (24.4 kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
