User Manual for Turbosound NuQ62-WH 2-Way 6.5" Full-Range Loudspeaker for Portable PA Applications Click to enlarge the picture
Contents of the user manual for the Turbosound NuQ62-WH 2-Way 6.5" Full-Range Loudspeaker
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound NuQ62-WH 2-Way 6.5" Full-Range Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

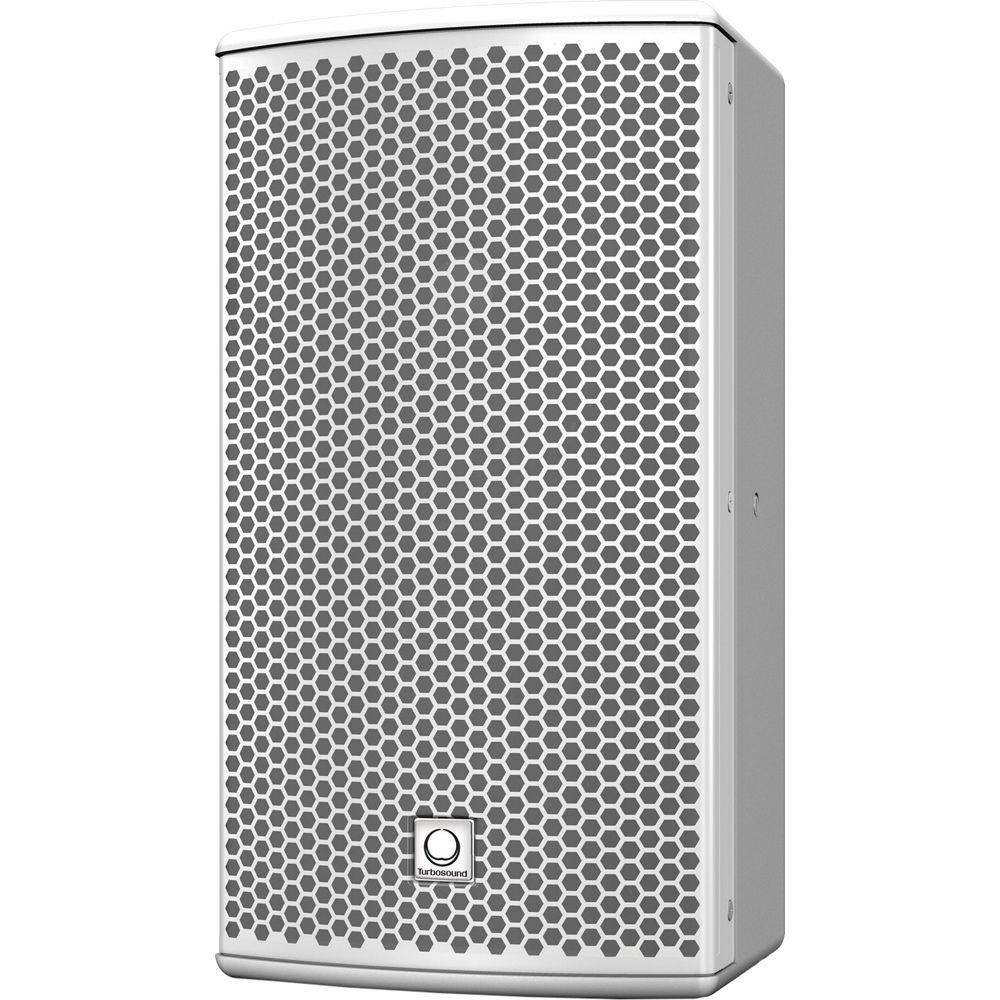

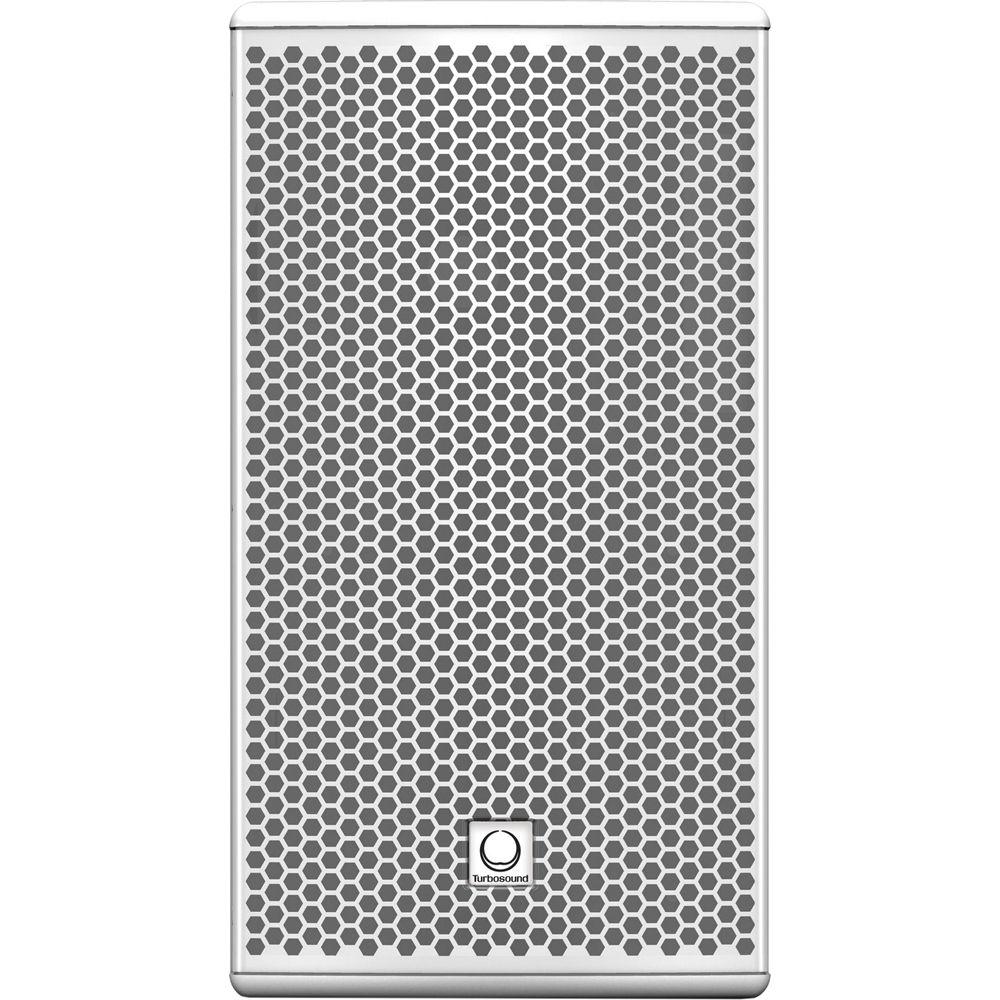

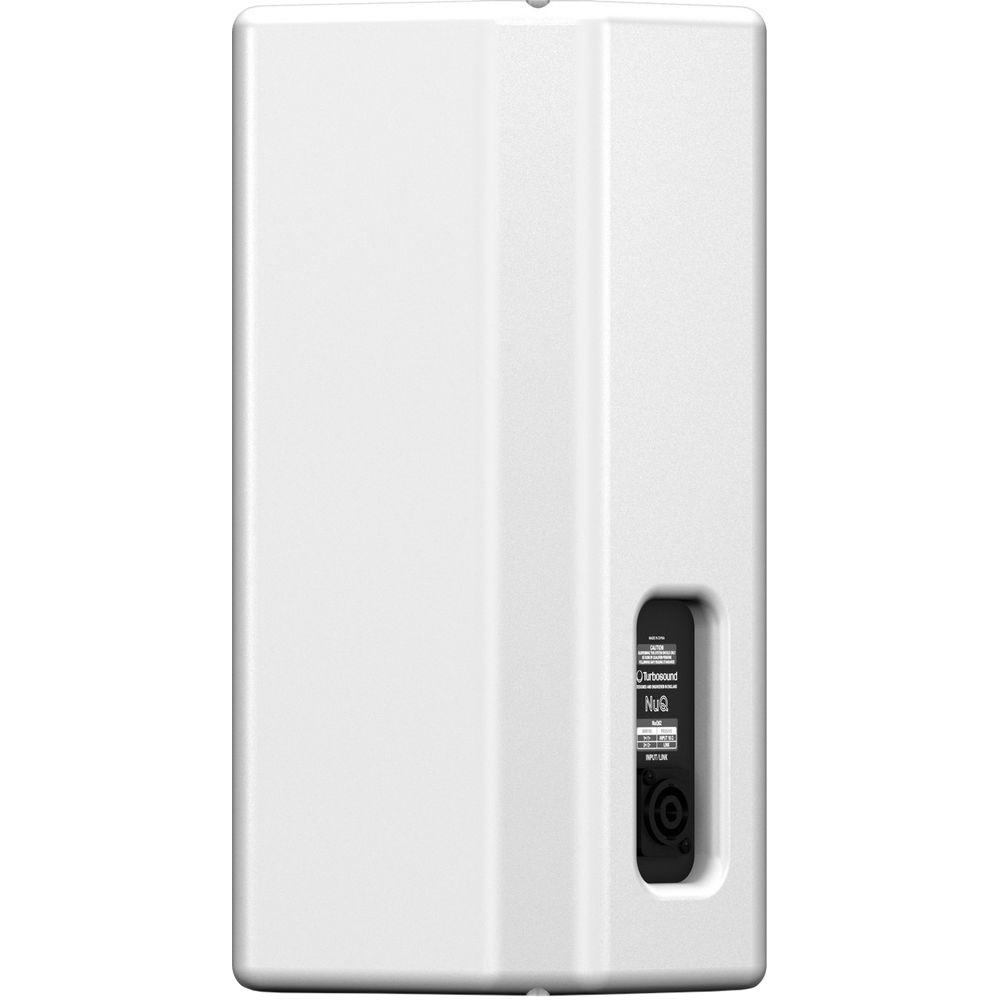

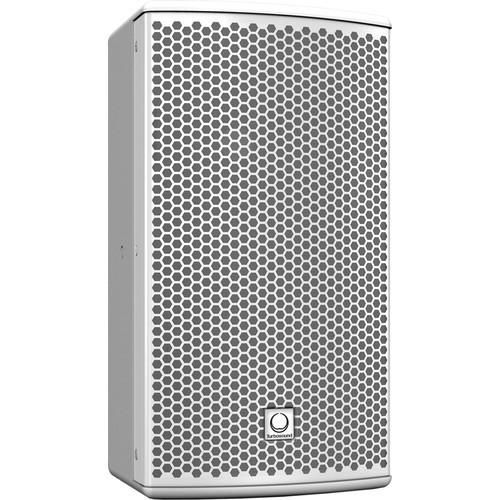

Product description The white NuQ62-WH 2-Way 6.5" Full-Range Loudspeaker for Portable PA Applications from Turbosound is a compact passive 600W 6.5" loudspeaker system ideally suited for a wide range of speech and music sound-reinforcement applications. It is engineered to provide optimal performance for front fill, down fill, balcony delay and monitor applications.The NuQ62-WH loudspeaker features a 6.5" low-frequency driver with a low-mass voice coil for improved transient response, and an aluminum dome 1" neodymium motor high-frequency compression driver mounted on a rotatable 100 x 60° (horizontal x vertical) dispersion-converging elliptical waveguide. All drivers are matched with an internal passive-crossover network in a reflex-loaded enclosure. The rear-panel connector plate carries Neutrik speakON NL4 connectors for input and link connections to additional enclosures.Finished in a highly durable semi-matte white paint, the cabinet is constructed from 12mm birch plywood and includes a rugged powder-coated perforated steel-mesh grille backed with reticulated foam. Multiple threaded rigging points are provided for suspension in any orientation, or for mounting with industry-standard wall brackets. - 2-way full-range loudspeaker for portable PA installation applications
- 150W continuous, 600W peak power
- Suitable for front-fill and monitor applications
- 6.5" low-frequency driver with low-mass voice coil for improved transient response
- Aluminum dome with 1" neodymium motor compression driver
- Rotatable converging elliptical waveguide provides 100° H x 60° V dispersion
- 12mm birch-plywood enclosure with hard-wearing semi-matte black paint finish
- Rugged powder-coated perforated-steel mesh grille
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- Neutrik speakON NL4 connectors for reliable long-life operation
In the Box Turbosound NuQ62-WH 2-Way 6.5" Full-Range Loudspeaker for Portable PA Applications (White) Installation Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound NuQ62-WH 2-Way 6.5" Full-Range Loudspeaker for Portable PA Applications in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound NUQ62 Specs | | | Frequency Response | 80 Hz to 18 kHz ±3 dB
65 Hz to 20 kHz -10 dB | | Nominal Dispersion | 100 x 60° (H x V) @ -6 dB points, rotatable | | Directivity Factor | 8 | | Directivity Index | 9 | | Power Handling | Passive 150 W continuous, 600 W peak | | Sensitivity | 88 dB (1 W @ 1 m) | | Maximum SPL | 110 dB continuous, 116 dB peak | | Impedance | 16 ohms | | Crossover Type | Passive | | Components | 1 x 6" (162 mm) LF driver

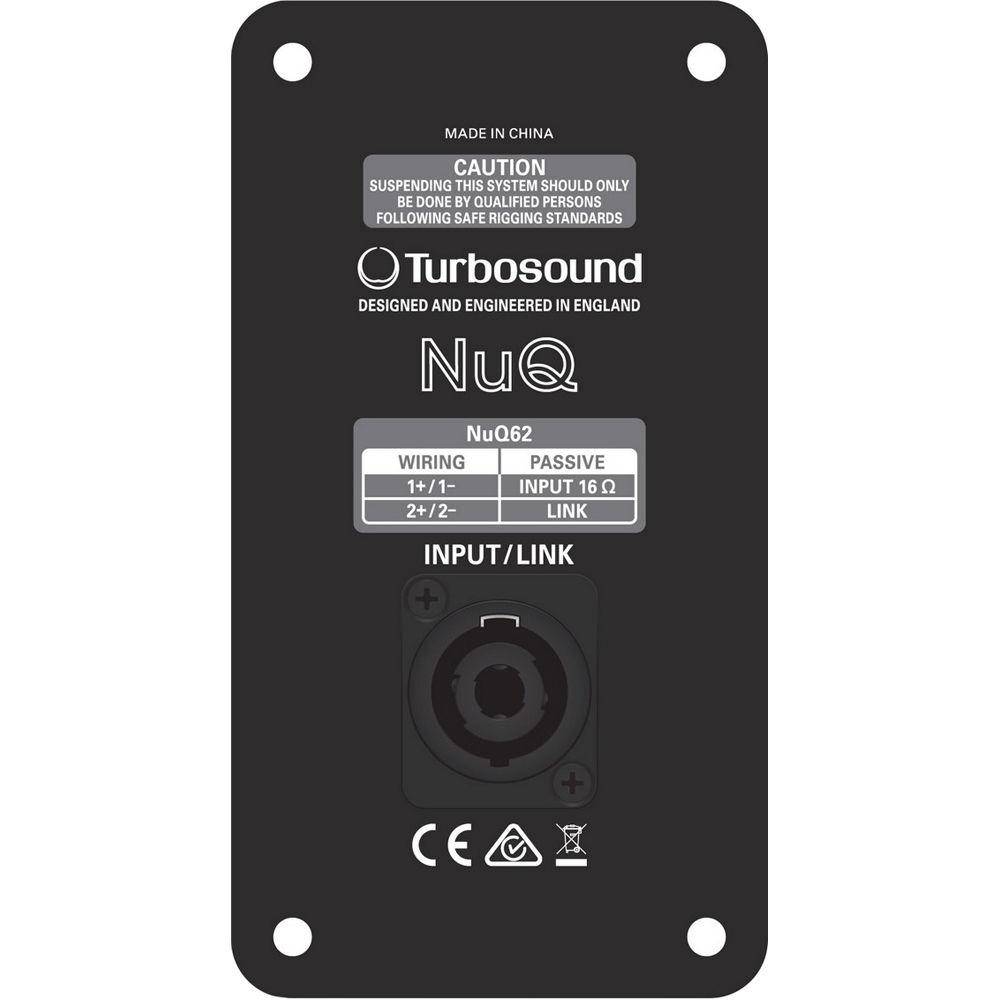

1 x 1" (25 mm) HF compression driver | | | | Connectors | 2 x Neutrik speakON NL4 | | Wiring | Passive: Pins 1+ / 1- input, pins 2+ / 2- link | | Construction | 1/2" (12 mm) birch plywood | | Grille | Powder-coated perforated steel | | Dimensions (H x W x D) | 14 x 7.5 x 8.3" (35 x 21 x 19 cm) | | Weight | 13.6 lb (6.3 kg) |
