User Manual for Turbosound NuQ82 2-Way 8" Full-Range Loudspeaker for Portable PA Applications Click to enlarge the picture
Contents of the user manual for the Turbosound NuQ82 2-Way 8" Full-Range Loudspeaker
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound NuQ82 2-Way 8" Full-Range Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

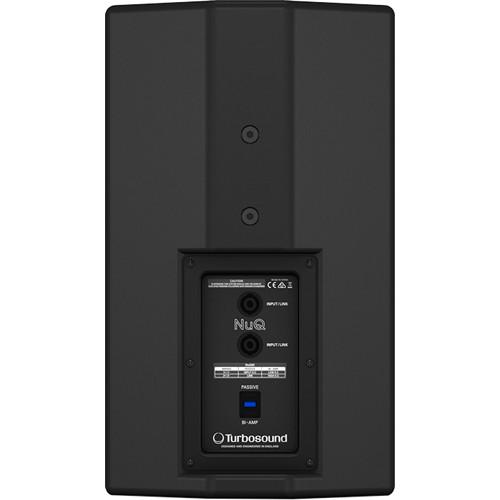

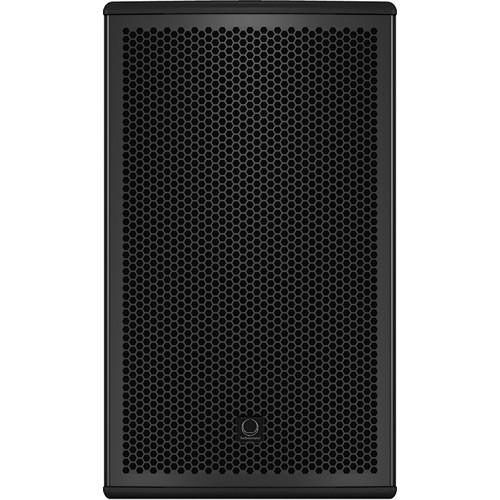

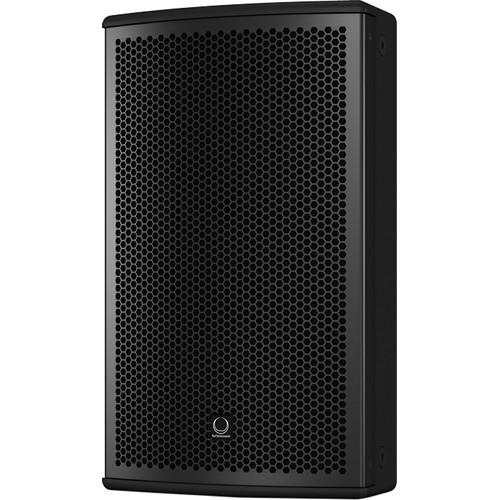

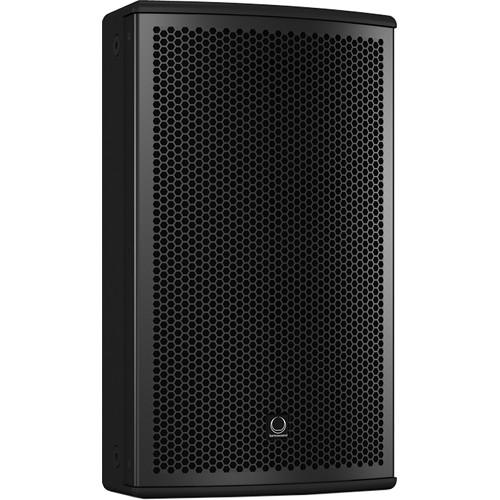

Product description The black NuQ82 2-Way 8" Full-Range Loudspeaker for Portable PA Applications from Turbosound is a switchable passive/bi-amp 1000W loudspeaker system ideally suited for a wide range of speech and music sound-reinforcement applications. The NuQ82 Loudspeaker is engineered to provide optimal performance for FOH, sidefill, and delay-line loudspeakers, and is an ideal choice for wedge-monitoring applications.The NuQ82 Loudspeaker features an 8" low-frequency driver with a low-mass voice coil for improved transient response, and an aluminum dome with 1" neodymium high-frequency compression driver mounted on a rotatable 100 x 60° (horizontal x vertical) dispersion-converging elliptical waveguide. All drivers are matched with an internal passive-crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear-panel switch. The rear-panel connector plate carries Neutrik speakON NL4 connectors for input and link connections to additional enclosures (sold separately).Finished in a highly durable semi-matte black paint, the cabinet is constructed from 12mm birch plywood and is constructed with a rugged powder-coated perforated-steel mesh grille backed with reticulated foam. Multiple threaded rigging points are provided for suspension in any orientation, or for mounting with standard wall brackets. The NuQ82 Loudspeaker also features a 35mm socket for standard pole mounting, as well as integrated handles for convenient transport. - 2-way full-range loudspeaker for portable PA applications
- 250W continuous, 1000W peak power
- Suitable for FOH, side-fill, and monitor applications
- 12" low-frequency driver with low-mass voice coil for improved transient response
- Aluminum dome with 1" neodymium motor-compression driver
- Switchable passive/bi-amp operation for flexibility of use
- Rotatable converging elliptical waveguide provides 100 x 60° (H x V) dispersion
- 12mm birch-plywood enclosure with hard-wearing semi-matte black paint finish
- Rugged powder-coated perfoarated-steel mesh grille
- Integral 35mm pole mount and handles
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- Neutrik speakON NL4 connectors for reliable long-life operation
In the Box Turbosound NuQ82 2-Way 8" Full-Range Loudspeaker for Portable PA Applications (Black) Installation Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound NuQ82 2-Way 8" Full-Range Loudspeaker for Portable PA Applications in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound NUQ82 Specs | | | Frequency Response | 65 Hz to 18 kHz ±3 dB
55 Hz to 20 kHz -10 dB | | Nominal Dispersion | 100 x 60° (H x V) @ -6 dB points, rotatable | | Directivity Factor | 8 | | Directivity Index | 9 | | Power Handling | Passive 250 W continuous, 1000 W peak
Bi-amp LF: 250 W continuous, 1000 W peak
HF: 30 W continuous, 120 W peak | | Sensitivity | 93 dB (1 W @ 1 m) | | Maximum SPL | Passive 117 dB continuous, 123 dB peak
Bi-Amp LF: 117 dB continuous, 123 dB peak
HF: 119 dB continuous, 125 dB peak | | Impedance | Passive: 8 ohms
Bi-Amp LF: 8 ohms
HF: 6 ohms | | Crossover Type | Passive / bi-amp, switchable | | Components | 1 x 8" (211 mm) LF driver
1 x 1" (25 mm) HF compression driver | | | | Connectors | 2 x Neutrik speakON NL4 | | Wiring | Passive Pins 1+ / 1- input, pins 2+ / 2- link
Bi-Amp Pins 1+ / 1- LF, pins 2+ / 2- HF | | Construction | 12 mm (1/2") birch plywood | | Grille | Powder-coated perforated steel | | Dimensions (H x W x D) | 25.8 x 14.7 x 13.4" (65.5 x 37.4 x 34.0 cm) | | Weight | 22.4 lb (10.2 kg) |
