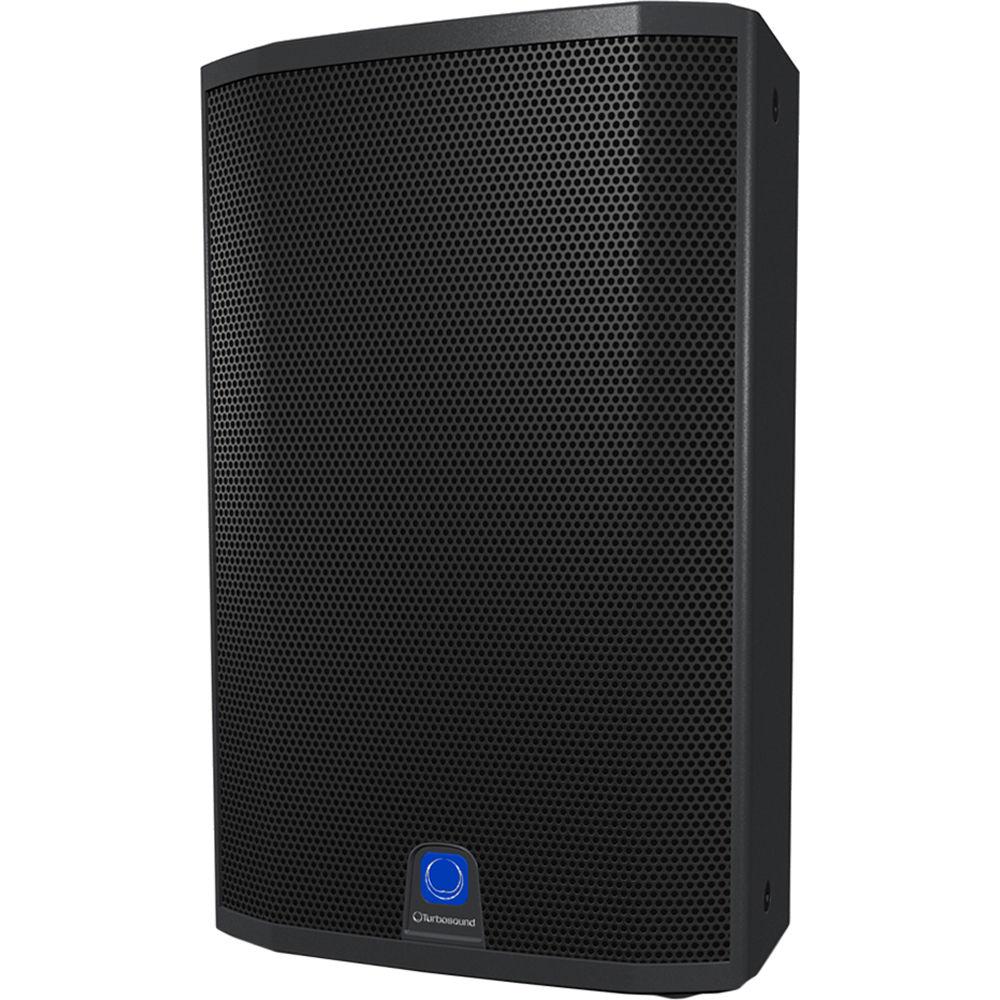

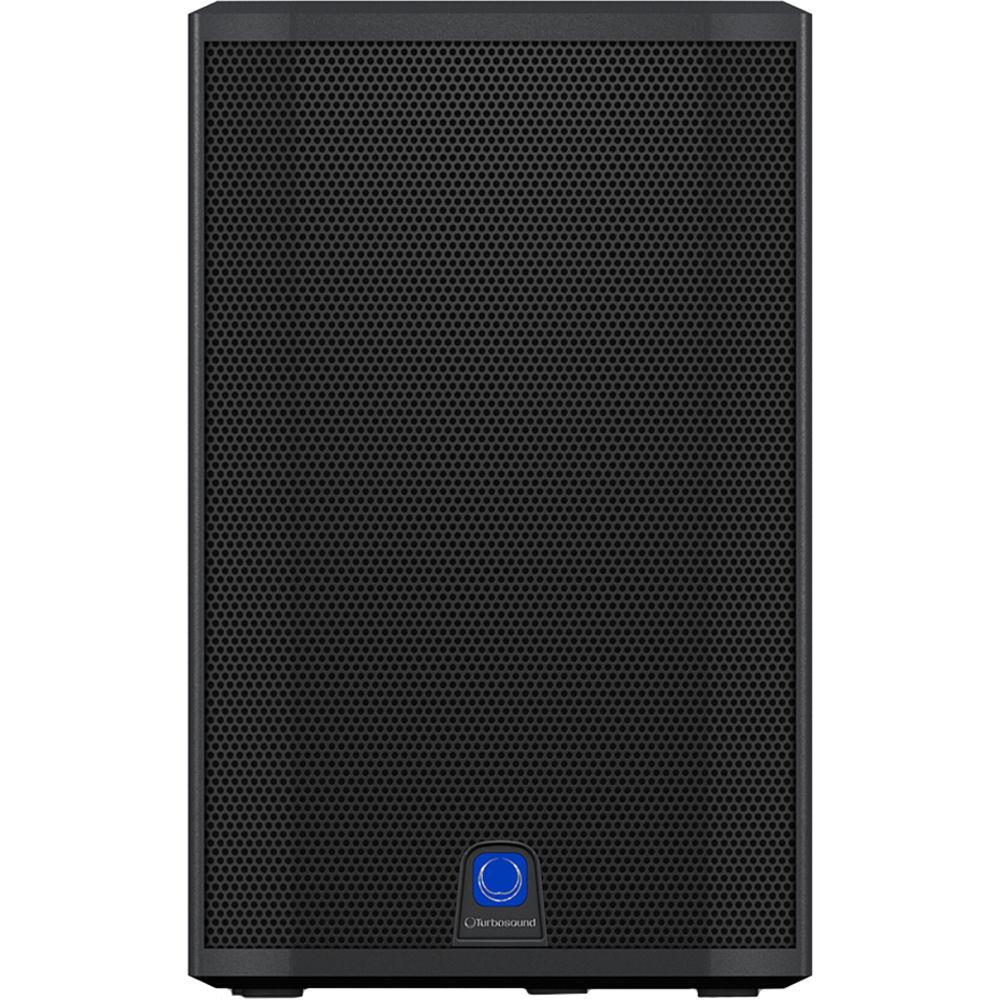

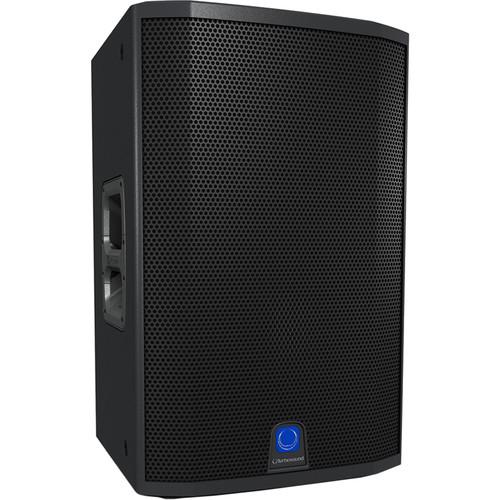

User Manual for Turbosound Siena 2500W 12" Powered Loudspeaker with KLARK TEKNIK DSP Technology and ULTRANET Networking Click to enlarge the picture
Contents of the user manual for the Turbosound Siena 2500W 12" Powered Loudspeaker
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound Siena 2500W 12" Powered Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description The Siena 2500W Powered Loudspeaker from Turbosound is a 2500W 12" powered loudspeaker system that is suited for a wide range of portable- and fixed-installation speech and music sound-reinforcement applications. Designed to work individually without a controller, the TSP122AN provides high-output FOH performance and is suited for a wide range of music and live sound-reinforcement applications. - Class-D Power Amplifier
- Equipped with a lightweight KLARK TEKNIK Class-D power amplifier, the TSP122AN provides 2500W of output power in a portable and lightweight package. Class-D amplification eliminates the need for heavy power supplies and large heat sinks.
- Onboard DSP
- A high degree of control over the loudspeaker system's performance is managed by KLARK TEKNIK Digital Signal Processor (DSP), which provides dynamic EQ and transparent limiting.
- Intuitive User Interface
- On the rear panel of the amplifier module, you will find a fully featured user interface consisting of an LCD display, with a single rotary encoder for intuitive access to level, EQ, and Feedback Control (FBI). For connecting to powered satellite loudspeakers, the subwoofer features a balanced XLR/jack input and a balanced XLR output .
- ULTRANET Connectivity
- The TSP122AN features Turbosound's proprietary ULTRANET technology which allows the use of Cat5 cables for transmitting pristine multi-channel audio signals and other information between compatible digital devices, including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup saves installation time. An on-board USB port provides access for remote control of the TSP122AN via Windows computer (software available for free on Turbosound's website) and convenient DSP firmware updates.
- Birch-Plywood Construction
- Finished in a durable semi-matte black paint, the cabinet is constructed from 3/4" birch plywood and includes a rugged powder-coated perforated-steel mesh grille backed with reticulated foam. Multiple threaded rigging points are provided for suspension in any orientation, a dual-angle pole-mount socket for use with 35mm poles/speaker stands to optimize audience coverage, and durable handles for easy transport. The wedge-shape design also enables the TSP122AN to be utilized in low-profile stage-monitor applications where improved audience line-of-sight is of paramount importance. Mains power input is provided via a Neutrik powerCON connector.
- Touring-Grade Performance
- Designed to provide performance for traveling musicians, or permanent installations such as houses of worship, banquet facilities, night clubs, and a host of other venues, the 2500W Siena TSP122AN puts touring-grade sound quality into a scalable loudspeaker system that is portable and versatile.
- Other Features
-
- Two-way full-range loudspeaker for portable PA applications
- 12" low-frequency driver with inside/outside wound coil for high-power handling
- Titanium dome 1" compression driver with extended high-frequency reproduction
- Low-distortion waveguide provides 70 x 50° dispersion
- Dual-angle pole mount for accurate coverage control
- Rugged powder-coated perforated-steel mesh grille
UPC: 748252151445 In the Box Turbosound Siena 2500W 12" Powered Loudspeaker with KLARK TEKNIK DSP Technology and ULTRANET Networking Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Siena 2500W 12" Powered Loudspeaker with KLARK TEKNIK DSP Technology and ULTRANET Networking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TSP122AN Specs | | | Frequency Response | 50 Hz to 18 kHz ±3 dB
43 Hz to 20 kHz -10 dB | | Nominal Dispersion | H x V: 70 x 50° @ -6 dB points | | Maximum SPL | 133 dB peak | | Crossover Type | Active | | Transducer | 1 x 12.0" (31.6 cm) LF driver
1 x 1.0" (2.5 cm) HF compression driver | | Limiter | Independent HF, LF, peak and rms | | | | Maximum Output Power | 2500 W | | Type | Class-D | | Protection | Short circuit, thermal | | | | Link | Input:
1 x Combo jack/XLR, 1 x XLR
Sensitivity: +4 dBu or +14 dBu software switchable
Input Impedance: 40 kOhms balanced
Maximum Input Level:
+22 dBu
Ultranet Input:
2 x RJ45 | | Mains Supply | Neutrik powerCON 20 A | | | | DSP | Rotary push-encoder and level control
Buttons for process, setup, exit, enter | | EQ Presets | Positioning, sound mode FBQ | | Display | LCD 128 x 32, blue, backlit | | Delay | 0 to 300 ms | | Equalization | High- and low-shelving EQ
2 x Parametric EQ | | Limiter | Zero-attack input limiter | | Presets | 20 total presets, 19 user-defi nable | | Crossover | High-pass L-R 24 dB/oct | | Protection | Lock-out function for all settings | | | | Type | Ultranet Digital | | A/D Conversion | 24-bit, 44.1/48 kHz sample rate | | Converter Type | 24-bit, delta-sigma | | Signal | 16 channels | | Latency | <0.9 ms | | Frequency Response | 20 Hz to 20 kHz (+0 / -3 dB) | | Dynamic Range | Typical 92 dB | | Cables | Shielded Cat5 | | Cable Length | Maximum 246' (75 m) recommended | | | | Power Consumption | 90 W @ 1⁄8 max power | | Grille | Powder-coated perforated steel | | Finish | Semi-matte black paint | | Construction | 3/4" (1.8 cm) birch plywood | | Hardware | Flying Hardware: 6 x M10 points | | Dimensions | 24.1 x 15.1 x 13.4" (61.3 x 38.4 x 34.0 cm) | | Weight | 47.4 lb (21.5 kg) | | | | Package Weight | 56.6 lb | | Box Dimensions (LxWxH) | 26.0 x 18.0 x 17.0" |
