User Manual for Turbosound Siena 3000W 18" Powered Subwoofer with KLARK TEKNIK DSP Technology and ULTRANET Networking Click to enlarge the picture
Contents of the user manual for the Turbosound Siena 3000W 18" Powered Subwoofer
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound Siena 3000W 18" Powered Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

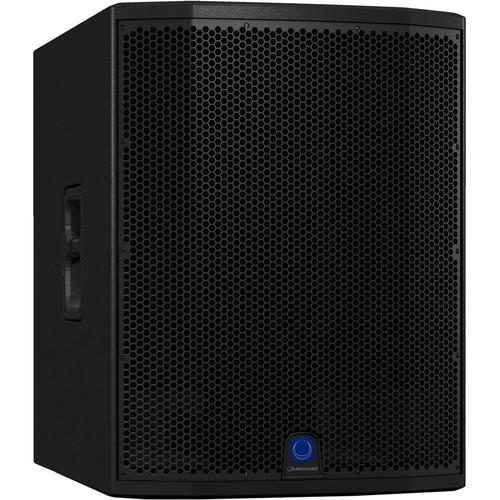

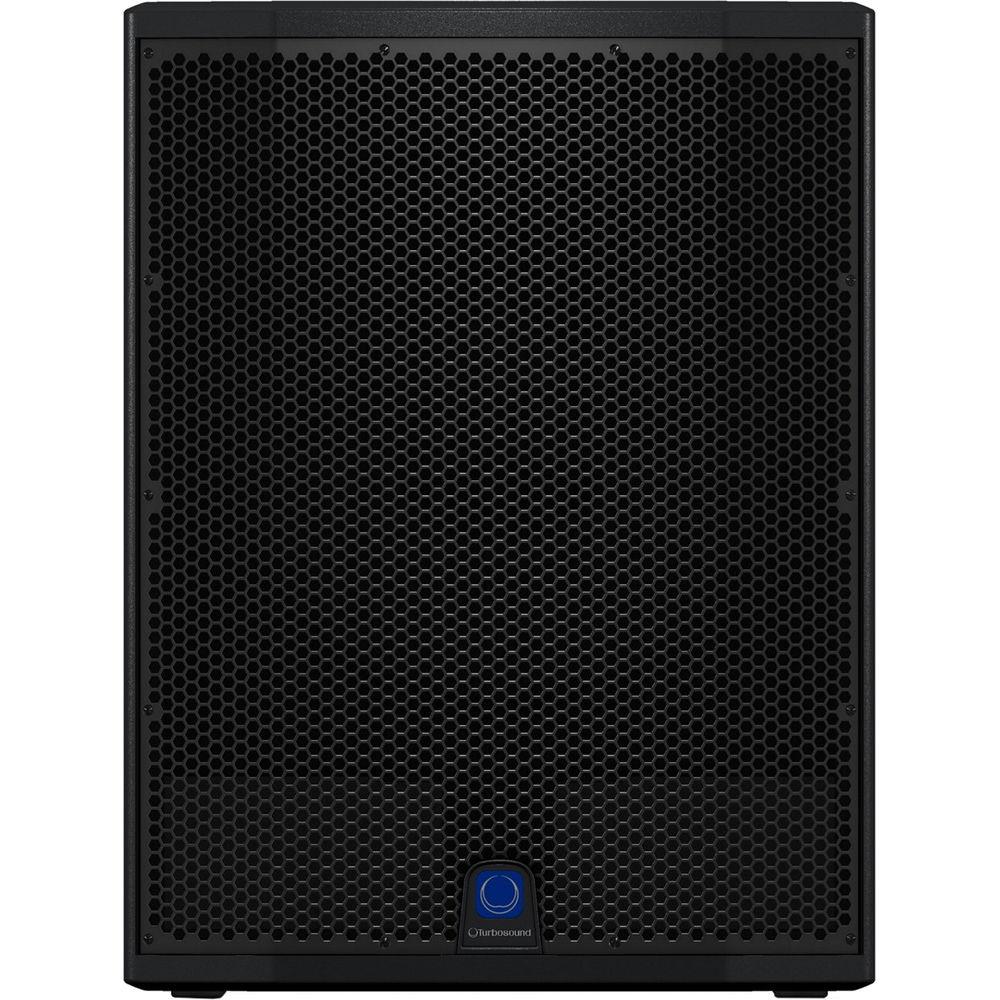

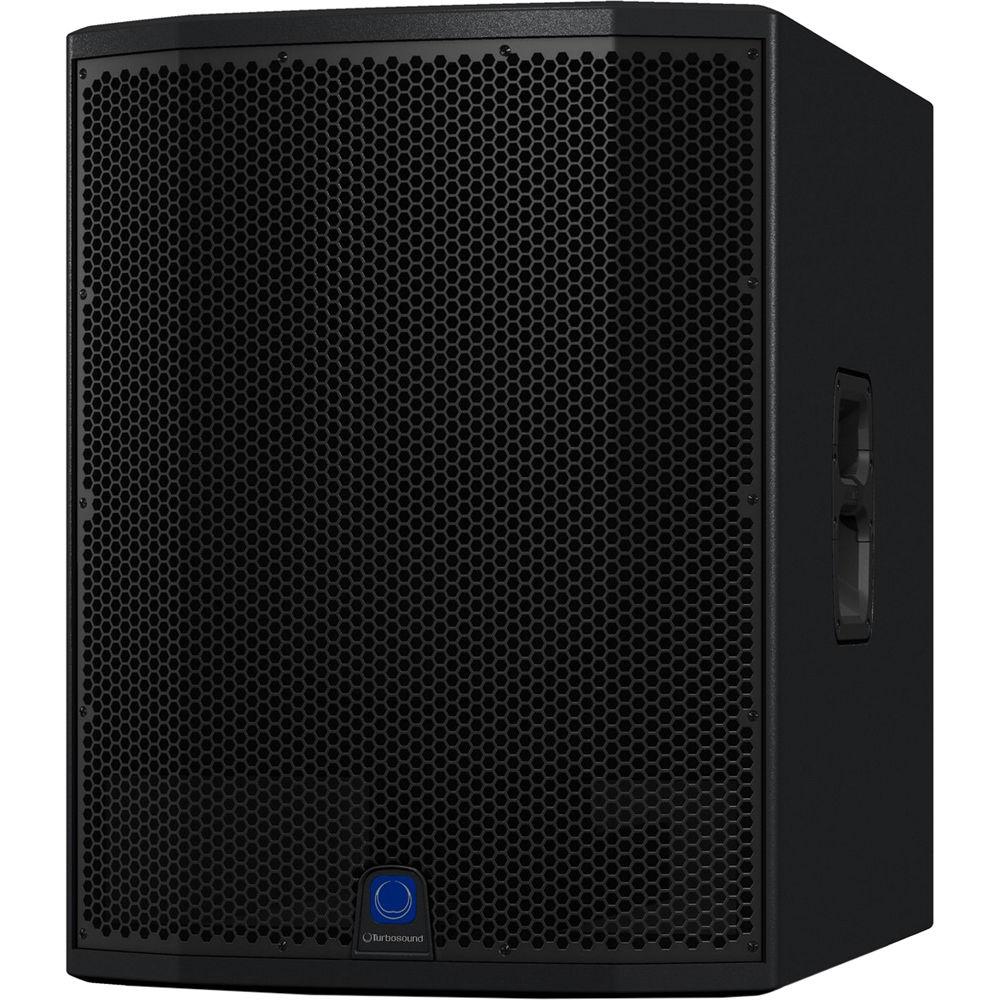

Product description The Siena 3000W Powered Subwoofer from Turbosound is a front-loaded bass-reflex subwoofer enclosure that is optimally tuned for extended low-frequency response. It features a powerful 18" low-frequency driver that utilizes an inside/outside wound voice coil for higher magnetic density, better heat dissipation, high power-handling capacity, and improved efficiency. Designed to work individually without a controller, the TSP118B-AN provides high-output FOH performance and is suited for a wide range of music and live sound-reinforcement applications. - Class-D Power Amplifier
- Equipped with a lightweight KLARK TEKNIK Class-D power amplifier, the TSP118B-AN provides 3000W of output power in a highly portable and lightweight package. Class-D amplification eliminates the need for heavy power supplies and large heat sinks.
- Onboard DSP
- A high degree of control over the loudspeaker system's performance is managed by KLARK TEKNIK Digital Signal Processor (DSP), which provides dynamic EQ and transparent limiting.
- Intuitive User Interface

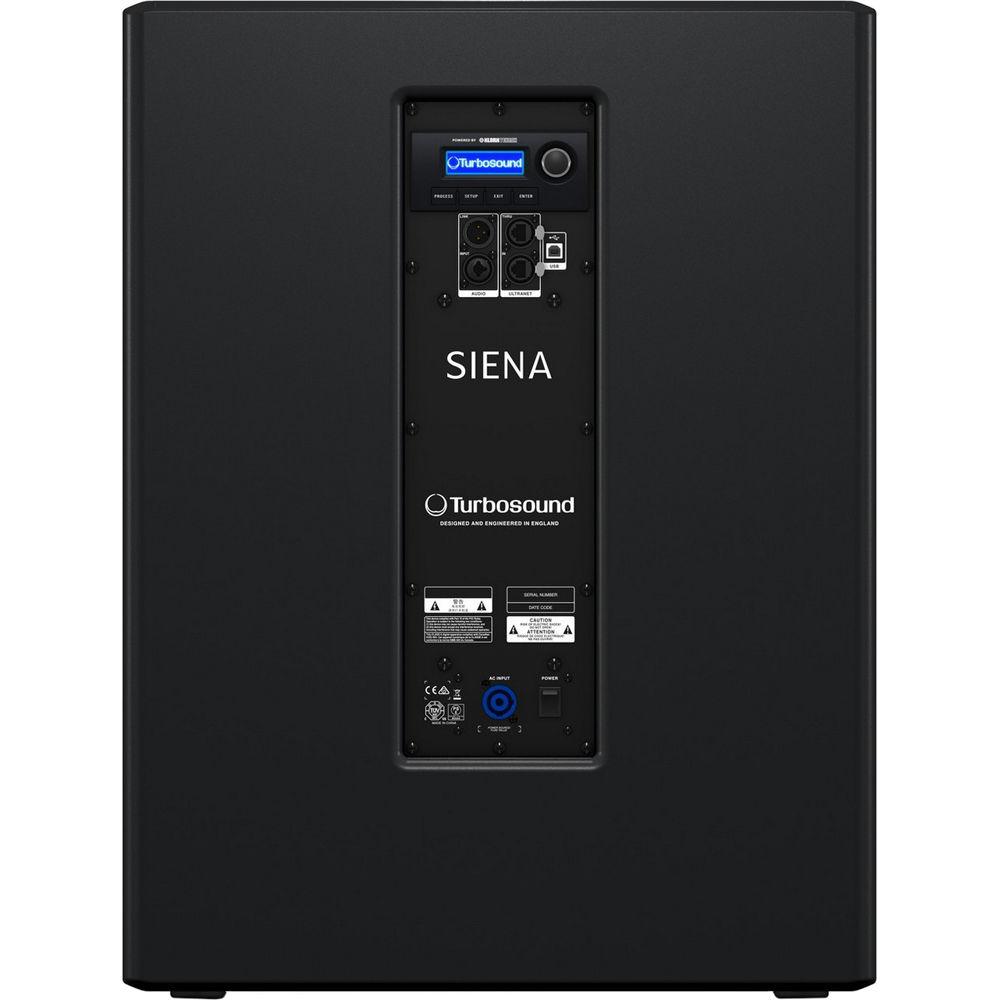

- On the rear panel of the amplifier module, you will find a fully featured user interface consisting of an LCD display, with a single rotary encoder for intuitive access to level, EQ, and Feedback Control (FBI). For connecting to powered satellite loudspeakers, the subwoofer features a balanced XLR/jack input and a balanced XLR output .
- ULTRANET Connectivity

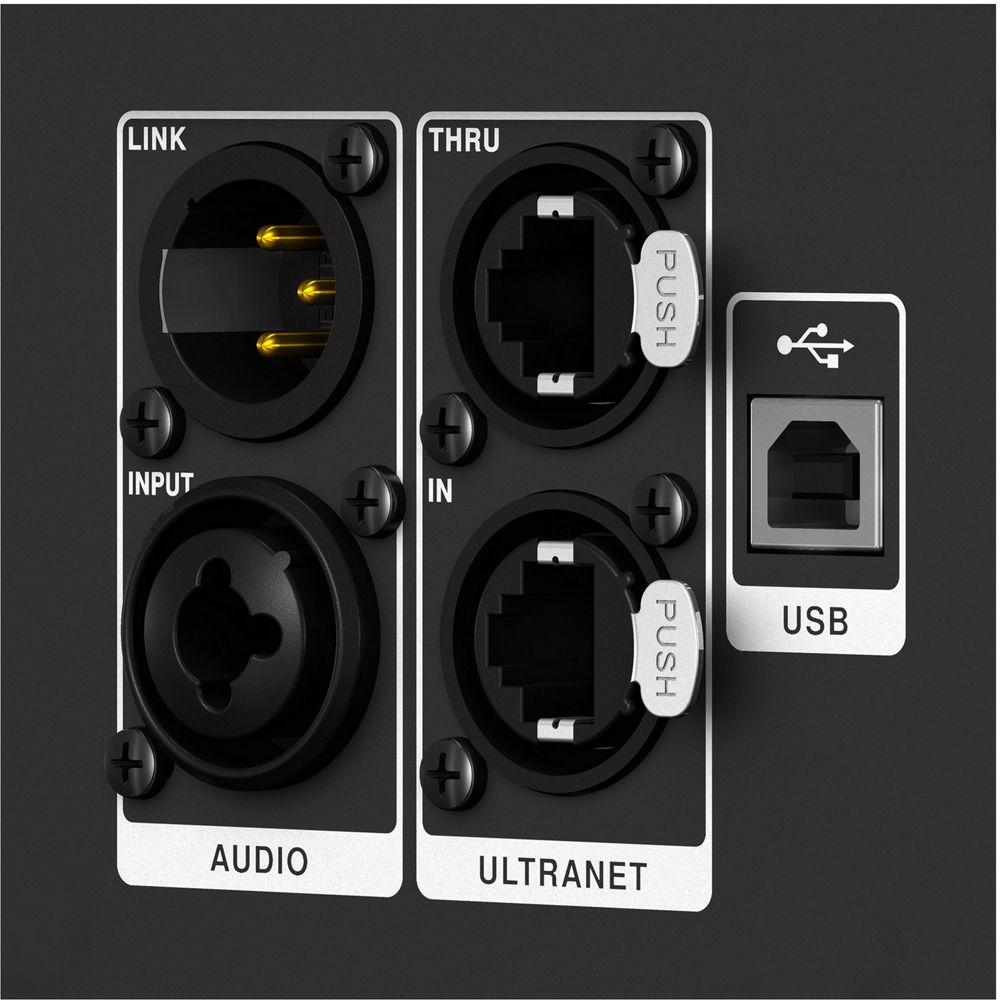

- The TSP118B-AN features Turbosound's proprietary ULTRANET technology which allows the use of Cat5 cables for transmitting pristine multi-channel audio signals and other information between compatible digital devices, including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup saves installation time. An on-board USB port provides access for remote control of the TSP118B-AN via a free Windows computer software download from Turbosound.com. Software can be started once per Windows computer and connects to only one speaker at a time. Convenient DSP firmware updates are also available.
- Birch-Plywood Construction
- Finished in a highly durable semi-matte black paint, the TSP118B-AN is constructed from 1/4" birch plywood and includes a 35mm pole socket for satellite-speaker mounting, integrated carry handles for convenient transport, and high impact interlocking corners for ground-stacking stability. Mains power input is provided via a Neutrik powerCON connector.
- Touring-Grade Performance
- Designed to provide performance for traveling musicians, or permanent installations such as houses of worship, banquet facilities, night clubs, and a host of other venues, the 3000W Siena TSP118B-AN puts touring-grade sound quality into a scalable loudspeaker system that is portable and versatile.
- Other Features
-
- Front-loaded powered subwoofer for portable PA applications
- 18" low-frequency driver with inside/outside wound coil for high-power handling
- Low-distortion bass-reflex port design
- Rugged powder-coated perforated-steel mesh grille
UPC: 748252151643 In the Box Turbosound Siena 3000W 18" Powered Subwoofer with KLARK TEKNIK DSP Technology and ULTRANET Networking Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Siena 3000W 18" Powered Subwoofer with KLARK TEKNIK DSP Technology and ULTRANET Networking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TSP118BAN Specs | | | Frequency Response | 35 to 90 Hz ±3 dB
32 to 100 Hz -10 dB | | Nominal Dispersion | Half space | | Maximum SPL | 134 dB peak | | Crossover Type | Active | | Transducer | 1 x 18" (46 cm) LF driver | | Limiter | Independent LF, peak and rms | | | | Maximum Output Power | 3000 W | | Type | Class-D | | Protection | Short circuit, thermal | | | | Link | Input:
1 x Combo jack/XLR, 1 x XLR
Sensitivity: +4 dBu or +14 dBu software switchable
Input Impedance: 40 kOhms balanced
Maximum Input Level:
+22 dBu
Ultranet Input:
2 x RJ45 | | Mains Supply | Neutrik powerCON 20 A | | | | DSP | Rotary push-encoder and level control
Buttons for process, setup, exit, enter | | EQ Presets | Positioning, sound mode FBQ | | Display | LCD 128 x 32, blue, backlit | | Delay | 0 to 300 ms | | Equalization | High- and low-shelving EQ
2 x Parametric EQ | | Limiter | Zero-attack input limiter | | Presets | 20 total presets, 19 user-defi nable | | Crossover | High-pass L-R 24 dB/oct | | Protection | Lock-out function for all settings | | | | Type | Ultranet Digital | | A/D Conversion | 24-bit, 44.1/48 kHz sample rate | | Converter Type | 24-bit, delta-sigma | | Signal | 16 channels | | Latency | <0.9 ms | | Frequency Response | 20 Hz to 20 kHz (+0 / -3 dB) | | Dynamic Range | Typical 92 dB | | Cables | Shielded Cat5 | | Cable Length | Maximum 246' (75 m) recommended | | | | System Requirement | Windows XP, Vista, 7, 8 | | Power Consumption | 180 W @ 1⁄8 max power | | Grille | Powder-coated perforated steel | | Finish | Semi-matte black paint | | Construction | 3/4" (1.8 cm) birch plywood | | Dimensions | 27.3 x 20.6 x 28.5" (69.3 x 52.3 x 72.5 cm) | | Weight | 61.2 lb (46.3 kg) | | | | Package Weight | 120.0 lb | | Box Dimensions (LxWxH) | 32.0 x 30.0 x 25.0" |
