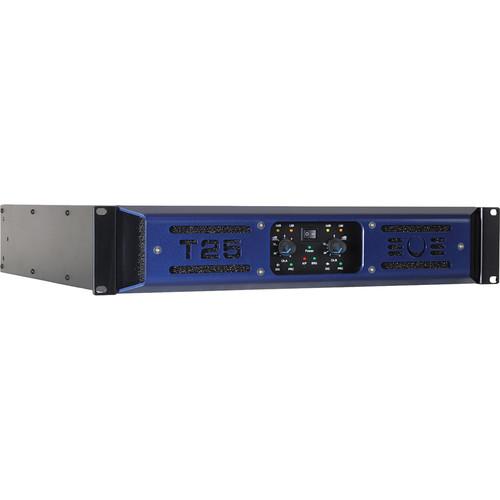

User Manual for Turbosound T-25 Switchmode Power Amplifier Click to enlarge the picture
Contents of the user manual for the Turbosound T-25 Switchmode Power Amplifier
- Product category: Power Amplifiers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound Power Amplifiers
|
User manual for the Turbosound T-25 Switchmode Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description The 2RU T-25 Switchmode Power Amplifier from Turbosound is designed for use with Turbosound loudspeakers in both concert touring and fixed installation applications. The switch-mode power supply is capable of delivering large transients without perceptible low frequency "sag". The amplifier utilizes a Class-AB output stage with fixed rail architecture, designed to enable a stable DC supply and optimum headroom.
The T-25 features a power control system linked to the limiters and to the power supply, with continual monitoring of operating parameters such as load and temperature. The power reduction control (PRC) reduces the available power output from the amplifier by enabling you to set a maximum output power level below its rated output. In addition to the AC power switch and power LED, the front panel carries an intuitive set of status indicators. These include a signal present indicator, -3 dB level indicators, limiter and PRC indicators, audio protection and bridged mode status. Channel gain is adjusted with analog controls, allowing precise signal level settings.
The T-25 amplifier is equipped with protection features. A soft start sequence with full in-rush protection powers the amplifier up in mute and progressively fades up the signal to the previous setting. Diagnostic circuits constantly monitor load, temperature and other parameters, and automatically adjust the power supply if any overheating occurs. This amplifier only requires a manual restart following short circuit faults.
The T-25 is 2RU, 19" rack mount with integral carrying handles on a 5mm front panel. Low noise variable-speed fans are utilized for front to rear forced air cooling, together with a front panel mounted reticulated foam air filter which can be removed for cleaning. The rear panel carries a captive AC power cable and circuit breaker. Each channel is provided with a 3-pin female XLR input connector and 3-pin male parallel link out connector, while the loudspeaker outputs are on Neutrik speakON NL4. A rack mount kit is supplied to enable the rear of the unit to be rack-mounted for extra stability. - Lightweight switch-mode power amplifier
- Designed and engineered in England
In the Box Turbosound T-25 Switchmode Power Amplifier (2 RU, 2500 W) Rear Rackmount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound T-25 Switchmode Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound T-25 Specs | Amplifier Type | Class AB | | Frequency Response | 20 Hz to 20 kHz ±0.5 dB | | Connectors | 2 x 3-pin XLR female
2 x 3-pin XLR male, Link
2 x Neutrik speakON NL4 | | Indicators | 1 x Power
2 x Limit
2 x Signal present
2 x -3 dB
2 x Power Reduction Control (PRC)
1 x Auto Protect
1 x Bridged | | Power Output | 650 W into 8 Ohms @ 1 kHz
1,250 W into 4 Ohms @ 1 kHz
2,200 W into 2 Ohms @ 1 kHz
2,500 W peak | | Dimensions | 3.5 x 19.0 x 16.8" (88 x 482 x 428 mm) | | Weight | 23.1 lb (10.5 kg) |
