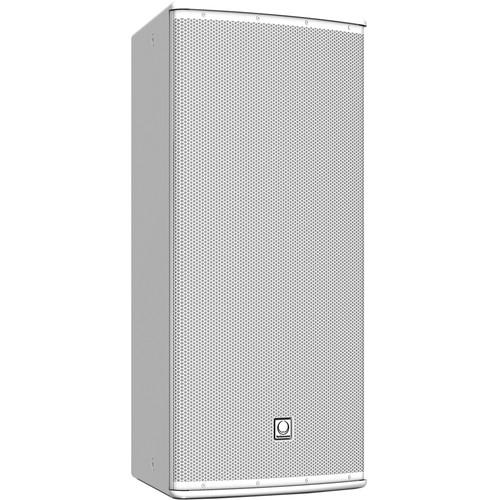

User Manual for Turbosound TCS-122 12" Two-Way Full-Range Loudspeaker with Dendritic Waveguide Click to enlarge the picture
Contents of the user manual for the Turbosound TCS-122 12" Two-Way Full-Range Loudspeaker
- Product category: Installed Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound Installed Speakers
|
User manual for the Turbosound TCS-122 12" Two-Way Full-Range Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description The white TCS-122 12" Two-Way Full-Range Loudspeaker with Dendritic Waveguide from Turbosound is a switchable bi-amp/passive two-way full-range loudspeaker designed for use in a wide range of fixed installations. The loudspeaker consists of a 12" reflex-loaded low-frequency driver and a 1.4" neodymium high-frequency compression driver. The rotatable dendritic waveguide provides a 90° H x 40° V HF dispersion pattern in an optimally tuned enclosure. These components are matched with an internal passive crossover, which can be by-passed for fully bi-amped operation.
The cabinet is constructed from 15 mm (5/8") birch plywood, with a powder-coated perforated steel mesh grille backed with reticulated foam. The double trapezoidal cabinet shape allows the TCS-122 to be tightly packed with other TCS series enclosures. Multiple rigging points, supported by internal steel flying strips, are provided on the top, bottom, sides and rear of the cabinet to enable it to be suspended and angled in permanent installations using M10 shoulder eyebolts. The TCS-122 is also fitted with internal rigging points for use with Turbosound and OmniMount wall and ceiling brackets.
A Neutrik Speakon NL4 speaker connector is located on the rear panel wired in parallel with a 4-way barrier strip providing input and link through connections to additional TCS series cabinets. - Arrayable two-way full-range loudspeaker for installation applications
- Multiple array configurations for extended coverage
- Rotatable Dendritic waveguide with 90° H x 40° V dispersion
- Switchable passive/bi-amp operation for flexibility of use
- Double trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- Designed and engineered in England
In the Box Turbosound TCS-122 12" Two-Way Full-Range Loudspeaker with Dendritic Waveguide (90° H x 40° V Dispersion, White) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TCS-122 12" Two-Way Full-Range Loudspeaker with Dendritic Waveguide in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCS122/94-WH Specs | Drivers | 1 x 12" (305 mm) LF
1 x 1.4" (35 mm) HF compression driver | | Frequency Response | 70 Hz - 20 kHz @ ±3 dB
50 Hz - 20 kHz @ ±10 dB | | Dispersion | 90° H x 40° V, horn pattern is rotatable within the enclosure | | Sensitivity | HF: 104 dB
LF: 95 dB
Passive: 95 dB
(1W @ 1m) | | Power Handling | HF: Continuous 100 W, Peak 400 W
LF: Continuous 500 W, Peak 2000 W
Passive: Continuous 500 W, Peak 2000 W | | Maximum Sound Pressure Level (SPL) | HF: Continuous 124 dB, Peak 130 dB
LF: Continuous 122 dB, Peak 128 dB
Passive: Continuous 122 dB, Peak 128 dB | | Nominal Impedance | LF, HF, Passive: 8 ohms | | Crossover | Internal Passive Network @ 1.2 kHz
Octave Low Pass: 12 dB
Octave High Pass: 24 dB | | Connectors | 1 x Speakon NL4
1 x 4-way barrier strip connector | | Construction | 15 mm (5/8") Birch Plywood | | Rigging Points | 9 x M10 Internal Rigging Points with Internal Steel Strips for M10 Eyebolts
4 x M10 Internal Rigging Points for Turbosound Brackets
4 x M8 Internal Rigging Points for OmniMount Brackets | | Grille | Powder-coated perforated steel with foam backing | | Dimensions | 31.6 x 15.9 x 16.4" (803 x 403 x 416 mm) | | Weight | 66 lb (30 kg) |
