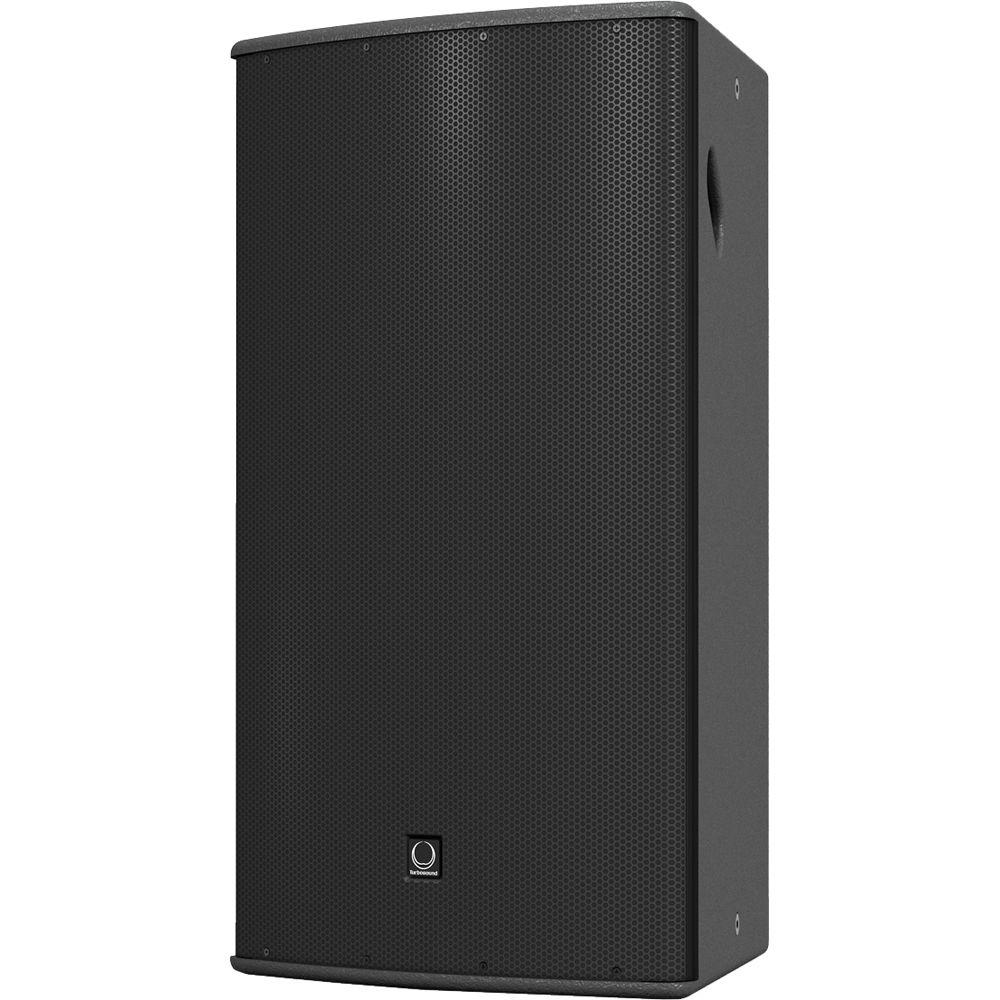

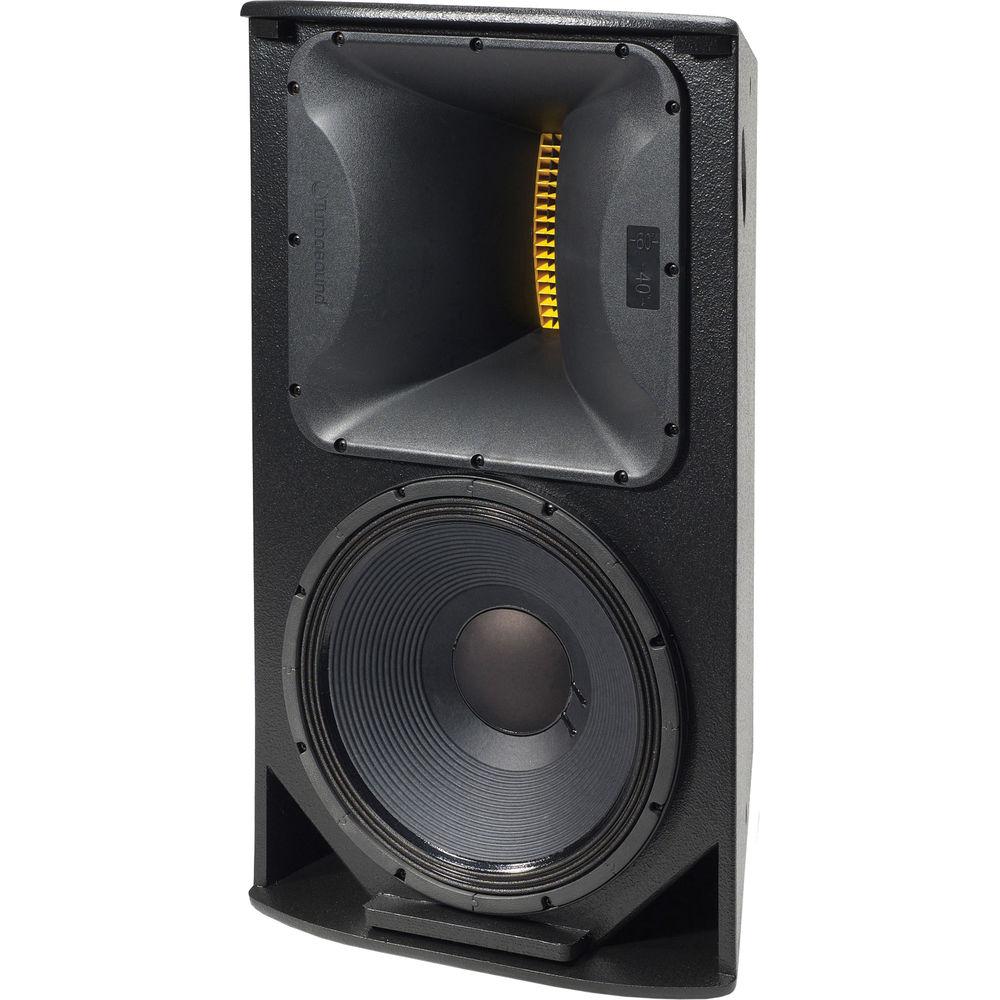

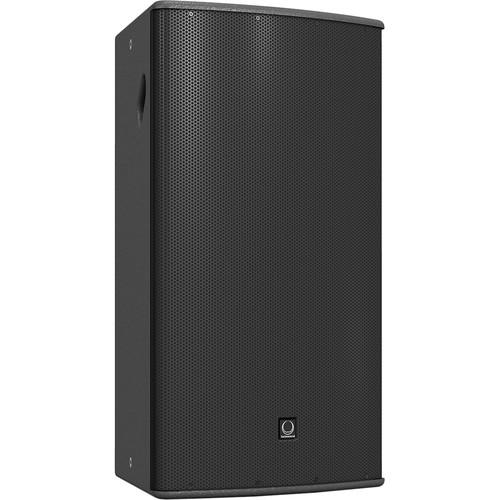

Product description The black TCS-152 Arrayable 2 Way 15" Full Range Loudspeaker from Turbosound is a switchable bi-amp/passive two way full range loudspeaker designed for use in a wide range of fixed installations. The TCS-152 incorporates a 15" low frequency driver and a 1.4" neodymium high frequency compression driver loaded by a rotatable dendritic waveguide providing a dispersion of 90° x 40° HF horn pattern in an optimally tuned enclosure. These high grade components are matched with an internal passive crossover, which can be by-passed for fully bi-amped operation.

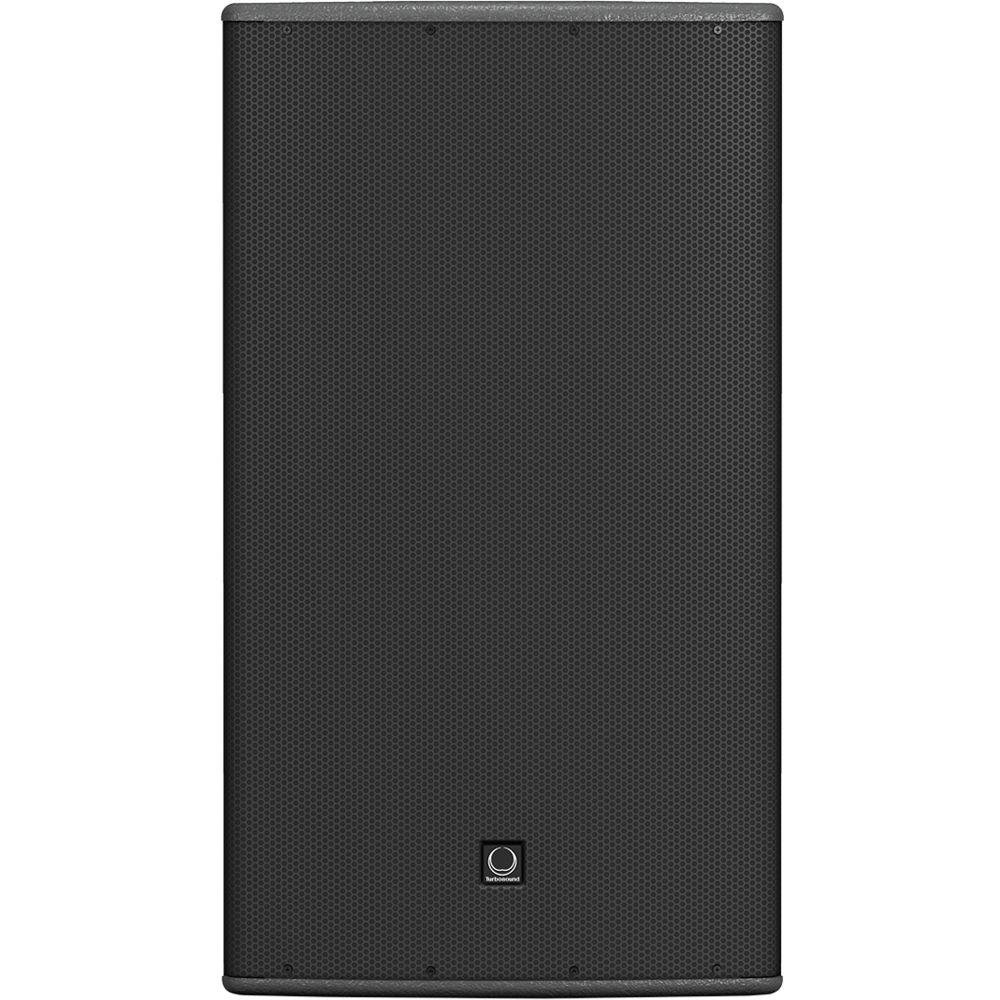

The cabinet is constructed from 5/8" birch plywood, with a powder coated perforated steel mesh grille backed with reticulated foam. The trapezoidal cabinet shape conveniently allows the TCS-152 to be tight packed with other TCS series enclosures. Multiple rigging points, supported by internal steel flying strips, are provided on the top, bottom, sides, and rear of the cabinet to enable it to be suspended and angled in permanent installations using M10 shoulder eyebolts. The TCS-152 is also fitted with internal rigging points for use with Turbosound and OmniMount wall and ceiling brackets (sold separately).

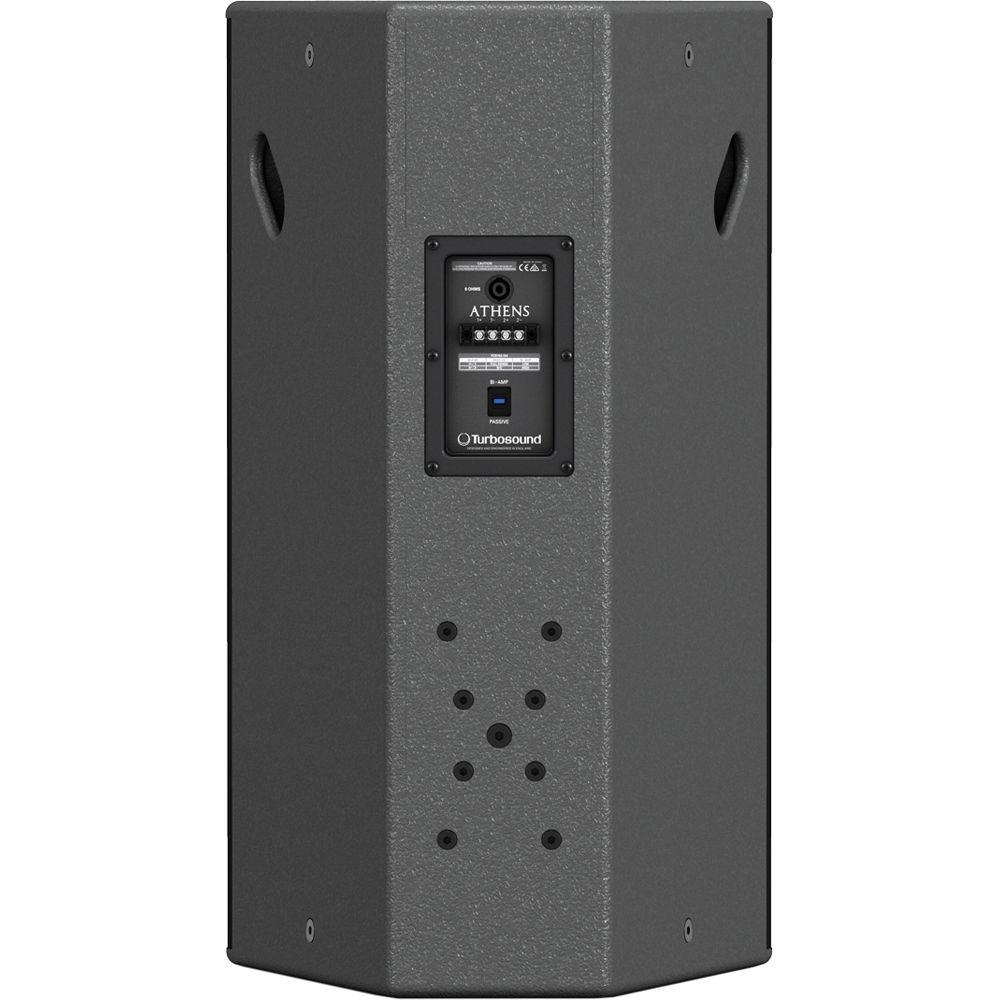

A Neutrik speakON NL4 speaker connector located on the rear panel is wired in parallel with a four-way barrier strip providing input and link-through connections to additional TCS series cabinets. The cabinet is finished in durable black semi-matt textured paint. - Arrayable two-way full range loudspeaker for installation applications
- Rotatable dendritic waveguide with 90° x 40° dispersion
- 500W continuous, 2,000W peak power
- 1.4" neodymium HF compression driver
- Multiple array configurations for extended coverage
- Switchable passive/bi-amp operation for flexibility of use
- Double trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- 5/8" birch plywood enclosure with hard wearing semi matt black paint finish
- Architecturally styled powder coated perforated steel mesh grille
- Neutrik speakON NL4 and barrier strip connectors
- Designed and engineered in England
In the Box Turbosound TCS-152 Arrayable 2 Way 15" Full Range Loudspeaker (90° x 40° Dispersion, Black) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TCS-152 Arrayable 2 Way 15" Full Range Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCS15294 Specs | Components | 1 x 15" (381 mm) LF Driver
1 x 1.4" (35 mm) HF Driver | | Frequency Response | 65 Hz - 20 kHz ±3 dB
45 Hz - 20 kHz ±10 dB | | Dispersion | 90° x 40° | | Sensitivity | 1 W @ 3.3' (1.0 m): HF: 104 dB
LF: 95 dB
Passive: 95 dB | | Power Handling | HF: 100 W continuous, 400 W peak
LF: 500 W continuous, 2,000 W peak
Passive: 500 W continuous, 2,000 W peak | | Max SPL Level | HF: 124 dB continuous, 130 dB peak
LF: 122 dB continuous, 128 dB peak
Passive: 122 dB continuous, 128 dB peak | | Nominal Impedance | HF: 8 ohms
LF: 8 ohms
Passive: 8 ohms | | Crossover | Internal passive network @ 1.2 kHz
Octave Low Pass: 12 dB
Octave High Pass: 24 dB | | Construction | 5/8" (15 mm) Birch plywood finished in semi matt black paint | | Grille | Powder coated perforated steel with foam backing | | Connectors | Neutrik speakON NL4
4-Way barrier strip | | Wiring | Neutrik speakON NL4
Passive
Pin 1+: positive
Pin 1-: negative
Pin 2+: N/C
Pin 2-: N/C
Bi-amp
Pin 1+: LF positive
Pin 1-: LF negative
Pin 2+: HF positive
Pin 2-: HF negative | | Rigging | 9 x M10 internal rigging points with internal steel strips for M10 eyebolts
4 x M10 internal rigging points for TURBOSOUND brackets
4 x M8 internal rigging points for OmniMount brackets | | Dimensions | 33.0 x 18.5 x 17.0" (838 x 469 x 433 mm) | | Weight | 79.2 lb (36 kg) |
