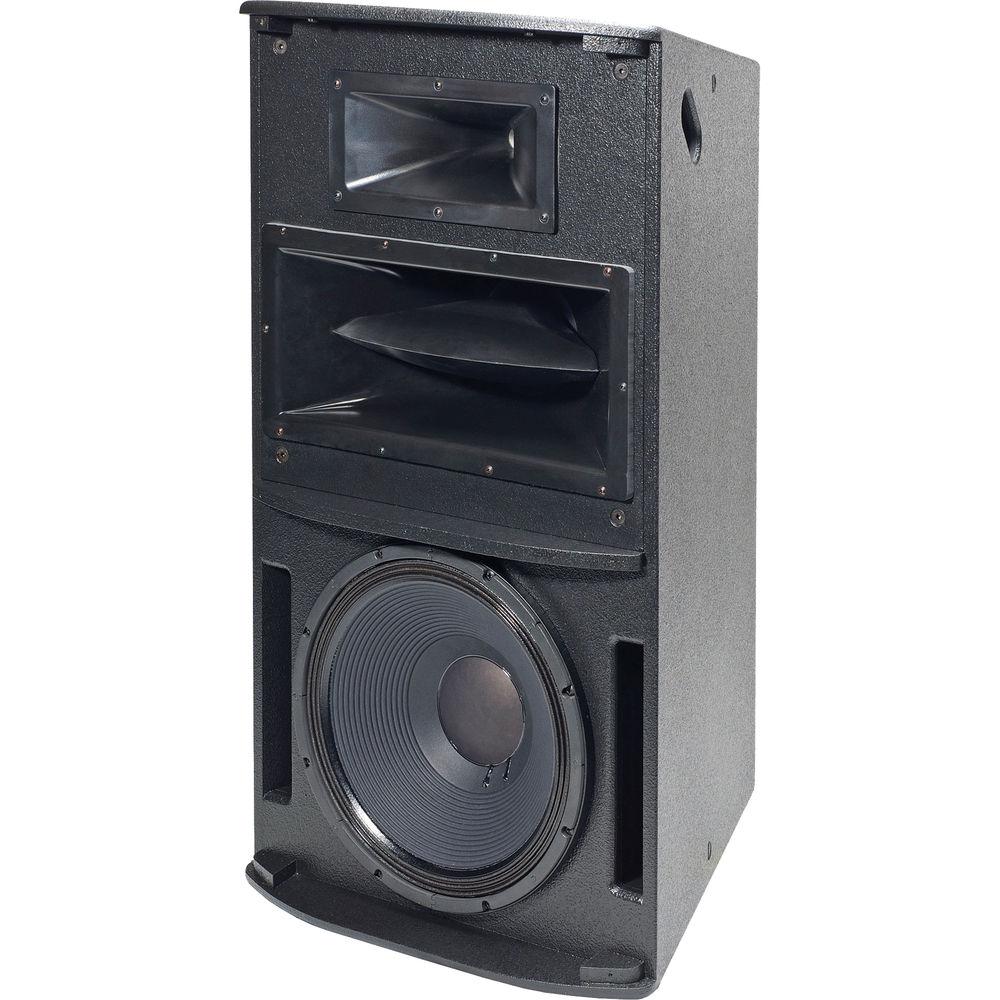

Product description The black Turbosound TCS-1561 is a switchable tri-amp/bi-amp three way full range loudspeaker designed for use in a wide range of fixed installations and consisting of a 15" reflex loaded low frequency driver, a high efficiency 6.5" mid range driver with low mass coil for improved transient response, and a 1" neodymium high frequency compression driver loaded by a rotatable low distortion waveguide providing 70° horizontal by 40° vertical dispersion. These high grade components are matched with an internal passive crossover, which can be by-passed for fully bi-amped operation. The entire mid/high section is rotatable through 90° within the enclosure, allowing a swap of the horizontal and vertical dispersion patterns.
The double trapezoidal cabinet shape conveniently allows the TCS-1561 to be tight packed with other TCS series enclosures. Multiple rigging points, supported by internal steel flying strips, are provided on the top, bottom, sides and rear of the cabinet to enable it to be suspended and angled in permanent installations using M10 shoulder eyebolts. Two Neutrik speakON NL8 speaker connectors are located on the rear panel providing input and link through connections to additional TCS series cabinets. - Arrayable three-way full range loudspeaker for installations
- 600 W continuous, 2,400 W peak power
- High efficiency 6.5" mid range driver with low mass coil for improved transient response
- 1" neodymium HF compression driver
- Low distortion waveguide provides 70° H x 40° V dispersion
- Multiple array configurations for extended coverage
- Switchable bi-amp/tri-amp operation for flexibility of use
- Double trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- 5/8" birch plywood enclosure with hard wearing semi matt black paint finish

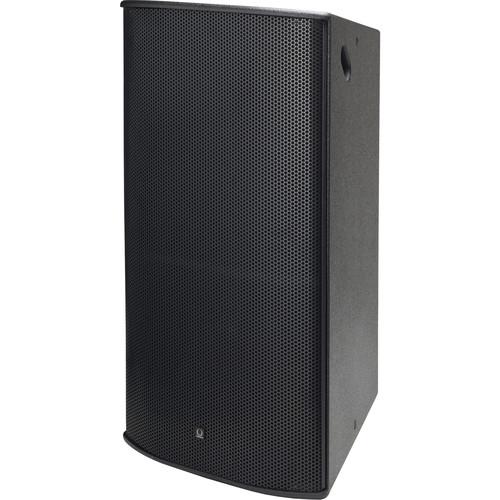

- Architecturally styled powder coated perforated steel grille
- Neutrik speakON NL8 connectors
In the Box Turbosound TCS-1561 Arrayable 3-Way 15" Full Range Loudspeaker (Black) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TCS-1561 Arrayable 3-Way 15" Full Range Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCS1561 Specs | Components | 1 x 15" (381 mm) LF driver
1 x 6.5" (165 mm) MF driver
1 x 1" (25 mm) HF driver | | Frequency Response | 50 Hz - 20 kHz ±3 dB
40 Hz - 20 kHz ±10 dB | | Dispersion | 70° H x 40° V @ -6 dB points | | Sensitivity | 1 W @ 3.3' (1 m): HF: 108 dB
MF: 105 dB
LF: 97 dB
Bi-amp MF/HF: 105 dB | | Power Handling | HF:50 W continuous, 200 W peak
MF: 400 W continuous, 1,600 W peak
LF: 500 W continuous, 2,000 W peak
Bi-amp MF/HF: 100 W continuous, 400 W peak
LF: 500 W continuous, 2,000 W peak | | Maximum SPL | HF: 125 dB continuous, 131 dB peak
MF: 125 dB continuous, 131 dB peak
LF: 124 dB continuous, 130 dB peak
Bi-amp MF/HF: 128 dB continuous, 134 dB peak
Addition: 130 dB continuous, 136 dB peak | | Nominal Impedance | HF: 16 ohms
MF: 16 ohms
LF: 8 ohms
Bi-amp MF/HF: 12 ohms | | Crossover | Internal passive network at 5 kHz | | Construction | 5/8" (15 mm) Birch plywood finished in semi matt black paint | | Grille | Powder coated perforated steel with foam backing | | Connectors | 2 x speakON NL8

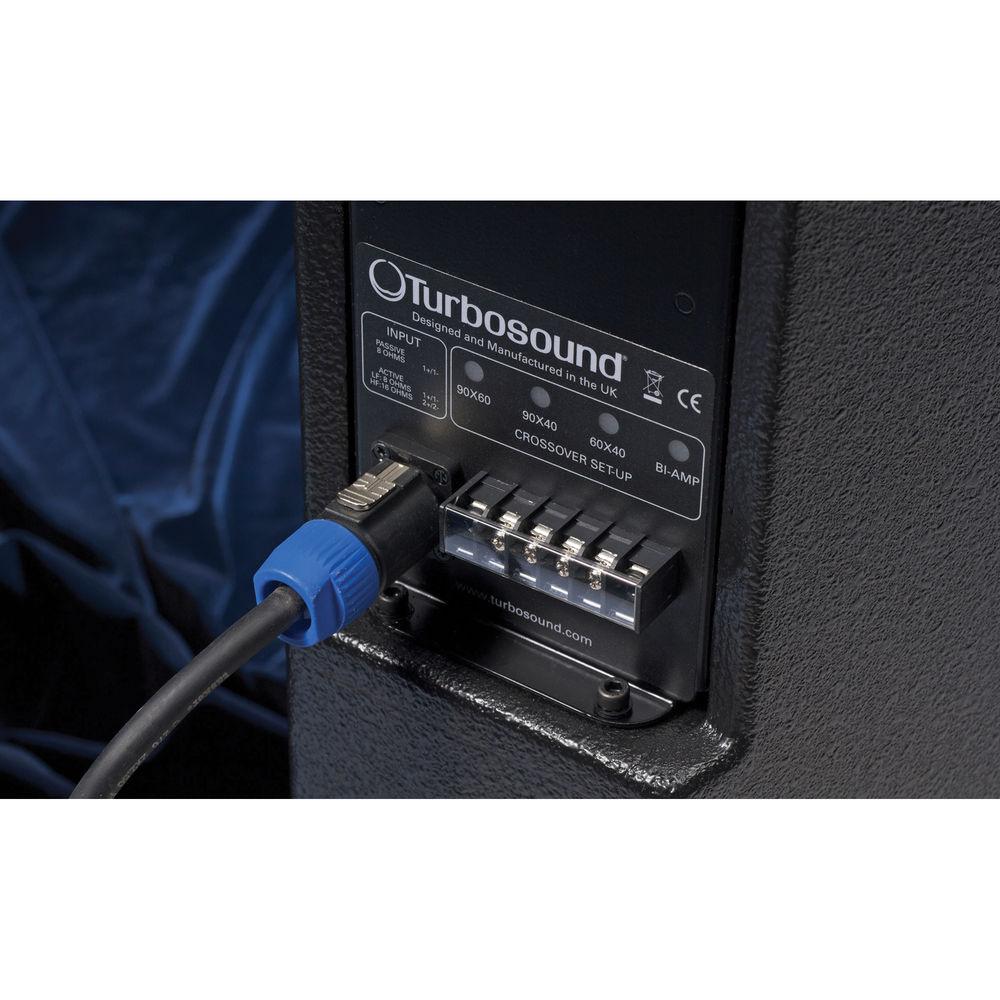

Connector Pinout:
Pin 1+: Link, Pin 1-: Link
Pin 2+: LF Positive, Pin 2-: LF Negative
Pin 3+: MF Positive, Pin 3-: MF Negative (MF/HF passive)
Pin 4+: HF Positive, Pin 4-: HF Negative | | Rigging | 9 x M10 internal rigging points with internal steel strips for M10 eyebolts | | Dimensions | 38.5 x 21.1 x 18.4" (979 x 535 x 467 mm) | | Weight | 114.4 lb (52 kg) |
