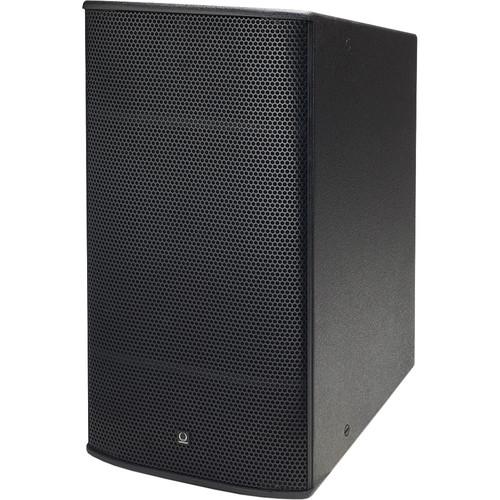

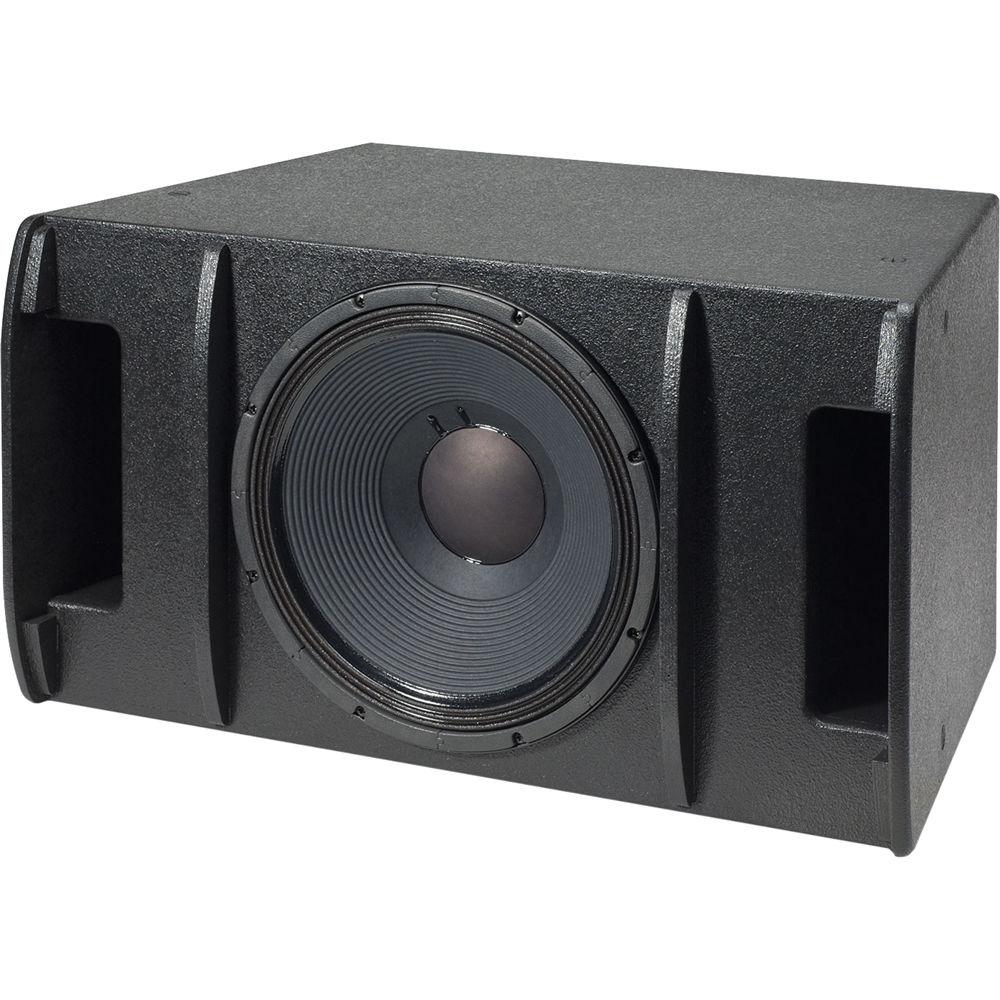

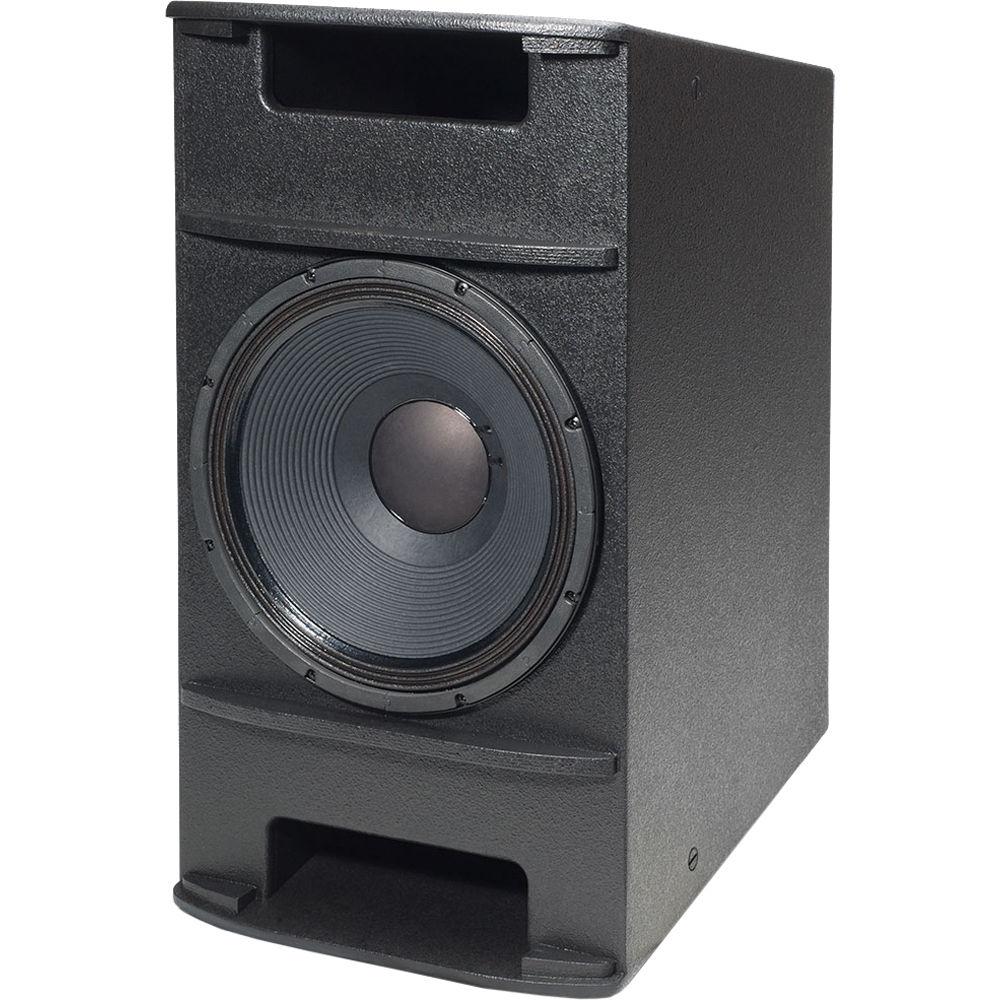

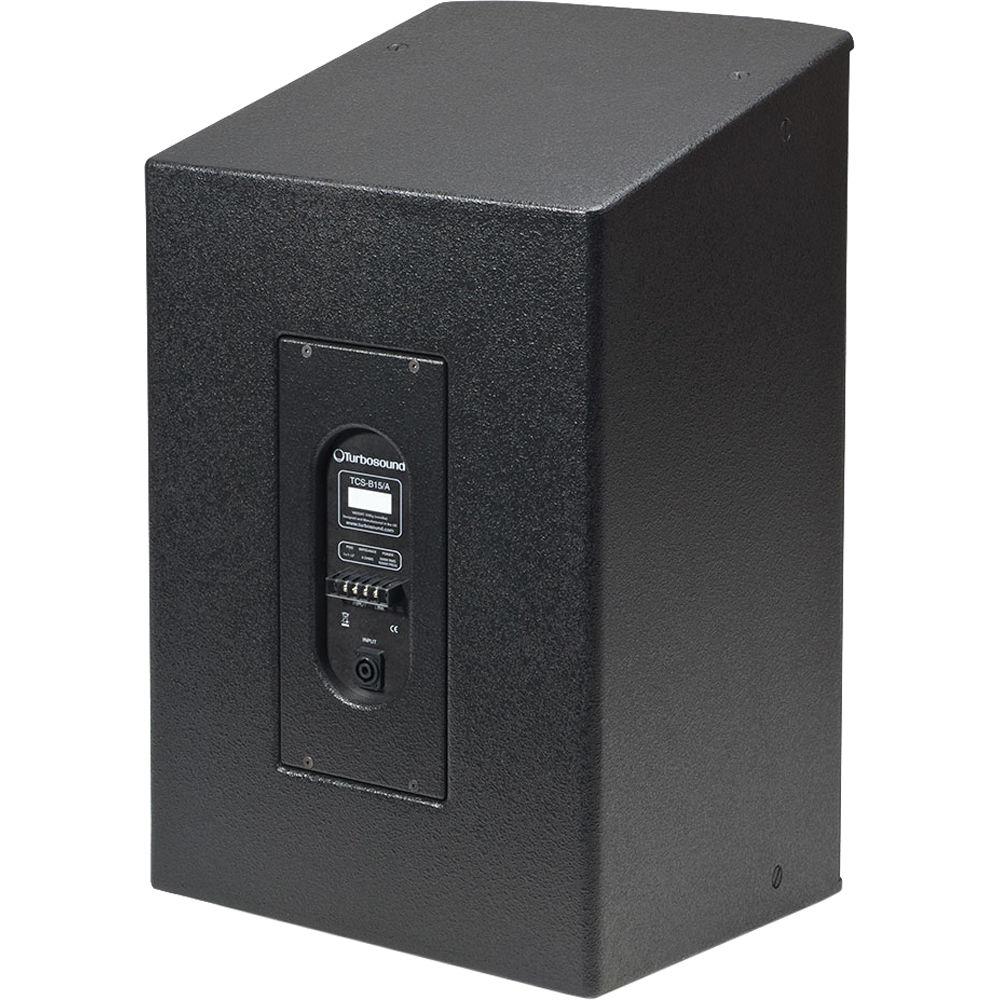

Product description The 15" Front Loaded Subwoofer from Turbosound is a low frequency loudspeaker enclosure designed for use in a wide range of fixed installations. It consists of a 15" low frequency driver in a trapezoidal enclosure. The cabinet is dimensioned to tight pack cluster with TCS series mid/high enclosures equipped with a 12" low frequency driver. The cabinet is constructed from 5/8" (15 mm) birch plywood with a powder coated perforated steel mesh grille backed with reticulated foam, and is finished in black semi matt textured paint.Multiple rigging points, supported by internal steel flying strips, are provided on the top, bottom, sides and rear of the cabinet to enable it to be suspended in permanent installations using M10 shoulder eyebolts. A Neutrik speakON NL4 connector is located on the rear panel wired in parallel with a 4-way barrier strip providing input and link through connections to additional TCS series cabinets.A weather resistant version is optionally available designed for outdoor use, with all components rated to IP54 and fitted with a captive cable tail secured through a sealed cable gland on an aluminum panel. - Low distortion bass reflex port design
- 5/8" birch plywood enclosure with hard wearing semi matt paint finish
- Architecturally styled powder coated perforated steel mesh grille
- Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- Neutrik speakON NL4 and barrier strip connectors
In the Box Turbosound TCS-B15B 15" Front Loaded Subwoofer (Black) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TCS-B15B 15" Front Loaded Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCS-B15B Specs | Components | 1 x 15" (381 mm) LF driver | | Frequency Response | 45 Hz to 150 Hz @ ±3 dB
30 Hz to 200 Hz @ ±10 dB | | Sensitivity | 102 dB (1 W @ 1 M) | | Power Handling | 500 Watts continuous, 2,000 Watts peak | | Max SPL Level | 127 dB continuous, 133 dB peak | | Nominal Impedance | 8 Ohms | | Construction | 5/8" (15 mm) Birch plywood finished in semi matt paint | | Grille | Powder coated perforated steel with foam backing | | Connectors | Neutrik speakON NL4
4-Way barrier strip connector | | Options | IP54 Weather resistant with captive cable and cable gland | | Rigging | 8 x M10 internal rigging points with internal steel strips for M10 eyebolts | | Color | Black | | Dimensions | 33 x 18.5 x 17.3" (838 x 469 x 440 mm) | | Weight | 81.4 lb (37 kg) |
