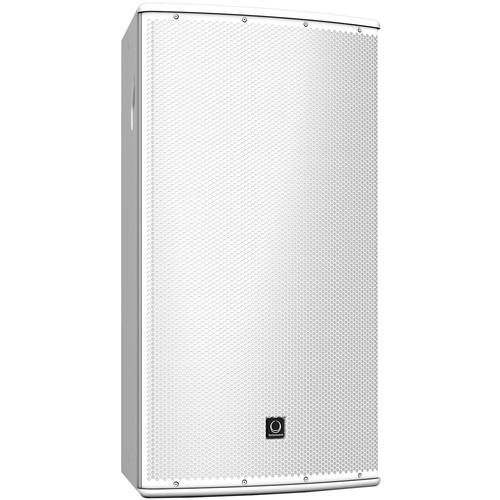

User Manual for Turbosound TCS152 64-RWH 15" Two-Way Full-Range Weather-Resistant Loudspeaker with Dendritic Waveguide Click to enlarge the picture
Contents of the user manual for the Turbosound TCS152 64-RWH 15" Two-Way Full-Range
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound TCS152 64-RWH 15" Two-Way Full-Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

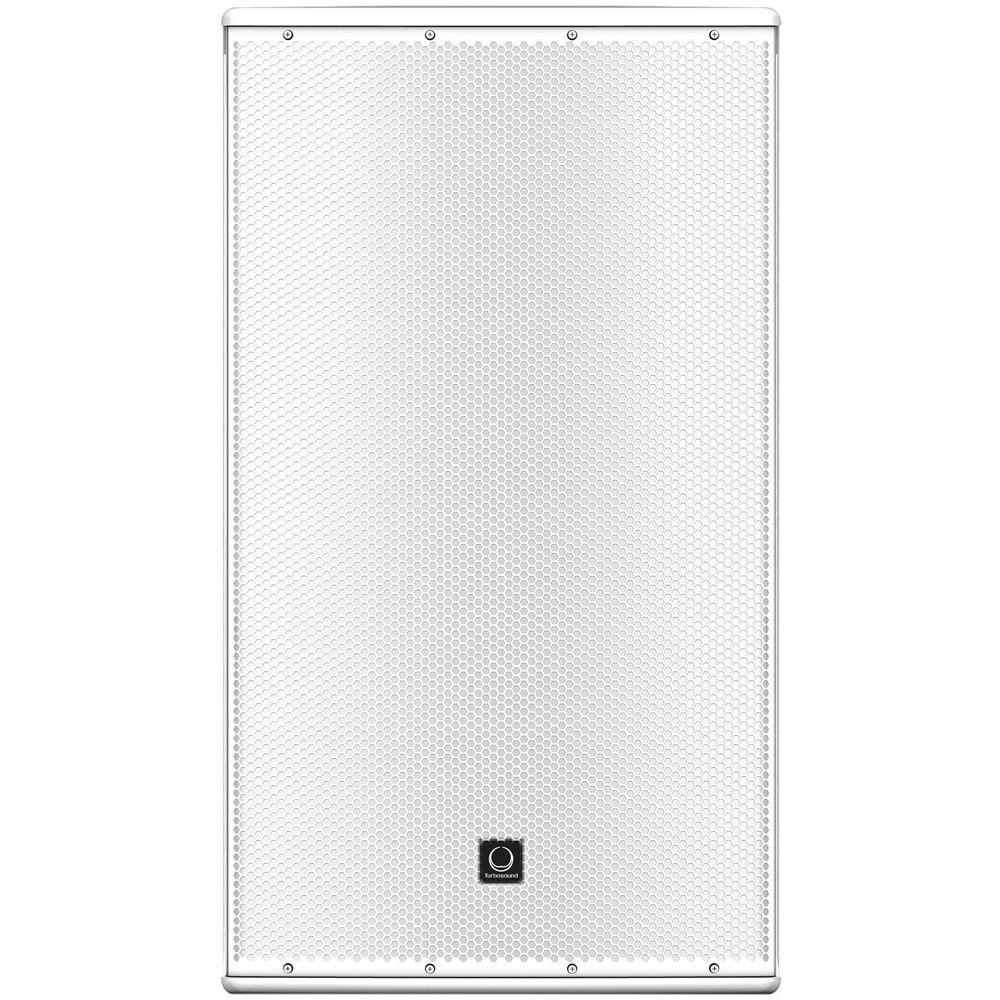

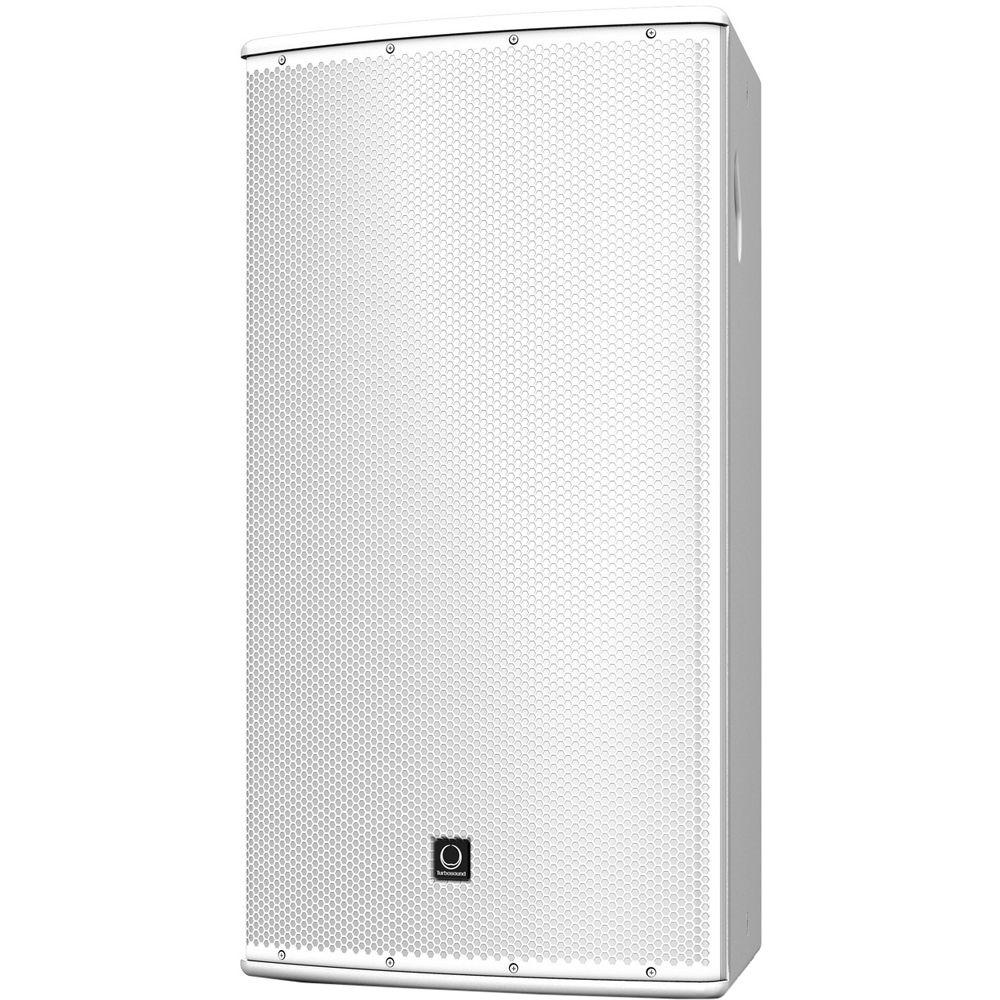

Product description The white TCS152/64-RWH 15" Two-Way Full-Range Weather-Resistant Loudspeaker with Dendritic Waveguide from Turbosound is a switchable passive / bi-amp two-way full-range loudspeaker, suitable for a wide range of speech and music sound reinforcement applications. It features a carbon fiber-loaded 15" low-frequency driver with inside/outside wound coil for improved transient response. It also features a titanium dome 1.4" neodymium high-frequency compression driver, which is mounted on a rotatable 60° x 40° (H x V) dendritic waveguide featuring multiple hornlets with identical path lengths that provide flat constant-phase wavefront. The trapezoidal cabinet is constructed from 0.59" birch plywood and features a durable weather-resistant semi-matte white paint finish. The cabinet also includes a rugged powder-coated perforated zinc-plated steel mesh grille. The enclosure features multiple rigging points for attaching a bracket mount (available separately), allowing you to suspend the speaker in any orientation. Speaker connectivity is achieved via the captive cable tail with sealed cable gland on the aluminum connector panel. The loudspeaker is designed to work in conjunction with Turbosound loudspeaker management systems, providing optimal FOH performance. It can be arrayed in multiple configurations for extended coverage using fly plates and coupler kits (available separately). The components are IP54-rated weather-resistant, making it suitable for outdoor applications. - Arrayable two-way full-range loudspeaker for installation applications
- Multiple array configurations for extended coverage
- Rotatable dendritic waveguide with 60° x 40° (H x V) dispersion
- Switchable passive/bi-amp operation for flexibility of use
- Carbon fiber-loaded 15" low-frequency driver with inside/outside wound coil for improved transient response
- Titanium dome 1.4" neodymium high-frequency compression driver
- Birch plywood enclosure (0.59") with semi-matte white paint finish
- Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
- Multiple internal rigging points for bracket mount attachment, allowing you to suspend the speaker in any orientation
- Powder-coated perforated zinc-plated steel mesh grille with foam backing

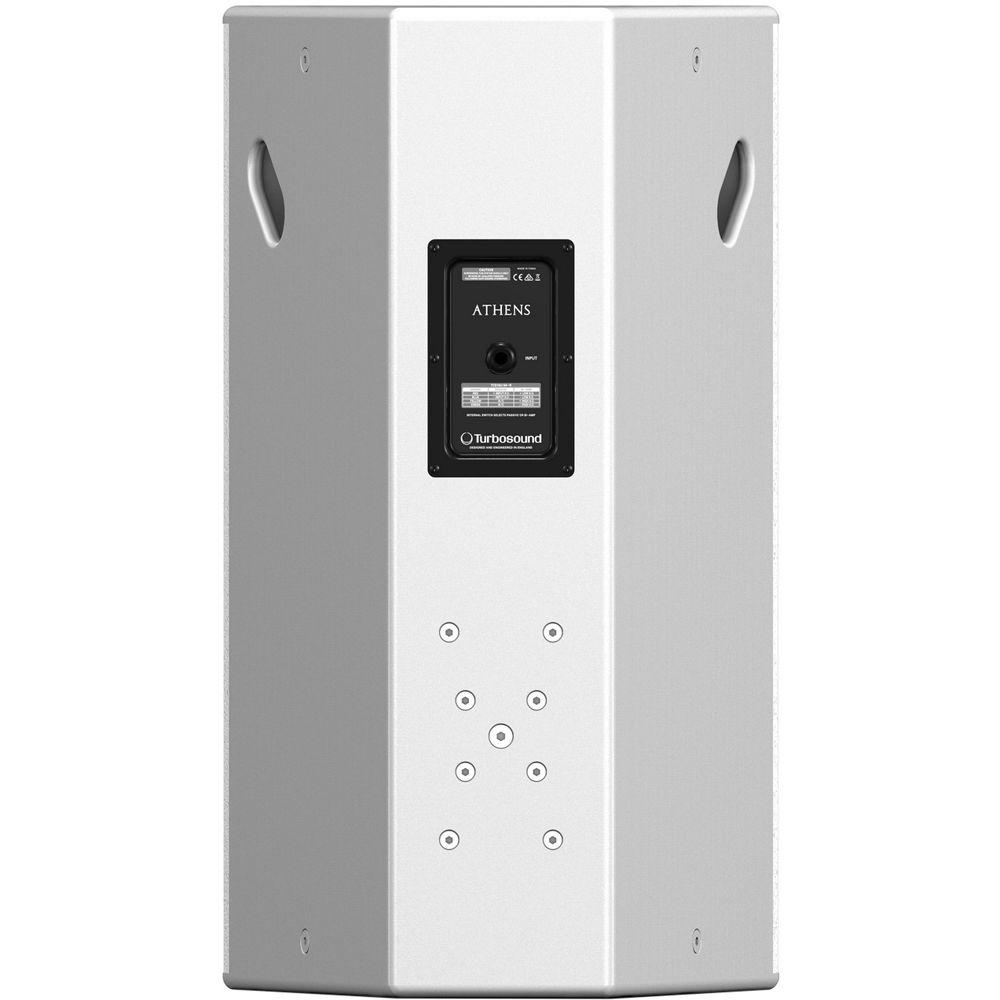

- Captive cable tail with sealed cable gland on aluminum connector panel
- Continuous power 600W, 2400W peak
- IP54-rated weather-resistant components for outdoor use
In the Box Turbosound TCS152/64-RWH 15" Two-Way Full-Range Weather-Resistant Loudspeaker with Dendritic Waveguide (60° x 40° Dispersion Pattern, White) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TCS152 64-RWH 15" Two-Way Full-Range Weather-Resistant Loudspeaker with Dendritic Waveguide in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCS152/64-R Specs | Drivers | 1 x 15" (381 mm) LF
1 x 1.4" (36 mm) HF compression driver | | Frequency Response | 41 Hz to 18 kHz @ ±3 dB
35 Hz to 20 kHz @ ±10 dB | | Nominal Dispersion | 60° x 40° (H x V) @ -6 dB points, rotatable | | Power Handling | Passive: 600 W continuous, 2400 W peak
LF: 600 W continuous, 2400 W peak
HF: 75 W continuous, 300 W peak | | Sensitivity | 97 dB (1 W @ 1 m) | | Maximum SPL | Passive: 131 dB peak
LF: 131 dB peak
HF: 134 dB peak | | Nominal Impedance | Passive: 8 ohms
LF: 8 ohms
HF: 6 ohms | | Construction | 0.59" (15mm) birch plywood | | Grille | Powder-coated perforated zinc-plated steel with foam backing | | IP Rating | IP54 | | Dimensions (H x W x D) | 32.8 x 18.6 x 17.8" (83.3 x 47.2 x 45.2 cm) | | Weight | 63.1 lb (28.6 kg) |
