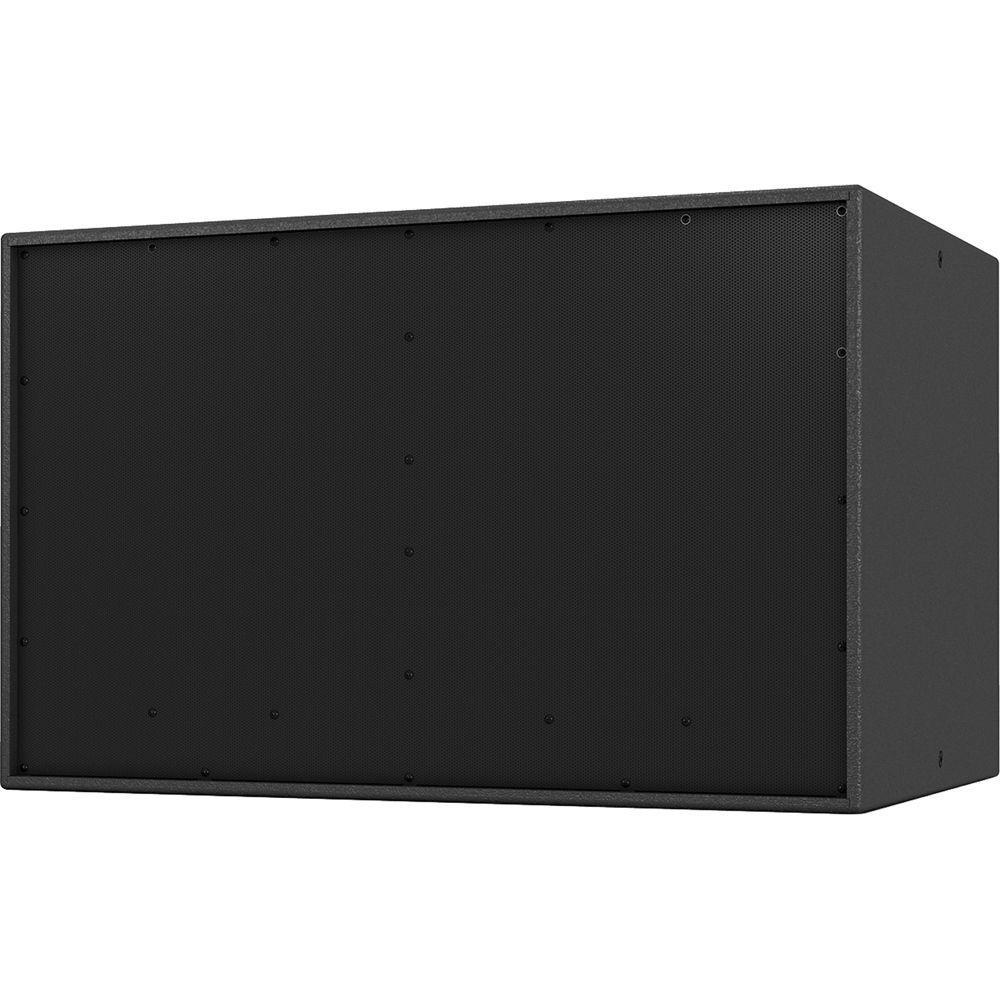

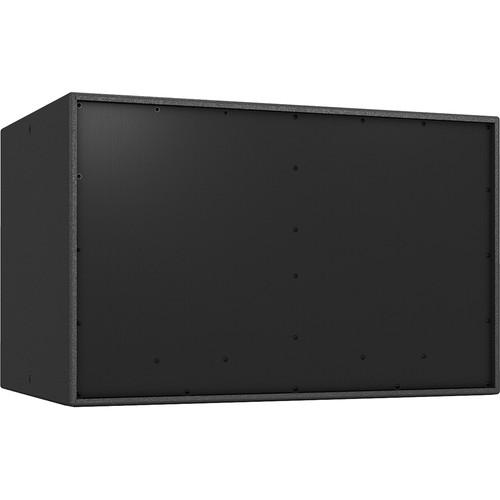

Product description The TCS218B Athens Dual 18" Front Loaded Subwoofer from Turbosound is a 6,400W high performance dual 18" subwoofer system designed for a wide range of speech and music sound reinforcement applications. Engineered to work in conjunction with Turbosound loudspeaker management systems, the TCS218B provides extended FOH low frequency performance.
A bass reflex port design enclosure, the subwoofer features two high power, double suspension 18" low frequency drivers with a specialized voice coil wound on both the inside and outside of the coil former for higher magnetic density, heat dissipation, higher power handling capacity, and improved efficiency. The TCS218B subwoofer provides fast and accurate transient response for virtually distortion-free operation.

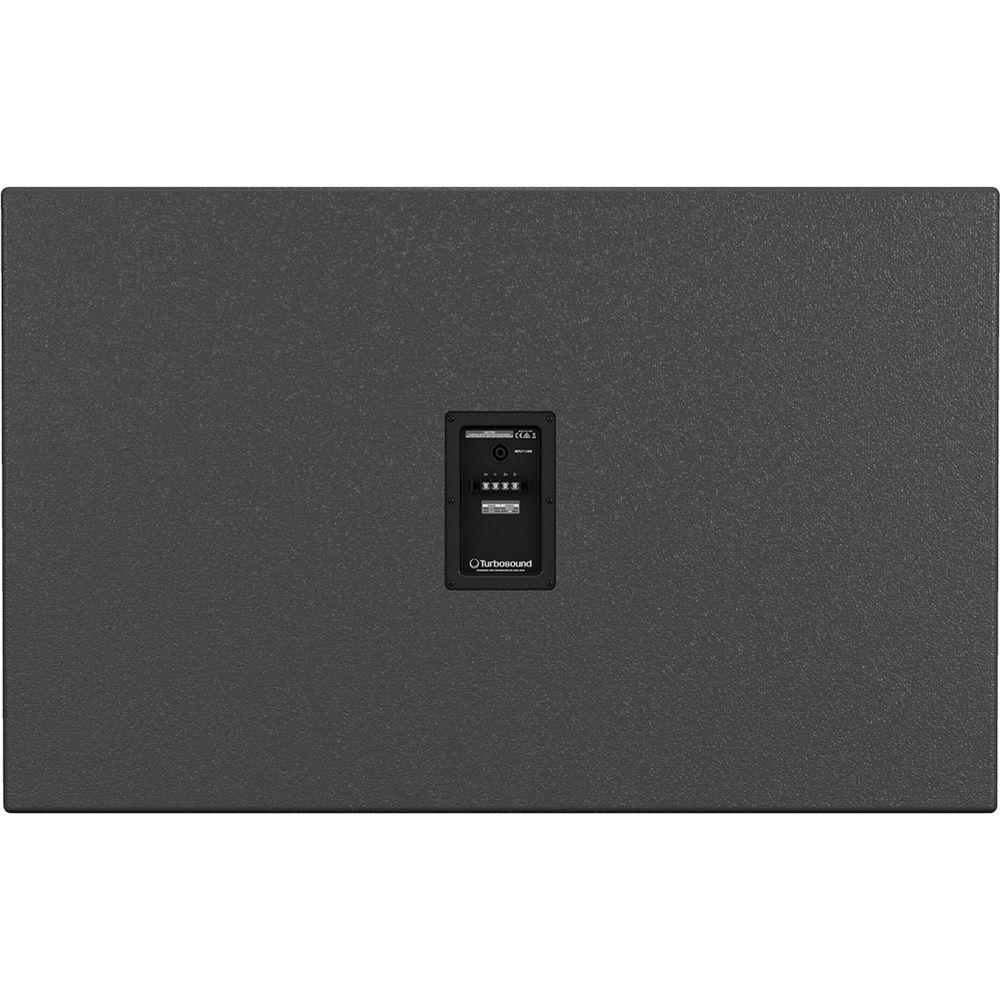

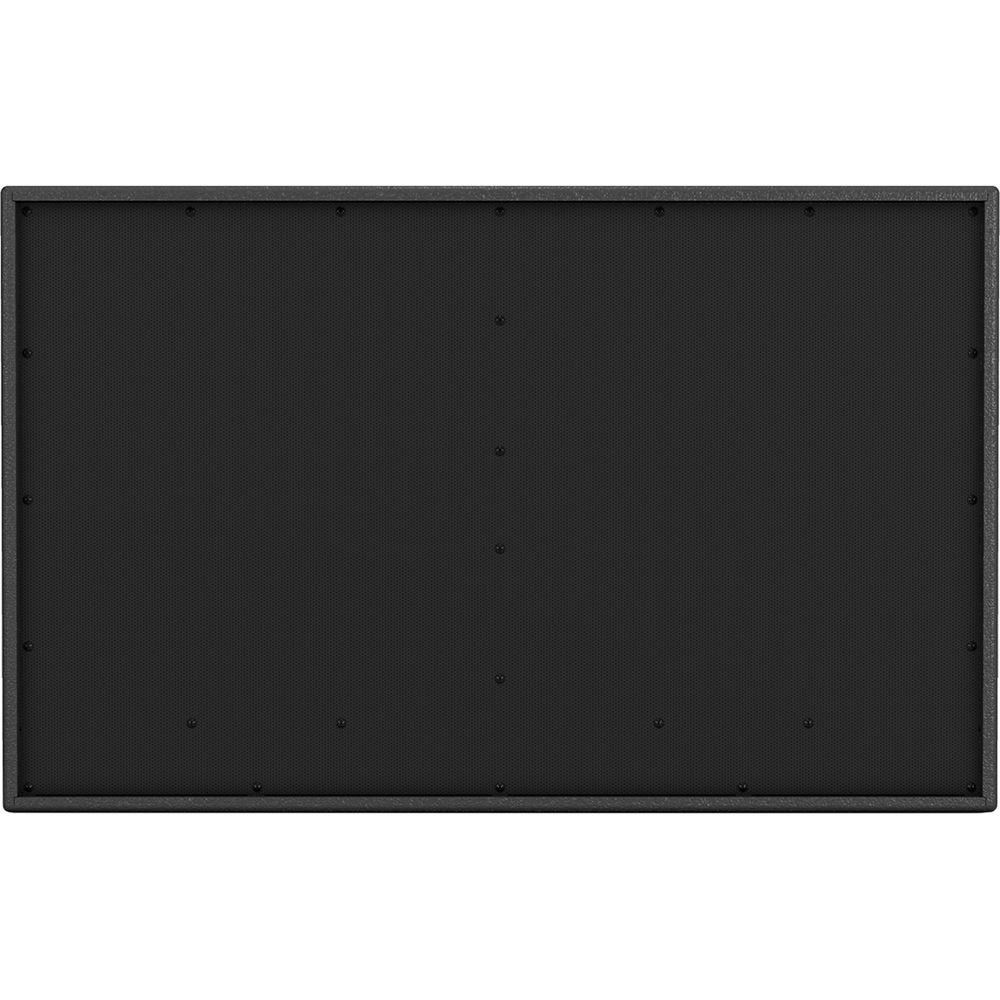

Finished in a durable semi matt black paint, the cabinet is constructed from 0.7" (18.0 mm) birch plywood - and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Internal M10 threaded rigging points are provided, and the rear panel connector plate carries Neutrik speakON NL4 and barrier strip connectors for input and link connections to additional enclosures. - Dual front loaded subwoofer for installation applications
- 1,600W continuous, 6,400W peak power
- Double suspension 18" low frequency drivers with inside/outside wound coils
- Low distortion bass reflex port design
- 0.7" (18.0 mm) birch plywood enclosure with hard wearing semi matt black paint finish
- Architecturally styled powder coated perforated steel mesh grille
- Multiple internal rigging points allow secure mounting for installation
- Neutrik speakON NL4 and barrier strip connectors
In the Box Turbosound TCS218B Athens Dual 18" Front Loaded Subwoofer 8 x M10 Flying Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TCS218B Athens Dual 18" Front Loaded Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCS218B Specs | Frequency Response | 33 Hz - 200 Hz @ ±3 dB
27 Hz - 200 Hz @ -10 dB | | Nominal Dispersion | Half space | | Power Handling | Continuous: 1600 W
Peak: 6400 W | | Sensitivity | 99 dB, 1 W @ 1 m | | Maximum SPL | Continuous: 131 dB
Peak: 137 dB | | Impedance | Parallel: 4 ohms Discrete: 8 ohms x 2 | | Components | 2 x 18" (460 mm) LF driver | | Connectors | 1 x Neutrik speakON NL4
1 x barrier strip terminals | | Construction | 0.7" (18.0 mm) birch plywood | | Finish | Semi matt black | | Grille | Powder-coated perforated steel | | Dimensions | 28.0 x 44.5 x 28.8" (71.1 x 113.0 x 73.0 cm) | | Weight | 205.7 lb (93.5 kg) |
