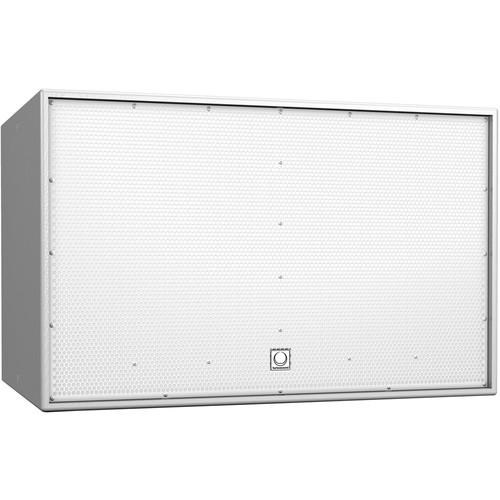

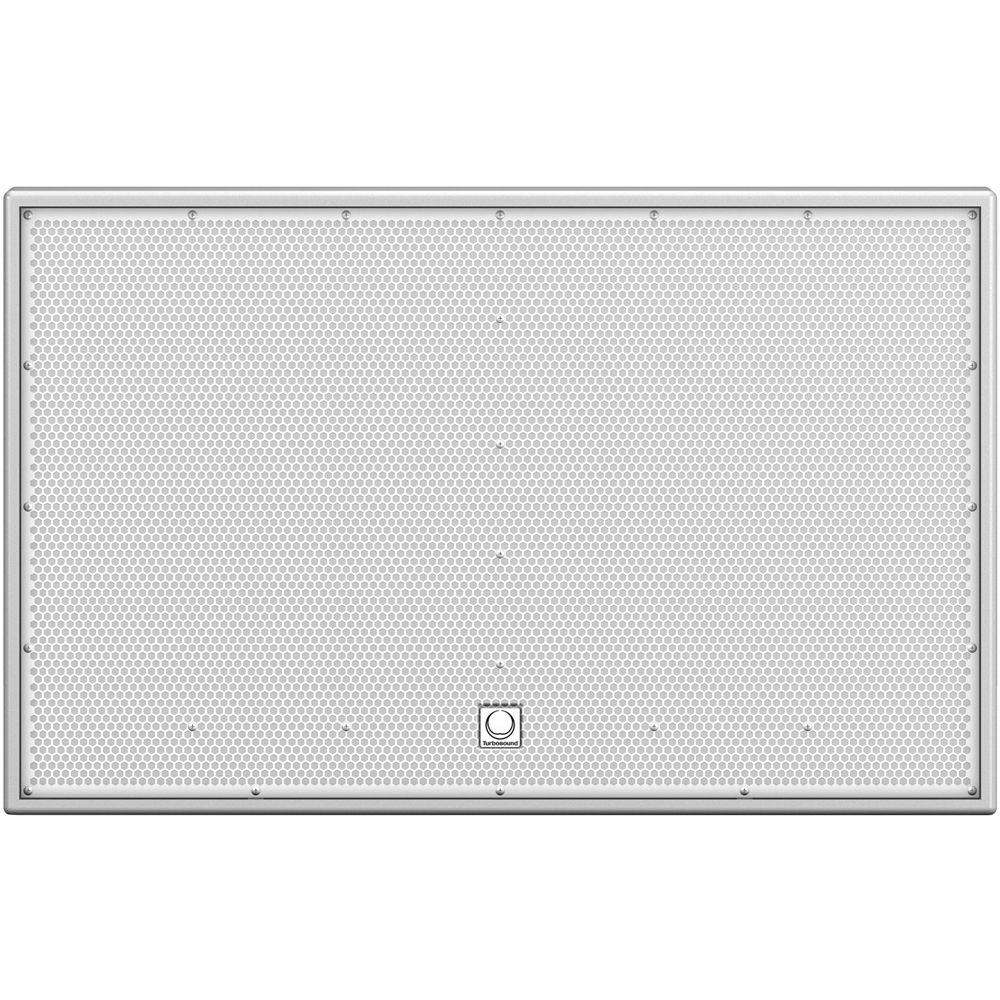

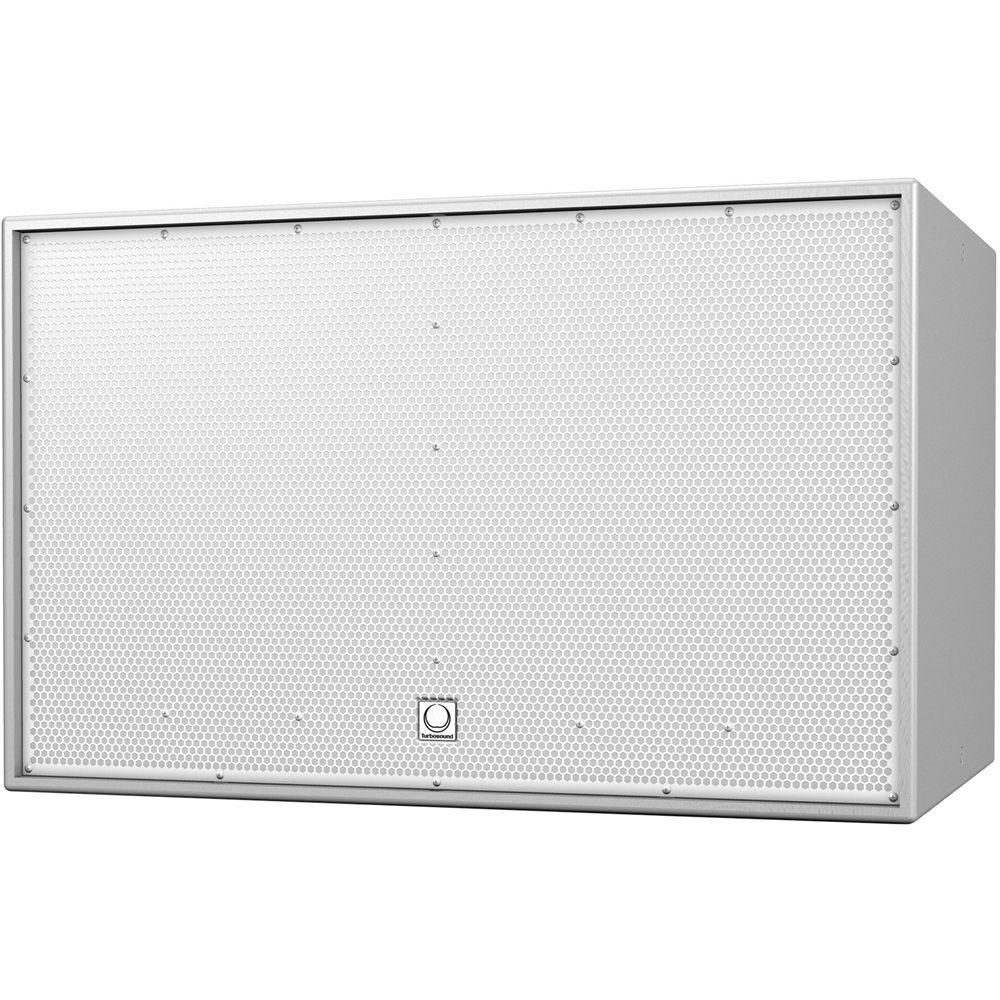

Product description The white TCS218B-R-WH Athens Dual 18" Front-Loaded Weather-Resistant Subwoofer from Turbosound is a 6400W high performance dual 18" subwoofer system designed for a wide range of speech and music sound reinforcement applications. Engineered to work in conjunction with Turbosound loudspeaker management systems, it provides optimal low frequency reinforcement when used in conjunction with all TCS Series loudspeakers. A bass reflex port design enclosure, the subwoofer features two high power, double suspension 18" low frequency drivers with a specialized voice coil wound on both the inside and outside of the coil former for higher magnetic density, heat dissipation, higher power handling capacity, and improved efficiency. This subwoofer provides fast and accurate transient response for virtually distortion-free operation. Finished in a durable semi matte white paint, the cabinet is constructed from 3/4" birch plywood - and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Internal M10 threaded rigging points are provided, and connectivity is provided in the form of a captive cable tail, which enters the cabinet by means of a sealed cable gland on an aluminum panel. - Dual front loaded subwoofer for installation applications
- 1600W continuous power, 6400W peak power
- All components are weather resistant to IP54 for outdoor use
- Double suspension 18" low frequency drivers with inside/outside wound coils
- Low distortion bass reflex port design
- 3/4" birch plywood enclosure with hard wearing semi matte white paint finish
- Architecturally styled powder coated perforated plated steel mesh grille with foam backing
- Multiple internal rigging points allow secure mounting for installation

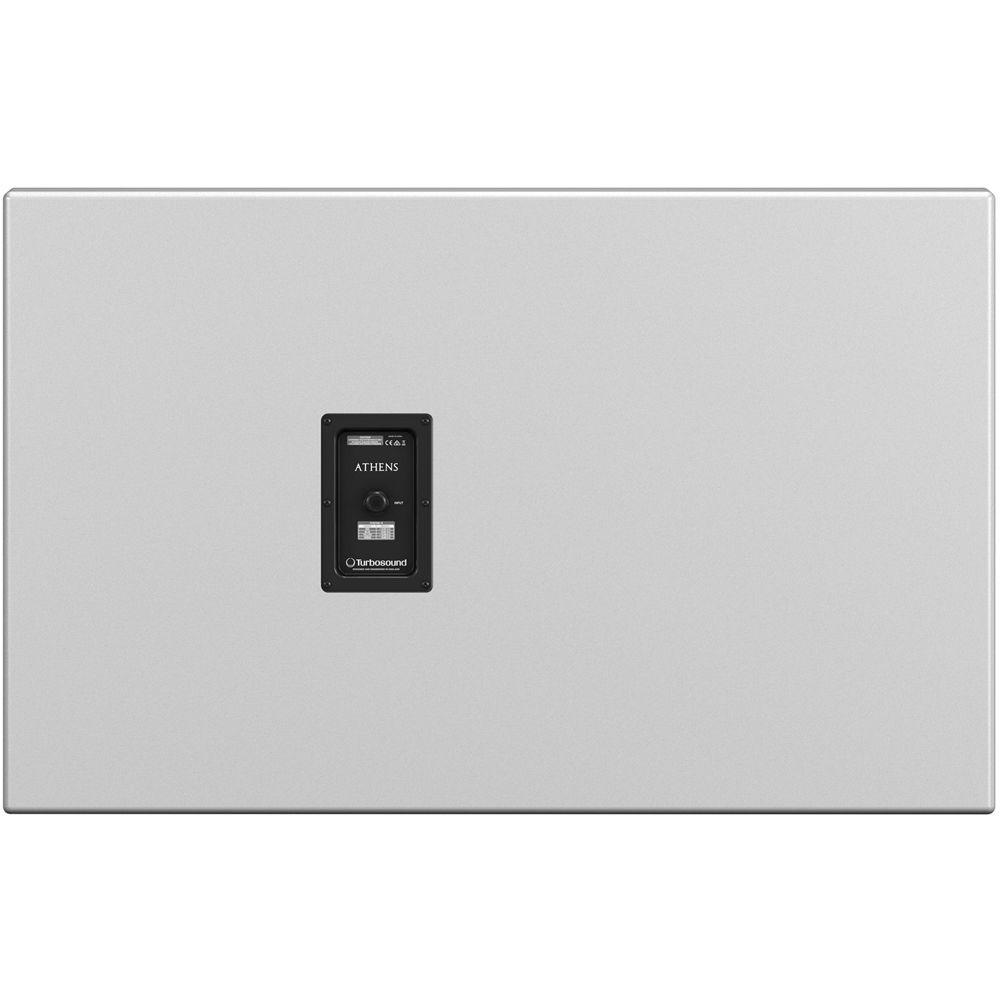

- Captive cable tail with sealed cable gland on aluminum connector panel
In the Box Turbosound TCS218B-R-WH Athens Dual 18" Front-Loaded Weather-Resistant Subwoofer (White) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TCS218B-R-WH Athens Dual 18" Front-Loaded Weather-Resistant Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCS218BR Specs | | | Frequency Response | 33 to 200 Hz @ ±3 dB
27 to 200 Hz @ -10 dB | | Nominal Dispersion | Half space | | Power Handling | Continuous: 1600 W
Peak: 6400 W | | Sensitivity | 99 dB (1 W @ 1 m) | | Maximum SPL | Continuous: 131 dB
Peak: 137 dB | | Impedance | Parallel: 4 Ohms
Discrete: 2 x 8 Ohms | | Components | 2 x 18" (457 mm) LF driver | | | | Connectors | 4-core captive cable tail | | Wiring | Parallel/No Switch:
Red/blue input +/-, yellow/green link +/-
Discrete:
Red/blue input 1 +/-, yellow/green input 2 +/- | | Construction | 3/4" (18 mm) birch plywood | | Grille | Powder coated perforated steel | | Weather Resistance | IP54 | | Hardware | 8 x M10 | | Dimensions | 28.0 x 44.5 x 28.8" (71.1 x 113.0 x 73.0 cm) | | Weight | 207.2 lb (93.9 kg) |
