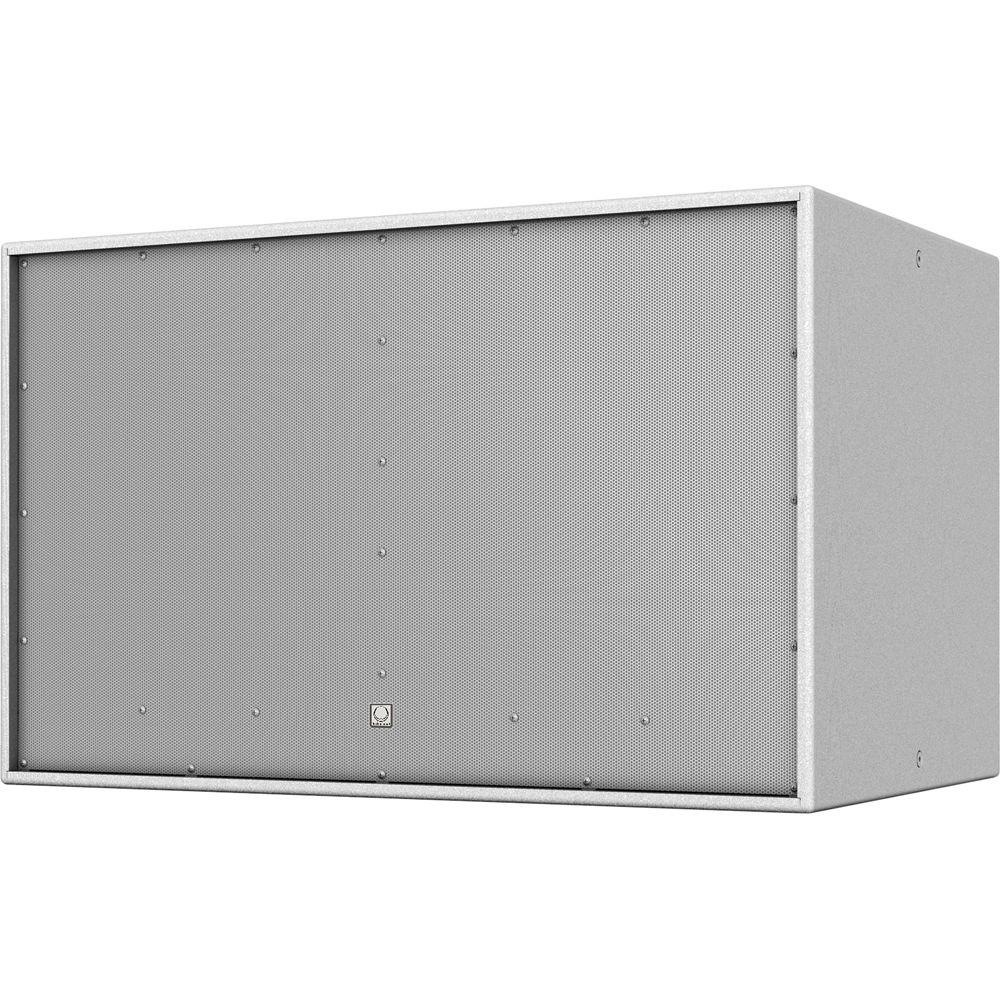

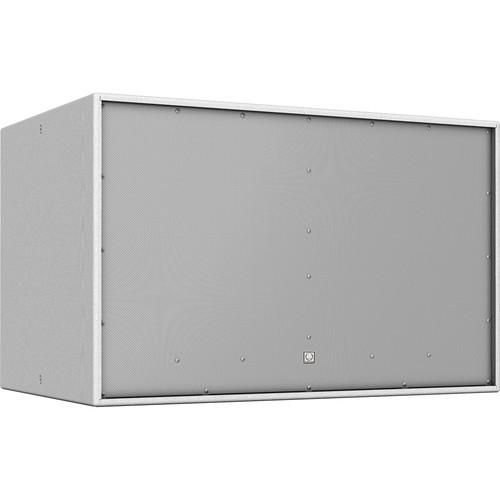

Product description The white TCS218B-WH Athens Dual-18" Front-Loaded Subwoofer from Turbosound is a 6400W high-performance dual-18" subwoofer system designed for a wide range of speech and music sound-reinforcement applications. Engineered to work in conjunction with Turbosound loudspeaker-management systems, the TCS218B provides extended FOH low-frequency performance.
A bass-reflex port design enclosure, the subwoofer features two high-power, double-suspension 18" low-frequency drivers with a specialized voice coil wound on both the inside and outside of the coil former for higher magnetic density, heat dissipation, higher power-handling capacity, and improved efficiency. The TCS218B subwoofer provides fast and accurate transient response for virtually distortion-free operation.

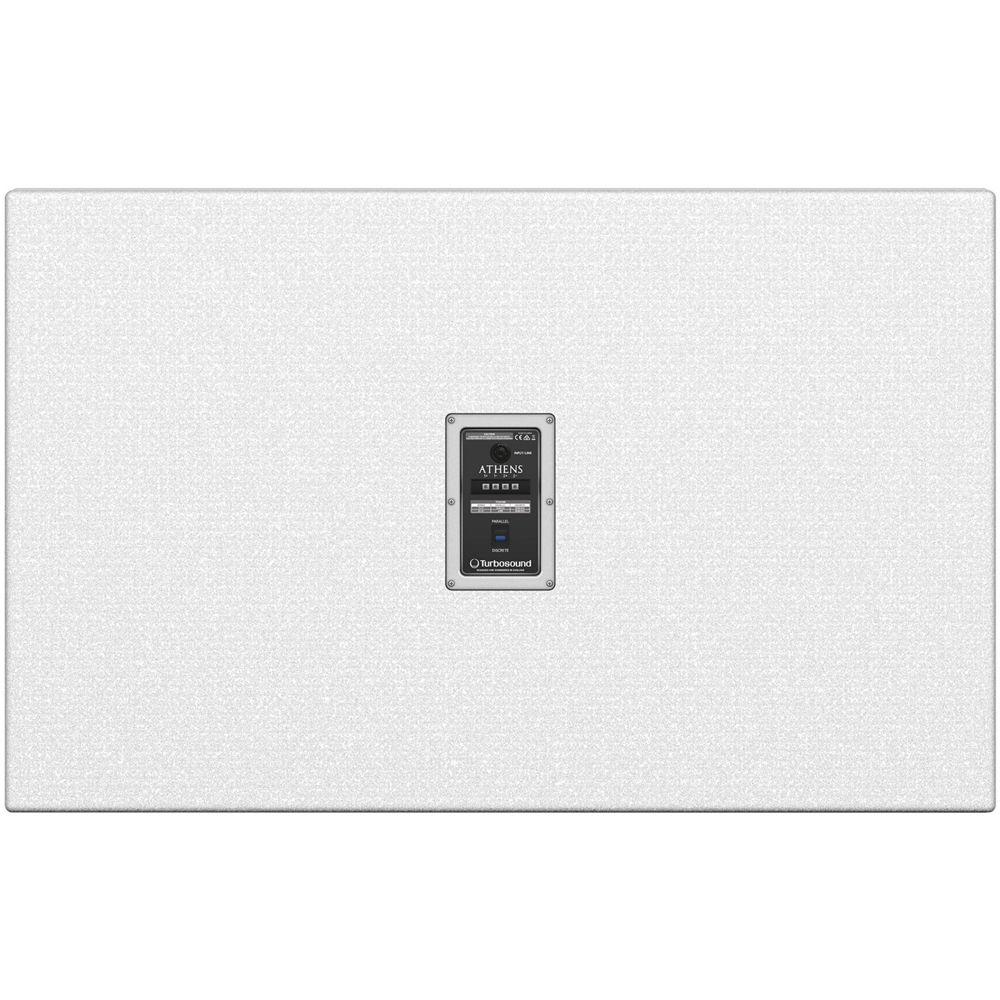

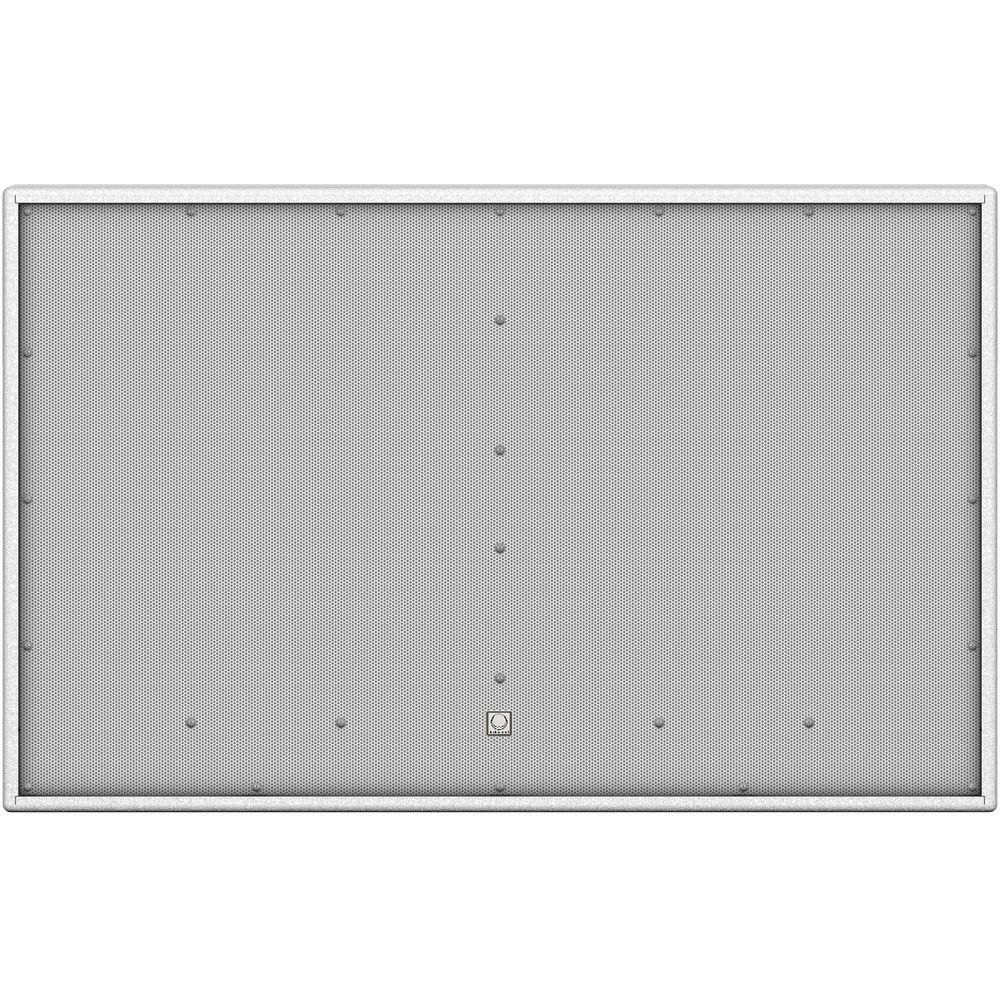

Finished in a durable semi-matte white paint, the cabinet is constructed from 3/4" birch plywood and includes a rugged powder-coated perforated steel mesh grille backed with reticulated foam. Internal M10 threaded rigging points are provided, and the rear-panel connector plate carries Neutrik speakON NL4 and barrier-strip connectors for input and link connections to additional enclosures. - Dual front-loaded subwoofer for installation applications
- 1600W continuous, 6400W peak power
- Double-suspension 18" low-frequency drivers with inside/outside wound coils
- Low-distortion bass-reflex port design
- 3/4" birch-plywood enclosure with hard-wearing semi-matte white paint finish
- Architecturally styled powder-coated perforated-steel mesh grille
- Multiple internal rigging points allow secure mounting for installation
- Neutrik speakON NL4 and barrier-strip connectors
In the Box Turbosound TCS218B-WH Athens Dual-18" Front-Loaded Subwoofer (White) 8 x M10 Flying Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TCS218B-WH Athens Dual-18" Front-Loaded Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCS218B Specs | | | Frequency Response | 33 to 200 Hz @ ±3 dB
27 to 200 Hz @ -10 dB | | Nominal Dispersion | Half space | | Power Handling | Continuous: 1600 W
Peak: 6400 W | | Sensitivity | 99 dB, 1 W @ 3.2' (1.0 m) | | Maximum SPL | Continuous: 131 dB
Peak: 137 dB | | Impedance | Parallel: 4 Ohms
Discrete: 2 x 8 Ohms | | Components | 2 x 18" (46.0 cm) LF driver | | | | Connectors | 1 x Neutrik speakON NL4
1 x barrier strip terminals | | Wiring | Parallel / No Switch: Pins 1+ / 1- input, pins 2+ / 2- link
Discrete Pins: 1+ / 1- input 1, pins 2+ / 2- input 2 | | Construction | 0.6" (1.5 cm) birch plywood | | Grille | Powder-coated perforated steel | | Dimensions | 28.0 x 44.5 x 28.8" (71.1 x 113.0 x 73.0 cm) | | Weight | 205.7 lb (93.5 kg) |
