User Manual for Turbosound TCS62 Athens Arrayable 2-Way 6.5" Full-Range Loudspeaker Click to enlarge the picture
Contents of the user manual for the Turbosound TCS62 Athens Arrayable 2-Way 6.5"
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound TCS62 Athens Arrayable 2-Way 6.5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

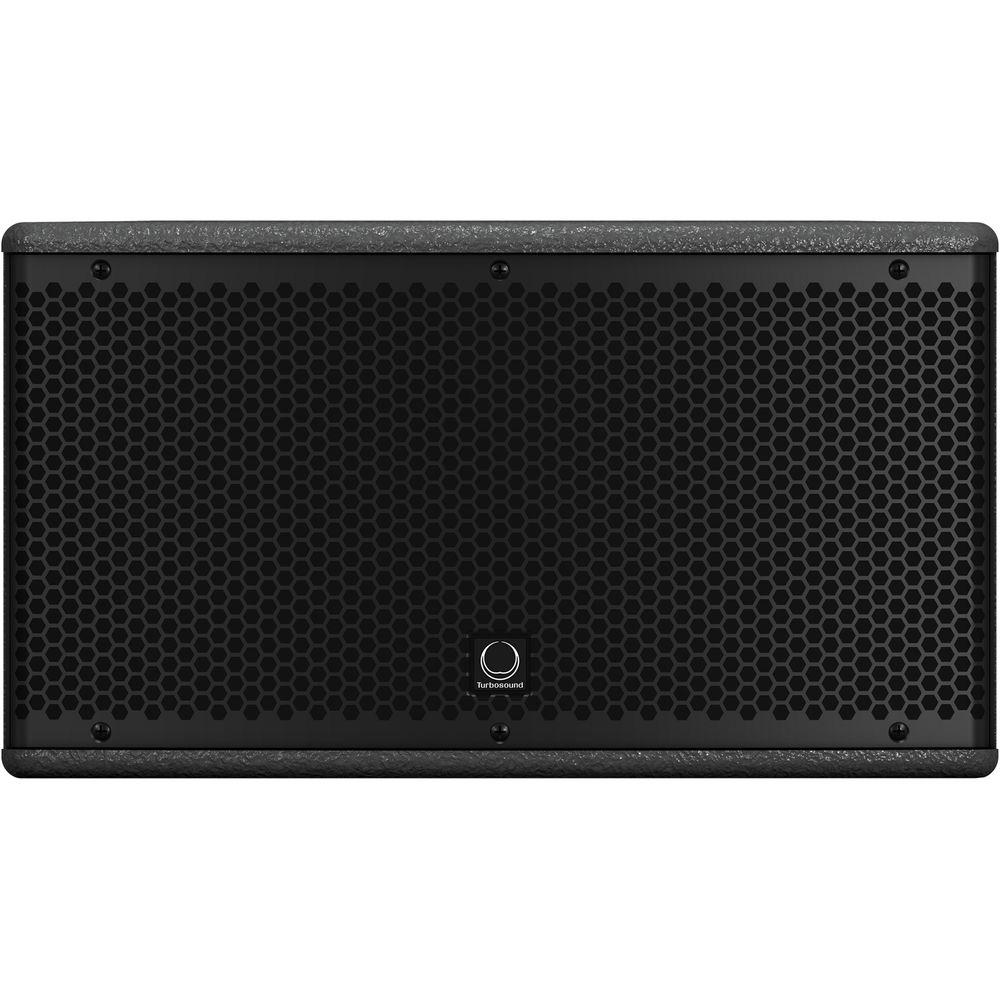

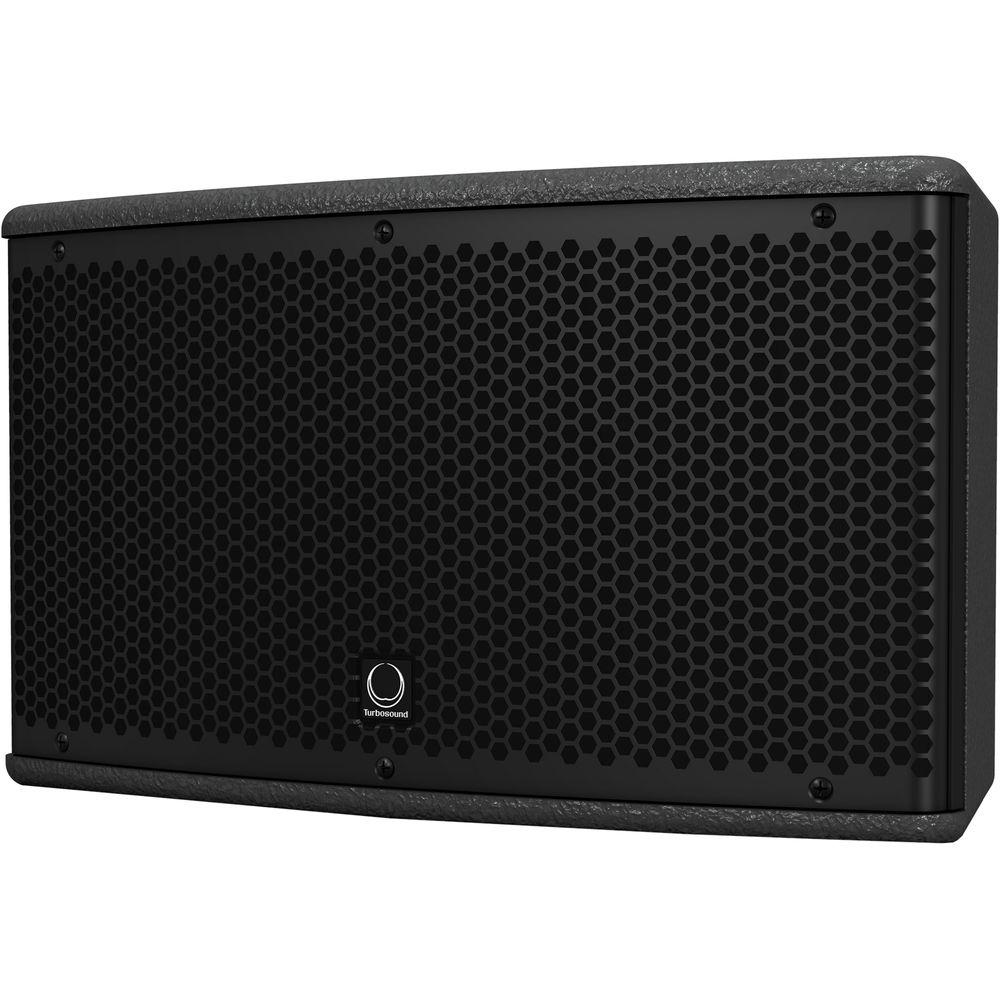

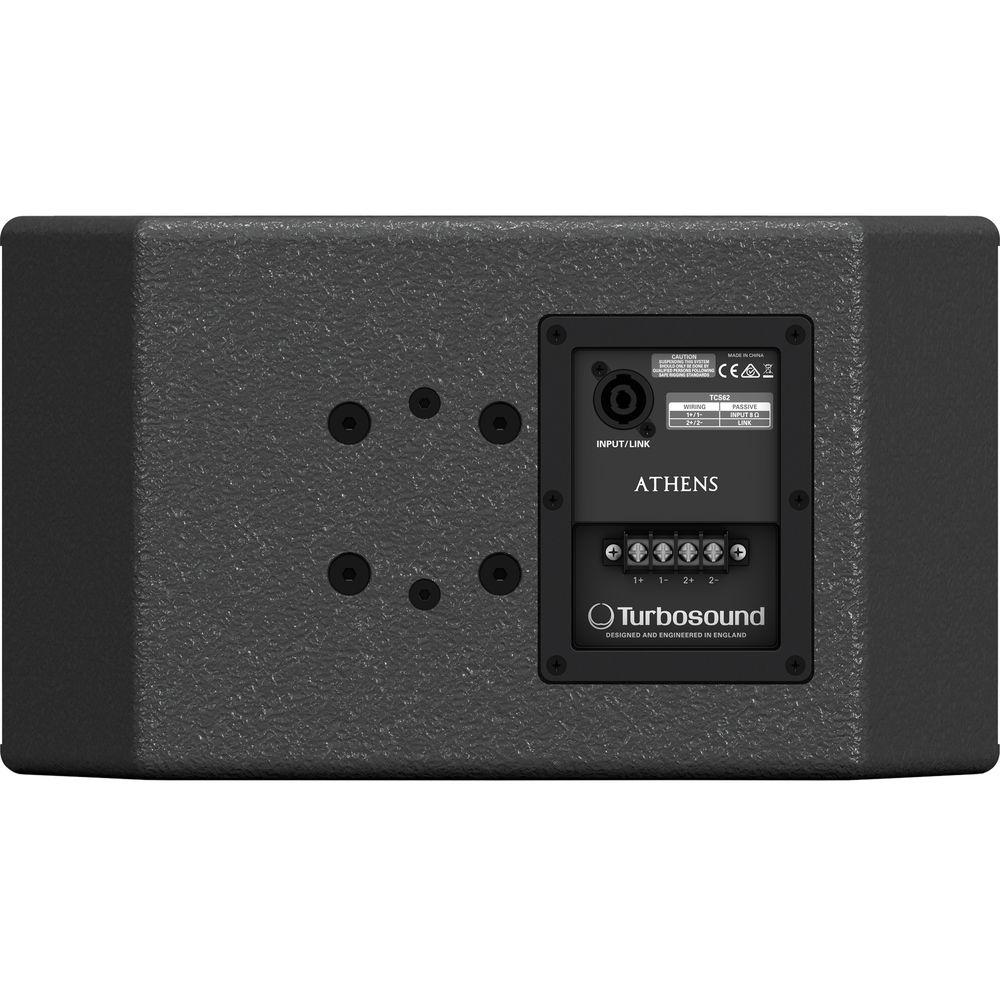

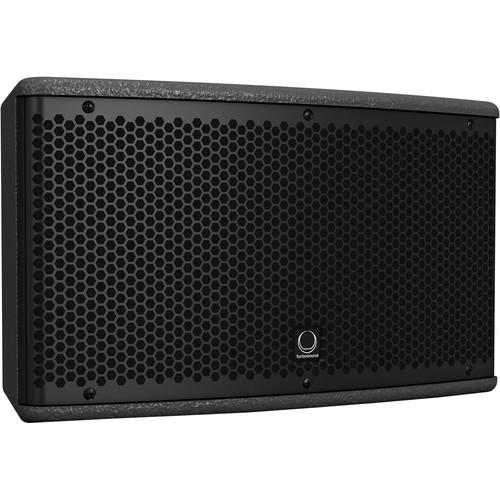

Product description The black TCS62 Athens Arrayable 2-Way 6.5" Full-Range Loudspeaker from Turbo Sound is a 700W high-performance dual-6.5" loudspeaker system designed for a wide range of speech and music sound-reinforcement applications. Engineered to work in conjunction with Turbosound loudspeaker management systems, it provides optimal optimal infill, front, and downfill performance. The compact size makes it an exceptional choice for under-balcony and monitoring applications.Finished in a durable semi-matte black paint, the cabinet is constructed from 12mm birch plywood and is constructed with a rugged powder-coated perforated-steel mesh grille backed with reticulated foam. Internal M8 and M6 threaded rigging points are provided for suspension in any orientation, or mounting with dedicated brackets (available separately). The rear-panel connector plate carries Neutrik speakON NL4 and barrier-strip connectors for input and link connections to additional enclosures. - Arrayable 2-way full-range loudspeaker for installation applications
- 175W continuous power, 700W peak power
- Carbon-fiber loaded 6.5 low-frequency driver with low-mass coil for improved transient response
- Aluminum dome 1" neodymium-motor compression driver
- Rotatable converging elliptical waveguide provides 100 x 60° (H x V) dispersion
- Multiple array configurations for extended coverage
- Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
- Multiple internal rigging points allow bracket-mount and suspension in any orientation
- 12mm (5/8) birch plywood enclosure with hard-wearing semi-matte black paint finish
- Architecturally styled powder-coated perforated plated-steel mesh grille
- Neutrik speakON NL4 and barrier strip connectors
In the Box Turbosound TCS62 Athens Arrayable 2-Way 6.5" Full-Range Loudspeaker (Black) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TCS62 Athens Arrayable 2-Way 6.5" Full-Range Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCS62 Specs | | | Frequency Response | 60 Hz to 20 kHz @ ±3 dB
50 Hz to 20 kHz @ -10 dB | | Nominal Dispersion | 100 x 60° (H x V) @ -6 dB points, rotatable | | Directivity Factor | Q: 12.8
DI: 11.1 | | Power Handling | Passive: 175 W continuous, 700 W peak | | Sensitivity | 90 dB (1 W @ 1 m) | | Maximum SPL | Passive:
Continuous: 112.5 dB
Peak: 118.5 dB | | Impedance | 8 ohms | | Crossover Type | Passive | | Components | 1 x 6" (162 mm) LF driver
1 x 1" (25 mm) HF compression driver | | | | Connectors | 1 x Neutrik speakON NL, 1 x barrier strip terminals | | Wiring | Passive: Pins 1+/1- input, 2+/2- link | | Construction | 0.5" (1.2 cm) birch plywood | | Grille | Powder-coated perforated steel | | Hardware | 2 x M6, 8 x M8 points | | Dimensions (H x W x D) | 8.8 x 15.8 x 7.8" (22.4 x 40.2 x 19.8 cm) | | Weight | 15.2 lb (6.9 kg) |
