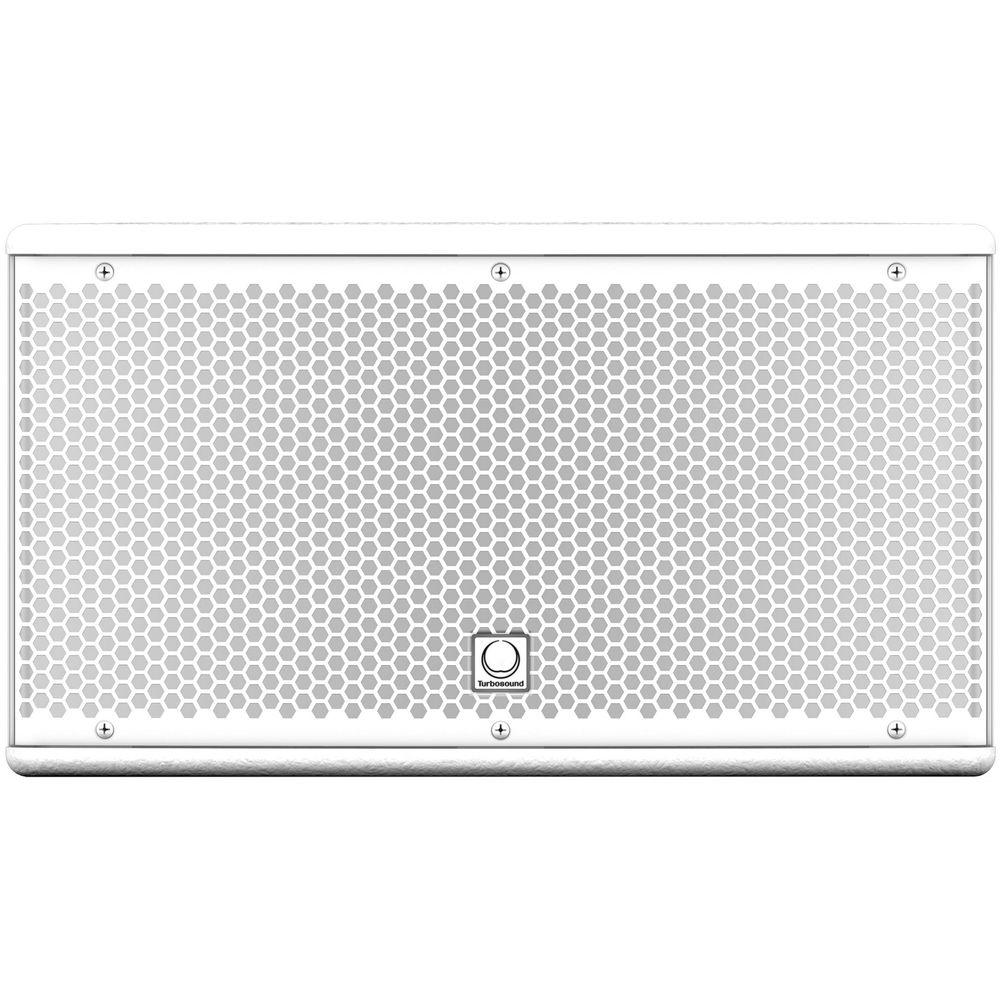

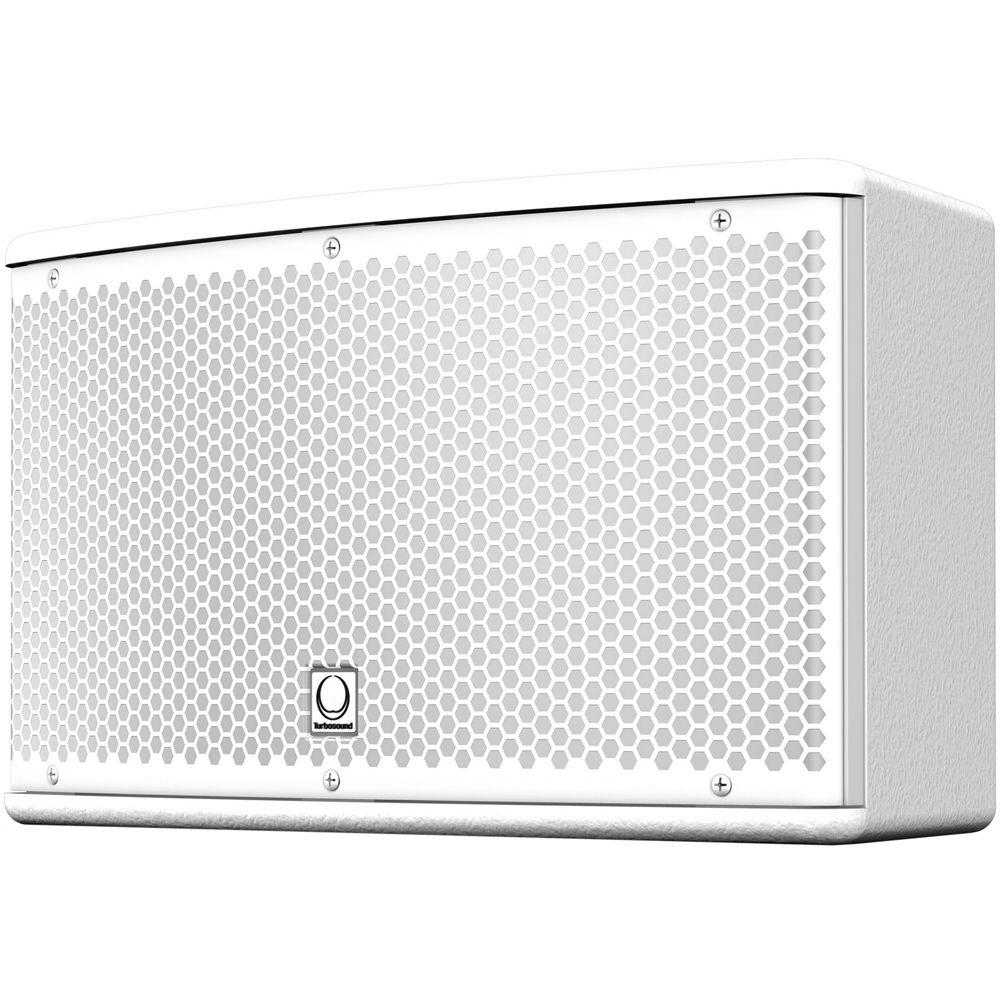

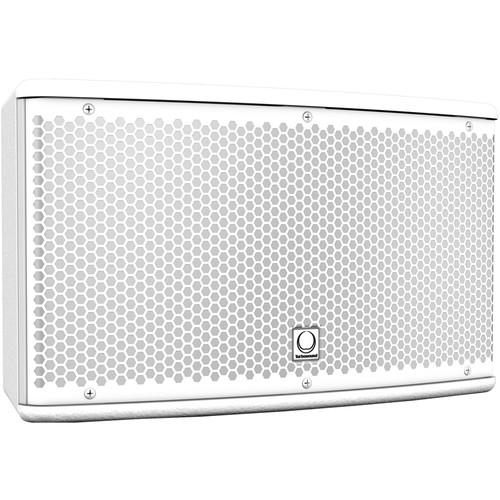

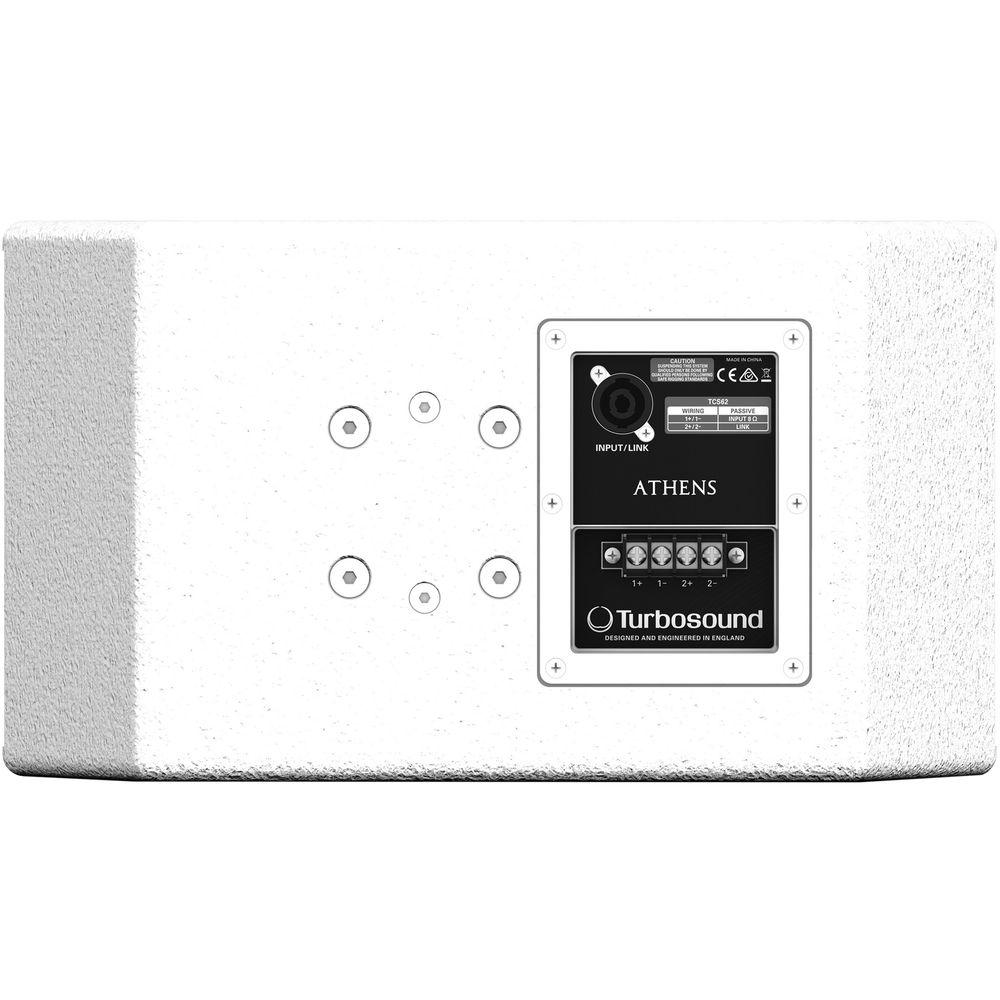

Product description The white TCS62-WH Athens Arrayable 2-Way 6.5" Full-Range Loudspeaker from Turbo Sound is a 700W high-performance dual-6.5" loudspeaker system designed for a wide range of speech and music sound-reinforcement applications. Engineered to work in conjunction with Turbosound loudspeaker management systems, it provides optimal optimal infill, front, and downfill performance. The compact size makes it an exceptional choice for under-balcony and monitoring applications.Finished in a durable semi-matte white paint, the cabinet is constructed from 12mm birch plywood and is constructed with a rugged powder-coated perforated-steel mesh grille backed with reticulated foam. Internal M8 and M6 threaded rigging points are provided for suspension in any orientation, or mounting with dedicated brackets (available separately). The rear-panel connector plate carries Neutrik speakON NL4 and barrier-strip connectors for input and link connections to additional enclosures. - Arrayable 2-way full-range loudspeaker for installation applications
- 175W continuous power, 700W peak power
- Carbon-fiber loaded 6.5 low-frequency driver with low-mass coil for improved transient response
- Aluminum dome 1" neodymium-motor compression driver
- Rotatable converging elliptical waveguide provides 100 x 60° (H x V) dispersion
- Multiple array configurations for extended coverage
- Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
- Multiple internal rigging points allow bracket-mount and suspension in any orientation
- 12mm (5/8) birch plywood enclosure with hard-wearing semi-matte white paint finish
- Architecturally styled powder-coated perforated plated-steel mesh grille
- Neutrik speakON NL4 and barrier strip connectors
In the Box Turbosound TCS62-WH Athens Arrayable 2-Way 6.5" Full-Range Loudspeaker (White) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TCS62-WH Athens Arrayable 2-Way 6.5" Full-Range Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCS62 Specs | | | Frequency Response | 60 Hz to 20 kHz @ ±3 dB
50 Hz to 20 kHz @ -10 dB | | Nominal Dispersion | 100 x 60° (H x V) @ -6 dB points, rotatable | | Directivity Factor | Q: 12.8
DI: 11.1 | | Power Handling | Passive: 175 W continuous, 700 W peak | | Sensitivity | 90 dB (1 W @ 1 m) | | Maximum SPL | Passive:
Continuous: 112.5 dB
Peak: 118.5 dB | | Impedance | 8 ohms | | Crossover Type | Passive | | Components | 1 x 6" (162 mm) LF driver
1 x 1" (25 mm) HF compression driver | | | | Connectors | 1 x Neutrik speakON NL, 1 x barrier strip terminals | | Wiring | Passive: Pins 1+/1- input, 2+/2- link | | Construction | 0.5" (1.2 cm) birch plywood | | Grille | Powder-coated perforated steel | | Hardware | 2 x M6, 8 x M8 points | | Dimensions (H x W x D) | 8.8 x 15.8 x 7.8" (22.4 x 40.2 x 19.8 cm) | | Weight | 15.2 lb (6.9 kg) |
