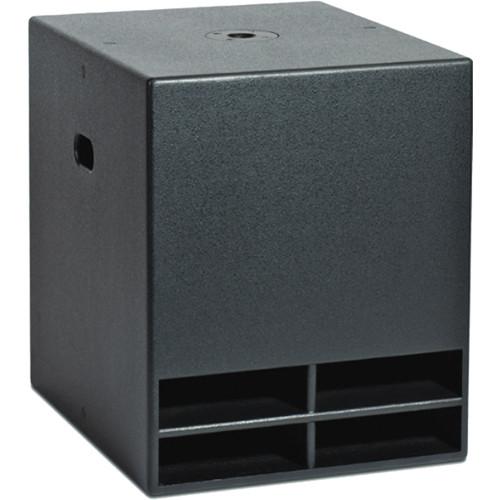

User Manual for Turbosound TCX-15B Compact Bandpass Subwoofer Click to enlarge the picture
Contents of the user manual for the Turbosound TCX-15B Compact Bandpass Subwoofer
- Product category: Installed Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound Installed Speakers
|
User manual for the Turbosound TCX-15B Compact Bandpass Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description The black TCX-15B Compact Bandpass Subwoofer from Turbosound is a sub-bass loudspeaker that consists of a 15" low frequency driver in a bandpass-loaded enclosure designed for extended low frequency response. When permanently installed the cabinet presents a discreet appearance, while for portable use the pole mount socket allows TCX series two-way loudspeakers to be mounted on a straight speaker pole above the subwoofer. The cabinet is finished in black textured paint and includes internal threaded rigging points that allow it to be suspended in permanent installations using M10 eyebolts. A rear panel provides two Speakon NL4 connectors wired in parallel with a four-way barrier strip connector. When used with Turbosound Loudspeaker Management Systems (sold separately), TCX loudspeakers can be controlled and monitored over a BVNet network using TurboDrive control software. - Speakon NL4 and barrier strip connectors
- For mobile DJs, corporate & industrial applications, houses of worship, theaters, live music venues, and more
UPC: 713757162012 In the Box Turbosound TCX-15B Compact Bandpass Subwoofer (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TCX-15B Compact Bandpass Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCX15B Specs | Components | LF Driver: 1 x 15" (380 mm) | | Frequency Response | 35 to 125 Hz, ±3 dB
28 to 170 Hz, ±10 dB | | Power Handling | Continuous: 1,000 W
Program: 2,000 W | | Sensitivity | 95 dB (1 W @ 1 m) | | Maximum SPL | Continuous: 125 dB
Peak: 131 dB | | Nominal Impedance | 8 ohms | | Construction | 5/8" (15 mm) Birch plywood finished in black semi matte textured paint | | Connectors | 2 x SpeakON NL4 | | Rigging Points | 8 x M10 internal rigging points for eyebolts | | Dimensions | 23.6 x 19.7 x 23.6" (600 x 500 x 600 mm) | | Weight | 78 lb (35.5 kg) |
