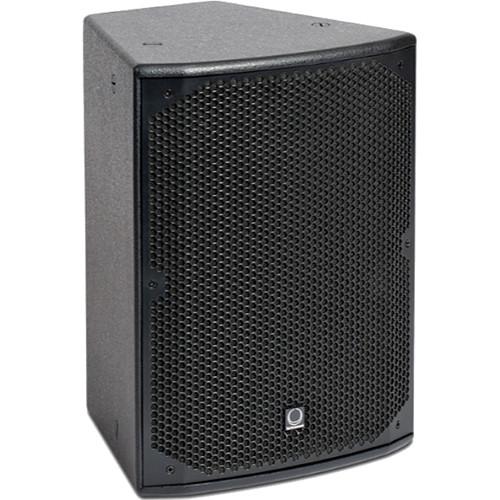

User Manual for Turbosound TCX-8 Passive Two-Way Loudspeaker Click to enlarge the picture
Contents of the user manual for the Turbosound TCX-8 Passive Two-Way Loudspeaker
- Product category: Installed Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound Installed Speakers
|
User manual for the Turbosound TCX-8 Passive Two-Way Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description The black TCX-8 Passive Two-Way Loudspeaker from Turbosound is a compact loudspeaker consisting of an 8" low frequency driver and a 1" high frequency compression driver on a Converging Elliptical Waveguide in a trapezoidal enclosure. When permanently installed the trapezoidal cabinet presents a discreet appearance with no visible side handles, while for portable applications the pole mount blanking plug can be removed for use with speaker stands and poles, and a single carrying handle is provided for transportation. The TCX-8 features a Converging Elliptical Waveguide, generating a smooth wave front while giving excellent pattern control. The waveguide is rotatable through 90°, allowing a swap of the horizontal and vertical dispersion patterns. The cabinet includes internal threaded rigging points for use with Turbosound wall and ceiling brackets, and OmniMount loudspeaker brackets. It is finished in black textured paint and a rear connector panel provides two Speakon NL4 connectors wired in parallel with a four-way barrier strip connector. When used with Turbosound Loudspeaker Management Systems (sold separately), TCX-8 loudspeakers can be controlled and monitored over a BVNet network using TurboDrive control software. - Rotatable Converging Elliptical Waveguide
- Speakon NL4 and barrier strip connectors
- For houses of worship, live music venues, and corporate, industrial & mobile DJ applications
In the Box Turbosound TCX-8 Passive Two-Way Loudspeaker (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TCX-8 Passive Two-Way Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCX8 Specs | Components | LF Driver: 1 x 8" (203 mm)
HF Driver on a Converging Elliptical Waveguide: 1 x 1" (25 mm) | | Frequency Response | 100 Hz to 20 kHz, ±3 dB
70 Hz to 20 kHz, ±10 dB | | Nominal Dispersion | 90°H x 60°V @ -6 dB points | | Power Handling | 200 W r.m.s., 400 W program | | Sensitivity | 94 dB (1 W @ 1 m) | | Maximum SPL | Continuous: 117 dB
Peak: 123 dB | | Nominal Impedance | 8 ohms | | Crossover | 35 kHz | | Construction | 1/2" (12 mm) birch plywood finished in black semi-matte textured paint | | Grille | Powder coated perforated mild steel | | Connectors | 2 x Speakon NL4 | | Dimensions | 16.1 x 12.3 x 11.0" (408 x 312 x 280 mm) | | Weight | 24.4 lb (11.1 kg) |
