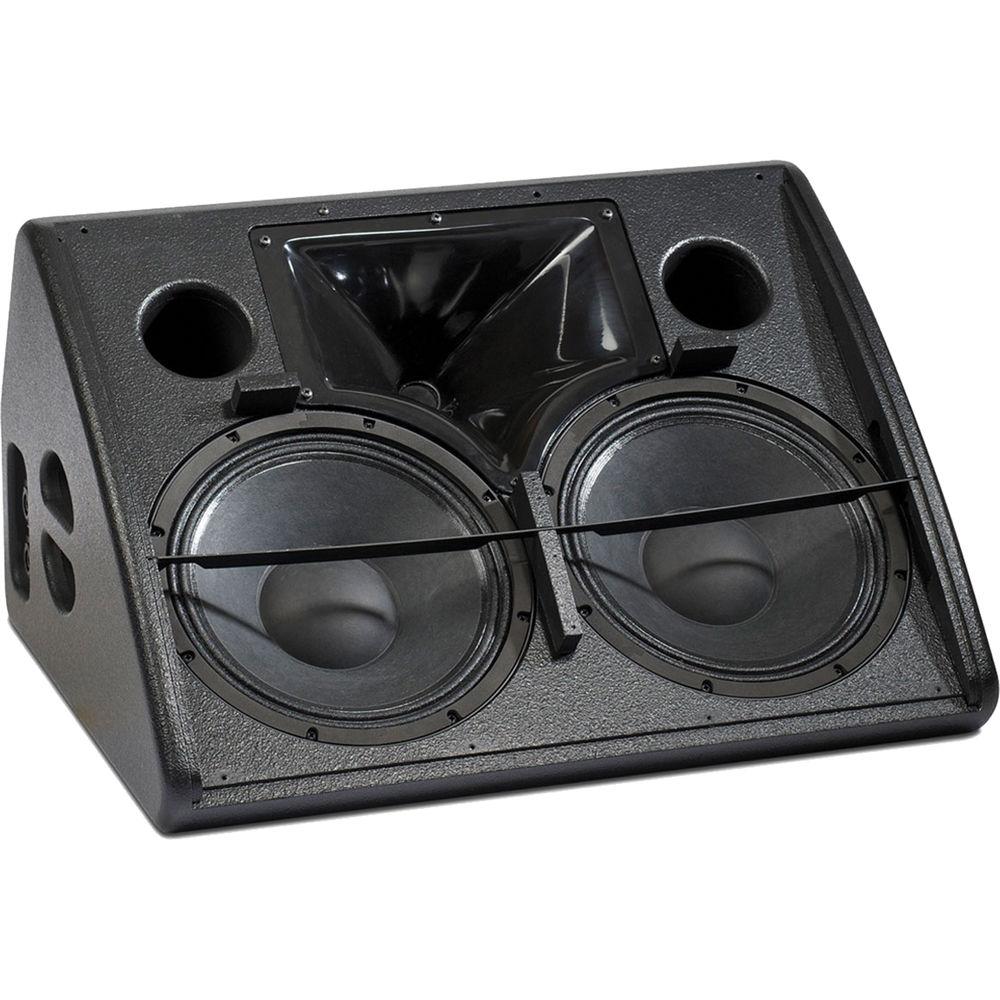

Product description The TFM-560 12" Bi-Amped Two-Way Dual Floor Monitor from Turbosound is a 3,200W bi-amped floor monitor designed for use with Turbosound's DSP based Power Management Systems for all types of professional live sound monitoring applications. The TFM-560 consists of two proprietary 12" low frequency drivers mounted side by side in a reflex loaded enclosure together with a titanium dome 1.4" neodymium high frequency compression driver. It benefits from the use of neodymium drive units which results in an efficient wedge monitor package with a small footprint that is easy to handle and transport, ideal for use wherever high SPL and intelligibility are required.
The TFM-560 can be used as part of a Turbosound integrated DSP-based monitor rack package, providing up to four dedicated high quality monitor mixes from three RACKDP-50 amplifiers (sold separately). The 80° horizontal x 50° vertical horn pattern is designed to give very even coverage both close to, and standing back from, the monitor while at the same time minimizing sound spillage into adjacent microphones. As a result the TFM-560 offers impressive feedback rejection, developing high sound pressure levels without the need for excessive equalization.

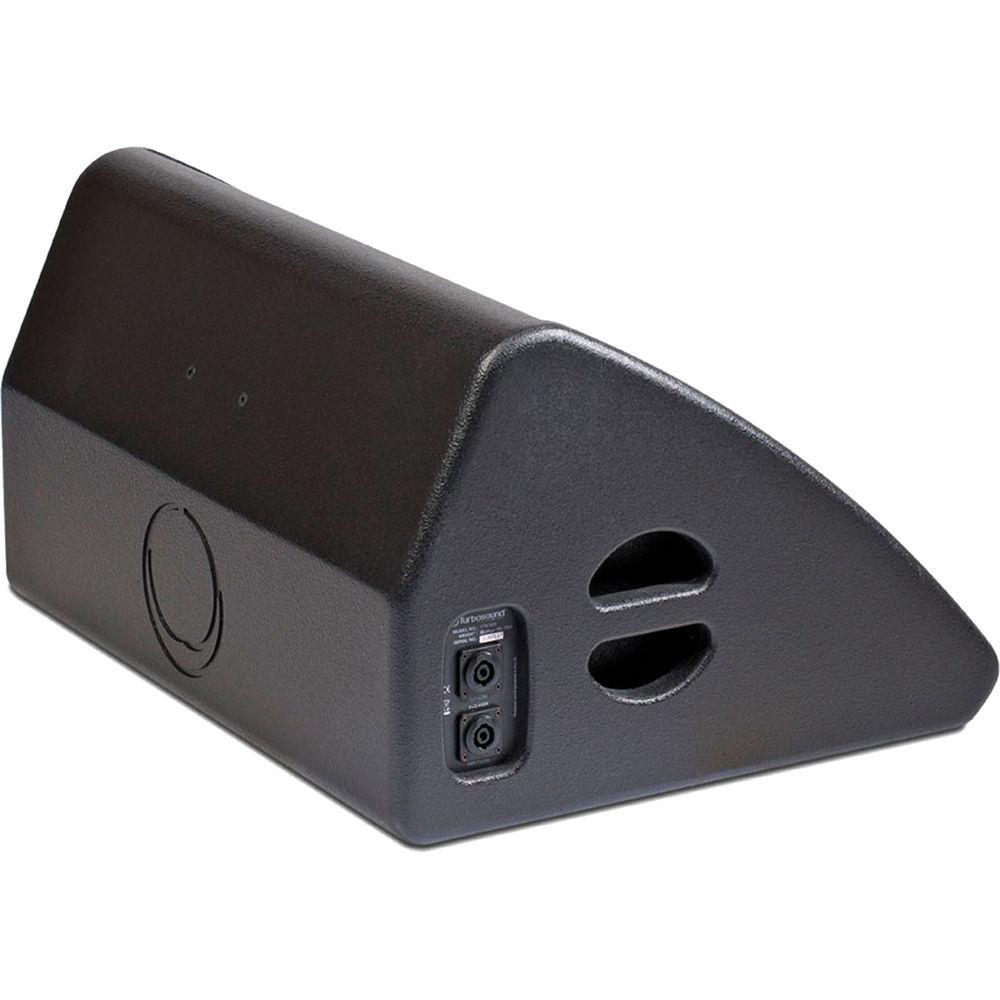

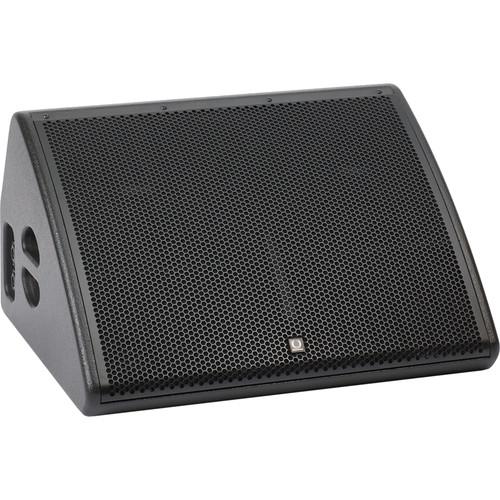

The low profile cabinet is designed to maximize audience sight lines. It is constructed from 5/8" birch plywood, and is finished in hard wearing semi matt black paint finish. Recessed connector panels are located at both ends of the cabinet, each fitted with two Neutrik speakON NL4 connectors, allowing for neat interconnection between units. Side mounted flush handles are provided for easy lifting and handling. A black powder coated perforated steel mesh grille with reticulated foam backing, and reinforced with a stabilizing bar, protects the drive units from damage. - Dual two-way stage monitor for touring applications
- 800W continuous, 3,200W peak power
- Carbon fiber loaded 12" neodymium motor low frequency drivers
- Titanium dome 1.4" neodymium motor compression driver
- Low profile design to maximize audience sight lines
- Low distortion waveguide provides 80° H x 50° V dispersion
- Bi-amp operation for high output and controlled dispersion
- 5/8" birch plywood enclosure with hard wearing semi matt black paint finish
- Rugged powder coated perforated steel mesh grille
- Neutrik speakON NL4 connectors for reliable long life operation
- Designed and engineered in England
In the Box Turbosound TFM-560 12" Bi-Amped Two-Way Dual Floor Monitor (3,200W) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TFM-560 12" Bi-Amped Two-Way Dual Floor Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TFM560 Specs | Components | LF Drivers: 2 x Custom 12" (305 mm)
HF Driver: 1 x 1.4" Throat (35 mm) | | Frequency Response | 80 Hz to 15 kHz, ±3 dB
53 Hz to 19 kHz, ±10 dB | | Dispersion | 80° H x 50° V @ -6 dB points | | Power Handling | Optimized for use with RACKDP-50 Powered Management Systems | | Maximum SPL | Continuous: 129 dB (calculated SPL addition)
Peak: 135 dB | | Construction | 5/8" (15 mm) birch plywood, finished in black semi-matt textured paint | | Grille | Powder coated perforated steel with reticulated foam backing | | Connectors | 4 x Neutrik speakON | | Dimensions | 15.6 x 27.6 x 22.1" (397 x 700 x 561 mm) | | Weight | 67.1 lb (30.5 kg) |
