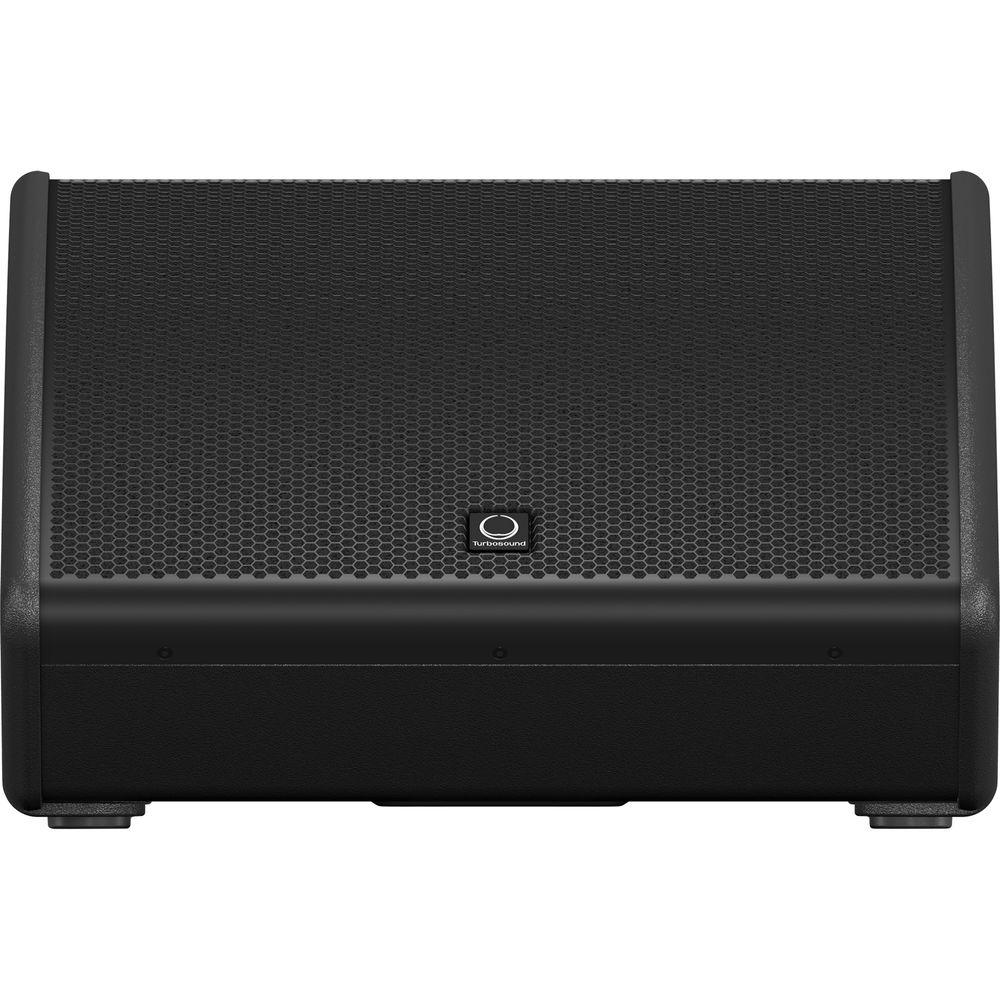

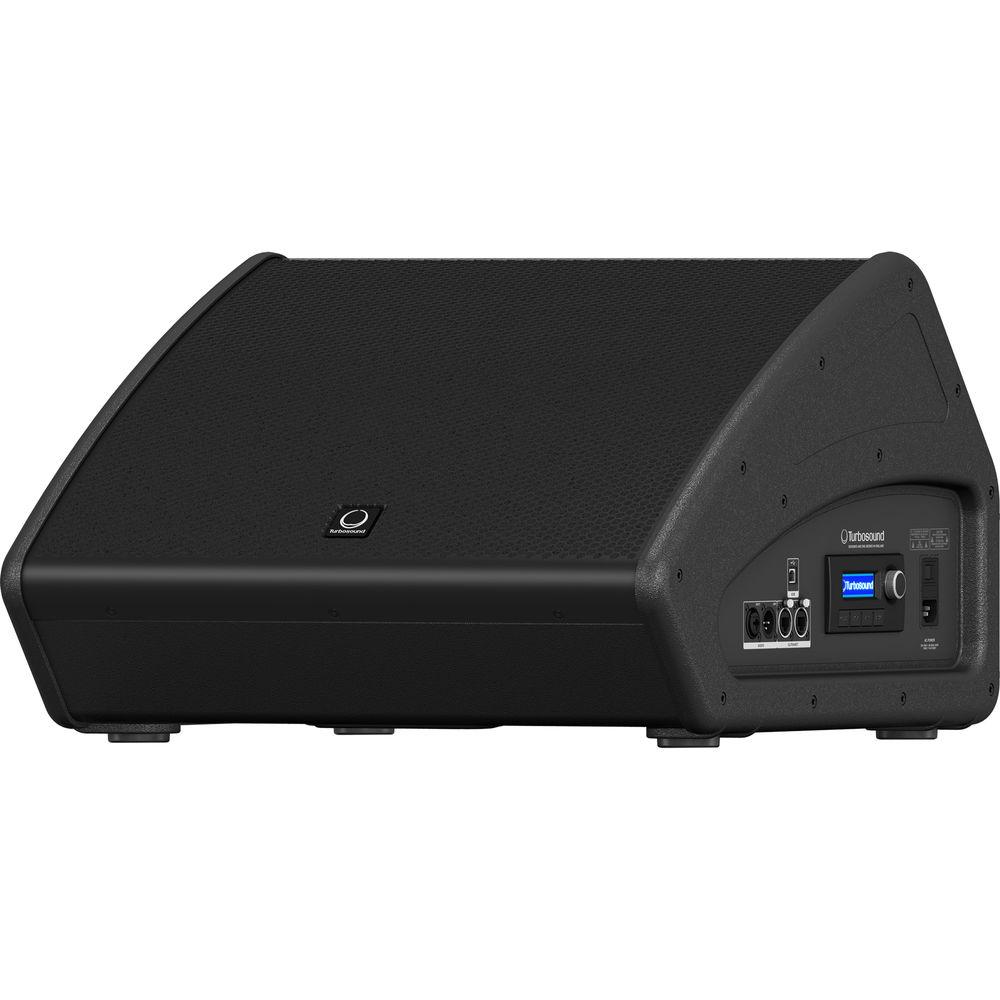

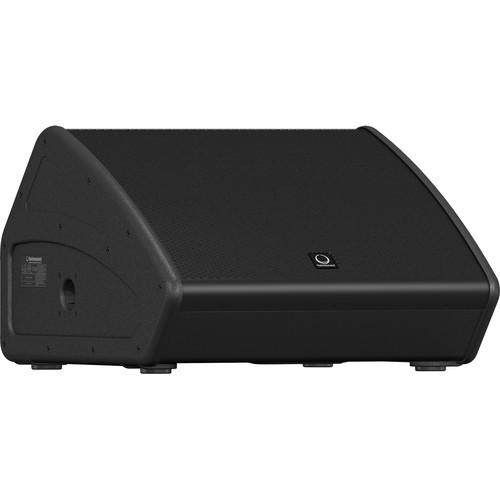

Product description The Turbosound TFX152M-AN is a Flashline Series 15" 2-Way 1100W stage monitor designed to provide reliable performance and full-range reproduction of speech and music in concert venues, houses of worship, clubs, and theaters. Its Class-D amplifier pushes 1100W of power through a custom-engineered 15" high-excursion woofer and 1" high-frequency compression driver to produce a frequency response of 57 Hz to 20 kHz.A built-in KLARK TEKNIK DSP delivers delay, equalization, and limiting functions, all controllable via the onboard buttons and LCD display or remote control over USB. A combo jack allows you to connect an XLR or 1/4” input, while an XLR output enables linking to other monitors. ULTRANET in/thru connectivity provides routing of up to 16 channels of 24-bit digital audio over Cat5 cable.The TFX152M-AN’s low-profile design minimizes on-stage visibility and its plywood, composite, and steel construction promise durability. It can be easily moved or mounted due to the integrated carry handle and pole mount socket. - Custom Drivers
- The TFX152M-AN loudspeaker features a high-excursion 15" low-frequency driver with low-mass voice coil for improved transient response, and a titanium dome 1" high-frequency compression driver mounted on a 60° horizontal by 40° vertical dispersion low-distortion waveguide.
- Class-D Amplification
- Equipped with an efficient and lightweight KLARK TEKNIK Class-D power amplifier, the TFX152M-AN provides 1100W of output power in a portable and lightweight package. Class-D amplification eliminates the need for heavy power supplies and large heat sinks.
- DSP
- A high degree of control over the loudspeaker system's performance is managed by a sophisticated, but easy to use KLARK TEKNIK Digital Signal Processor (DSP), which provides dynamic EQ and transparent limiting for the punch and definition at high-output levels - and long-term reliability.
- ULTRANET Connectivity
- ULTRANET connectivity is provided by two locking etherCON connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single Cat5 cable between compatible digital devices - including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.
- Intuitive User Interface

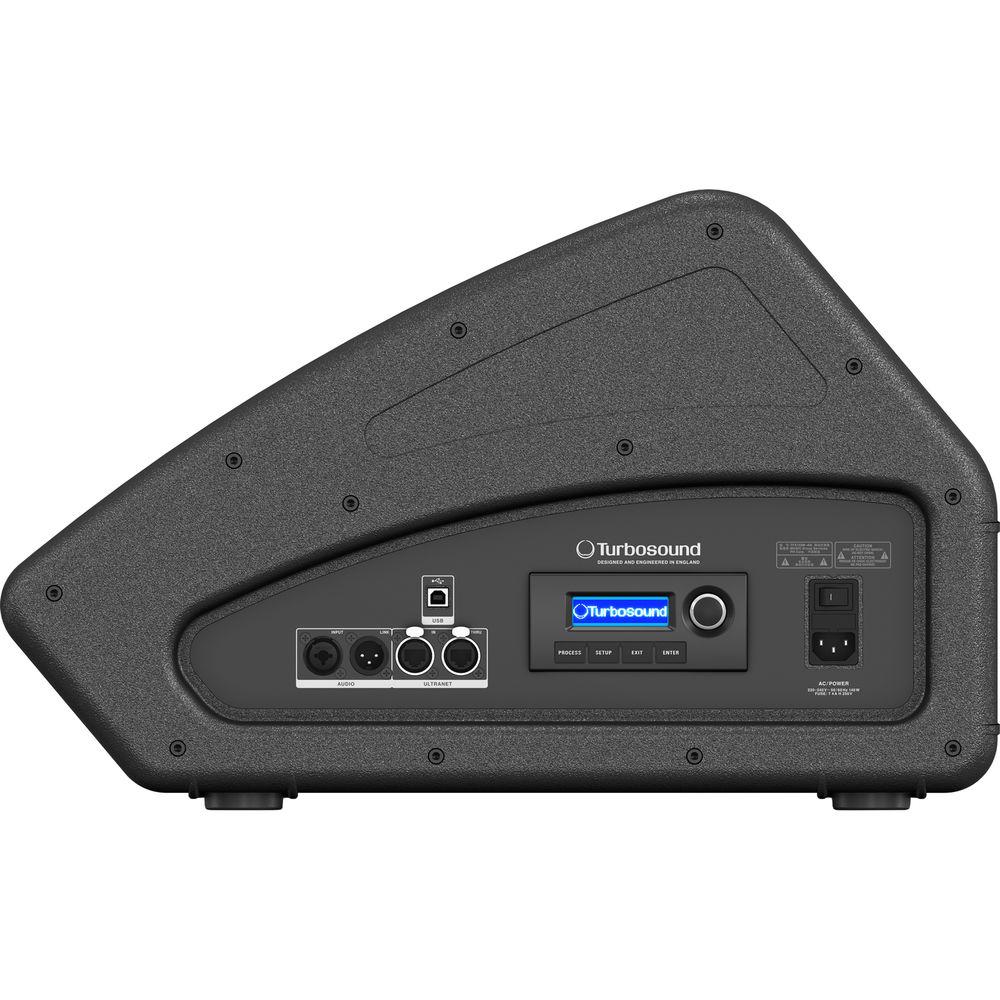

- The user interface's LCD display and single rotary encoder provide intuitive access to position compensation, user EQ control, subwoofer integration, and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the monitor via free PC computer software (available on Turbosound's site) as well as convenient DSP firmware updates.
- Plywood Construction

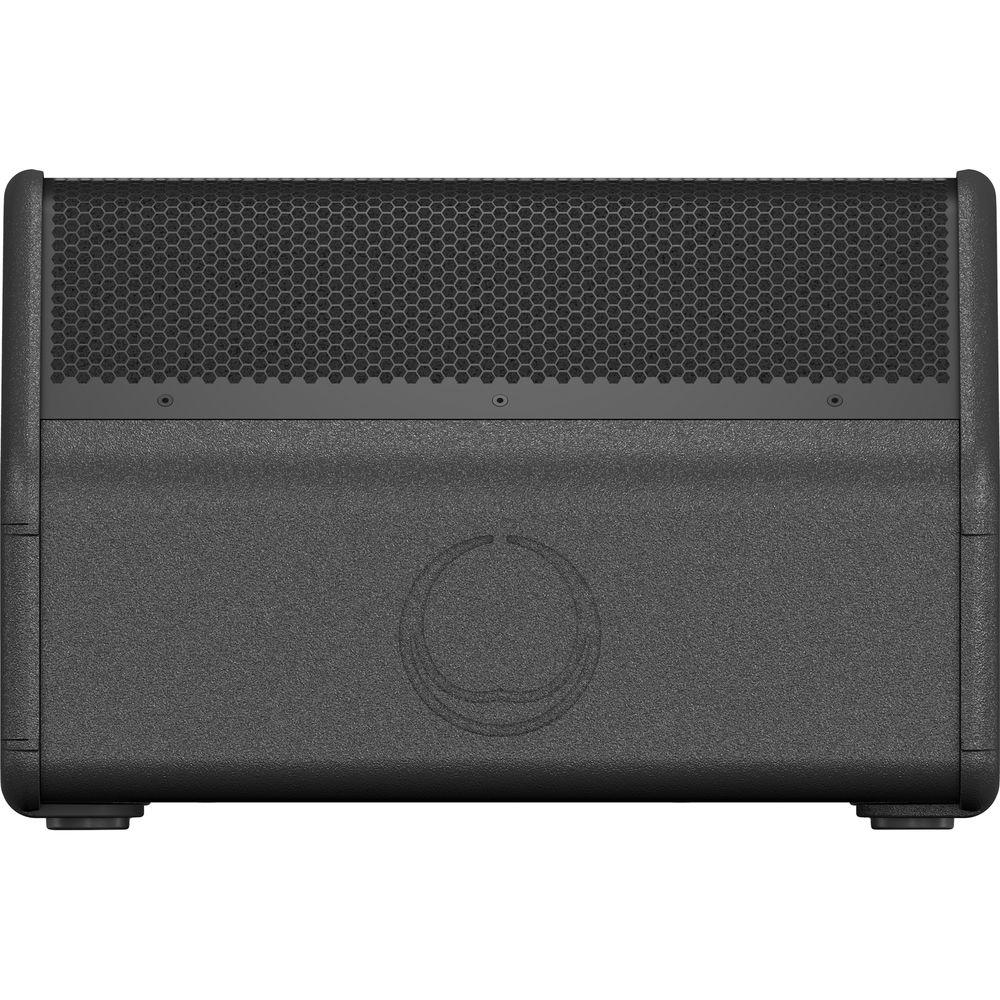

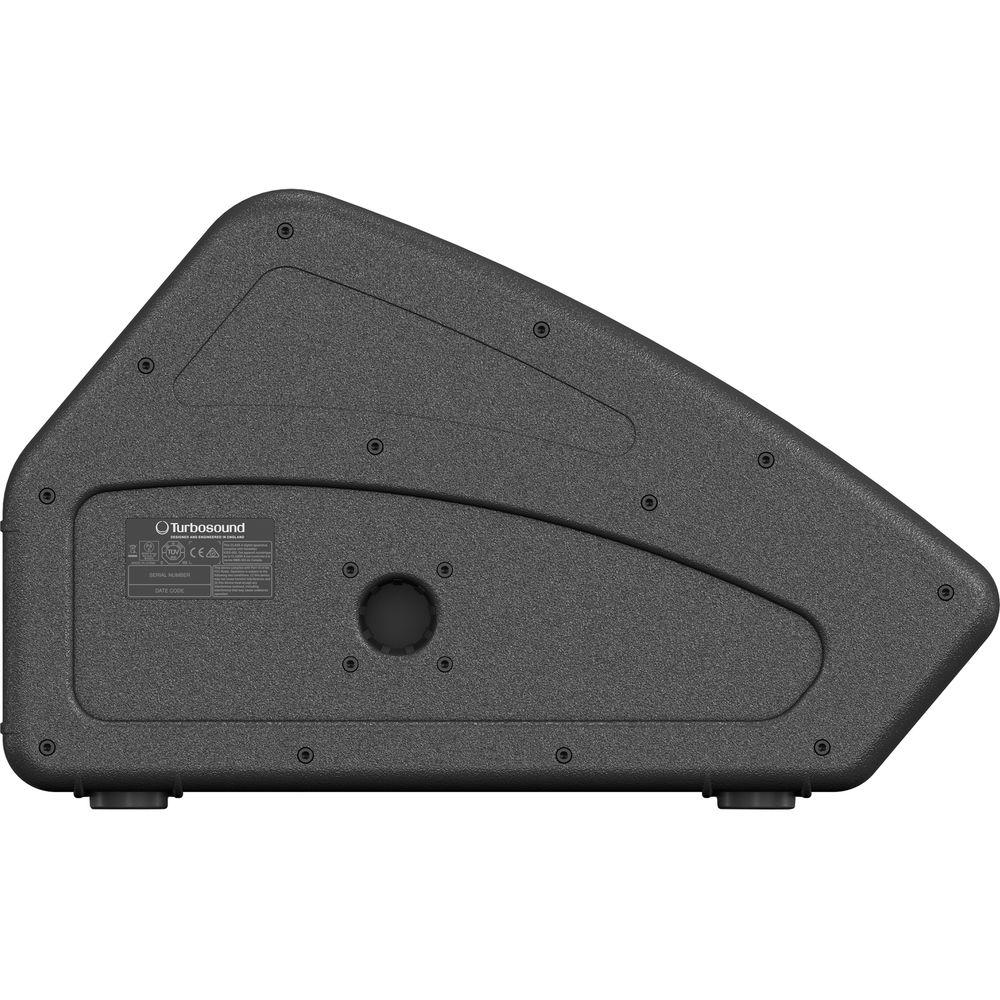

- The cabinet is constructed from 15mm (5/8") plywood with fiberglass reinforced composite end cheeks and a rugged powder-coated perforated steel mesh grille, backed with reticulated foam finished in a semi-matt black paint. It includes a convenient pole mount socket for use with 35mm poles/speaker stands to optimize coverage and a durable handle for easy transport. The monitor's low profile design provides improved audience line-of-sight for seamless integration into any application.
UPC: 748252161949 In the Box Turbosound TFX152M-AN 15" 2-Way 1100W Flashline Stage Monitor Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TFX152M-AN 15" 2-Way 1100W Flashline Stage Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TFX152M-AN Specs | | | Configuration | 2-Way | | Total Power Capacity | 1100 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1" / 25.4 mm Compression Driver | | LF Driver | 1 x 15" / 387 mm Woofer | | | | Frequency Response | 63 Hz to 18 kHz ±3 dB
57 Hz to 20 kHz -10 dB | | Maximum SPL | 127 dB (Peak) | | Coverage Angle | 60° H x 40° V (Rotatable Horn) at -6 dB | | Input Sensitivity | +1 dBu | | Max Input Level | +12.5 dBu | | I/O Impedance | Input:
40 kOhms (Balanced) | | Protections | RMS, Short Circuit, Thermal | | | | Audio I/O | 1 x Combo XLR / 1/4"
1 x XLR | | Network I/O | 2 x RJ45 (Network) | | USB | 1 x USB Type-B (Remote) | | | | Crossover | High-Pass:
24 dB/OctaveActive | | EQ | Presets (Factory)
HF Shelf
LF Shelf | | Parametric EQ | Yes | | Dynamic Processing | HF Limiter, LF Limiter, Peak Limiter | | Max Sample Rate/Resolution | 48 kHz / 24-Bit | | | | AC Input Power | 120 VAC, 60 Hz (T 8 A H 250 V) | | AC Power Connector | 1 x IEC | | Power Consumption | 140 W (1/8 Power) | | | | Construction Material | Perforated Metal Grille, Plywood, Polypropylene | | Dimensions | 13.8 x 20.9 x 22.3" / 351.0 x 530.0 x 565.0 mm | | Weight | 47.3 lb / 21.5 kg |
