User Manual for Turbosound TPA122 00-WH Prague 2 Way 12" Full Range Loudspeaker Click to enlarge the picture
Contents of the user manual for the Turbosound TPA122 00-WH Prague 2 Way
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound TPA122 00-WH Prague 2 Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

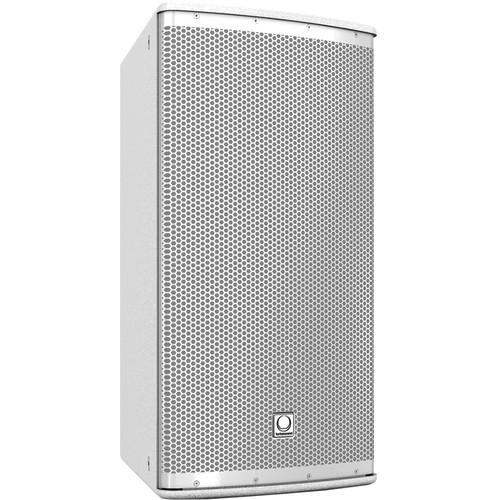

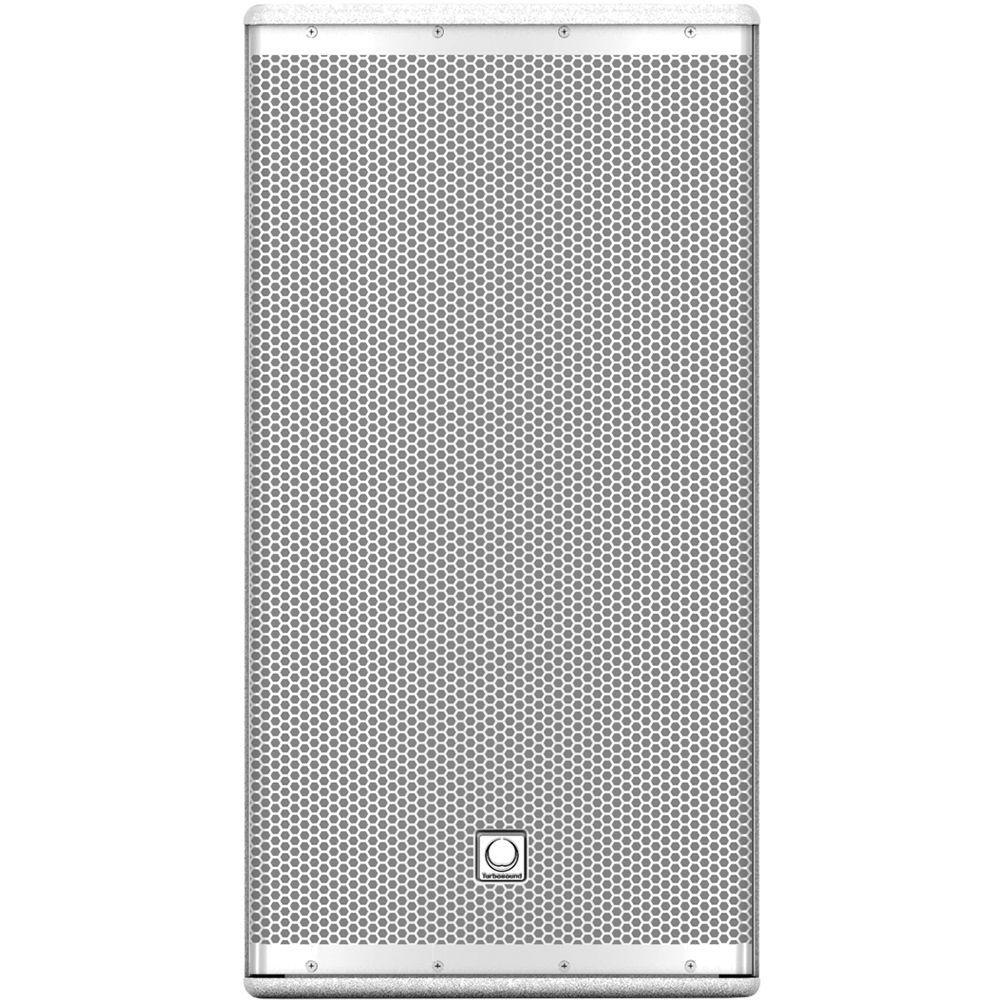

Product description The white Prague 2 Way 12" Full Range Loudspeaker from Turbosound is a switchable passive/bi-amp 12" 2,400 Watt arrayable loudspeaker system designed for a wide range of installation applications. It features a carbon fiber loaded 12" low frequency driver with inside/outside wound coil and a titanium dome 1.4" neodymium motor high frequency compression driver mounted on a rotatable waveguide with a choice of three factory supplied dispersion options: 90° horizontal by 50° vertical, 60° horizontal by 40° vertical, and 100° horizontal by 100° vertical. These waveguide options, plus the ability to rotate them through 90° in the trapezoidal enclosure, make it possible to predict and assemble precisely configured loudspeaker arrays with very accurate coverage of a given audience space.

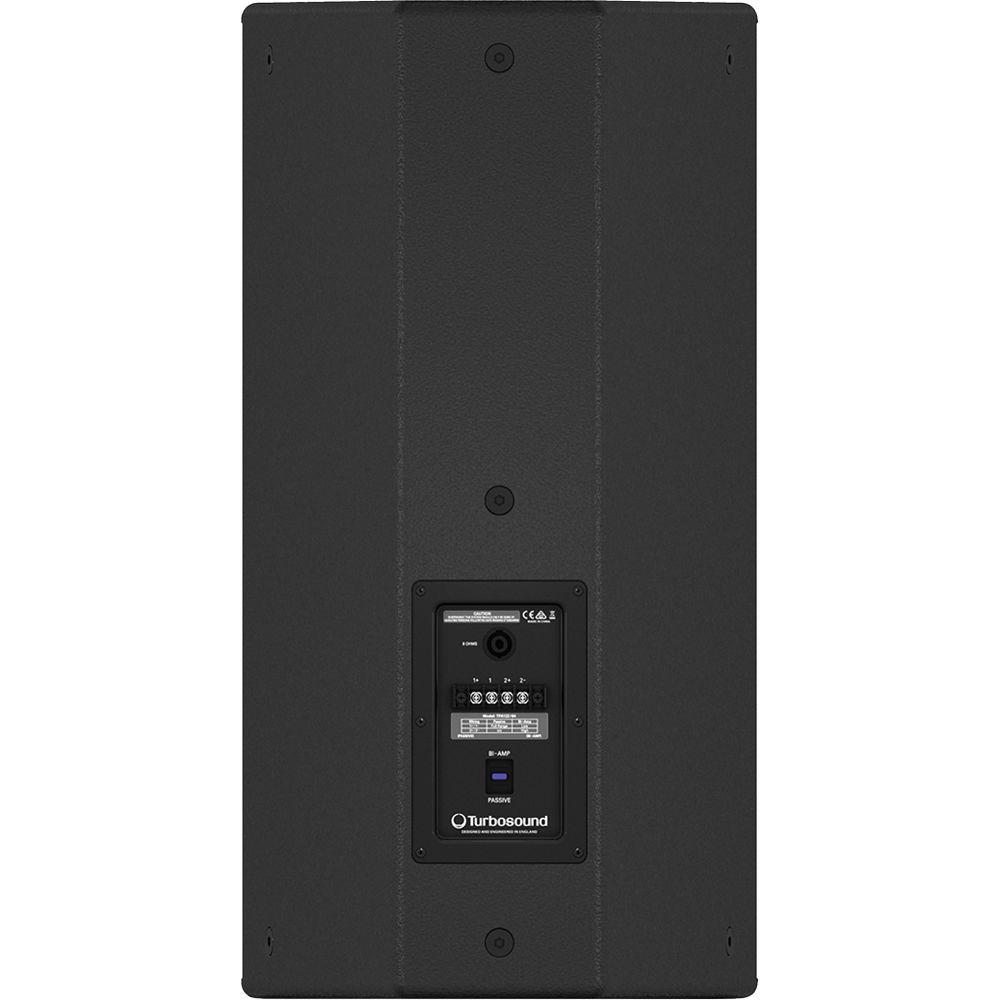

The loudspeaker can be used either in the passive or bi-amped mode, you can select the user mode by means of a rear panel slide switch. The cabinet is constructed of a 5⁄8" (15 mm) birch plywood enclosure, with a powder coated steel mesh grille backed with reticulated foam, and is finished in hard wearing semi matt white textured paint. Multiple internal threaded rigging points are provided to allow use with TURBOSOUND wall and ceiling brackets, and OmniMount* brackets, or for suspension with eyebolts in any orientation. A Neutrik speakON* NL4 input connector is located on the rear panel wired in parallel with a 4-way barrier strip providing input and link through connections to additional TPA series cabinets - Carbon fiber loaded 12" low frequency driver with inside/outside wound coil
- Titanium dome 1.4" neodymium motor compression driver
- Multiple array configurations for extended coverage
- Switchable passive/bi-amp operation for flexibility of use
- Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- 5⁄8" (15 mm) birch plywood enclosure with hard wearing semi matt white paint finish
- Architecturally styled powder coated perforated steel mesh grille
- Neutrik speakON NL4 and barrier strip connectors
In the Box Turbosound TPA122/00-WH Prague 2 Way 12" Full Range Loudspeaker (White) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TPA122 00-WH Prague 2 Way 12" Full Range Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TPA122/00WH Specs | Frequency Response | 45 Hz to 18 kHz @ ±3 dB
40 Hz to 20 kHz @ ±10 dB | | Nominal Dispersion | 90° H x 50° V (TPA122/95)
60° H x 40° V (TPA122/64)
100° H x 100° V (TPA122/00) @ - 6 dB Points | | Power Handling | 600 Watts Continuous, 2,400 Watts Peak | | Sensitivity | 97 dB (1 Watt @ 1 m) | | Maximum SPL | 125 dB Continuous, 131 dB Peak | | Components | 1" x 12" (305 mm) LF Driver
1 x 1.4" (35 mm) HF Compression Driver | | Nominal Impedance | 8 Ohms | | Construction | 5⁄8" (15 mm) Birch Plywood | | Grille | Powder-Coated Perforated Steel | | Connectors | Neutrik speakON NL4, wired Pin 1+: Positive, Pin 1- : Negative, Pins 2+ and 2- N/C
4 Way Barrier Strip Connector | | Dimensions | 28 x 14.5 x 18 (711 x 369 x 458 mm) | | Weight | 53.5 lb (24.3 kg) |
