User Manual for Turbosound TPA122 64WH Arrayable 2 Way 12" Full Range Loudspeaker Click to enlarge the picture
Contents of the user manual for the Turbosound TPA122 64WH Arrayable 2 Way
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound TPA122 64WH Arrayable 2 Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

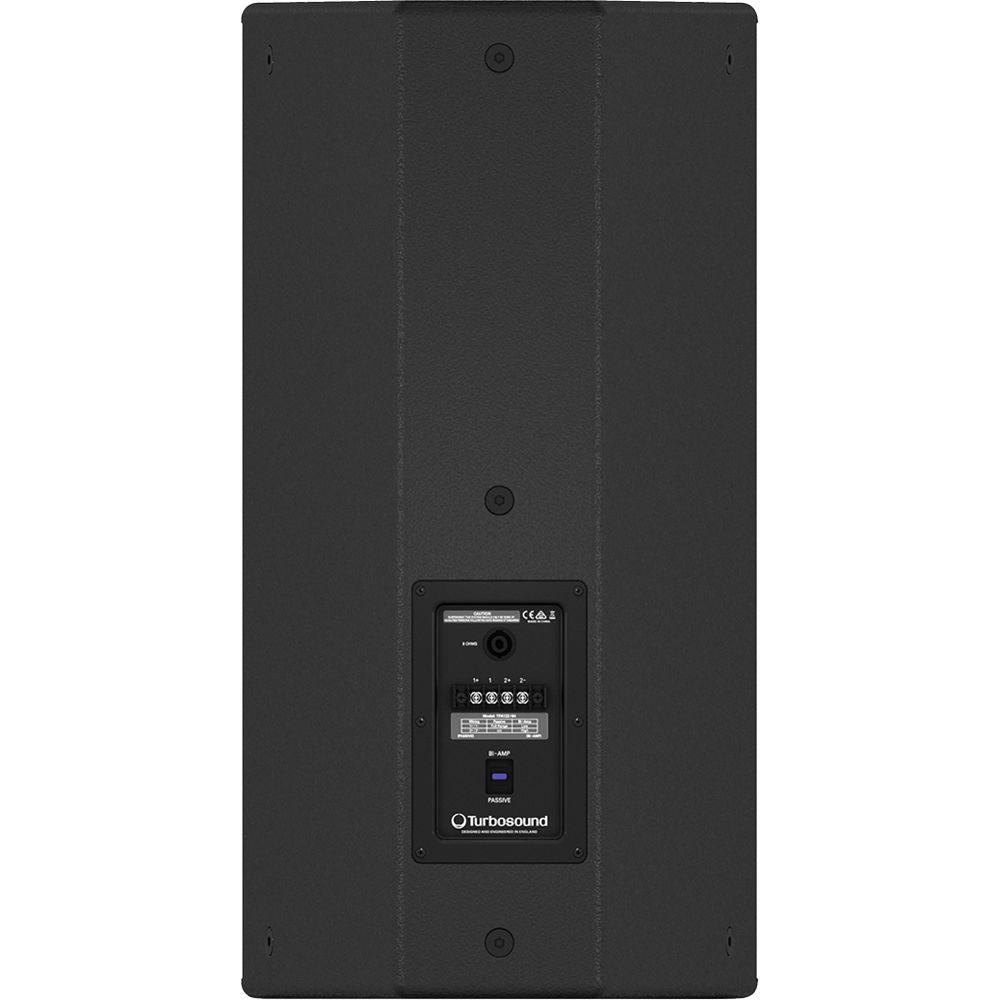

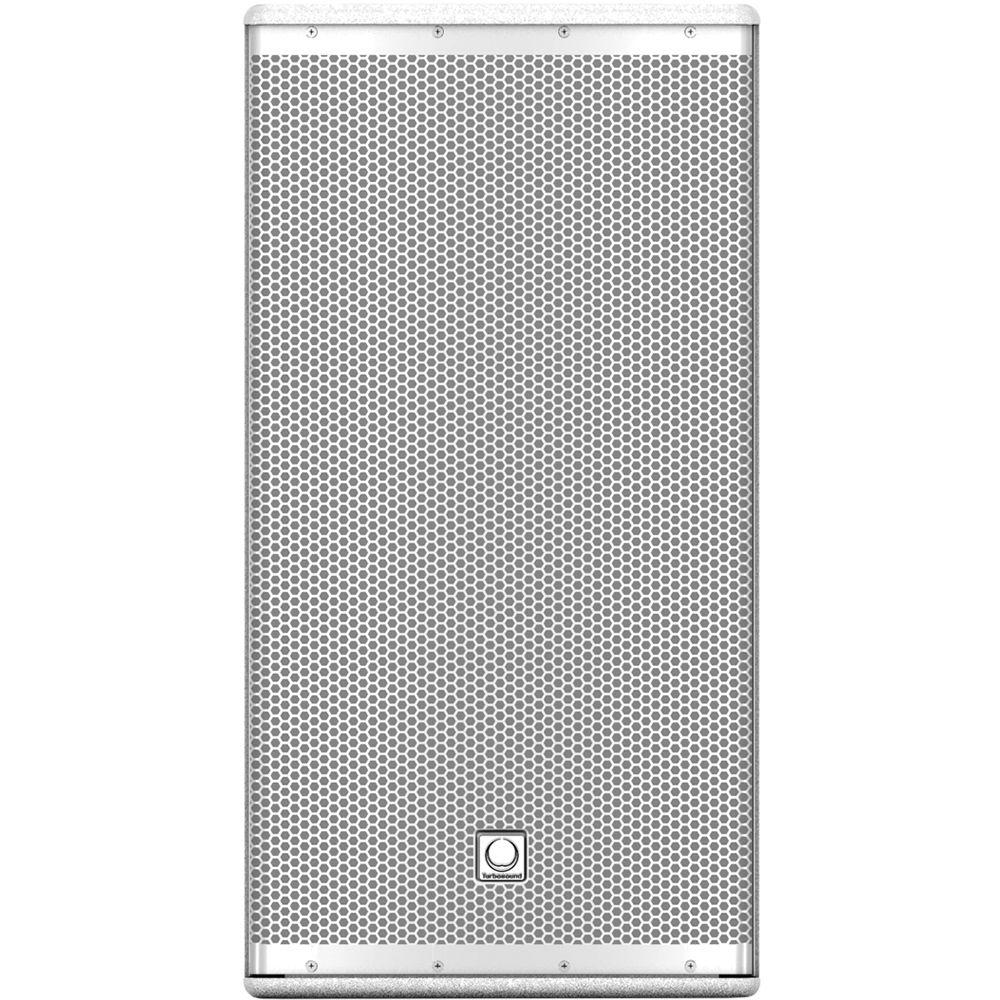

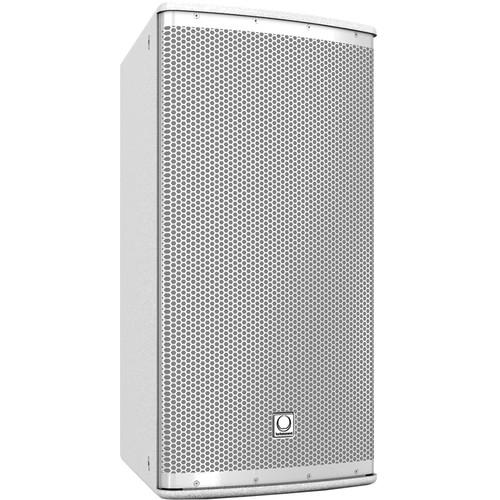

Product description The Arrayable 2 Way 12" Full Range Loudspeaker from Turbosound is a switchable passive/bi-amp 12" 2,000 Watt arrayable loudspeaker system suited for a wide range of speech and music sound reinforcement applications. The loudspeaker is designed to work in conjunction with TURBOSOUND loudspeaker management systems, providing optimal FOH performance, as well as offering considerable flexibility to readily adapt to varying venue requirements. It features a carbon fiber loaded 12" low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and an aluminum dome 1" neodymium motor compression driver mounted on a rotatable 60° horizontal by 40° vertical waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch. Finished in a 1 matt white paint, the cabinet is constructed from 15 mm (5⁄8") birch plywood - and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Internal M10 threaded rigging points are provided for suspension in any orientation, or mounting with dedicated brackets - available separately. The rear panel connector plate carries Neutrik speakON NL4 and barrier strip connectors for input and link connections to additional enclosures. - Carbon fiber loaded 12" low frequency driver with inside/outside wound coil
- Aluminum dome neodymium motor compression driver
- Multiple array configurations for extended coverage
- Switchable passive/bi-amp operation for flexibility of use
- Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- 15 mm (5/8") birch plywood enclosure with hard wearing semi matt white paint finish
- Architecturally styled powder coated perforated steel mesh grille
- Neutrik speakON NL4 and barrier strip connectors
In the Box Turbosound TPA122/64WH Arrayable 2 Way 12" Full Range Loudspeaker (60°H x 40°V Dispersion) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound TPA122 64WH Arrayable 2 Way 12" Full Range Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TPA122/64WH Specs | Frequency Response | 45 Hz to 18 kHz @±3 dB
40 Hz to 20 kHz @-10 dB | | Nominal Dispersion | 60° horizontal by 40° vertical @ -6 dB points, rotatable | | Directivity Factor | 18.3 | | Directivity Index | 12.6 | | Power Handling | Passive: 500 W continuous, 2,000 W peak
Bi-amp LF: 500 W continuous, 2,000 W peak
HF: 40 W continuous, 160 W peak | | Sensitivity | 97 dB (1 W @ 1 m) | | Maximum SPL | Passive: 124 dB continuous, 130 dB peak
Bi-Amp LF: 124 dB continuous, 130 dB peak
HF: 122 dB continuous, 128 dB peak | | Impedance | Passive: 8 ohms
Bi-Amp LF: 8 ohms
HF: 6 ohms | | Crossover Type | Passive / bi-amp, switchable | | Components | 1" x 15" (394 mm) LF driver
1" x 1" (25 mm) HF compression driver | | Connectors | 1 x Neutrik speakON NL4
1 x barrier strip terminals | | Wiring | Passive Pins: 1+ / 1- input, pins 2+ / 2- link
Bi-Amp Pins: 1+ / 1- LF, pins 2+ / 2- HF | | Construction | 5⁄8" (15 mm) birch plywood | | Finish | Semi matt white paint | | Grille | Powder-coated perforated steel | | Hardware | Flying: M10 x 15 points | | Color | White | | Dimensions | Height: 30.7" (781 mm)
Width: 16.5" (419 mm)
Depth: 19.8" (503 mm) | | Weight | 52.4 lb (23.8 kg) |
