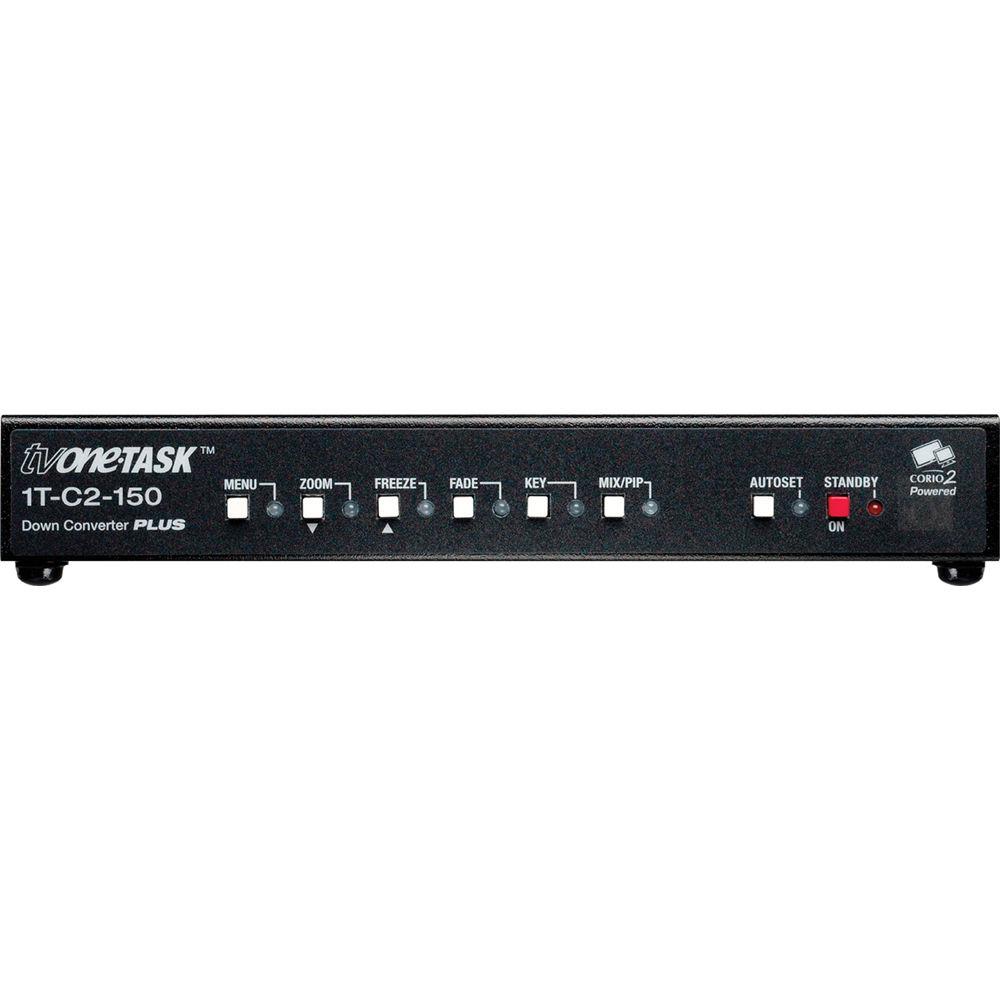

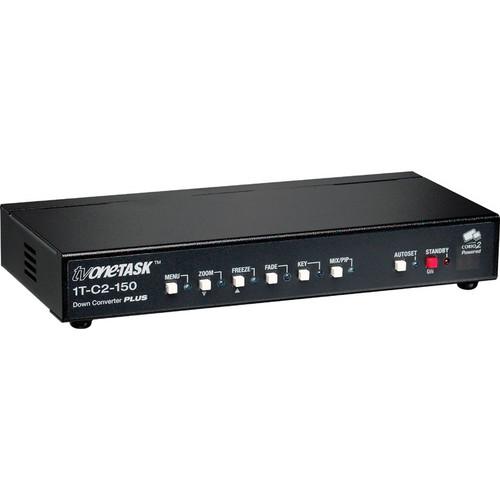

Product description The TVone 1T-C2-150 Down Converter is based on TV One's exclusive CORIO2 technology and provides high quality scan conversion from Computer or HDTV signals to standard video formats in a compact package. It handles any computer resolution up to 2048x2048 at any vertical refresh rate and all HDTV resolutions up to 1080p. In order to deal with PC, Mac and most Computer Workstation signals, a wide variety of computer signal formats can be accommodated. Video outputs are switchable between NTSC and PAL and are simultaneously provided in Composite and S-Video. A PC loop-thru is also provided. - Auto Set
- AutoSet feature takes the hassle out of setup by automatically sizing and positioning the computer image to fit exactly on the video screen.
- Zoom Feature
- Variable Zoom to 10X allows you to enlarge any part of the computer screen to fill the entire video screen and position controls allow you to move around to any area desired.
- Functionality
- All the functions can be controlled via the front panel Push Buttons, an Infrared Control Remote Unit or via an RS- 232 connection.
- OSD
- An On-Screen Display is available to assist in setup.
- Multiple Television Standard
- This unit can switch to output NTSC or PAL television signals.
- Step-Up Feature
- The 1T-C2-150's additional capabilities, are Genlock, Chromakey and Lumakey. The Key Mode allows computer graphics to be keyed over an external Composite or S-Video signal. The keyed image may be faded in and out. The Mix Mode permits glitch-free mixing between the computer image and external video. The PIP Mode allows either of the computer inputs to be inset in a window over either of the video inputs or visa versa. The Genlock feature insures precise synchronization of the incoming signals by providing a wide Subcarrier lock range with Subcarrier phase adjustment.
In the Box TV One 1T-C2-150 Scan Converter / Down Converter with Genlock - Mac & PC (HD-15) Input, Composite (RCA) and Y/C (S-Video) Video Output, Text, NTSC or PAL Converter AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-C2-150 Scan Converter Down Converter with Genlock - Mac & PC Input, Composite and Y C Video Output, Text, NTSC or PAL in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

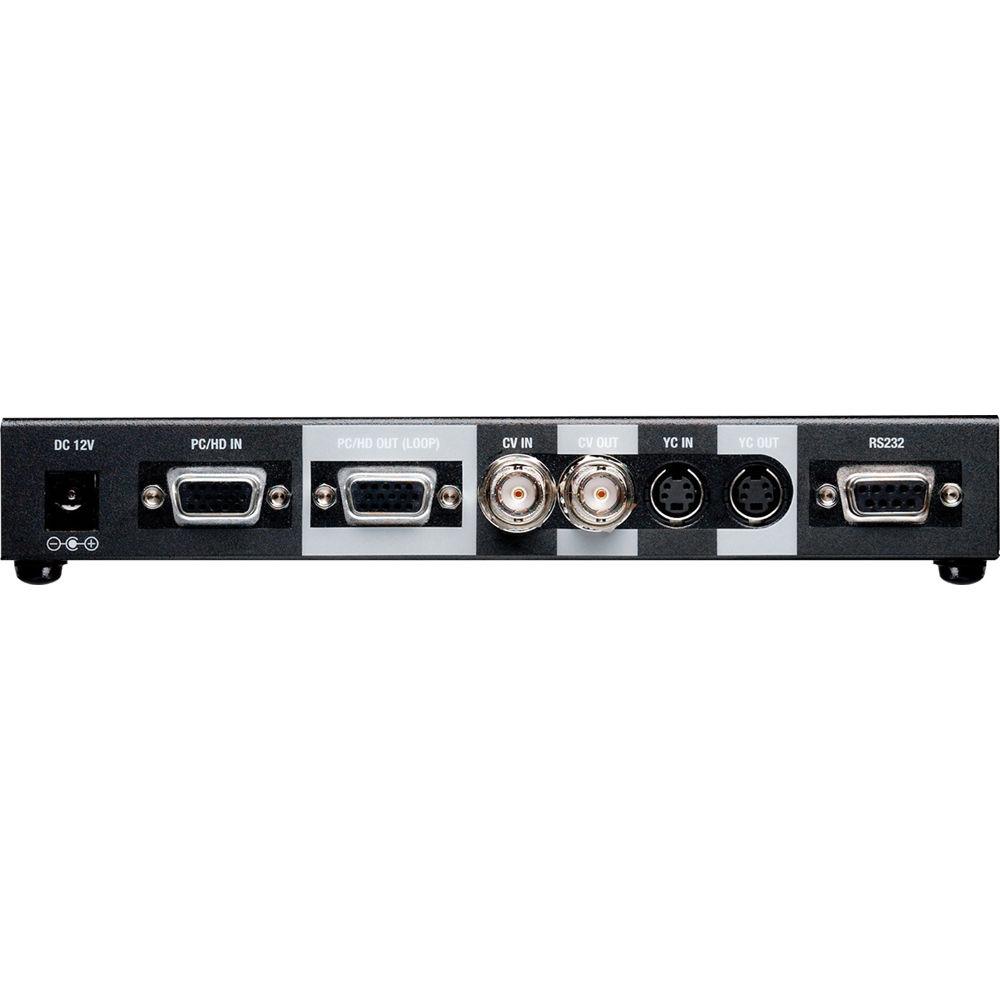

Technical parametersTV One 1T-C2-150 Specs | Input | Computer Generated video, Looping, RGBHV up to 2048x2048, on an HD-15 connector
Composite video @ 75 ohms termination, on a BNC connector
Y/C (S-Video) @ 75 ohms termination, on a 4-Pin connector
RS-232, on a 9-Pin connector
Genlock, Looping, on a BNC connector | | Output | Composite video @ 75 ohms termination, on a BNC connector
Y/C (S-Video) @ 75 ohms termination, on a 4-Pin connector | | Conversion | Computer Generated RGBHV and HDTV up to 2048x2048 and 1080p to Composite and Y/C in NTSC or PAL television systems | | Control | Front Panel IR and RS-232
Size and Position
Underscan/Overscan
Image Freeze
Zoom and Pan
Flicker Filter
NTSC or PAL
Mix
Genlock Phase and Timing
PIP
Key | | Power Source | 12 VDC on an AC Power Supply | | Dimensions (WxDxH) | 7.9 x 3.5 x 1.2"
20 x 8.9 x 3cm | | Weight | 1.3 lbs
580 Grams | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 10.709 x 9.921 x 3.465" |
