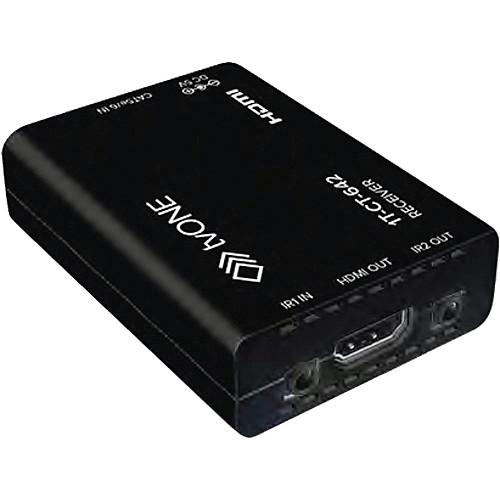

User Manual for TV One 1T-CT-642 HDMI Receiver Click to enlarge the picture
Contents of the user manual for the TV One 1T-CT-642 HDMI Receiver
- Product category: Video Extenders & Repeaters TV One
- Brand: TV One
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TV One Video Extenders & Repeaters
|
User manual for the TV One 1T-CT-642 HDMI Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TV One product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TV One user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TV One product will considerably shorten its lifespan!
|
Product description The TV One 1T-CT-642 HDMI Receiver forms the HDMI over single CAT5e/CAT6 system when coupled with the 1T-CT-641 Transmitter (sold separately). It supports the HDMI v1.4 protocol and the HDBaseT-Lite technology to allow transmission of uncompressed, 1080p full HD television signals over a single CAT5e or CAT6 cable (sold separately).The receiver supports HDMI v1.4 signals including 3D and 4k UHD formats and the system allows DVI signal transmission with appropriate DVI to HDMI cable adapters. In addition, the embedded LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio capability is standard.The 1T-CT-642 Receiver along with the 1T-CT-641 Transmitter can achieve signal distribution distances of up to 197’ (60m) for uncompressed HDMI signals without signal degradation. A screw-on power adapter cable prevents inadvertent disconnection of power. - Supports HDMI v1.4 protocols with 3D, 4k (24 / 30 Hz), HDCP 1.1 and DVI 1.0 formats
- Uncompressed HDMI signal distribution up to 197' (60m)
- Class B (HDBaseT-Lite) technology
- Supports embedded HDMI lossless digital audio
- Full HD resolution support (1080p @ 60 Hz / 36-bit)
- HD 3D formats & PC resolutions up to WUXGA
- Supports HDCP repeater and CEC bypass
- Uses a single CAT5e/-6 Ethernet cable (sold separately) connected to its RJ-45 jacks
- Bi-directional infrared remote control extensions
- Supports DVI when using HDMI to DVI adapters (sold separately)
In the Box TV One 1T-CT-642 HDMI Receiver US Power Adapter Limited 3-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-CT-642 HDMI Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-CT-642 Specs | Video I/O | HDMI output, 1 x via HDMI connector | | Cable | Cat.5e / Cat.6 Cable I/O: CAT5e/CAT6 Input: 1 x via RJ-45 connector | | Additional Inputs/Outputs | Connectors (Per Unit): 2 x 3.5 mm mini-jack (Infrared) | | Supported Signals | Signals & Protocols:
Industry Standards: HDMI v1.4 (3D, 4 k), HDCP, DVI 1.0, Infrared | | | | Maximum Resolution | HD up to 1080p @ 60 Hz / 36-bit
UHD to 4 k @ 30 Hz, PC to WUXGA | | | | Supported Formats | LPCM 7.1 channel, Dolby TrueHD, Dolby Digital Plus, & DTS-HD Master | | | | Bandwidth | HDBaseT-Lite Class B Support:
Maximum Bandwidth: Uncompressed video / audio to 10.2 Gb/s / 300 MHz | | Range | HDBaseT-Lite Class B Support:
Maximum Range: 197' (60 m) at 1080p @ 60 Hz
131' (40 m) at 4 k @ 30 Hz | | | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (-20 to 60°C) | | Humidity | Operating: 20 to 90%, non-condensing
Storage: 20 to 90%, non-condensing | | | | Encoder/Decoder | FCC, CE, RoHS | | Power Supply | UL, CUL, CE, PSE, GS, RoHS | | | | Ethernet Cabling | Highest quality single CAT5e or CAT6 cable (UTP or STP) CAT cables sold separately. | | | | External Power Supply | 5 VDC @ 2.6 A locking connector | | | | Dimensions (H x W x D) | 0.87 x 2.17 x 3.01" (22.10 x 55.11 x 76.45 mm) | | Weight | 2.25 oz (64.00 g) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.5 x 4.75 x 2.5" |
