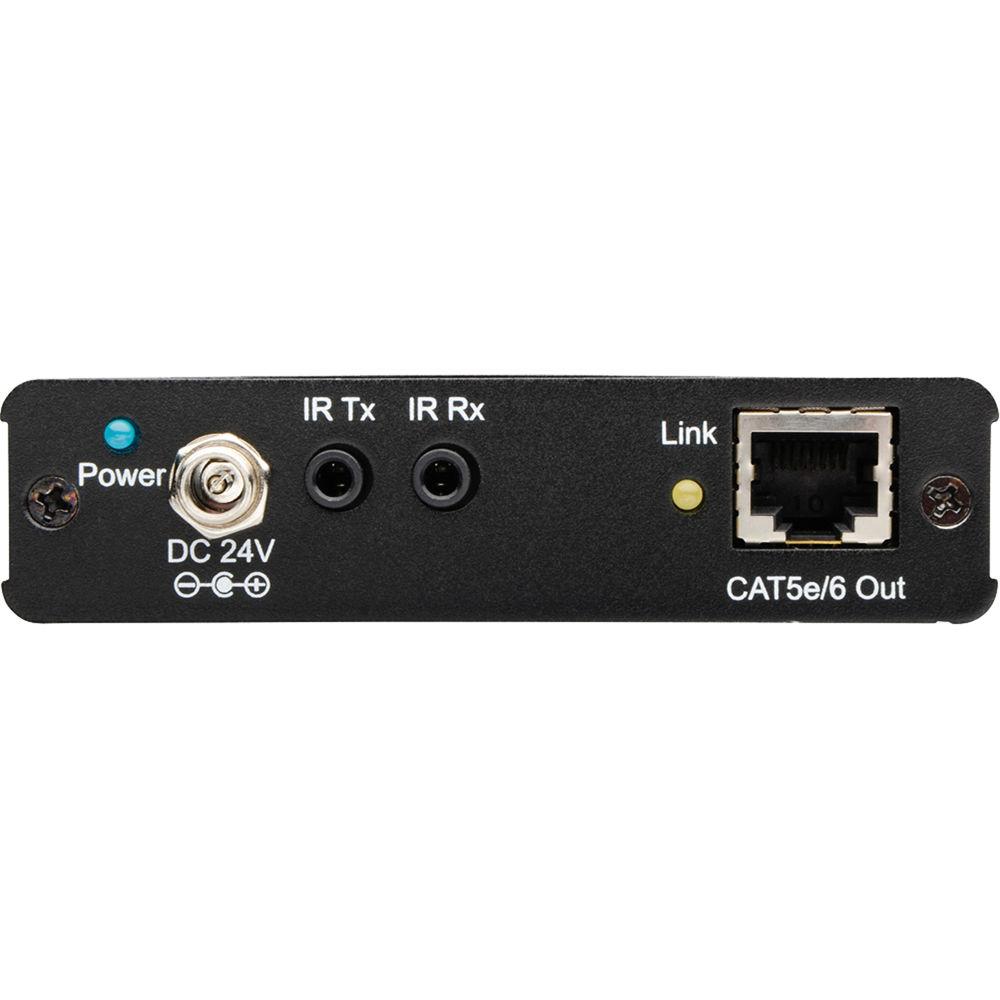

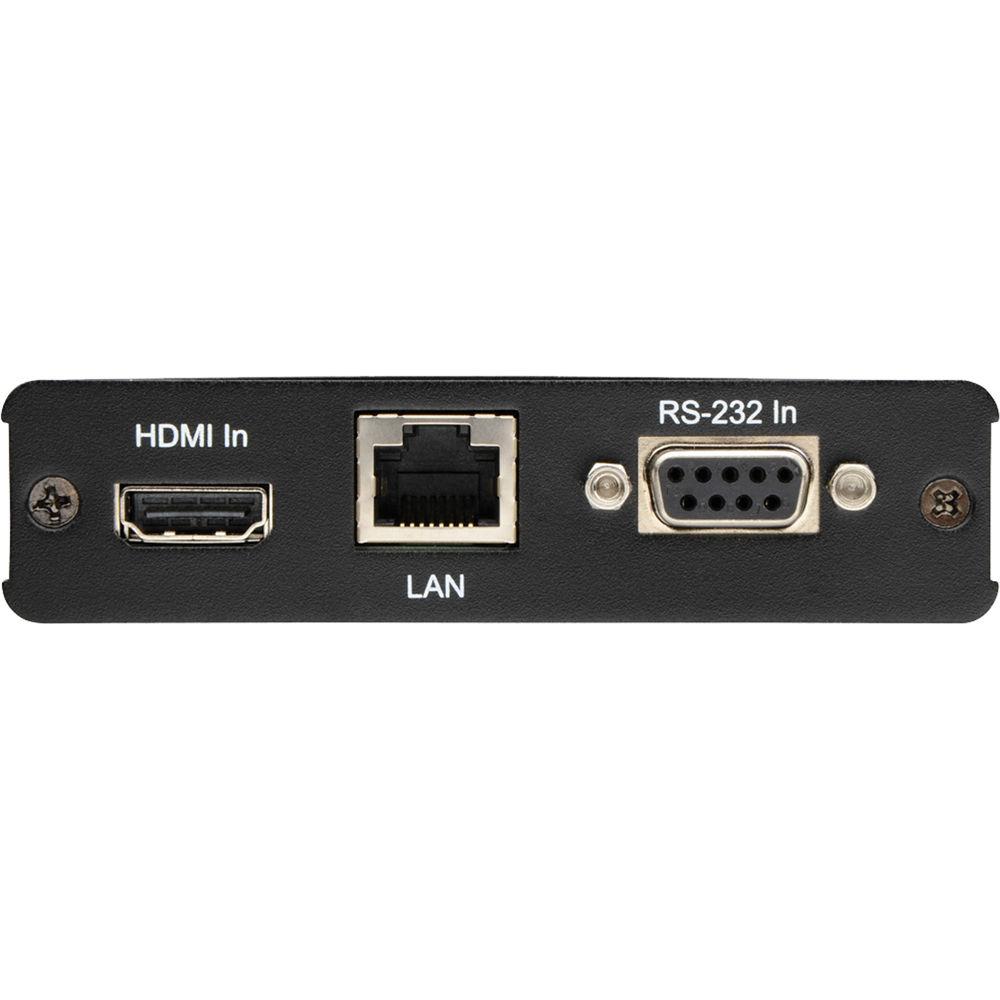

Product description The tvone 1T-CT-653 HDMI over CAT5e/6 with LAN/RS232 Transmitter is coupled with a 1T-CT-654 HDMI over CAT5e/6 with LAN/RS232 Receiver, which employs the HDMI v1.4 capability and HDBaseT 5Play technology to allow transmission of uncompressed, 1080p high definition television signals over a single CAT5e or CAT6 cable (this is the type of cable typically employed for Ethernet computer networks). This transmitter supports HDMI v1.4 signals, including 3D and 4 x 2 K formats, and will also allow DVI signal transmission with appropriate DVI to HDMI cable adapters. In addition, embedded 7.1CH LPCM, Dolby TrueHD, and DTS-HD Master Audio capability is standard.
The 1T-CT-653 HDMI over CAT5e/6 with LAN/RS232 Transmitter can achieve signal distribution distances of up to 325’ (100 m) for uncompressed 1080p signals without signal degradation. Control signals can be passed via Ethernet, infrared, or the RS-232 cable. PoE (Power over Ethernet) technology is employed to allow powering of the 1T-CT-654 HDMI over CAT5e/6 with LAN/RS232 Receiver from this transmitter. - Resolutions to WUXGA @ 48 bits or 4 x 2 K
- Uncompressed transmission to 325' (100 m)
- Uses HDBaseT performance-enhancing technology
- Supports embedded HDMI lossless digital audio
- Compliant with HDMI v1.4a, HDCP 1.1, and DVI 1.0
- Uses a single CAT5e/CAT6 Ethernet cable
- Bi-directional infrared remote support
- Bi-directional RS-232 cable and Ethernet support
In the Box TV One 1T-CT-653 HDMI over CAT5e/6 with LAN/RS232 Transmitter Power Adapter (US, UK, or Euro) User Manual IR Receiver 3-Year Limited Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-CT-653 HDMI over CAT5e 6 with LAN RS232 Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-CT-653 Specs | Input | 1x via HDMI connector | | I/O | Cable I/O
CAT5e/CAT6: 1x via RJ45 connector | | Connector | Additional I/O: 1x LAN RJ45, 1x DB9 RS-232, 2x 3.5 mm mini-jack (infrared) | | Standards | Signals & Protocols: HDMI v1.4a, 3D, 4 x 2 K, HDCP, DVI 1.0, IR, RS-232, and Ethernet | | Maximum Resolution | Video Performance: 1080p @ 60 Hz/48 bit or 4 x 2 K @ 24 Hz | | Audio Support | Formats Supported: 7.1 channel, Dolby TrueHD, DTS-HD | | Bandwidth | HDBaseT Support: Uncompressed video / audio to 10.2 Gbps (maximum) | | Maximum Range | 325' (100 m) | | Regulatory Approvals | Encoder / Decoder Unit: FCC, CE, RoHS
Power Supply: UL, CUL, CE, PSE, GS, RoHS | | Cable Requirements | Ethernet Cable, Twisted Pair: High quality single CAT5e or CAT6 cable | | Power Requirement | External Power Supply: 1x 24 VDC @ 1.25 A | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 90%, non-condensing | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Storage Humidity | 20 to 90%, non-condensing | | | | Dimensions (H x W x D) | 0.98 x 4 x 4.45" (25 x 102 x 113 mm) | | Weight | 0.55 lb (0.25 kg) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 10.0 x 5.5 x 2.5" |
