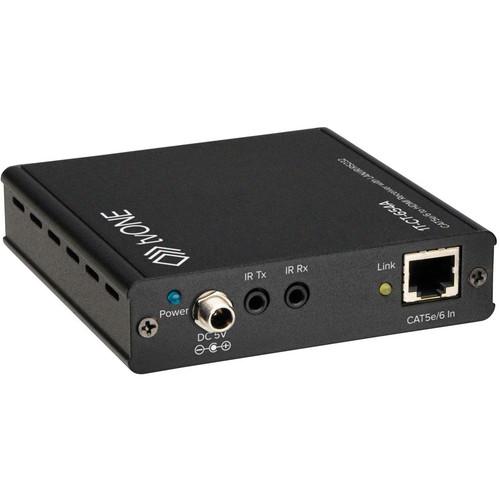

Product description The One Task 1T-CT-654A HDMI over CAT5e/6 Receiver employs HDMI v1.4 capability and HDBaseT 5Play technology to allow transmission of uncompressed, 1080p high-definition television signals over a single CAT5e or CAT6 cable. It receives HDMI v1.4 signals that include 3D and 4K UHD formats, and also allows DVI signal transmission with appropriate DVI-to-HDMI cable adapters.The 1T-CT-654A Receiver also features embedded 7.1 channel LPCM, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio capability. It can achieve signal distribution to distances up to 325’ for uncompressed 1080p signals without signal degradation. The PoH (Power Over HDBaseT) technology is employed to allow powering of the receiver from the 1T-CT-653 Transmitter (sold separately), avoiding the need for a separate power supply for that unit. Note: Requires the separately-sold 1T-CT-653 Transmitter at the receiving end. - HDMI 1.4a, HDCP 1.1, and DVI 1.0
- Uncompressed HDMI signal distribution to 325'
- Uses HDBaseT performance enhancing technology
- Supports embedded HDMI lossless digital audio
- Full HD resolution support (1080p @ 60 Hz/36 bit) & 3D
- PC resolutions up to WUXGA
- Supports HDCP repeater and CEC bypass
- Uses a single CAT5e/CAT6 Ethernet cable
- Bi-directional infrared remote support
- Bi-directional RS-232 and Ethernet support
- Power over HDBaseT (PoH) or local power input
- Compatible with CORIOmax HDBaseT output modules
In the Box TV One 1T-CT-654A HDMI over CAT5e/6 Receiver Power Adapter Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-CT-654A HDMI over CAT5e 6 Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-CT-654A Specs | Input | 1 x via HDMI connector | | I/O | Cable I/O
CAT5e/CAT6: 1 x via RJ45 connector | | Connector | 1 x LAN RJ45, 1 x DB9 RS-232
2 x 3.5 mm mini-jack (Infrared) | | Standards | Signals & Protocols: HDMI v1.4a, 3D, 4 x 2 K, HDCP, DVI 1.0, IR, RS-232, and Ethernet | | Maximum Resolution | HD up to 1080p @ 60 Hz/36 bit
UHD to 4k @ 30 Hz, PC to WUXGA | | Audio Support | LPCM 7.1 channels, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master | | Bandwidth | 10.2 Gb/s / 300 MHz | | Maximum Range | Up to 1920 x 1200 @ 60 Hz: 325' (100 m) using CAT5e/6
Up to 3840 x 2160 @ 30 Hz: 230' (70 m) using CAT5e/6
325' (100 m) using CAT6a/7 | | Regulatory Approvals | Encoder / Decoder Unit: FCC, CE, RoHS
Power Supply: UL, CUL, CE, PSE, GS, RoHS | | Cable Requirements | CAT5e, CAT6, CAT6a, or CAT7 cable | | Power Requirement | 5 VDC Locking Connector | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 20 to 90%, non-condensing | | Storage Humidity | 20 to 90%, non-condensing | | | | Dimensions (H x W x D) | 0.98 x 4.0 x 4.21" (2.5 x 10.2 x 10.7 cm) | | Weight | 9 oz (256 g) |
