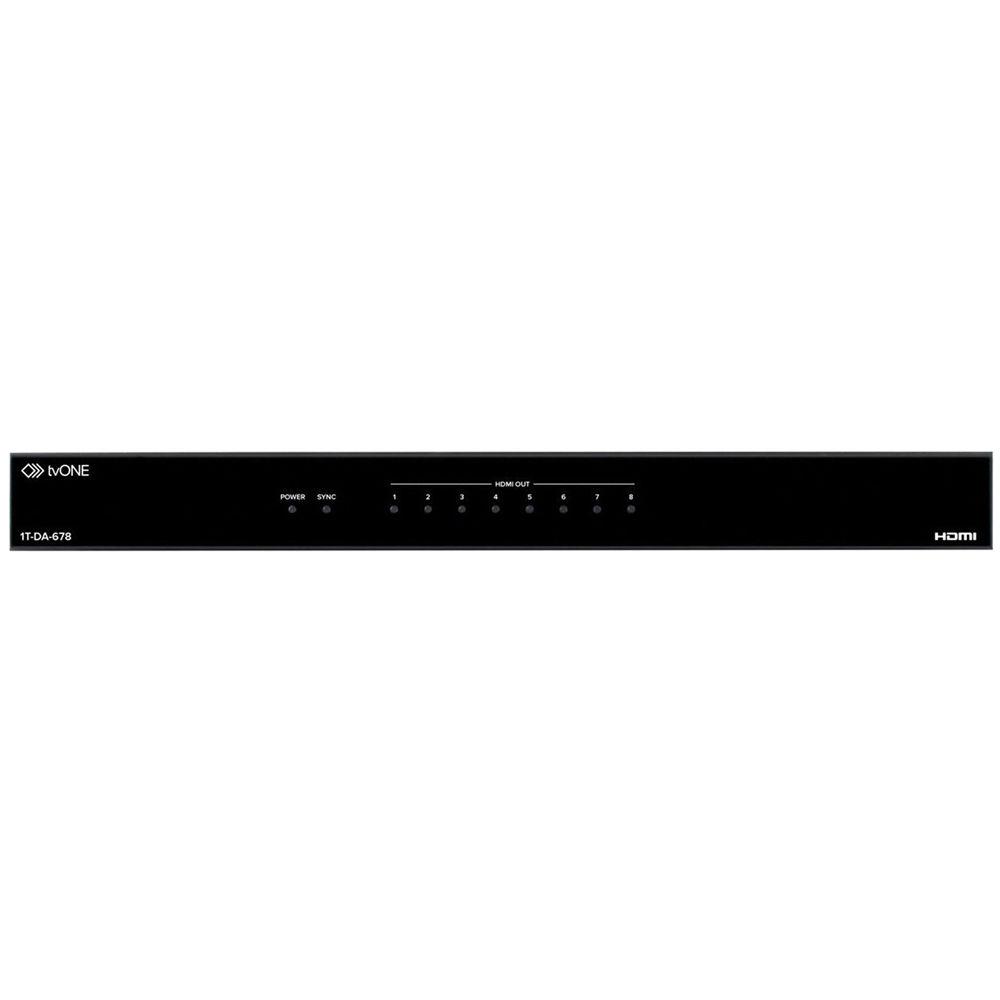

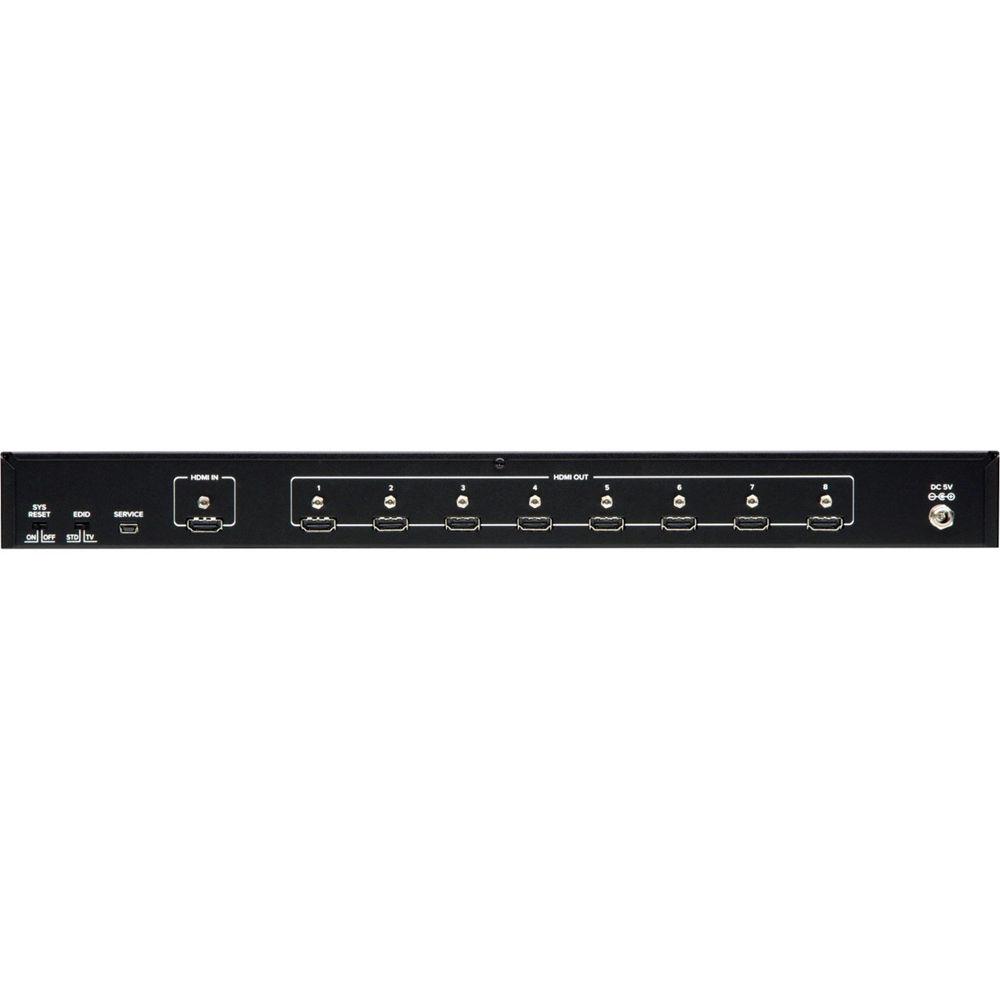

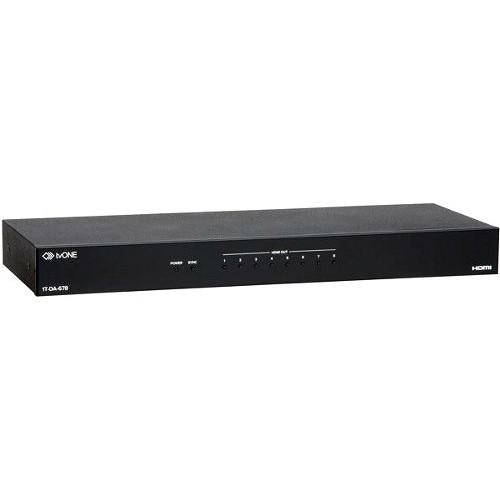

User Manual for TV One 1T-DA-678 1 x 8 4K HDMI 1.4 Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the TV One 1T-DA-678 1 x 8
- Product category: Distribution Amplifiers (DA's) TV One
- Brand: TV One
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TV One Distribution Amplifiers (DA's)
 |
User manual for the TV One 1T-DA-678 1 x 8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TV One product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TV One user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TV One product will considerably shorten its lifespan!
|
Product description The tvONE 1T-DA-678 1 x 8 4K HDMI Distribution Amplifier provides eight independent HDMI outputs from a single HDMI input for distribution to HDMI v1.4 compatible devices. This splitter supports 10- and 12-bit Deep Color videos (at 1080p or lower resolution), 3D video signals, 480i/576i SDTV resolutions, HDTV resolutions up to 1080p, and 4K resolutions up to 4096 x 2160 (at 24 Hz with 8-bit color) along with HDCP standards. The 1T-DA-678 Distribution Amplifier exhibits high bandwidth up to 9 Gb/s. In addition, it equalizes and amplifies the signals for high-quality transmission of audio and video signals over long distances without loss in quality. This distribution amplifier features automatic discovery of monitor EDID and allows for multiple units to be cascaded togetherbcfyywqqxqvsfaurzucduzwzzv. - HDMI v1.4, HDCP 1.1, and DVI 1.0 compliant
- Splits a single HDMI signal into 8 identical outputs
- Supports 3D video signals (frame pack, side-by-side)
- Supports 10-/12-bit color depths at PC resolutions up to WUXGA, HDTV resolutions up to 1080p60, and 480i/576i SDTV
- Supports UHD 4K (3840 x 2160) at up to 30 Hz or DCI 4K (4096 x 2160) at up to 24 Hz; both in 8-bit color depth
- Supports DVI using HDMI to DVI adapters (sold separately)
- Signal equalization enables longer cable runs
- Can automatically detect EDID data of monitors
- Features a screw-on power adapter cable for secure connection
In the Box TV One 1T-DA-678 1 x 8 4K HDMI 1.4 Distribution Amplifier AC Power Adapter 4 x Rubber Foot Rack Ear Set Limited 3-Year Warranty Brochure PDF 246.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-DA-678 1 x 8 4K HDMI 1.4 Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-DA-678 Specs | | | HDMI | 1 x HDMI 1.4 type A | | Video Outputs | 8 x HDMI 1.4 type A | | | | Video Bandwidth | 300 MHz, 9 Gb/s | | Color Depth | 10-/12-bit color depth for 1080p resolution or below
8-bit color depth for UHD and DCI 4K content | | Maximum Resolutions (Per Display) | HDTV/UHD
4096 x 2160 @ 24 Hz
3840 x 2160 @ 30 Hz
2560 x 1600 @ 60 Hz
1080p60 | | Compliance | HDMI V1.4, HDCP V1.1, DVI V1.0 | | Signal Equalization | Internal | | Maximum Distance | Source to DA
60' / 20 m for 1080p (8-bit)
45' / 15 m for 1080p (12-bit)
DA to Display
45' / 15 m for 1080p (8-bit)
30' / 10 m for 1080p (12-bit) | | Power Requirement | External Power Supply: 5 VDC @ 2.6 A | | | | Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C
Operating Humidity: 20 to 90%, non-condensing
Storage Temperature: 32 to 140°F / 0 to 60°C
Storage Humidity: 20 to 90%, non-condensing | | | | HDMI | FCC, CE, RoHS | | Power Supply | UL, CUL, CE, PSE, GS, RoHS | | | | Dimensions (H x W x D) | 1.7 x 17.2 x 5.9" / 4.4 x 43.6 x 15.0 cm | | Weight | 4.4 lb / 2.0 kg |
