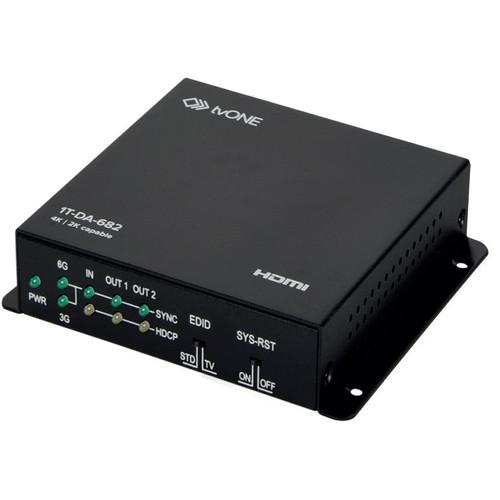

User Manual for TV One 1T-DA-682 1 x 2 HDMI 2.0 DCI 4K, HDR Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the TV One 1T-DA-682 1 x 2
- Product category: Distribution Amplifiers (DA's) TV One
- Brand: TV One
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TV One Distribution Amplifiers (DA's)
|
User manual for the TV One 1T-DA-682 1 x 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TV One product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TV One user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TV One product will considerably shorten its lifespan!
|
Product description The 1T-DA-682 Distribution Amplifier from tvONE is a 1 x 2 HDMI distribution amplifier supporting high dynamic range (HDR) imaging. This DA sports one HDMI 2.0 input and two HDMI 2.0 outputs, supporting HD and SD video at resolutions up to DCI 4K (4096 x 2160). Audio features include support for up to 32 embedded audio channels with sampling up to 192 kHz.The 1T-DA-682 is HDCP 2.2-compliant and offers EDID management, 3D pass-through, and HDMI 2.0 compliance. It also supports pass-through of 7.1 channels of digital audio including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos formats.Mounting features include a screw-on power cable to prevent accidental disconnects, and built-in flanges for wall-or table-mounting. A power supply is included with the 1T-DA-682 Distribution Amplifier. - Key Features
-
- Supports HD and SD video at resolutions up to DCI 4K (4096 x 2160)
- High dynamic range (HDR) imaging support
- Outputs through two HDMI 2.0 ports
- Manages EDID communications
- Screw-on power adapter cable prevents accidental disconnections
- Integrated flanges for mounting on a wall or tabletop
- Power supply included
- Supported Audio Formats
- Including but not limited to:
- LPCM 7.1CH
- Dolby Atmos, Dolby Digital Plus, Dolby TrueHD
- DTS-HD Master Audio
In the Box TV One 1T-DA-682 1 x 2 HDMI 2.0 DCI 4K, HDR Distribution Amplifier Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-DA-682 1 x 2 HDMI 2.0 DCI 4K, HDR Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-DA-682 Specs | | | HDCP Compliance | HDCP 2.2 | | Video Bandwidth | 600 MHz, 18 Gb/s | | Supported Video Resolutions | 4096 x 2160: 60/50/30/25/24
3840 x 2160: 60/50/30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.97
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
480i: 60/59.94
VGA to WUXGA (RB) | | Supported Audio | Embedded
Maximum Channels: 32
Maximum Sampling Rate: 192 kHz | | Inputs | HDMI: 1 x HDMI 2.0a
USB: 1 x USB (firmware updates only) | | Outputs | HDMI: 2 x HDMI 2.0 | | Maximum Cable Distance | 3840 x 2160: 60 (YUV 4:4:4): 9.8' / 3 m
4K/30, 2K/30: 16.4' / 5 m
1080p, 12-Bit: 32.8' / 10 m
1080p, 8-Bit: 49.2' / 15 m | | | | Power Supply | 5 VDC, 2.6 A
Replacement: PS-05-30-LK | | Power Consumption (Maximum) | 4.56 W | | | | Mean Time Between Failures (MTBF) | 1,157,069 hours | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Relative Humidity, Non-Condensing | 20 to 90% | | Dimensions (W x D x H) | 5 x 4.3 x 1" / 128 x 108 x 25 mm | | Weight | 12.6 oz / 358 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 8.7 x 7.2 x 2.9" |
