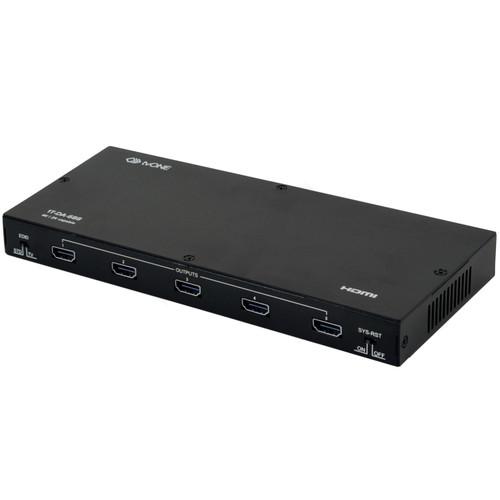

Product description The 1T-DA-688 Distribution Amplifier from tvONE is a 1 x 8 HDMI distribution amplifier supporting high dynamic range (HDR) imaging. This DA sports one HDMI 2.0 input and eight HDMI 2.0 outputs, supporting HD and SD video at resolutions up to DCI 4K (4096 x 2160). Audio features include support for up to 32 embedded audio channels with sampling up to 192 kHz.The 1T-DA-688 is HDCP 2.2-compliant and offers EDID management, 3D pass-through, and HDMI 2.0 compliance. It also supports pass-through of 7.1 channels of digital audio including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos formats.Mounting features include a screw-on power cable to prevent accidental disconnects, and built-in flanges for wall-or table-mounting. A power supply is included with the 1T-DA-688 Distribution Amplifier. - Key Features
-
- Supports HD and SD video at resolutions up to DCI 4K (4096 x 2160)
- High dynamic range (HDR) imaging support
- Outputs through eight HDMI 2.0 ports
- Manages EDID communications
- Screw-on power adapter cable prevents accidental disconnections
- Integrated flanges for mounting on a wall or tabletop
- Power supply included
- Supported Audio Formats
- Including but not limited to:
- LPCM 7.1CH
- Dolby Atmos, Dolby Digital Plus, Dolby TrueHD
- DTS-HD Master Audio
In the Box TV One 1T-DA-688 1 x 8 HDMI 2.0 DCI 4K, HDR Distribution Amplifier Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-DA-688 1 x 8 HDMI 2.0 DCI 4K, HDR Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-DA-688 Specs | | | HDCP Compliance | HDCP 2.2 | | Video Bandwidth | 600 MHz, 18 Gb/s | | Supported Video Resolutions | 4096 x 2160: 60/50/30/25/24
3840 x 2160: 60/50/30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.97
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
480i: 60/59.94
VGA to WUXGA (RB) | | Supported Audio | Embedded
Maximum Channels: 32
Maximum Sampling Rate: 192 kHz | | Inputs | HDMI: 1 x HDMI 2.0a
USB: 1 x USB (firmware updates only) | | Outputs | HDMI: 8 x HDMI 2.0 | | Maximum Cable Distance | 3840 x 2160: 60 (YUV 4:4:4): 9.8' / 3 m
4K/30, 2K/30: 16.4' / 5 m
1080p, 12-Bit: 32.8' / 10 m
1080p, 8-Bit: 49.2' / 15 m | | | | Power Supply | 5 VDC, 3 A
Replacement: PS-05-30-LK | | Power Consumption (Maximum) | 9.5 W | | | | Mean Time Between Failures (MTBF) | 411,643 hours | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Relative Humidity, Non-Condensing | 20 to 90% | | Dimensions (W x D x H) | 9.4 x 4.1 x 1" / 240 x 103 x 25 mm | | Weight | 1.5 lb / 690 g | | | | Package Weight | 2.52 lb | | Box Dimensions (LxWxH) | 11.15 x 7.3 x 2.85" |
