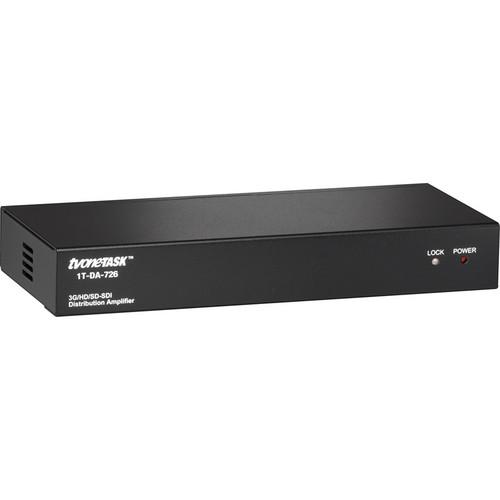

User Manual for TV One 1T-DA-726 3G HD SD-SDI Distribution Amplifier with Reclocking Click to enlarge the picture
Contents of the user manual for the TV One 1T-DA-726 3G HD SD-SDI
- Product category: Distribution Amplifiers (DA's) TV One
- Brand: TV One
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TV One Distribution Amplifiers (DA's)
|
User manual for the TV One 1T-DA-726 3G HD SD-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TV One product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TV One user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TV One product will considerably shorten its lifespan!
|
Product description The TV One 1T-DA-726 3G/HD/SD-SDI Distribution Amplifier with Reclocking offers 6 separately buffered and reclocked outputs from an SDI input, and third generation HD/SD signal distribution with triple-rate processing. It supports data rates of 270, 1483, 1485 and 2970 Mbps, and protocols such as DVB-ASI, SMPTE 259M, 292M, 424M, and 425M.
In addition to automatic input cable equalization up to 1000' (300m) for SD and 50' (150m) for HD/3G, the1T-DA-726 3G/HD/SD-SDI Distribution Amplifier also features signal retiming. For longer cable runs, multiple units can be cascaded as all ancillary data passes through to the outputs and SDI signals are reclocked.
The 1T-DA-726 3G/HD/SD-SDI Distribution Amplifier features LEDs on the front panel which indicate DC power presence and signal lock/reclocking progress. It prevents inadvertent loss of DC power using a locking DC connector. - Offers 6 separately buffered and reclocked outputs from an SDI input
- Third generation HD/SD signal distribution with triple-rate processing
- Supports data rates of 270, 1483, 1485, and 2970 Mbps
- Supports protocols such as DVB-ASI, SMPTE 259M, 292M, 424M, and 425M
- Automatic input cable equalization up to 1000' (300m) for SD and 50' (150m) for HD/3G
- For longer cable runs, multiple units can be cascaded as all ancillary data passes through to the outputs and SDI signals are reclocked
- Front panel LEDs - indicate DC power presence and signal lock/reclocking progress
- Prevents inadvertent loss of DC power by using a locking DC connector
In the Box TV One 1T-DA-726 3G/HD/SD-SDI Distribution Amplifier with Reclocking AC Power Adapter Instruction Manual 3-Year Warranty (Parts and Labor) Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-DA-726 3G HD SD-SDI Distribution Amplifier with Reclocking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-DA-726 Specs | Video Inputs | 3G/HD/SD-SDI (1x via BNC Connector) | | Video Output | 3G/HD/SD-SDI (6x via BNC Connector) | | | | SDI Standards | 3G/HD/SD-SDI | | Data Rates | 270 / 1483 / 1485 / 2970 Mbps | | Video Bandwidths | [2.97 Gpbs & 2.97 / 1.001 Gbps] DVB - ASI @ 270 Mbps, SMPTE | | Supported Protocols | DVB - ASI @ 270 Mbps, SMPTE 259M, 292M, 424M, 425M | | Signal Reclocking | Enabled, All Outputs | | Ancillary Data Pass-through | Enabled, All Outputs | | I/O Impedance | 75 Ω | | | | Amplitude | 800 mV (<10 %) | | Rise Overshoot | <2 % (<10 %) | | Fall Overshoot | <2 % (<10 %) | | Long Time Jitter | 0.195 usec (<1.0 usec) | | Timing Jitter | 0.8u sec (<1.0 usec) | | Alignment Jitter | 0.13 usec (<0.2 usec) | | | | Reference | Belden 1694A 3G:500' (150 m), HD:500' (150 m), SD:1000' (300 m) | | | | Dimensions (HxWxD) | 1.18 x 7.88 x 3.54" (30 x 200 x 90 mm) | | Weight | 1.17 lb (530 g) | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 90%, Non-condensing | | Storage Temperature | -4 to +140°F (-20 to +60°C) | | Storage Humidity | 20 to 90%, Non-condensing | | | | External Power Supply | 5 VDC @ 4A | | | | Power Supply | UL, CUL, CE, PSE, GS, RoHS | | SDI DA | FCC, CE, RoHS | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.75 x 7.0 x 4.0" |
