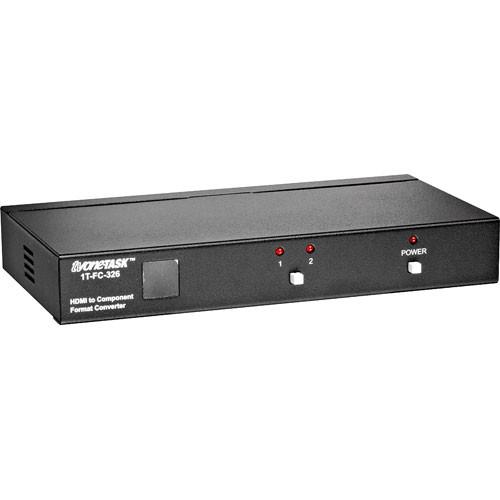

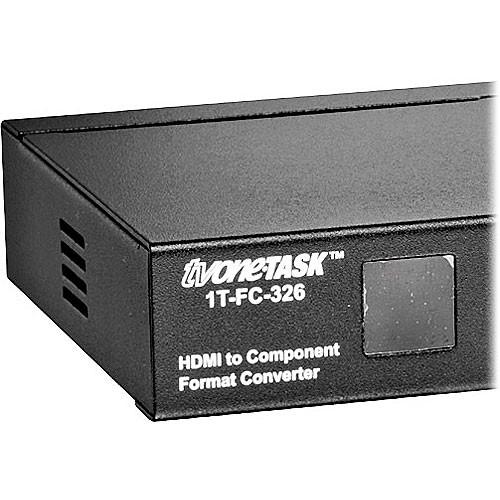

Product description The 1T-FC-326 HDMI-YPbPr Format Converter from TV One is a device that accepts (2) HDMI inputs and converts either signal to an analog YPbPr or YUV output. Audio output on this device includes coaxial digital and analog stereo (R/L) that has been de-embedded from the HDMI digital signal stream. It supports all SDTV and HDTV resolutions and is HDCP compliant.

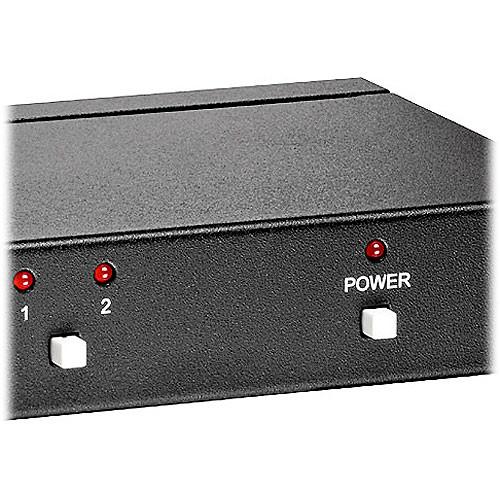

The unit can be controlled via its front-panel pushbuttons or IR remote control. LED lights on the front panel also provide a visual indicator of line status. It will accommodate cables with standard or locking type connectors. A locking DC connector is a standard feature for increased security. - HDMI Signal Conversion
- Use this device to convert either of (2) HDMI inputs to an analog YPbPr or YUV output.
- Audio
- Audio output on this device includes coaxial digital and analog stereo (R/L) that has been de-embedded from the HDMI digital signal stream.
- SDTV & HDTV
- It supports all SDTV and HDTV resolutions.
- HDCP
- This device is HDCP compliant.
- Small Footprint
- This device's small size and included rackmount kit makes it easy to use in either a desktop or rackmount configuration.
In the Box TV One 1T-FC-326 HDMI-YPbPr Format Converter Converter Power Adapter IR Remote Control Operations Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-FC-326 HDMI-YPbPr Format Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-FC-326 Specs | Input | VIDEO
(2) HDMI via HDMI connectors | | Output | VIDEO
(1) YPbPr or YUV via (3) RCA connectors AUDIO
(1) analog stereo (R/L) via (2) RCA connectors
(1) digital audio (S/PDIF) via RCA connector | | Video | Output level: Y=1V p-p, Pb/Pr=0.7Vp-p
Bandwidth: >160MHz
Impedance: 75 Ohms | | Audio | Level (analog L/R): 2Vrms max @ 47 kOhms
Level (digital): 0.5 to 1Vp-p @ 75 Ohms
Bandwidth (analog): 20Hz to 20 KHz
Impedance (analog): 47 kOhms
Impedance (digital): 75 Ohms | | Standards | HDMI v1.2a DVI revision 1.0 HDCP Version 1.1 | | Power | 5VDC @ 2A (locking DC) | | Dimensions (HxWxD) | 1.18 x 7.87 x 3.54" (30 x 200 x 90mm) | | Weight | 1.1 lbs (0.5kg) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 11.0 x 7.25 x 3.0" |
