User Manual for TV One 1T-FC-425 DVI to RGB Converter Click to enlarge the picture
Contents of the user manual for the TV One 1T-FC-425 DVI to RGB
- Product category: Signal Converters TV One
- Brand: TV One
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TV One Signal Converters
 |
User manual for the TV One 1T-FC-425 DVI to RGB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TV One product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TV One user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TV One product will considerably shorten its lifespan!
|

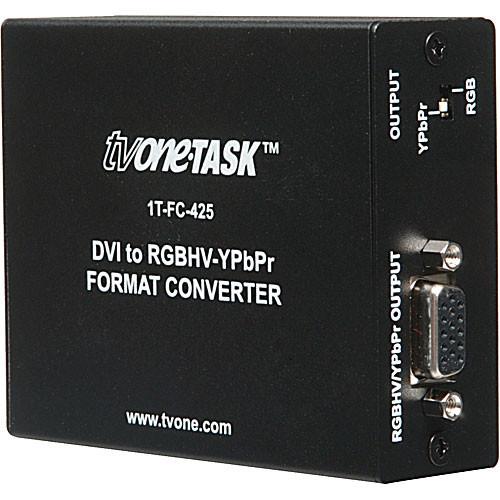

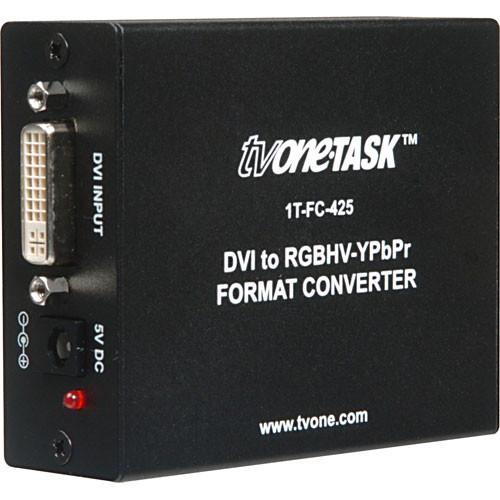

Product description The 1T-FC-425 DVI to RGB Converter from TV One provides conversion of DVI signals to RGBHV or component YPbPr signals, thereby allowing you to use digital signals on analog displays or other similar devices. The unit only converts signals and no scaling takes place. It supports PC resolutions of up to 1600 x 1200 and SDTV & HDTV resolution ranging from 480i to 1080p. Locking DC connectors are featured on the unit's included power supply to offer an increased level of security. - Digital to Analog Conversion
- Use this unit to convert DVI signals to RGBHV or component YPbPr signals.
- Automatic Setup
- This device is compatible with a wide range of resolutions to ensure compatibility with your equipment.
- Security
- Locking DC connectors provide enhanced security in your setup.

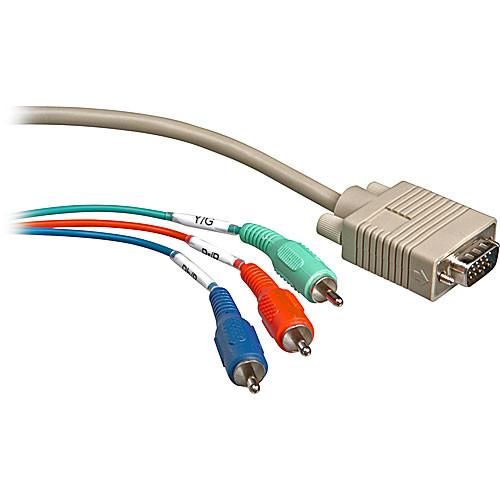

In the Box TV One 1T-FC-425 DVI to RGB Converter Converter Power Adapter HD-15 to 3 RCA Adapter Cable Operations Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-FC-425 DVI to RGB Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-FC-425 Specs | Inputs | (1) DVI-D via DVI-I connector | | Outputs | (1) RGBHV/YPbPr via HD-15 connector | | Signal | RGB: 0.7V p-p @ 75 Ohms
HV Sync: 3 to 5V p-p @ 75 Ohms | | Frequency | Up to 165Mhz | | Bandwidth | 1.65Gbps (single link) | | Resolutions | PC I/O RESOLUTIONS
VGA: 640 x 480: 60, 72, 75, 85Hz
SVGA: 800 x 600: 60, 72, 75, 85Hz
XGA: 1024 x 768: 60, 70, 75, 85Hz
Mac: 1152 x 864: 70, 75, 85Hz
SXGA: 1280 x 1024: 60, 75, 85Hz
UXGA:1600 x 1200: 60Hz SDTV I/O RESOLUTIONS
480i: 720 x 480, 60Hz (NTSC)
576i: 720 x 576, 50Hz (PAL) HDTV I/O RESOLUTIONS
480p: 720 x 480, 60Hz
576p: 720 x 576, 50Hz
720p: 1280 x 720, 50, 60Hz
1080i: 1920 x 1080, (i) 50, 60Hz
1080p: 1920 x 1080, (p) 24, 25, 30, 60Hz | | Power Source | 5VDC @ 2A | | Dimensions (WxDxH) | 1.2 x 3 x 4.1" (30 x 76 x 105mm) | | Weight | 0.43 lbs (200g) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 8.2 x 4.5 x 2.5" |
