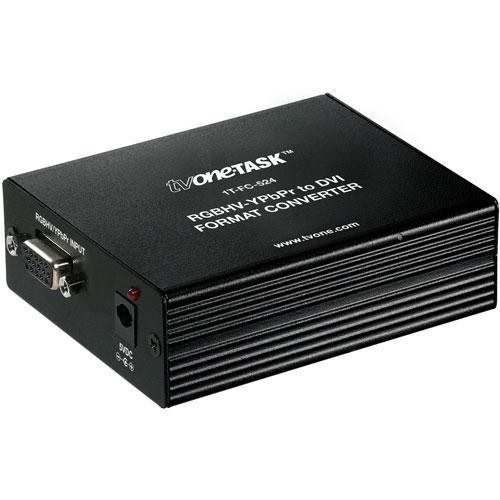

Product description The 1T-FC-524 Analog RGBHV / Component YPbPr to DVI Converter from TV One allows you to accept analog RGBHV and component YPbPr inputs and display them on DVI or HDTV monitors and other similar devices. An analog YPbPr input can be converted to either digital YPbPr or RGBHV. An analog RGBHV input can be converted to digital RGBHV only. This device require no special software or configuration to use. - Analog RGBHV / Component YPbPr to DVI Converter
- Use this converter to play RGBHV and component YPbPr inputs on DVI or HDTV monitors.
- Plug & Play
- This unit comes ready for use and requires no special configuration or software.
In the Box TV One 1T-FC-524 Analog RGBHV / Component YPbPr to DVI Converter Converter HD-15 to 3 RCA Adapter Cable AC Power Adapter (US, UK, or Euro or Type) Operation Manual Two-Years on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-FC-524 Analog RGBHV Component YPbPr to DVI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-FC-524 Specs | Inputs/Outputs | Video Inputs
(1) RGB/YPbPr via HD-15 Video Outputs
(1) DVI-D via DVI-I Connector Component Signal I/O
Y Component 1Vp-p @ 75 Ohms
Pb/Pr Component 0.7Vp-p @ 75 Ohms RGBHV Signal I/O
RGB 0.7V p-p @ 75 Ohms
HV Sync 3-5Vp-p @ 75 Ohms | | Resolution | PC I/O Resolutions
VGA, 640 x 480: 60, 72, 75, 85Hz
SVGA, 800 x 600: 60, 72, 75, 85Hz
XGA, 1024 x 768: 60, 70, 75, 85Hz
Mac, 1152 x 864: 70, 75, 85Hz
SXGA, 1280 x 1024: 60, 75, 85Hz
UXGA, 1600 x 1200: 60Hz SDTV I/O Resolutions
480i, 720 x 480: 60Hz (NTSC)
576i, 720 x 576: 50Hz (PAL) HDTV I/O Resolutions
480p, 720 x 480: 60Hz
576p, 720 x 576: 50Hz
720p, 1280 x 720: 50, 60Hz
1080i, 1920 x 1080 (i): 50, 60Hz
1080p, 1920 x 1080 (p): 24, 25, 30, 60Hz | | Frequency | Up to 165Mhz | | Bandwidth | 1.65Gbps (DVI single-link) | | Power | External Power Supply: 5VDC @ 2A | | Dimensions | 1.2 x 3 x 4.1" (30 x 76 x 105mm) | | Weight | 0.43 lbs (200g) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 8.347 x 4.646 x 2.441" |
