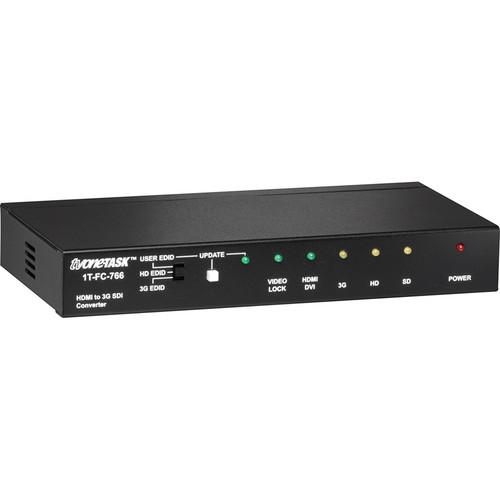

Product description The TV One 1T-FC-766 HDMI to 3G SDI Converter enables an SDI monitor to display HDMI signals, and provides you flexibility in monitor selection as high quality displays can be accomplished on a high resolution SDI monitor. It also allows output of an HDMI source to 2 SDI monitors simultaneously.
Featuring high bitrate processing, the 1T-FC-766 HDMI to 3G SDI Converter offers fast signal transmission without signal loss. In addition to 480i, 576i, 720p50/60, 1080p 24/25/30, 1080i50/60, 1080p50/60 HDMI signal support, it can function at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s full range processing speeds.
The 1T-FC-766 HDMI to 3G SDI Converter offers integrated audio, which embeds up to 8 channels PCM 48kHz for HDMI or 2 channels for DVI audio. It features auto video mode detection for SD/HD/3G, and provides support of signal transmission for distances of up to 984’ (300m) for SD signals, 656’ (200m) for HD signals, and 328’ (100m) for 3G signals.
The 1T-FC-766 HDMI to 3G SDI Converter is compliant with HDCP copy protection guidelines. It offers protection from unwanted disconnects of the external power supply using a locking +5VDC connector. - Enables an SDI monitor to display HDMI signals
- Provides you flexibility in monitor selection as high quality displays can be accomplished on a high resolution SDI monitor
- Allows output of an HDMI source to 2 SDI monitors simultaneously
- High bitrate processing - offers fast signal transmission without signal loss
- 480i, 576i, 720p50/60, 1080p 24/25/30, 1080i50/60, 1080p50/60 HDMI signal support
- Can function at 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mbits/s full range processing speeds
- Integrated audio - embeds up to 8 channels PCM 48kHz for HDMI or 2 channels for DVI audio
- Features auto video mode detection for SD/HD/3G
- Provides support of signal transmission for distances of up to 984' (300 m) for SD signals, 656' (200 m) for HD signals, and 328' (100 m) for 3G signals
- Compliant with HDCP copy protection guidelines
- offers protection from unwanted disconnects of the external power supply using a locking +5 VDC connector
In the Box TV One 1T-FC-766 HDMI to 3G SDI Converter Power Adapter User Manual 3 x years Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-FC-766 HDMI to 3G SDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-FC-766 Specs | Video Input | HDMI (1x via HDMI Connector) | | Video Outputs | 3G-SDI 2x via BNC Connectors(SD, HD & 3G SDI) | | Audio Inputs | Stereo R+L (2x RCA Connectors) | | | | Input Signal | Automatic Detection of Signal Type | | Output Signal | Equalized SDI Output | | SDI throughput Rates | 2.970 Gb/s and 2.970/1.001 Gb/s | | Frequency Bandwidth | 225 MHz/Link (HDMI 1.3) | | | | Integrated Audio | Up to 8-Channels, 48 Khz | | Embeddable Audio | 2 Channels, Stereo, R&L | | | | Operating Temperature | 32 to 104° F (0 to 40° C) | | Video Formats | SD, HD and 3G Formats supported 480i, 576i, 720p, 1080i, 3G-SDI 1080p | | SDI Cable Distance | Max Distances SD-SDI=984.25' (300 m), HD-SDI=656.17' (200 m), 3G-SDI=328.08' (100 m) | | Operating Humidity | 20 to 90%, Non-condensing | | Storage Temperature | -4 to +140° F (-20 to +60° C) | | Storage Humidity | 20 to 90%, Non-condensing | | | | Power Supply | UL, CUL, CE, PSE, GS, RoHS | | 3G Extender Unit | FCC, CE, RoHS | | | | Dimensions (HxWxD) | 1.18 x 7.87 x 4.07" (30 x 200 x 103.5 mm) | | Weight | 1.29 lb (585 g) | | | | External Power Supply | 5 VDC @ 2A, Locking DC | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 11.2 x 7.4 x 2.9" |
