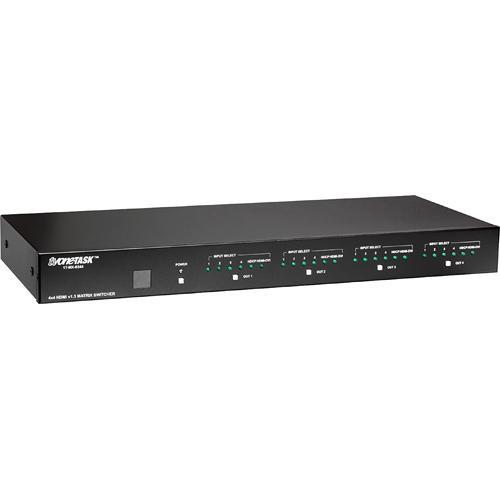

Product description The 1T-MX-6344 HDMI Matrix Routing Switcher from TV One is a switcher that provides (4) HDMI inputs and (4) HDMI outputs. It supports HDMI v1.3 Deep Color (10-bit color) video and lossless compressed Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio. Because it is a matrix switcher, any input can be routed to any or all outputs and vice versa. This unit offers a bandwidth capacity 2.25Gbps and each input signal is reconstituted into a new signal before being output in order to eliminate jitter component. It supports HDTV signals up to 1080p and PC signals up to UXGA. It also includes locking DC power connectors and is compatible with locking-type HDMI cable connectors. This device will also support DVI signals by using separately available HDMI-to-DVI adapters. The unit can be controlled via front-panel pushbuttons, the included IR remote control, or RS-232 connectivity. Included rack ears make it easy to mount in your equipment rack. - 4x4 HDMI Matrix Switching
- Use this device to route any of the (4) HDMI inputs to any or all of the (4) HDMI outputs.
- Format Support
- This unit supports HDMI v1.3 Deep Color, TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and DVI signals.
- Resolutions
- This switcher supports resolutions up to HDTV 1080p or computer UXGA.
- Controls

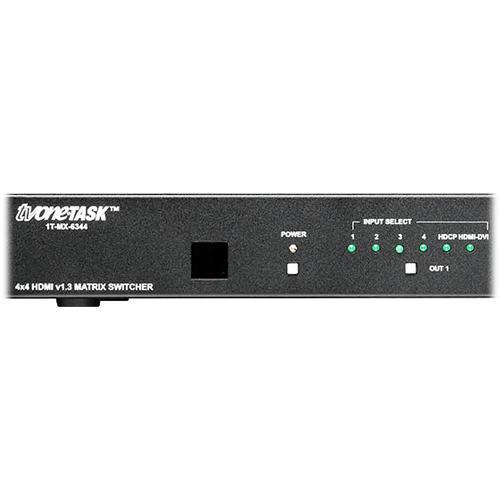

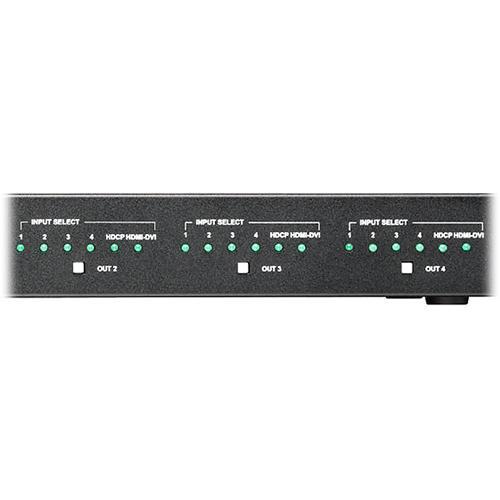

- It can be controlled via front-panel pushbuttons, IR remote control, or RS-232 connectivity.
- Small Footprint

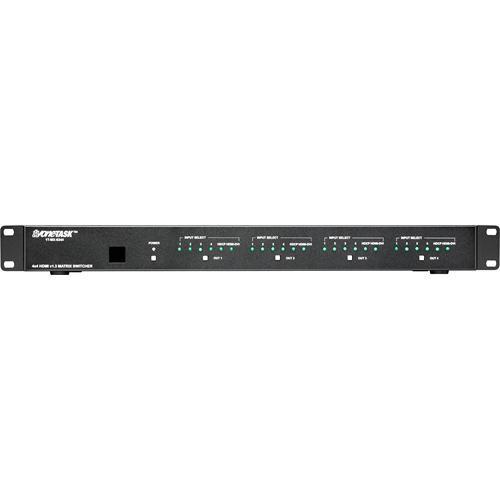

- This device's small size and included rackmount kit make it easy to use in either a desktop or rackmount configuration.
In the Box TV One 1T-MX-6344 HDMI Matrix Routing Switcher Switcher Power Adapter RC-44 IR Remote Control IR Extender Rackmount Kit Operations Manual Two-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-MX-6344 HDMI Matrix Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

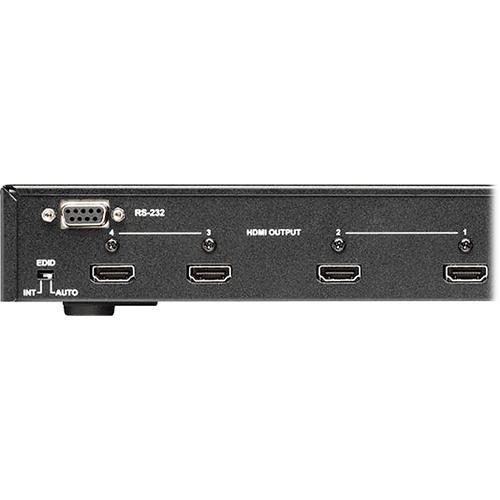

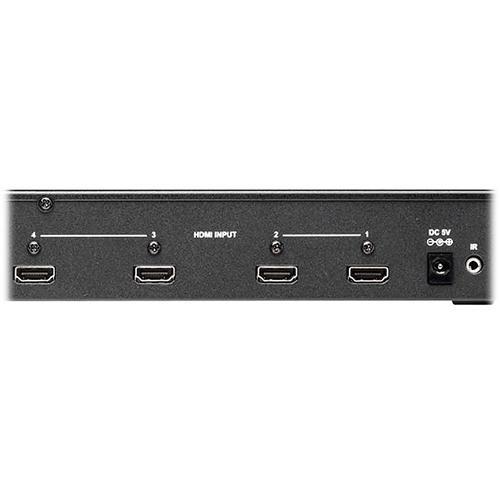

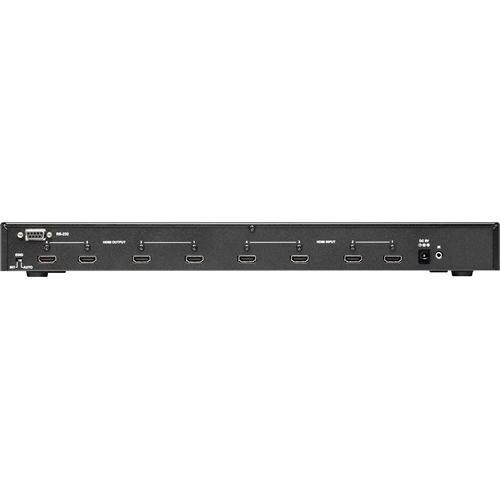

Technical parametersTV One 1T-MX-6344 Specs | Input | (4) HDMI via type-A connectors | | Output | (4) HDMI via type-A connectors | | Audio | Dolby TrueHD, Dolby Digital Plus, DTS-HD (all embedded) | | Jitter | Reconstituted signal; jitter free | | Color Depth | 30-bit (10-bit color) | | Bandwidth | 2.25Gbps (single link) | | Range | Input: 66' (20m)
Output: 49' (15m) | | Resolutions | 480i to 1080p
VGA to UXGA | | Power | 5VDC (locking DC) | | Dimensions (HxWxD) | 1.75 x 17.2 x 6.9" (44 x 438 x 175mm) | | Weight | 6.8 lbs (3.1kg) |
