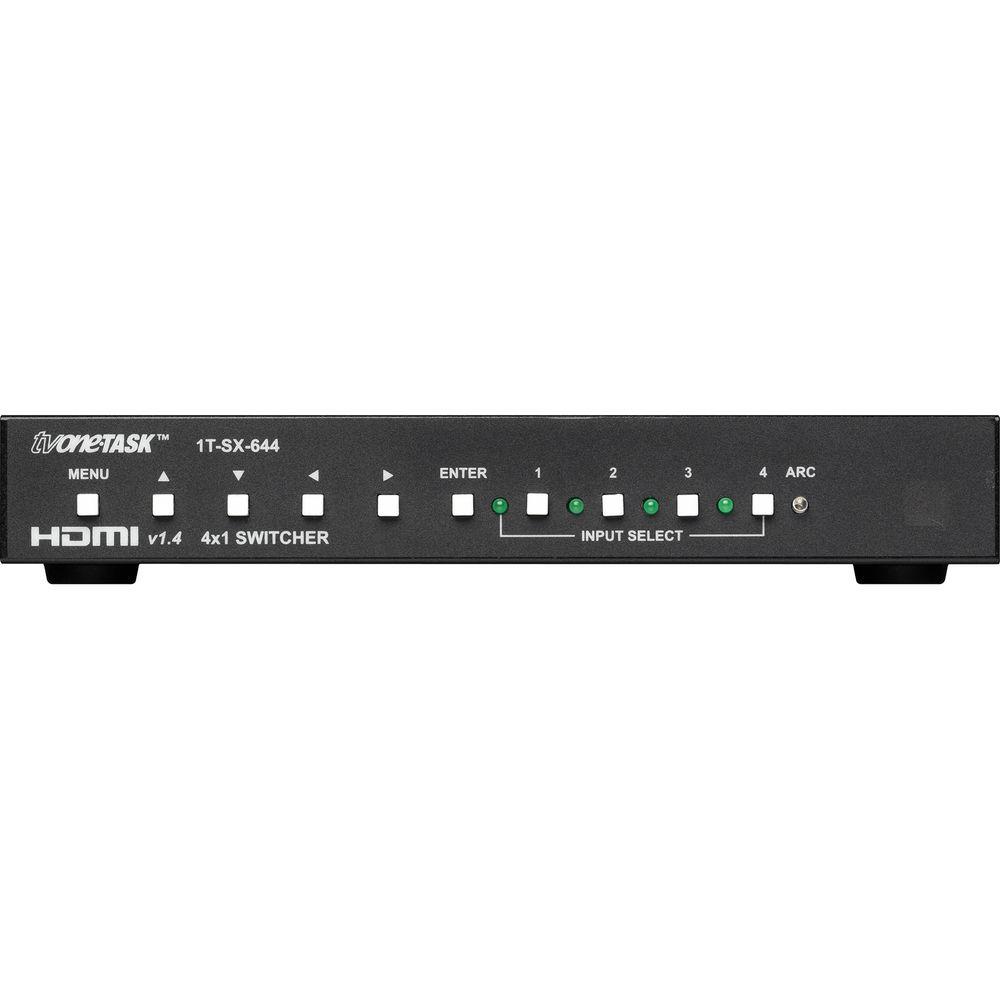

User Manual for TV One 1T-SX-644 4x1 1080p Switcher Click to enlarge the picture
Contents of the user manual for the TV One 1T-SX-644 4x1 1080p Switcher
- Product category: HDMI & A/V Switchers TV One
- Brand: TV One
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TV One HDMI & A/V Switchers
|
User manual for the TV One 1T-SX-644 4x1 1080p Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TV One product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TV One user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TV One product will considerably shorten its lifespan!
|
Product description The oneTASK 1T-SX-644 4x1 1080p Switcher has four HDMI inputs with one HDMI and one digital coaxial output. It supports HDMI v1.4, enabling high-speed, bi-directional communication with support for 3D video, high-resolution audio, and ARC. Based on fast-switching technology, the unit is designed to eliminate delay when switching between HDMI sources. The switcher supports a maximum resolution of up to 1080p or 1920 x 1200. -
- Fast switching of all inputs
- Supports HDTV formats to 1080p
- Supports computer formats through WUXGA
- Operates at 2.25 Gb/s
- HDMI 1.4, HDCP 1.4, and CEC 1.4 compliant
- Supports Deep Color, 36/30/24 Bit, 1080p
- Provides 3D television support
- HDCP repeater support
- Supports Dolby TrueHD and DTS-HD
- Audio Return Channel support (ARC)
- Control via front panel, remote control, RS-232
- OSD (on-screen display)
- Intuitive menu structure
- Fast, simple installation
- Locking DC connector
In the Box TV One 1T-SX-644 4x1 1080p Switcher Remote Control Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-SX-644 4x1 1080p Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

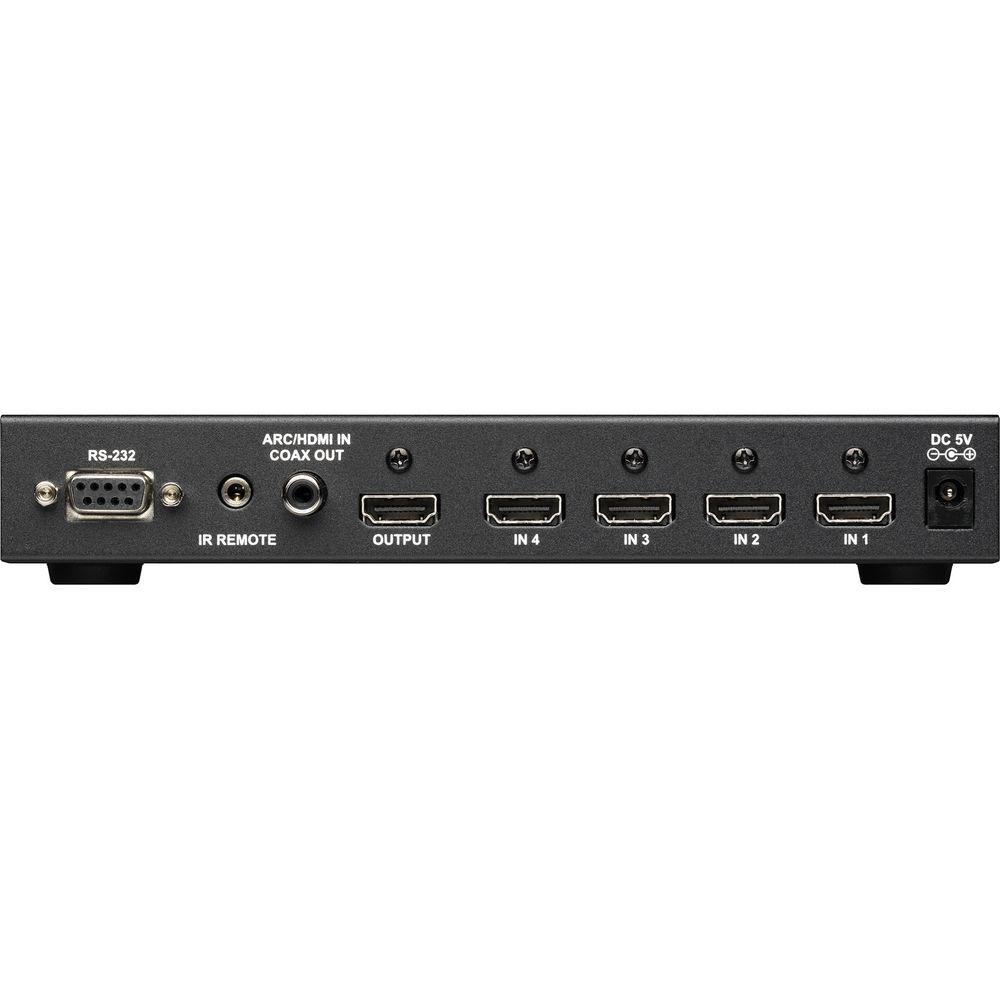

Technical parametersTV One 1T-SX-644 Specs Input | 4 x HDMI female 1 x 1/8" (3.5 mm) IR remote 1 x RS-232 | Output | 1 x HDMI female 1 x Digital coaxial female | Supported Resolutions | Up to 1080p, 1920 x 1200 (WUXGA) | Frequency Bandwidth | 2.25 Gbps (single link) | HDMI Specifications Supported | Version 1.4, HDCP 1.4, CEC 1.4, ARC | Supported Audio | Dolby Digital True-HD, DTS-HD | Environmental Requirements | Operating Temperature: 32 to 104°F (0 to 40°C) Operating and Storage Humidity: 20 to 90% non-condensing Storage Temperature: 14 to 140°F (-10 to 60°C) | Power Requirements | 5 VDC @ 2.6 A, twist lock connector, via external power supply | Regulatory Approvals | Switch: FCC, CE, RoHS Power Supply: UL, CUL, CE, PSE, GS, RoHS | Dimensions (W x H x D) | 7.9 x 1.2 x 4.0" (20.0 x 3.0 x 10.2 cm) | Weight | 1.3 lb (592.0 g) | | Package Weight | 2.275 lb | Box Dimensions (LxWxH) | 11.15 x 7.35 x 2.85" |
