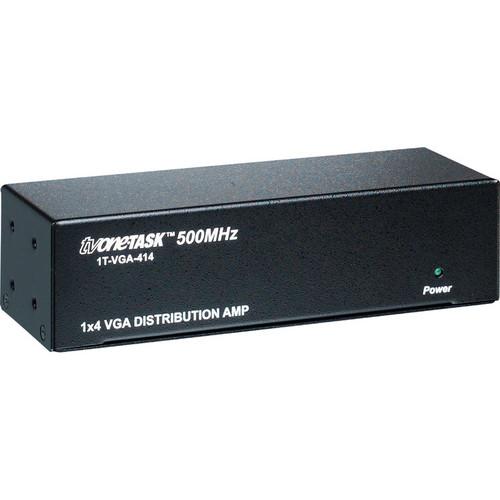

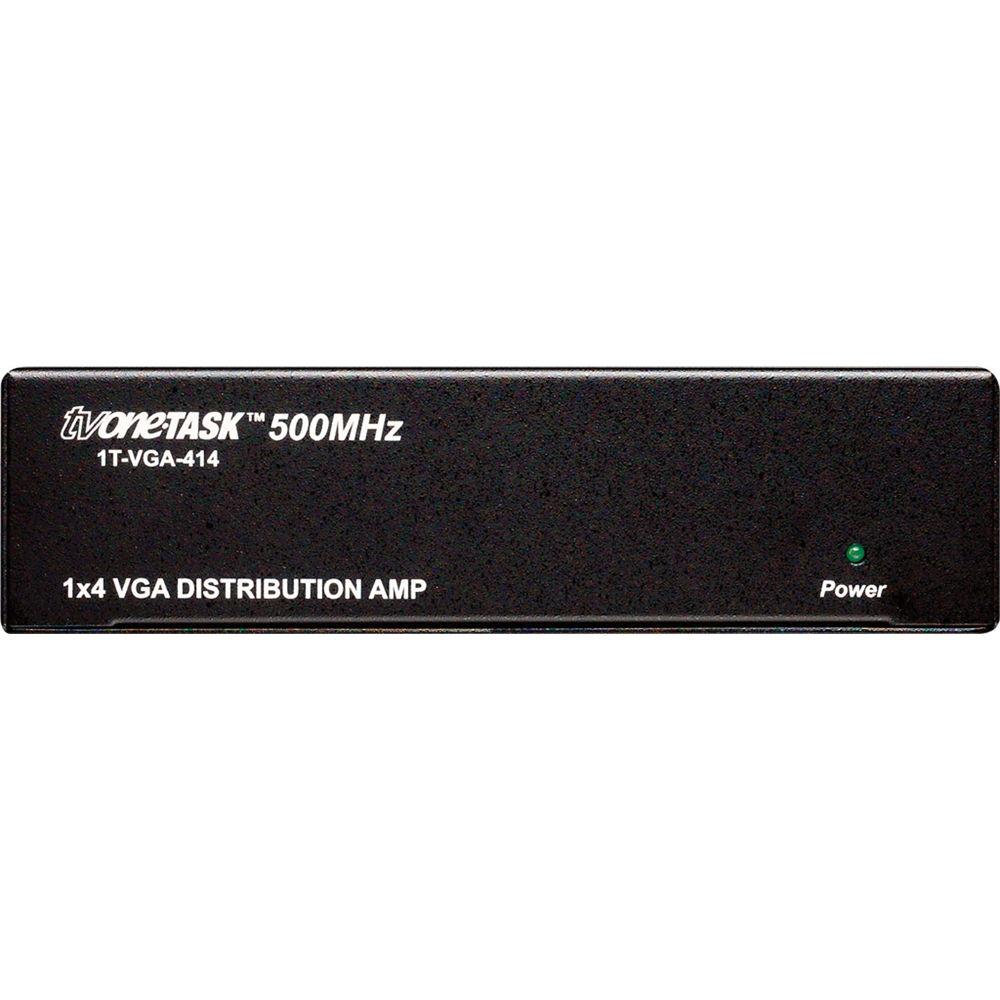

Product description The 1T-VGA-414 1x4 VGA Distribution Amplifier from TV One accepts one 15-pin VGA input, from a single PC or other RGB source, and distributes it to four 15-pin VGA outputs. This robust unit will handle bandwidth in excess of 500 MHz, resolutions up to 2560 x 1600, and distances up to 300' from the source without signal deterioration.
The unit provides VESA industry-standard DDC (Data Display Channel) bidirectional communications for host control of downstream monitors. It is compliant with FCC, CE, and RoHS standards, features a small footprint in a rugged metal case, and includes a 5 VDC power supply. Optional rackmount kits are available to house either one or two units. - 1x4 VGA Distribution Amplifier
- Accepts one input from a single PC or other RGB source, and distributes it to four outputs.
- High-Performance
- The unit will handle bandwidth in excess of 500 MHz, resolutions up to 2560 x 1600, and distances up to 300' from the source, without signal deterioration.
- Bidirectional Communications
- Provides VESA industry-standard DDC (Data Display Channel) bidirectional communications for host control of downstream monitors.
- Standards
- It is compliant with FCC, CE, and RoHS standards and includes a power supply separately approved by UL, CE, CSA, and RoHS standards.
- Small Footprint
- Features a small footprint within a rugged metal case.
- Rackmount Friendly
- Optional rackmount kits are available to house either one or two units.
In the Box TV One 1T-VGA-414 1x4 VGA Distribution Amplifier 5 VDC Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-VGA-414 1x4 VGA Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-VGA-414 Specs | Input | 1 x 15-Pin VGA, female | | Output | 4 x 15-Pin VGA, female | | Maximum Resolution | 2560 x 1600 | | Signal | RGBHV, RGBS, RGsB
RGB Level Range: 0.5-2.0 Vp-p | | Video Bandwidth | 500+ MHz | | Transmission Range | Up to 300' from amplifier | | Power Source | 5 VDC @ 2 A, Locking plug | | Dimensions | 1.7 x 6.3 x 2.3" (44 x 160 x 58 mm) | | Weight | 14.1 oz (400 g) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 9.6 x 6.6 x 3.7" |
