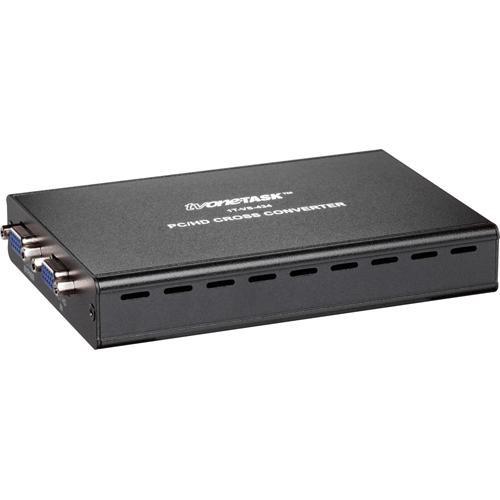

User Manual for TV One 1T-VS-434 PC HD to PC HD Cross Converter Click to enlarge the picture
Contents of the user manual for the TV One 1T-VS-434 PC HD to
- Product category: Signal Converters TV One
- Brand: TV One
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TV One Signal Converters
|
User manual for the TV One 1T-VS-434 PC HD to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TV One product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TV One user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TV One product will considerably shorten its lifespan!
|
Product description 1T-VS-434 PC/HD Cross Converter from TV One is a Cross Format Scaler for PC and HD formats and resolutions. The input resolution is automatically detected and can either be RGBHV or YPbPr format. Output resolutions up to 1920x1200 and 1080p are accommodated. In addition to converting between PC and HD, the unit can take a 480i Component Video signal (from a DVD Player for example) and convert it to PC or HD resolutions. The output resolution and refresh rate is selected via push buttons on an on-screen display. The integral processor provides control over many signal parameters, such as: Contrast, Brightness, Color Saturation, Sharpness, R-GB Levels and Aspect Ratio.
The unit is 5VDC powered and the included power adapter feature is a locking DC connector for security. - Ultra compact, high performance unit
- Cross convert between PC and HD resolutions
- PC output resolutions up to 1920x1200
- HD output resolutions up to 1080p
- Locking DC power connector for security
In the Box TV One 1T-VS-434 PC/HD to PC/HD Cross Converter Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-VS-434 PC HD to PC HD Cross Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-VS-434 Specs | Resolutions | Input Resolutions
VESA / Resolution / Refresh Rate
VGA 640x480 RGBHV 60, 72, 75, 85Hz
SVGA 800x600 RGBHV 56, 60, 72, 75, 85Hz
XGA 1024x768 RGBHV 60, 70, 75, 85Hz
WXGA 1280x768 RGBHV 60Hz
SXGA 1280x1024 RGBHV 60, 75, 85Hz
WSXGA 1680x1050 RGBHV 60Hz
UXGA 1600x1200 RGBHV 60Hz
WUXGA 1920x1200 RGBHV 60Hz
480i 720x480 NTSC YPbPr 60Hz
576i 720x576 PAL YPbPr 50Hz
1080i 1920x1080 YPbPr 50, 60Hz
480p 720x480 RGBHV, YPbPr 60Hz
576p 720x576 RGBHV, YPbPr 50Hz
720p 1280x720 RGBHV, YPbPr 50, 60Hz
1080p 1920x1080 RGBHV, YPbPr 50, 60Hz
Output Resolutions
VESA / Resolution / Refresh Rate
VGA 640x480 RGBHV 60Hz
SVGA 800x600 RGBHV 60Hz
XGA 1024x768 RGBHV 60Hz
WXGA 1280x768 RGBHV 60Hz
SXGA 1280x1024 RGBHV 60Hz
WSXGA 1680x1050 RGBHV 60Hz
UXGA 1600x1200 RGBHV 60Hz
WUXGA 1920x1200 RGBHV 60Hz
480i 720x480 NTSC YPbPr 60Hz
576i 720x576 PAL YPbPr 50Hz
1080i 1920x1080 YPbPr 50, 60Hz
480p 720x480 YPbPr 60Hz
576p 720x576 YPbPr 50Hz
720p 1280x720 YPbPr 50, 60Hz
1080p 1920x1080 YPbPr 50, 60Hz | | Picture Control | Brightness, Contrast, Color, Saturation, Sharpness, R-G-B Levels, Aspect Ratio | | Inputs | RGBHV, YPbPr: 2x via HD-15 Connector | | Outputs | RGBHV, YPbPr: 1x via HD-15 Connector | | Power Requirements | 5VDC (includes AC adapter) | | Power Consumption | 2A | | Operating Temperature | 32 - 122°F (0 - 50°C) | | Dimensions (WxHxD) | 4.2 x 1 x 6.2" (102 x 25 x 157mm) | | Weight | 0.7 lbs (332g) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 11.0 x 7.2 x 2.8" |
