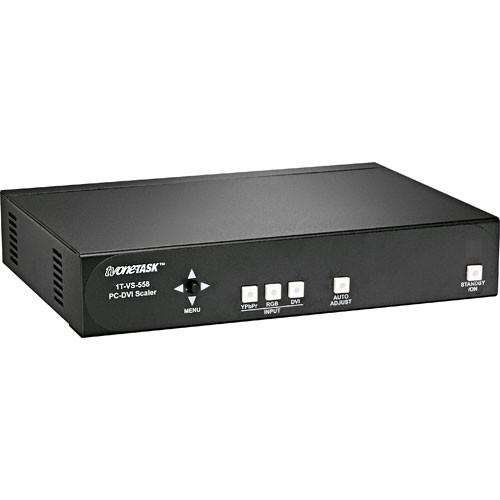

User Manual for TV One 1T-VS-558 PC HD DVI Video Scaler Click to enlarge the picture
Contents of the user manual for the TV One 1T-VS-558 PC HD DVI
- Product category: Signal Converters TV One
- Brand: TV One
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TV One Signal Converters
|
User manual for the TV One 1T-VS-558 PC HD DVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TV One product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TV One user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TV One product will considerably shorten its lifespan!
|
Product description The 1T-VS-558 PC/HD DVI Video Scaler from TV One is a cross converter that can change analog formats to DVI and vice versa. It will accommodate resolutions up to WUXGA and 1080p and also accept 480i or 576i YUV interlaced analog component video for up-conversion.
Advanced features on this model include 3-D motion adaptive deinterlacing, 3-D noise reduction, 3:2 pull-down with 2:2 pull-down recovery, and automatic sizing & positioning. It can be controlled via its front-panel interface, on-screen display, or IR remote control.
This unit is fully HDCP compliant, ensuring that copyrighted media will display properly. A locking DC adapter provides a layer of security and the unit can be mounted in a standard 19" equipment rack by using a separately available rackmount kit. - DVI & Analog Cross Conversion
- Use this unit to perform cross conversion with video signals: DVI to analog and analog to DVI.
- Controls
- It can be controlled via its front-panel controls, an IR remote control, or an on-screen display.
- Small Footprint
- This device's small size makes it easy to use in either a desktop or rackmount setup.
In the Box TV One 1T-VS-558 PC/HD DVI Video Scaler Scaler IR Remote Control Power Adapter Operations Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-VS-558 PC HD DVI Video Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-VS-558 Specs | Input | Video Inputs
(1) DVI-D via DVI-I connector
(1) analog RGBHV/YPbPr via HD-15 connector
(1) analog YUV/YPbPr via (3) RCA connectors Input Formats Supported
RGBHV up to WUXGA @ 60Hz
YPbPr up to 1080p
Interlaced component YUV at 480i or 576i | | Output | Video Outputs
(1) DVI-D via DVI-I connector
(1) analog RGBHV via HD-15 connector Output Format Supported
RGBHV Up to WUXGA, 1080p | | Power | 5VDC @ 2A | | Dimensions (HxWxD) | 1.7 x 8.5 x 6.45" (42 x 218 x 164mm) | | Weight | 2.5 lbs (1.13kg) | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 13.701 x 8.347 x 2.913" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
