User Manual for TV One 1T-VS-622 Video to HDMI Scaler Click to enlarge the picture
Contents of the user manual for the TV One 1T-VS-622 Video to HDMI
- Product category: Signal Converters TV One
- Brand: TV One
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TV One Signal Converters
 |
User manual for the TV One 1T-VS-622 Video to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TV One product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TV One user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TV One product will considerably shorten its lifespan!
|

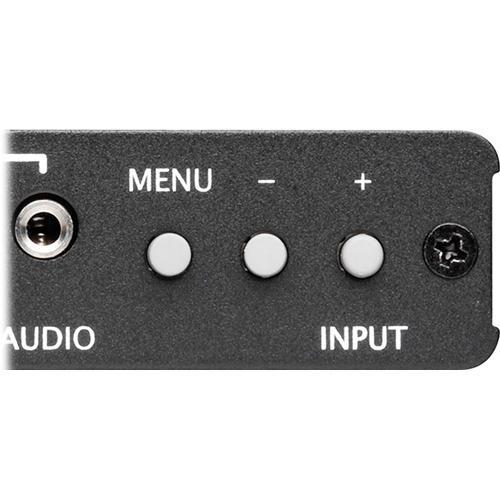

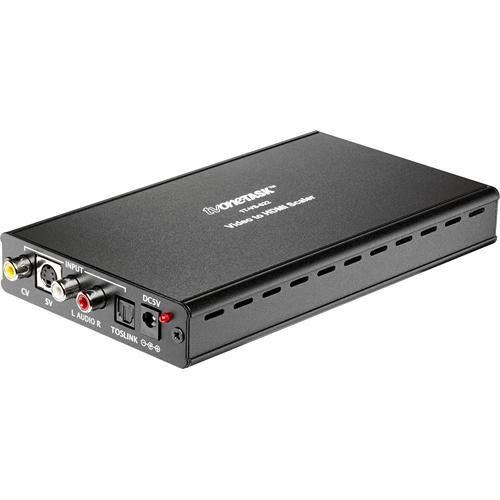

Product description The 1T-VS-622 Video to HDMI Scaler from TV One converts composite or S-video standard-definition analog signals to an HDMI output at PC, standard-definition, or high-definition resolutions. Externally available audio can also be embedded into the output of HDMI signals via separate Toslink and analog stereo inputs. This solution is well suited for use in setups that require PC or RGB video to be output to an HDMI display device, among many other possible uses. The unit automatically detects output resolution, although resolution and other settings can also be adjusted manually using the unit's on-screen display menu. This unit is HDCP-compliant, ensuring that it will properly play copyright-protected media. It will support DVI signals by using separately available HDMI-to-DVI adapters. A locking DC power connector adds a layer of security to the unit to prevent tampering. - Video to HDMI Scaler
- Use this device to scale composite or S-video signals to an HDMI signal with selectable PC, SD, or HD output.
- Embedded Audio
- Externally available audio can be embedded into the output HDMI signal via separate Toslink and analog stereo inputs.
- Small Footprint
- This device's small size makes it easy to use in either a desktop or rackmount configuration.
In the Box TV One 1T-VS-622 Video to HDMI Scaler Scaler Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-VS-622 Video to HDMI Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

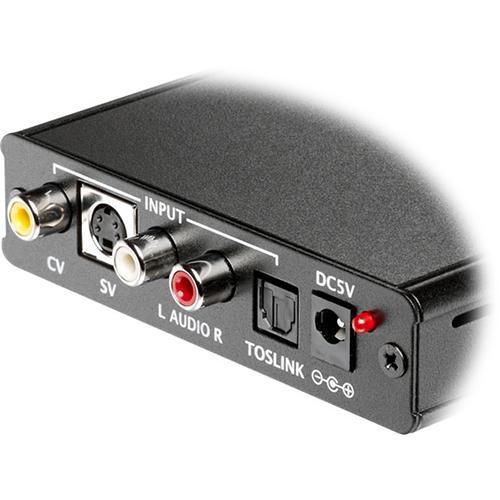

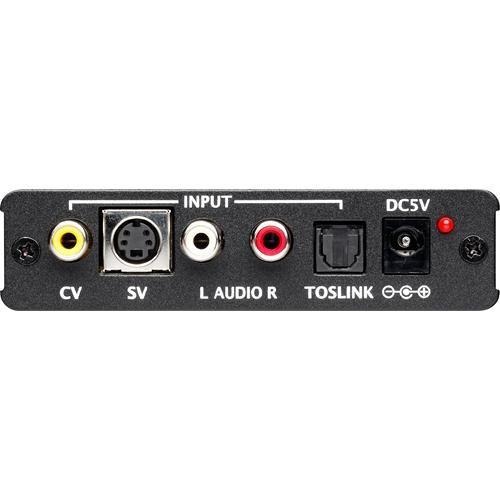

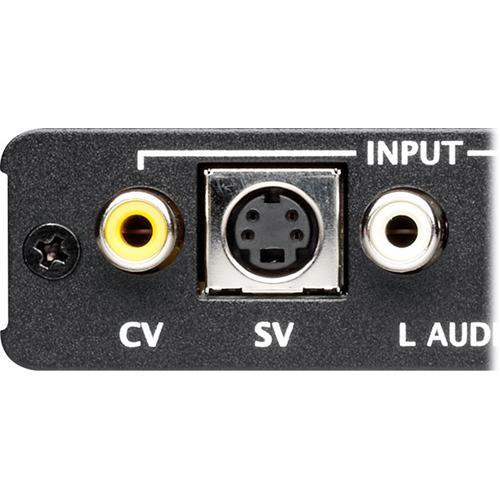

Technical parametersTV One 1T-VS-622 Specs | Input | (1) composite via RCA connector
(1) S-video via 4-pin mini-DIN
(2) analog stereo via RCA connectors

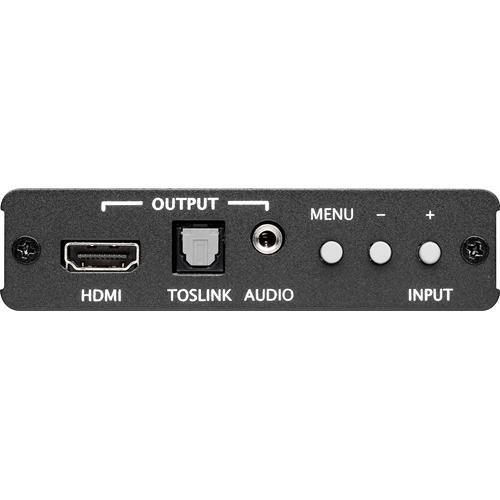

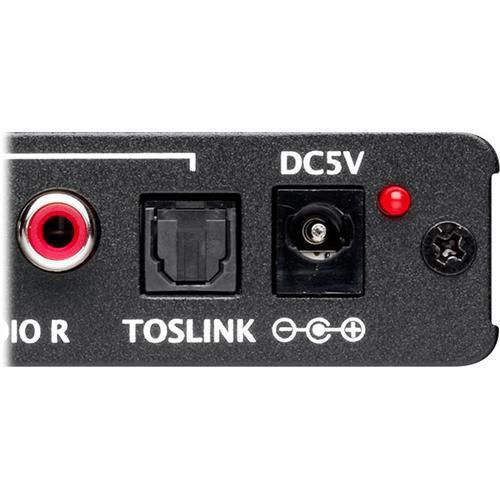

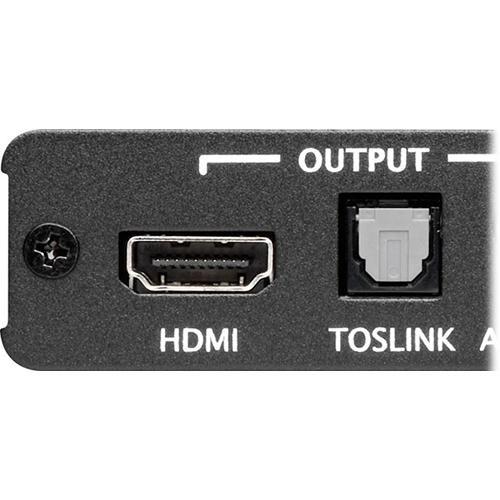

(1) digital SPDIF via Toslink connector | | Output | (1) HDMI via type A connector
(1) analog stereo 3.5mm mini-stereo
(1) digital SPDIF via Toslink connector | | Standards | NTSC (480i), PAL (576i)
HDMI v1.2, HDCP 1.1, DVI 1.0, 3-D Motion Adaptive, 3-D Deinterlacing, 3:2/2:2 Pull Down | | Resolutions | 480i to 1080p
VGA to WUXGA | | Power | 5VDC @ 2.6A (locking DC) | | Dimensions (HxWxD) | 1 x 4 x 5.7" (25 x 102 x 145mm) | | Weight | 14.2 oz (405g) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 11.4 x 7.5 x 3.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
