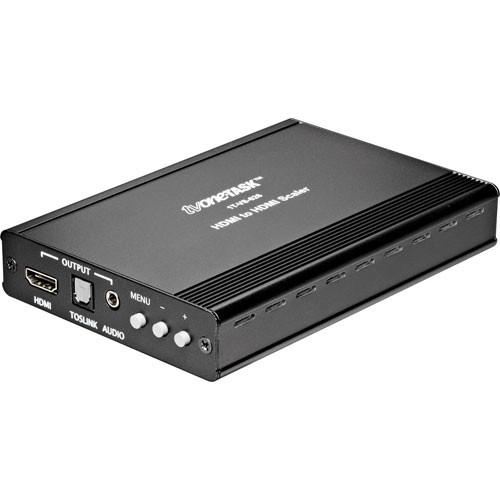

Product description The 1T-VS-626 HDMI Scaler from TV One is designed to scale HDMI signals to a selectable output resolution while maintaining audio signals. It accepts the audio signal embedded in the incoming HDMI signal or from separate Toslink or analog stereo inputs. HDMI output can be the same resolution if so desired. This device is well suited for use when the HDMI source resolution or frame rate is incompatible with the display device's resolution or frame rate, among many other possible applications.
Advanced features include video-level adjustments, 3-D motion adaptive deinterlacing, 50/60 frame-rate conversion, 3:2 and 2:2 pull-down, and the ability to add up to 150ms of audio delay to compensate for lip-sync errors. A locking DC adapter provides a layer of security and the unit's small footprint makes it well suited for desktop or rackmount use. - HDMI Scaling
- This unit can scale an HDMI input to a selectable HDMI output resolution.
- Audio
- It can manage both embedded audio input or audio from separate inputs in the output signal.
- Signal Control
- Multiple advanced control parameters give your more options when managing signal feeds.
- Small Footprint
- This device's small size makes it easy to use in either a desktop or rackmount setup.
In the Box TV One 1T-VS-626 HDMI Scaler Scaler Power Adapter Operations Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-VS-626 HDMI Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-VS-626 Specs | Video | Input/Output:
(1) HDMI 1.2 via HDMI connector
Resolutions:
PC input/output VGA through WUXGA
HDTV input/output 480p, 576p, 720p, 1080i, 1080p
SDTV input 480i, 576i
Adjustments:
Contrast, brightness, RGB levels, sharpness, saturation, hue | | Audio | Inputs/Outputs:
(1) analog stereo via 3.5mm connectors
(1) digital SPDIF via Toslink connectors
Performance:
Output delay Off/40ms/110ms/150ms
Analog stereo level in 2Vrms max @ 47 kOhms
Toslink level in/out standard Toslink | | Scaling Engine | De-interlace 3D motion adaptive
Pull-down 3:2 + 2:2 recovery
HDCP compliance v1.1
Image processing full time/full range
Frame rate conversion 50/60Hz
Scan conversion converts all standard formats | | Power | 5VDC @ 2A (locking DC) | | Dimensions (HxWxD) | 1 x 4 x 5.7" (25 x 102 x 145mm) | | Weight | 0.71 lbs (324g) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 11.1 x 7.2 x 2.8" |
