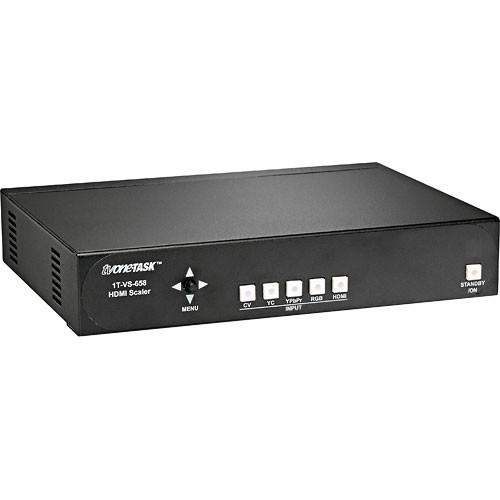

User Manual for TV One 1T-VS-658 HDMI Video Scaler Click to enlarge the picture
Contents of the user manual for the TV One 1T-VS-658 HDMI Video Scaler
- Product category: Signal Converters TV One
- Brand: TV One
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TV One Signal Converters
|
User manual for the TV One 1T-VS-658 HDMI Video Scaler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TV One product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TV One user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TV One product will considerably shorten its lifespan!
|
Product description The 1T-VS-658 HDMI Video Scaler from TV One is a professional scaler capable of performing both up conversion and cross conversion. It accepts HDMI, DVI, analog RGBHV/YPbPr, analog YUV component, S-video, and composite video inputs. It supports input and output resolutions up to 1080p and WUXGA. Audio processing can be digital or analog.
Advanced features include 3-D motion adaptive deinterlacing, 3-D noise reduction, and 8-bit triple ADC/PLL technology. This model is HDCP compliant, ensuring that copyrighted media displays properly. It can be controlled via its front-panel interface, on-screen display, or IR remote control. A locking DC adapter provides a layer of security and the unit's small footprint makes it well suited for desktop or rackmount use. - DVI & Analog Cross Conversion
- Use this unit to perform up or cross conversion from HDMI, DVI, analog RGBHV/YPbPr, analog YUV component, S-video, or composite video inputs to an HDMI output.
- Audio
- This scaler support both analog and digital audio.
- Controls
- It can be controlled via its front-panel controls, an IR remote control, or an on-screen display.
- Small Footprint
- Its small size makes it easy to use in either a desktop or rackmount setup.
In the Box TV One 1T-VS-658 HDMI Video Scaler Converter IR Remote Control Power Adapter Operations Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 1T-VS-658 HDMI Video Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-VS-658 Specs | Input | VIDEO
(1) HDMI (DVI Compatible) via HDMI connector
(1) analog RGBHV/YPbPr via HD-15 connector
(1) analog YUV Component via (3) RCA Connectors
(1) YC (S-Video) via 4-pin mini-DIN
(1) composite video via RCA connector AUDIO
(1) digital (S/PDIF) via RCA connector
(3) analog stereo via RCA (R/L)
(2) analog stereo via 3.5mm mini-stereo | | Output | VIDEO
(1) HDMI v1.2 (RGBHV) via HDMI connector AUDIO
Embedded into HDMI digital per HDMI specification
(1) digital (S/PDIF) via RCA coax connector
Audio delay adjustment: off, 40ms, 110ms, 150ms | | Formats | HDMI v1.2 (RGBHV/YPbPr) up to WUXGA, 1080p
Analog RGBHV up to WUXGA @ 60Hz
Analog YPbPr up to 1080p
Analog interlace component 480i, 576i YUV (Y,R-Y,B-Y)
DVI (via HDMI Connector) up to WUXGA, 1080p
Composite and YC (S-video) NTSC or PAL | | Power | 5VDC @ 2A | | Dimensions (HxWxD) | 1.7 x 8.5 x 6.45" (42 x 218 x 164mm) | | Weight | 2.68 lbs (1.21kg) | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 13.6 x 8.3 x 2.9" |
