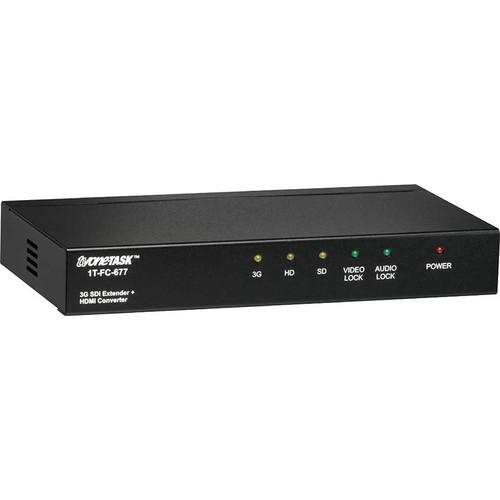

User Manual for TV One 3G-SDI Extender with HDMI Converter Click to enlarge the picture
Contents of the user manual for the TV One 3G-SDI Extender with HDMI
- Product category: Signal Converters TV One
- Brand: TV One
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TV One Signal Converters
|
User manual for the TV One 3G-SDI Extender with HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TV One product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TV One user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TV One product will considerably shorten its lifespan!
|
Product description The TV One 3G-SDI Extender with HDMI Converter allows SD-SDI, HD-SDI, and 3G-SDI signals to be displayed simultaneously on either an SDI or HDMI monitor. Offering fast signal transmission without signal loss with a high bitrate of up to 2.970 Gbit/s, the extender allows you to choose between a high-resolution SDI or a HDMI display.
In addition to featuring automatic input signal-type detection, the 3G-SDI Extender provides 2 equalized and re-clocked SDI outputs up to a distance of 300m for SD, 200m for HD, and 100m for 3G with up to 8 channels of audio de-embedding. The SDI studio channels are automatically detected and are output over HDMI as LPCM 2.0 or LPCM 7.1 audio signals. Task-locking DC power connector improves the system’s mechanical security. The 3G-SDI Extender with HDMI Converter allows conversion of SMPTE 425M B to A for 1080p signals and you can cascade multiple units for maximum flexibility. - Allows SD-SDI, HD-SDI, and 3G-SDI signals to be displayed simultaneously on either an SDI or HDMI monitor
- Fast signal transmission without signal loss with a high bitrate of up to 2.97 Gbit/s
- Allows you to choose a high resolution SDI or HDMI monitor for display
- Automatic input signal-type detection
- Provides 2 equalized and re-clocked SDI outputs up to a distance of 300m for SD, 200m for HD, and 100m for 3G
- Up to 8 channels of audio de-embedding
- SDI studio channels are automatically detected and are output over HDMI as LPCM 2.0 or LPCM 7.1 audio signals
- Task-locking DC power connector improves the system's mechanical security
- Allows conversion of SMPTE 425M B to A for 1080p signals
- Allows cascading multiple units for maximum flexibility
Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 3G-SDI Extender with HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-FC-677 Specs | Video Input | 3G, HD, SD-SDI via 1 BNC connector | | Video Output | 3G, HD, SD-SDI via 2 BNC connectors (Equalized, Re-clocked)
HDMI v1.3 via 1 HDMI connector | | De-embedded Audio | Analog stereo (R+L) via 2 RCA connectors | | Video Signal Processing | Input Signal - Auto detection of signal type
Output signal - EQ. & Re-Clocked SDI output
SDI throughput Rates - 2.970 Gb/s & 2.970/1.001 Gb/s | | Supported Video Formats | SD and HD formats (480i, 576i, 720p, 1080i, 1080p) | | Cable Distance | SDI=300m
HD=200m
3G=100m | | | | Operating Temperature | 0° to +40° C (+32° to +104° F) | | Operating Humidity | 20 to 90%, non-condensing | | Storage Temperature | -10° to +60° C (+14° to +140° F) | | Storage Humidity | 20 to 90%, non-condensing | | Warranty | 3 Years limited (parts and labor) | | Regulatory Approvals | Main unit - FCC, CE, RoHS
Power supply - UL, CUL, CE, PSE, GS, RoHS | | Dimensions (HxWxD) | 1.18 x 7.87 x 4.07" (30 x 200 x 103.5 mm) | | Weight | 1.29 lb (585g) | | Power Requirements | 5 VDC@2A, Locking DC (external power supply) | | Accessories | 1 Power adaptor US, UK or Euro
1 User manual | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 11.2 x 7.2 x 2.8" |
