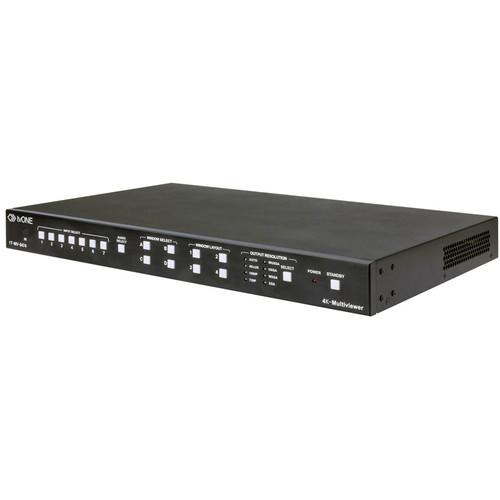

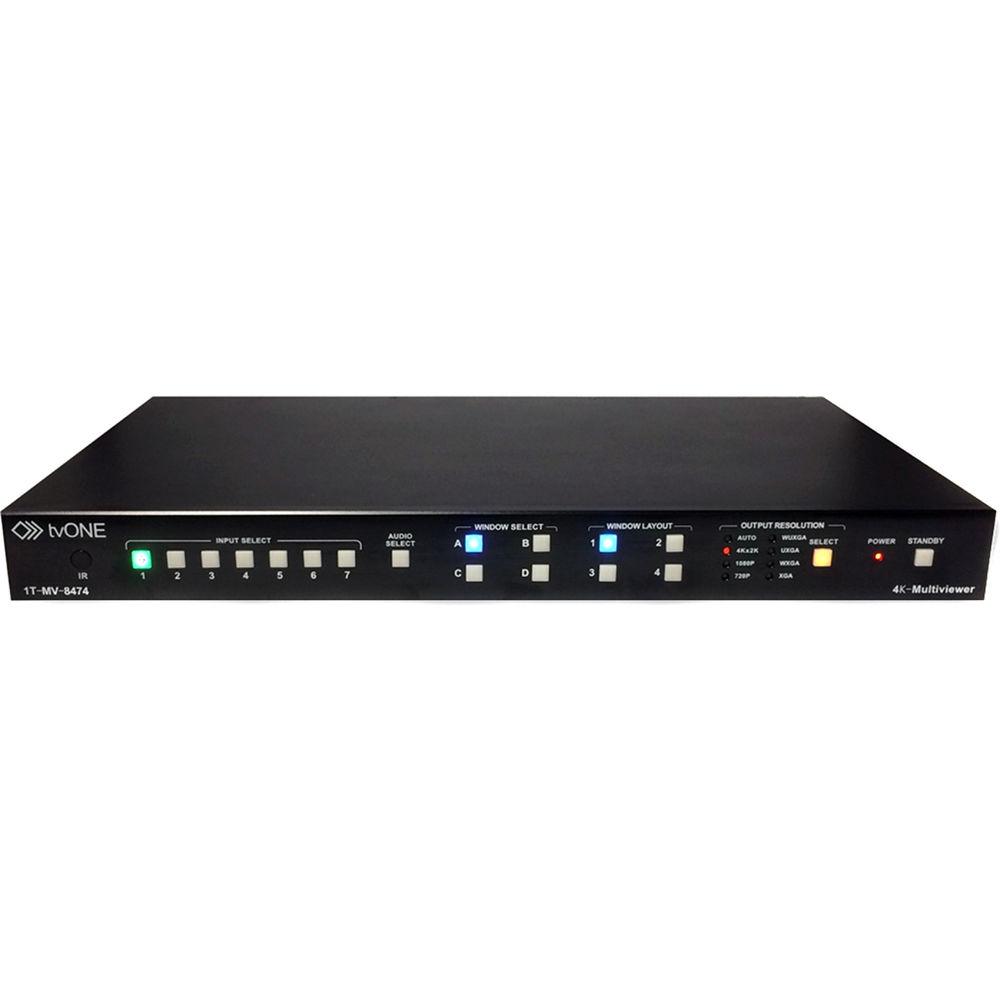

Product description Present your content in a wide variety of combinations with TV One's advanced 4K Multiviewer. Select 16 different four-window layouts via 16 presets. Layout arrangements range from straightforward ones such as quad-split, picture-in-picture, and side-by-side, to more complex multi-layer setups.
There are seven video inputs in total: four HDMI inputs, supporting up to Ultra HD 4K resolution (3840 x 2160) at 30 fps; two DisplayPort inputs, supporting up to Ultra HD 4K at 60 fps; and one VGA input, supporting up to 1080p60 and (WUXGA). There is one HDMI output which is automatically up/down-scalable and capable of up to Ultra HD 4K at 30 fps output.
In addition to the video connections, the Multiviewer features seven independent 3.5mm stereo analog audio inputs that allow you to embed/de-embed separate audio. On the output side, there's a digital TOSLINK and four 3.5mm stereo audio outputs, all simultaneously active, HDMI included. Surround 7.1 audio is supported from an HDMI source. Audio follows video and the preferred HDMI source for audio output are selectable via the system menu. The 3.5mm audio inputs and outputs are also paired within the menu.
The 4K Multiviewer is controllable via a web interface, RS-232, Ethernet, IR remote, and front panel buttons. Four of the buttons on front panel and the IR remote are assignable, allowing you to set preferred preset configurations for quick recall during presentations. The Multiviewer also offers full EDID management and audio delay and volume adjustments via the web interface, enabling you to easier integrate it into larger systems. - Key Features
-

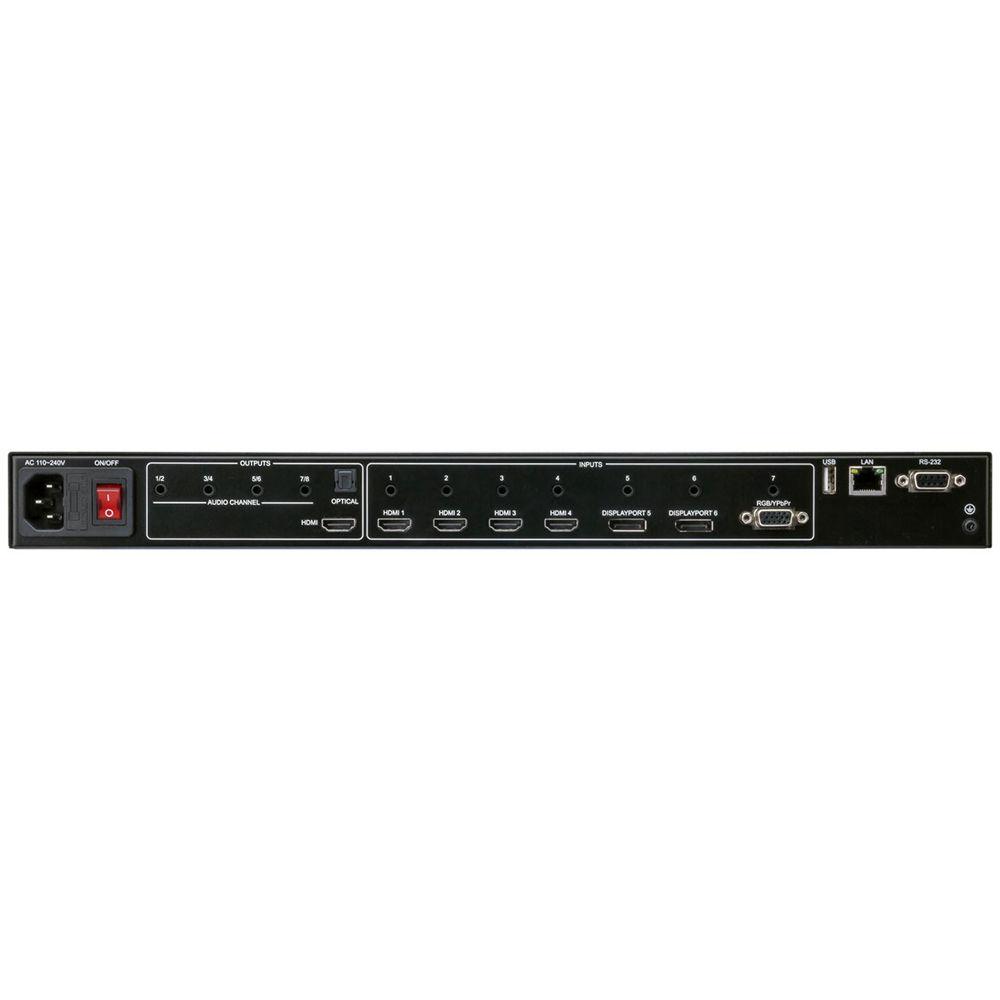

- Inputs: 4 x HDMI, 2 x DisplayPort, 1 x VGA/YPbPr, 7 x 3.5mm audio
- 4K 3840 x 2160 at 30/60 fps input via DisplayPort
- 4K 3840 x 2160 at 30/60 fps input via HDMI
- 1080p at 24/25/30/60 fps, 1920 x 1200 / 1920 x 1440 at 60 fps input via VGA
- Outputs: 1 x HDMI, 1 x TOSLINK, 4 x 3.5mm audio (simultaneous; audio follow video)
- 4K 3840 x 2160 at 30 fps, 1080p/720p at 60 fps, WUXGA/UXGA/WXGA/XGA at 60 fps HDMI output
- 16 Four-window layouts via 16 presets
- Four assignable front panel and remote control buttons
- HDCP compliant
- 4K Scaling engine—upscaling and downscaling
- 8-/10-/12-bit Color depth
- Auto-scaling, auto-detect EDID
- Audio embedding and breakaway
- 7.1 Analog and digital audio support
- Volume control and 0-400 ms audio delay via Web GUI
- IR remote, RS-232, Ethernet, and WebGUI control

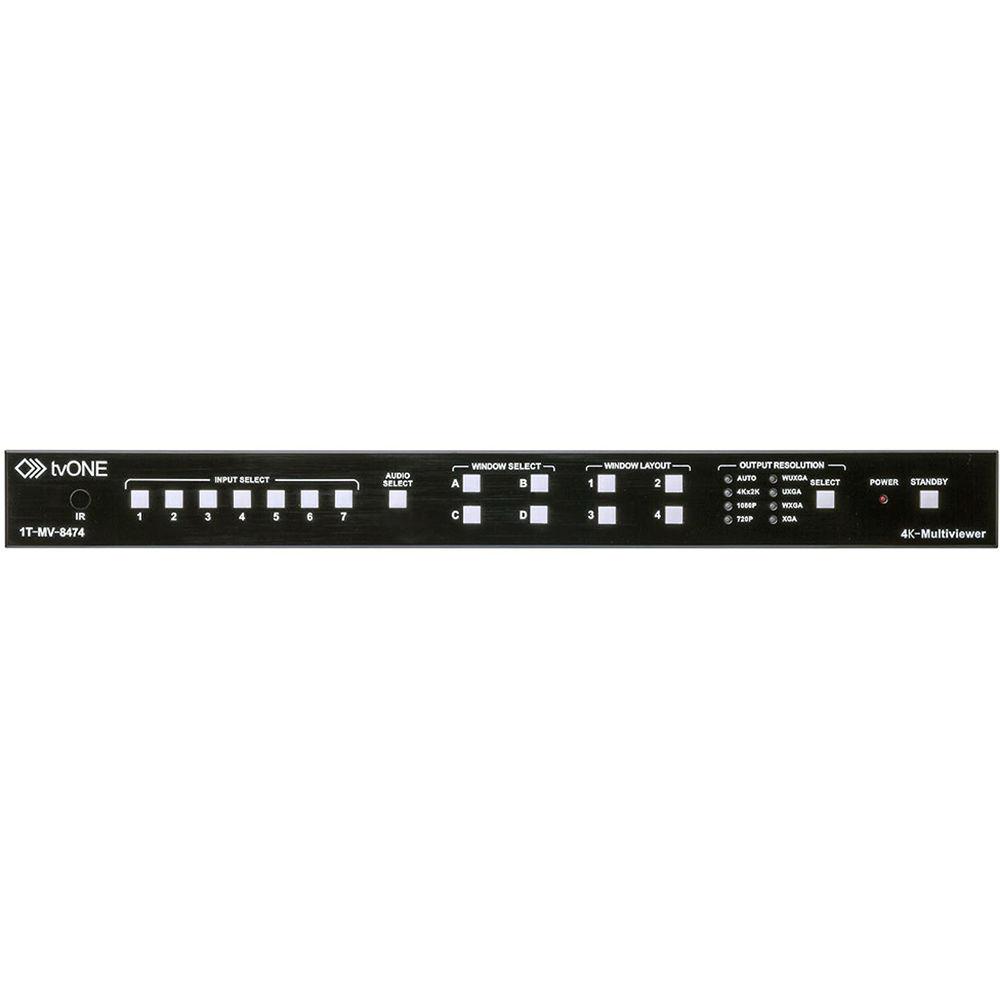

- Full front panel switching control
- Full API system control
- 1 RU Rack mountable

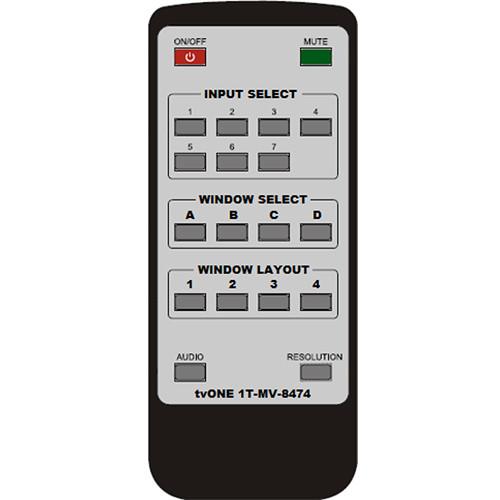

In the Box TV One 4K Multiviewer 19-Button Remote Control AC Power Cord Rack Ears Set Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 4K Multiviewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One 1T-MV-8474 Specs | Video Input Formats | HDMI, DVI, DisplayPort, RGBHV/YPrPb | | Audio Input Formats | HDMI and DisplayPort-embedded digital external analog stereo audio
20 kOhms impedance | | Video Output Formats | HDMI RGB 4:4:4 | | Audio Output Formats | HDMI-embedded digital audio
7.1 Surround analog audio, 20 kOhms impedance
TOSLINK digital optical audio (stereo) | | Format Compliance | HDMI v1.4
DVI v1.0
DisplayPort v1.2
HDCP v1.4 | | Color Depth | 8-bit / 10-bit / 12-bit | | EDID Memory | Advanced EDID utilities | | Audio Bandwidth | 20 Hz to 20 kHz | | Audio Sampling Rate | 48 kHz / 8-Ch / LPCM | | Audio Levels | Stereo Audio: Unity / nominal
Stereo Audio: 0.5 - 1.0 Vpp | | Audio Delay | User-adjustable from 0 - 400 ms in increments of 40 ms | | Video Inputs | 4 x HDMI
2 x DisplayPort 20-pin connectors
1 x 15-pin VGA, analog | | Audio Inputs | 7 x 3.5 mm Stereo | | Video Outputs | 1 x HDMI (DVI adapters supported) | | Audio Outputs | 1 x TOSLINK optical
4 x 3.5 mm Stereo
Embedded HDMI | | Resolution | Input:
DisplayPort:
3840 x 2160 / 30/60p
2048 x 1152 / 60p
1920 x 1080 / 60p
1600 x 900 / 60p
1280 x 720 / 60p
800 x 600 / 60p
HDMI:
3840 x 2160 / 24/30p
1920 x 1200 / 60p
1920 x 1080 / 24/25/30/50/60p
1920 x 1080 / 25/30i
1600 x 1200 / 60p
1600 x 1024 / 60p
1280 x 1024 / 60/75/85p
1280 x 960 / 60/85p
1280 x 768 / 60/75/85p
1280 x 720 / 50/60p
1024 x 768 / 60/75/85p
800 x 600 / 60/75/85p
720 x 576 / 50/100p
720 x 576 / 25i
720 x 400 / 25p
640 x 480 / 60/75/85p
640 x 480 / 30i
640 x 400 / 85p
640 x 350 / 85p
VGA:
1920 x 1440 / 60p
1920 x 1200 / 60p
1920 x 1080 / 24/25/30/60p
1920 x 1080 / 50/60i
1856 x 1392 / 60p
1792 x 1344 / 60p
1680 x 1050 / 60p
1680 x 1050 / 60p
1600 x 1200 / 60/65/70/75p
1366 x 768 / 60p
1280 x 1024 / 60/75p
1280 x 768 / 60/75/80p
1280 x 720 / 50/60p
1152 x 864 / 75p
1024 x 768 / 60/70/75p
848 x 480 / 60p
800 x 600 / 60p
720 x 576 / 50i
720 x 480 / 60i
640 x 480 / 75/85p
640 x 400 / 85p
Output:
HDMI:
3840 x 2160 at 30
1920 x 1080 at 60p
1920 x 1200 at 60 (WUXGA)
1600 x 1200 at 60 (UXGA)
1280 x 800 at 60 (WXGA)
1280 x 720 at 60p
1024 x 768 at 60 (XGA) | | Power | 1 x IEC C14 power connector
100 - 240 VAC / 50-60 Hz | | Power Consumption | 15 W (max) | | Control | Web interface, RS-232, Ethernet, IR remote, front panel buttons | | Material of Construction | Front Panel: 3/8" (10 mm) Aluminum alloy with black finish
Chassis: 1/32" (1 mm) Pressed steel with matte black finish | | Regulatory Compliance | Main Unit: FCC, CE, RoHS | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (−20 to 60°C) | | Operating Humidity | 20 to 90% Non-condensing | | Dimensions | Without Feet or Ears: 1.7 x 17.3 x 11.0" (4.4 x 44.0 x 28.0 cm)
With Feet: (H) 2" (5 cm)
With Ears: (W) 19" (48 cm) | | Weight | 7.3 lb (3.3 kg) | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 20.5 x 12.9 x 4.8" |
