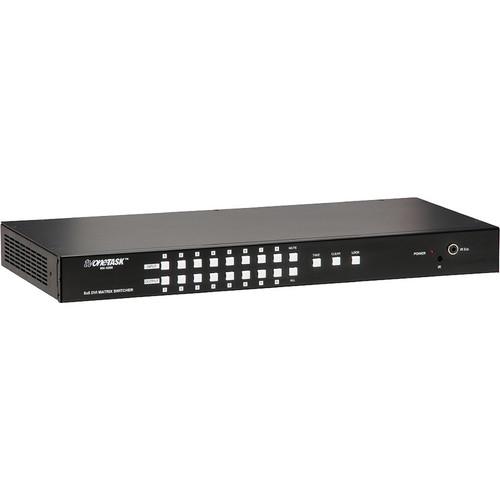

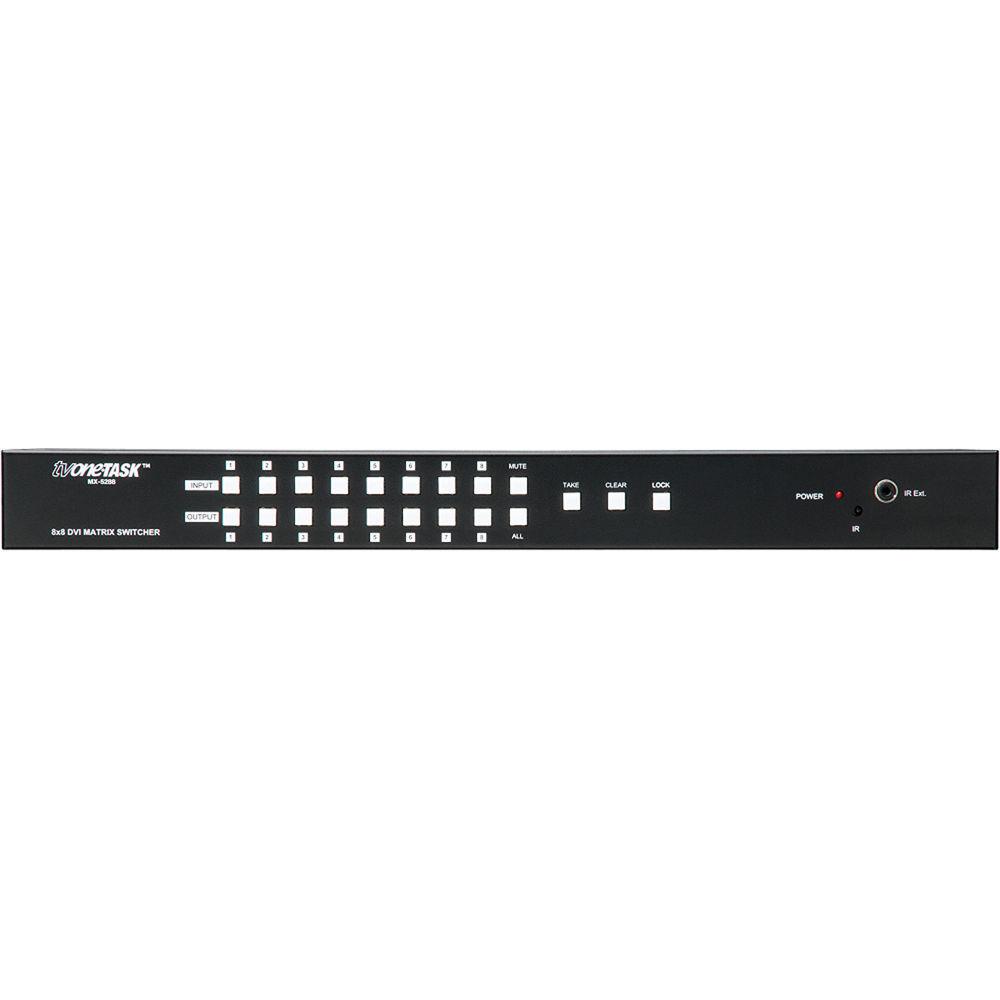

Product description The Autocue 8x8 DVI Matrix Switcher routes 8 DVI source signals to 8 different destination devices. Any combination of inputs and outputs is supported, with video buffering ensuring a clean signal transmission with no cross talk. Supported resolutions for both inputs and outputs are 480p through 1080p HDTV for video signals and VGA (640x480) through WUXGA (1900x1200) for PC signals.
For consistent reliability and performance, this switcher process each input at full bandwidth using single link, 165 MHz (4.95Gpbs) circuitry. An internal memory module automatically resets the switcher to the last I/O configuration following the restoration of power after the loss of electricity. The included IR remote offers convenient access to all system functions. Device control is also possible via the switcher's RS-232 and Ethernet connections. This switcher readily installs in a 1U rack space using the included rack mount hardware. - 8x8 matrix DVI signal switching
- VGA through WUXGA signals are supported
- Supports monitor EDID cloning
- Buffered video signal handling
- Supports 480p to 1080p HDTV and VGA to WUXGA resolutions
- Convenient operation with included IR remote control
- Supports RS-232 and Ethernet control
In the Box TV One 8x8 DVI Matrix Switcher AC Power Cable (US) IR Remote Control Rack Mount Kit Operations Manual 3 Years Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One 8x8 DVI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

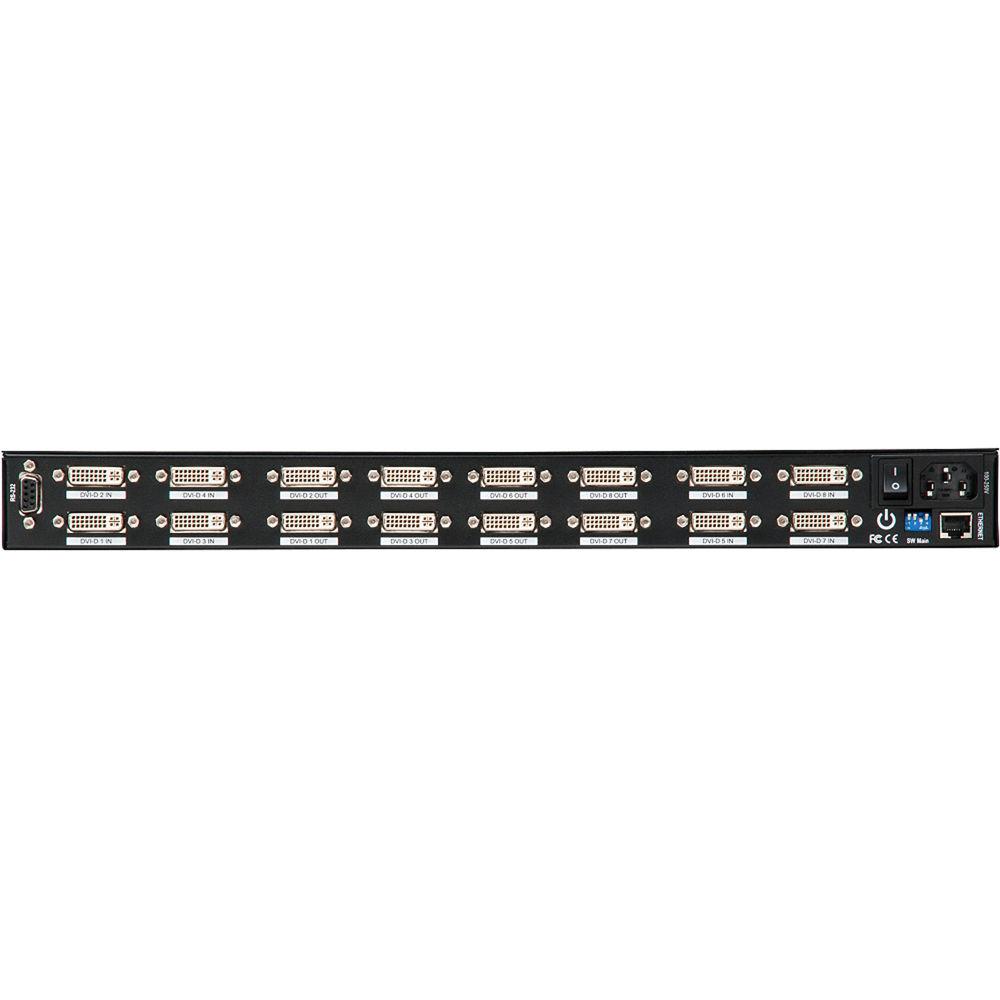

Technical parametersTV One MX-5288 Specs | Inputs | DVI-D Video: 8x DVI-I female connectors | | Outputs | DVI-D Video: 8x DVI-I female connectors | | Resolution | 480p through 1080p
VGA through WUXGA | | Signal | DVI-D (w/o HDCP) | | Video Processing | Single-Link, 165MHz, 4.95Gbps | | Control | Local Front Panel, plus Remote by IR, RS-232, Ethernet | | EDID | EDID Capability: standard monitor resolutions | | Environmental | Operating temperature: 32 - 104°F (0 - 40°C)
Storage temperature: -4 - 140°F (-20 - 60°C)
Operating/storage humidity: 20 - 90%, non condensing | | Power Requirement | 100-250VAC, 50-60Hz, 60W | | Regulatory | Switcher Units: FCC, CE, RoHS Power Supplies: UL, CUL, CE, PSE, GS, RoHS | | Dimensions (HxWxD) | 1.8 x 17 x 7.9" (44 x 440 x 200mm)
1.8 x 19 x 7.9" (44 x 482 x 200mm) - with rack ears | | Weight | 7.2 lbs (2.6 kg) | | | | Package Weight | 8.3 lb | | Box Dimensions (LxWxH) | 20.75 x 15.0 x 6.25" |
