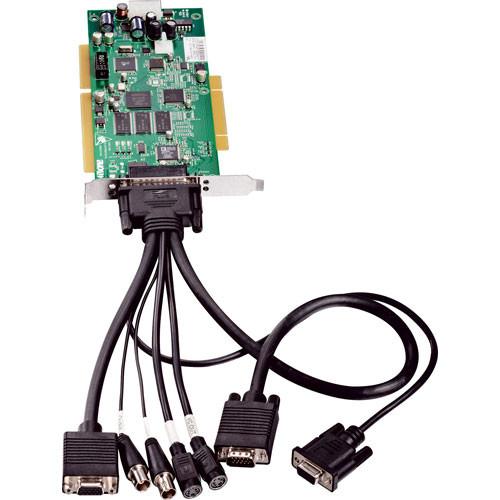

User Manual for TV One C2-160 PCI ISA Card Down Converter Click to enlarge the picture
Contents of the user manual for the TV One C2-160 PCI ISA Card
- Product category: Signal Converters TV One
- Brand: TV One
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TV One Signal Converters
|
User manual for the TV One C2-160 PCI ISA Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TV One product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TV One user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TV One product will considerably shorten its lifespan!
|
Product description The C2-160 PCI/ISA Card Down Converter from TV One is a down converter that provides high-quality scan conversion from computer or HDTV signals to standard video formats. It will manage computer resolutions up to 2048 x 2048 at any vertical refresh rate and all HDTV resolutions up to 1080p. Video output can be switched between NTSC and PAL and is simultaneously provided in composite and S-Video. This unit also features a PC loop-thru. It is made to be installed in a vacant PC slot and receives its power from a standard hard drive connector within the PC.
This unit's exclusive AutoSet feature automatically sizes and positions the computer image to fit exactly on the video screen. All settings can be stored in non-volatile memory and are retained even when power is turned off. This unit can be controlled via an infrared remote control or an RS-232 connection. Additionally, an on-screen display is available to assist in setup while a Windows control panel is provided and will work with most third-party control systems.
A variable zoom feature allows you to enlarge any part of the computer screen up to 10x. A variable shrink feature allows you to shrink the image to as little as 10% of its original size, ensuring that you can fit it on most displays. Advanced digital flicker elimination circuitry and a high sampling rate help to ensure a crisp picture. Moreover, full bandwidth chroma sampling ensures faithfully reproduced colors.
Other advanced features included genlock, chromakey, and lumakey. A key mode allows computer graphics to be keyed over an external composite of S-video signal and this image may be faded in or out. Because of its 4:4:4 sampling format, precise keying at the pixel level is also possible. A mix mode permits glitch-free mixing between computer image and external video, while a PIP mode allows the computer input to be inset in a window over either of the video inputs.
This product features TV One's CORIO2 technology, a proprietary chipset that provides functionality for future upgrades. This video processing engine is entirely firmware based, meaning that when upgrades or updates become available; you only need to upgrade the firmware on your unit to benefit from this new technology. - Down Conversion from Computer & HDTV to Standard Video Formats
- This down converter card provides high-quality scan conversion from computer or HDTV signals to standard video formats
- Multi-Resolution Support
- Manages computer resolutions up to 2048 x 2048 at any vertical refresh rate and all HDTV resolutions up to 1080p.
- Multi-Format Support
- Video output can be switched between NTSC and PAL and is simultaneously provided in composite and S-Video.
- Installation
- This card is made to be installed in a vacant PC slot and receives its power from a standard hard drive connector within the PC.
- Automatic Sizing
- The unit's exclusive AutoSet feature automatically sizes and positions the computer image to fit exactly on the video screen.
- Non-Volatile Memory
- All settings can be stored in non-volatile memory and are retained even when power is turned off.
- Controls
- Unit can be controlled via an infrared remote control or an RS-232 connection. Additionally, an on-screen display is available to assist in setup and a Windows control panel is provided and will work with most third-party control systems.
- Advanced Features
- Includes variable zoom, variable shrink, genlock, chromakey, lumakey, key mode, picture in picture, and mix mode functionality, among many other advanced features.
- CORIO2 Technology
- Product features TV One's CORIO2 technology, a proprietary chipset that provides functionality for future upgrades.
In the Box TV One C2-160 PCI/ISA Card Down Converter Card Breakout Cable (HD-44 to Various Connectors) Control Software Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TV One C2-160 PCI ISA Card Down Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTV One C2-160 Specs | Computer Input | VGA Video: 1x HD-15 Male Connector
Signal Type: Analog RGBHV, RGBS, RGsB, YpbPr
Sync TTL Level: 10KΩ, Pos or Neg
Termination: Auto-terminating into 75Ω
R-G-B Level Range: 0.5-2.0 Vp-p
Scan Rate Detection: Automatic
PC Resolutions: Any up to 2048x2048
HDTV Resolutions: Any up to 1080p
Max Horiz Scan Rate: 150KHz | | Video Input | Composite Video: 1x BNC Connector
S-Video: (YC) 1x 4-Pin Mini-DIN Connector
Standards Supported: NTSC, PAL
Impedance: 75Ω
CV/YC Decoder: 8-bit Digital
Comb Filter Decoding: Adaptive
CV, YC Adjustments: Contrast, Bright, Saturation, Hue
Sub-carrier Lock Range: +/-200Hz NTSC, +/-250Hz PAL
Sub-Carrier Phase: +/- 180 degrees | | Video Output | Composite Video: 1x BNC Connector
S-Video: (Y/C) 1x 4-PIN Mini-DIN Connector
Computer Loop-thru: 1x HD-15 Female Connector
Television Standards: NTSC, PAL
Impedance: 75Ω
CV/YC Encoder: 8/10 bit Digital | | Operational Modes | Key: Chromakey or Lumakey
Mix: Mix PC To/From Video
PIP: Variable Window Size & Pos. | | Advanced Features | Pix Size and Position: Automatic, AutoSet, or Manual
Image Size: User-Definable Presets
Image Freeze: One Video Frame
Settings Memory: Non-Volatile
Zoom Range: Variable to 10X Zoom
Shrink Range: Variable to 10%
Image Mirroring: Horizontal and/or Vertical
Horizontal Filtering: Full Digital
Conversion Technology: Proprietary CORIO2
Color Resolution: 24-bit (16.8 Million Colors)
Sampling Rate: 108MHz
Digital Sampling: 24-bit, 4:4:4 format
Firmware Memory Flash: Upgradeable via RS-232
Video Adjustments: R-G-B Levels | | Controls | Front panel, IR remote control, RS-232 | | Standards | FCC, CE, CSA, RoHS | | Operating Requirements | Empty PC slot with disk drive connector for power | | Power | 12VDC @ 800ma via hard drive connector | | Dimensions (WxD) | 4 x 8" (100 x 204mm) | | Weight | 0.3 lbs (135g) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 10.1 x 7.6 x 4.8" |
