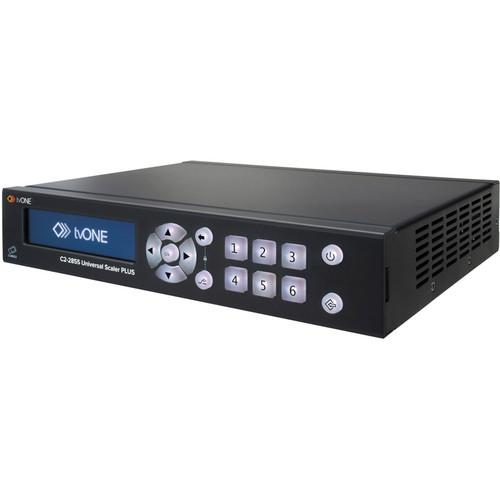

TV One C2-2855 Universal Scaler PLUS

User Manual for TV One C2-2855 Universal Scaler PLUS

• Product category: Signal Converters TV One
• Brand: TV One
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for TV One Signal Converters

Product description

Flexible Inputs and Outputs
• The C2-2855 features inputs and outputs to cover just about any scenario:
  • Inputs: SDI with 3G-SDI, HD-SDI, and SD-SDI support (supports level A and level B HD-SDI), HDMI, VGA , composite, DVI-U, a stereo 3.5 mm mini jack audio input, and three analog audio inputs on terminal connectors
  • Outputs: SDI with 3G-SDI, HD-SDI, and SD-SDI support, HDMI, composite, DVI-U, and one analog audio on a terminal connector
  • DVI-U: DVI-U is a combo connector that will pass HDMI, DVI, VGA, component, or composite video signals as well as embedded audio where applicable. An adapter will be required to connect any devices that do not use DVI connectors

Auto-Switching
• The Auto-Switching function allows the user to connect video source and have its image automatically displayed on screen without having to press any buttons. The incoming resolution is quickly detected and analyzed, meaning within a few seconds the user is up and running and ready to present. This is particularly useful in situations where there is little or no technical supervision, such as in meeting rooms, medical environments, teaching spaces, or live staging events

  Note: Please ensure you are updated to the latest firmware to enable this feature

Remote Control Options
• In addition the built-in OLED screen and OSD menu system provided for local operation, RS-232 and IP control are supported by C2-2855. RS-232 allows third-party wired remotes and control systems to be used; while IP control allows the device to be operate from a computer connected to the same network. Control and configuration software for Windows is included

Advanced Features
• • Keying: Allows one input to be keyed over a second input. The keyed image may be faded in and out. Precise keying at the pixel level is possible due to 4:4:4 sampling format when using RGB video sources
  • Transitions: Permits Seamless Cut, Fade or Wipe transitions when switching between input sources
  • Picture-In-Picture (PIP): y allows an input to be inset in a window over a second input or vice versa; the PIP window may be placed anywhere on the screen
  • Genlock: Synchronizes video sources internally to ensure seamless switching

Audio Features
• Switching: An internal routing switcher allows any one of the four analog audio inputs to be routed to the analog audio output regardless of impedance. Each audio input is assigned to a video input allowing audio to follow video when switching
• Embedding and De-embedding: Embedded Audio Support allows any audio input to be embedded on all outputs which support embedded audio data (HDMI, DVI-U, and SDI)

Image Processing Features
• • Size and Position: Automatic via Calibrate or Manual
  • Image Size: User-definable presets
  • Image Freeze: One video frame
  • Settings Memory: Non-Volatile
  • Zoom Range: Variable to 10x Zoom
  • Shrink Range: Variable to 10%
  • Image Mirroring: Horizontal and/or vertical
  • Horizontal Filtering: Full digital
  • Conversion Technology: CORIO2
  • Framerate Conversion: Temporal
  • Color Resolution: 24-bit (16.8 million colors)
  • Sampling Rate: 162 MHz
  • Digital Sampling: 24-bit, 4:4:4 or 4:2:2 format depending on input source
  • Firmware Memory: Flash upgradeable via RS-232 or IP
  • Video Encoder and Decoder: 8-bit digital
  • De-Interlacing (NTSC/PAL): Pixel-level motion adaptive, diagonal Interpolation
  • Film Mode (NTSC): 3:2 pulldown
  • Maximum Latency: 1 to 2 frames
  • Video Adjustments CV/YC: Contrast, Brightness, >Saturation, Hue (NTSC), Analog RGB/YPbPr levels

Additional Features

• Non-volatile setting memory: settings survive even if device is unplugged

• 24-bit internal color resolution

• 8-bit video encoder / decoder

• Motion compensation and 3:2 pulldown

• Temporal and diagonal interpolation

• Automatic incoming resolution detection

• Less than two frames latency

• 4:4:4 full bandwidth chroma sampling of RGB sources; 4:2:2 sampling of SDI, YC, and CV sources; HDMI and component support for either 4:4:4 or 4:2:2 sampling

• Rackmoutable form factor with rackmouting kits sold separately. One or two units can be placed in a single rack space
